The Ferrofish PULSE16 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups. With 16 high-quality balanced analog inputs and outputs, it ensures precise and clean signal conversion. The PULSE16 AE offers full visual control via its vibrant front-panel displays, simplifying real-time monitoring and configuration.
Built to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a 19″ 1HU rack form factor.
Intuitive Visual Monitoring

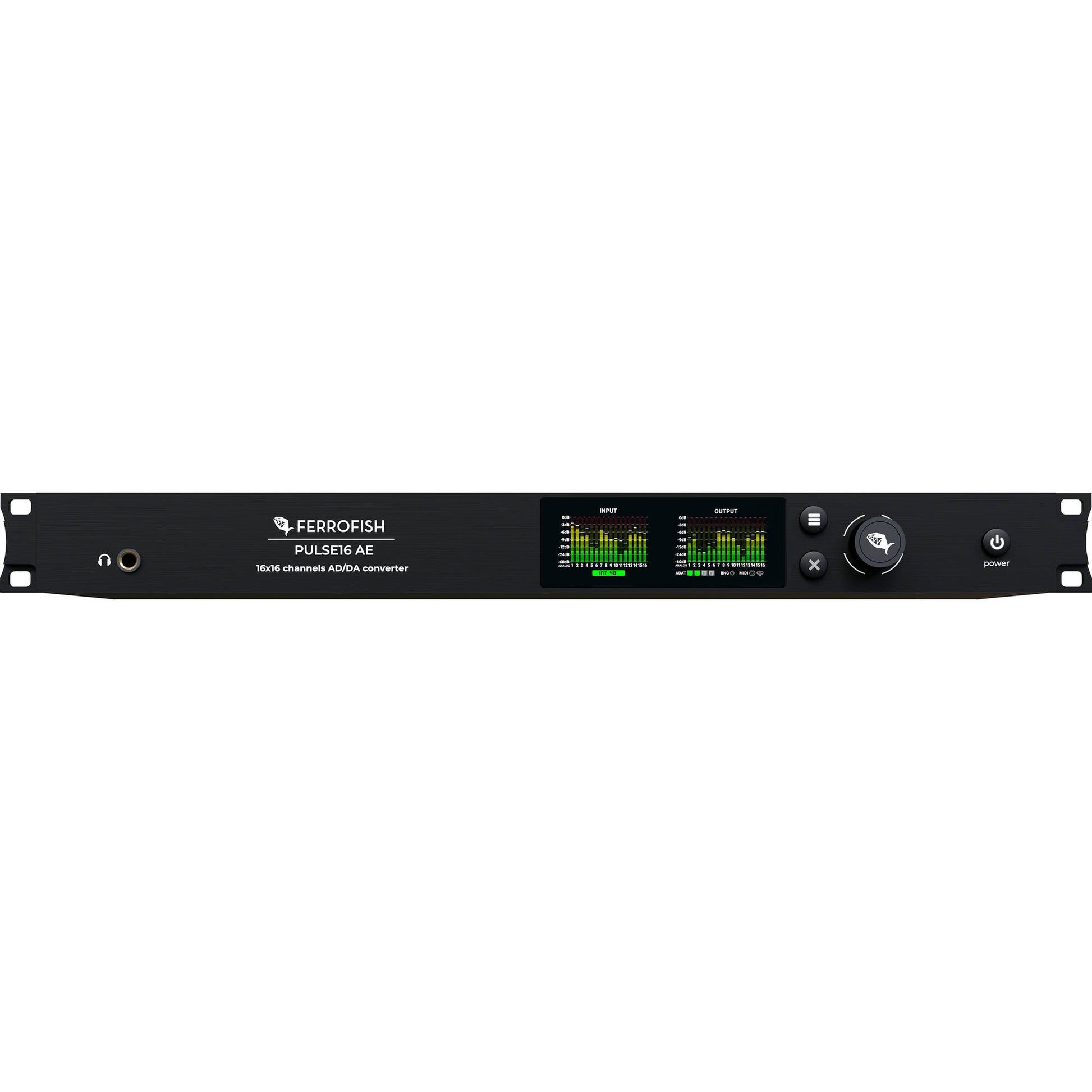

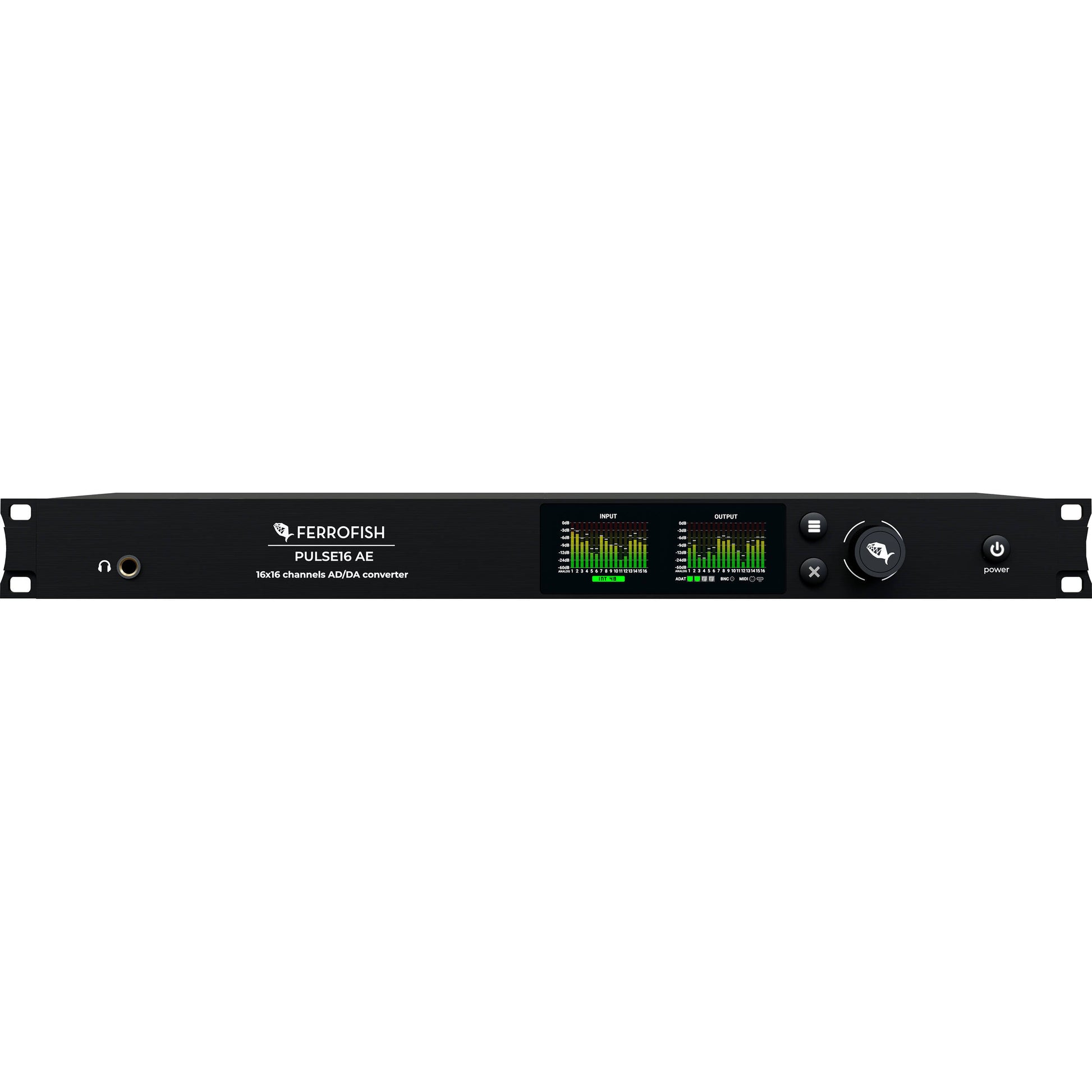

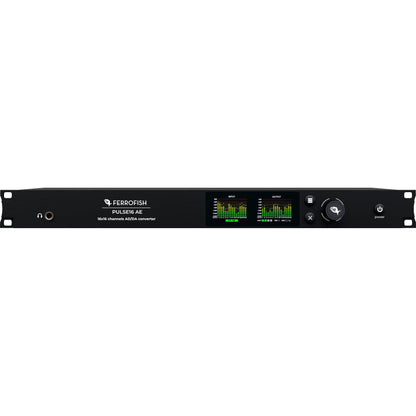

The high-resolution front panel display provides immediate visual feedback of all input and output signals, offering professional-grade metering and system status at a glance. Multi-colored level meters ensure precise level monitoring in any environment.
Premium Conversion Architecture
Experience pristine audio quality through carefully selected ESS converters and temperature-compensated clock design. The PULSE16 AE maintains Ferrofish's reputation for exceptional sound quality, delivering crystal-clear conversion up to 192kHz with professional +20dBu headroom.
Professional Remote Control
Take command of your audio routing and settings through the comprehensive RemoteFish software for Mac and PC. The USB-C connection provides instant access to all parameters, while MIDI I/O enables integration into larger systems and ensures easy firmware updates for continued improvement.
Flexible Integration Hub
Beyond simple conversion, the PULSE16 AE serves as a versatile routing solution with its comprehensive ADAT connectivity and word clock synchronization options. The unit seamlessly bridges analog and digital domains, making it an ideal centerpiece for both studio and live applications.
Advanced Headphone Monitoring
The dedicated headphone output, powered by a separate ESS DAC, delivers exceptional monitoring capabilities with precise 1dB-step volume control. Four-stage amplification ensures compatibility with any headphone impedance, making it perfect for critical listening and tracking sessions.
Future-Proof Expandability
Thanks to its modular design, the PULSE16 AE is ready for tomorrow's challenges with DSP expansion capability. The optional DSP stick slot allows for future processing power upgrades, protecting your investment while offering a path to enhanced functionality.
| Product Name | Ferrofish Pulse16 AE 16x16 AD/DA Converter with ADAT |
|---|---|
| Brand | Ferrofish |
| Condition | New |
| MPN | PULSE16AE |
| UPC | 4262522730186 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Ferrofish Pulse16 AE 16x16 AD/DA Converter with ADAT
- Power Supply

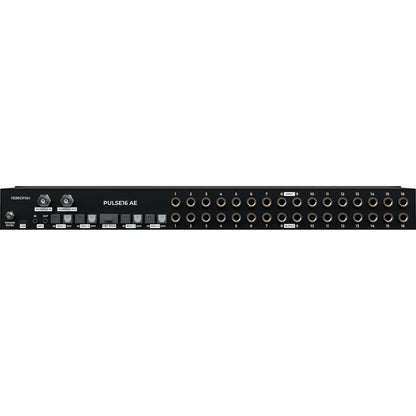

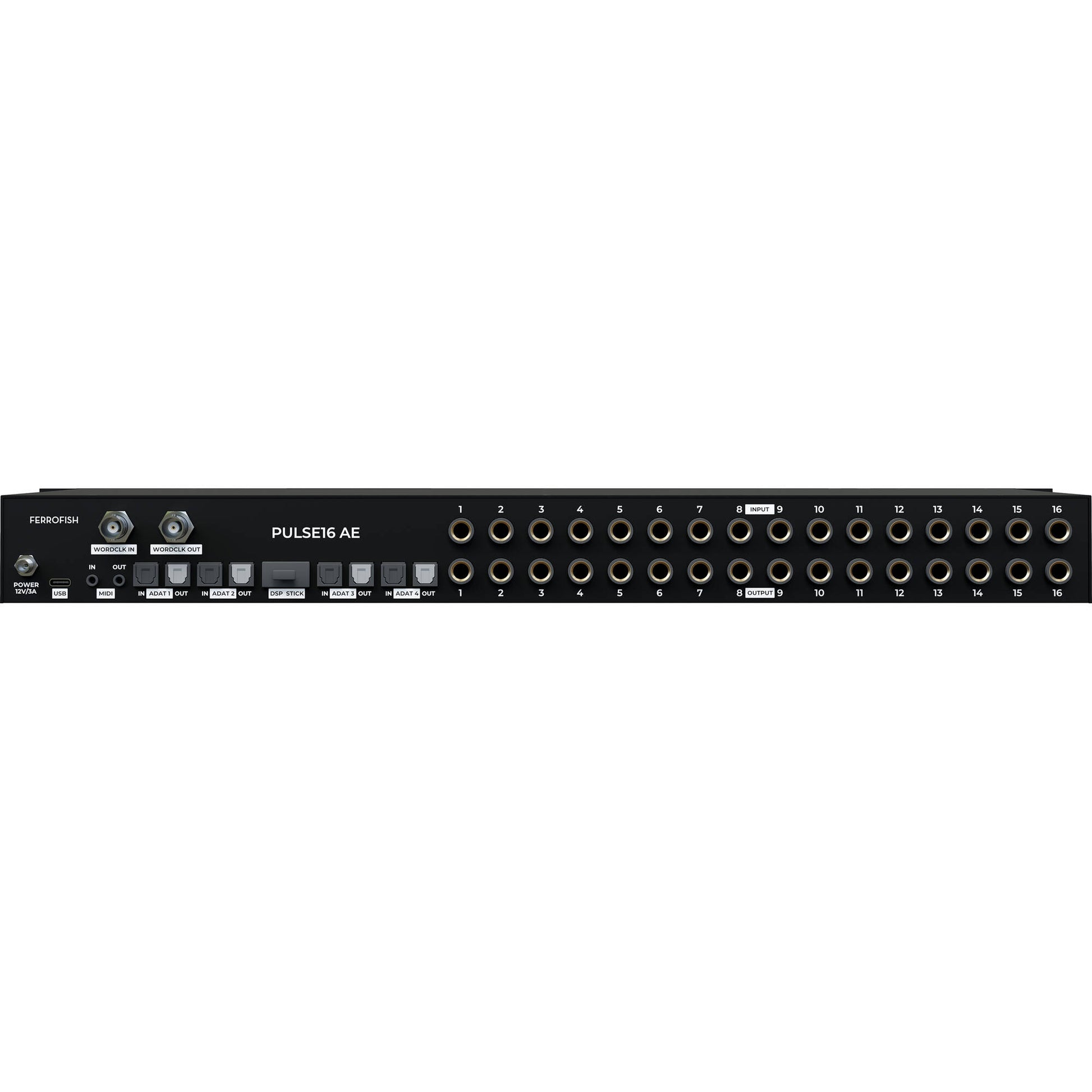

Analog I/O |
|
|---|---|
| Inputs | 16 × Balanced TRS (1/4" / 6.3 mm) |
| Outputs | 16 × Balanced TRS (1/4" / 6.3 mm) |
| Headphone Output | 1/4" / 6.3 mm Jack |
ADAT Connectivity |
|
| ADAT Ports | 4 × ADAT Input, 4 × ADAT Output |
| SMUX Support | 32 Channels @ 48 kHz 16 Channels @ 96 kHz 8 Channels @ 192 kHz |
Clocking |
|
| Word Clock | Input and Output (BNC) |
| Clock Source | Internal High-Stability Clock or External Sync via ADAT or Word Clock |
Routing |
|
| Channel Routing | Per-Channel Routing |
Signal Monitoring |
|
| Displays | High-Resolution Front-Panel Displays for Input and Output Levels |
| Metering | Multi-Colored LED Meters |
Controls & Connectivity |
|
| User Interface | Front-Panel Control Knob and Buttons |
| USB | USB-C |
| MIDI | TRS-MIDI Type A, MIDI CC Remote Control, Firmware Updates |
| Remote Software | Compatible with RemoteFish Software |
Headphone Output |
|
| Connector | 1/4" / 6.3 mm Jack |
| Amplification | Adjustable in Four Stages |
| Volume Control | Digital, 1 dB Resolution |
| Supported Impedance | 15 – 600 Ω |
| Dedicated DAC | ESS ES9023 |
Digital-to-Analog Conversion (DAC) |
|
| DAC Chip | ESS ES9017 |
| Resolution | 32-Bit / 192 kHz |
| DNR | 120 dB |
| THD+N | −110 dB |
| Output Impedance | 110 Ω |
Analog-to-Digital Conversion (ADC) |
|
| ADC Chip | ESS ES9840Q |
| Resolution | 32-Bit / 192 kHz |
| DNR | 116 dB |
| THD+N | −108 dB |
| Input Impedance | 6 kΩ |
Clock & PLL |
|
| Internal Word Clock | 125 MHz High-Precision Oscillator |
| Initial Accuracy | ±1.5 ppm |
| Temperature Drift | ±2.5 ppm |
| Aging | ±1 ppm |
| PLL | Digitally Controlled with Active Jitter Reduction |
Power |
|
| Voltage | 12 V DC / 3 A |
| Power Consumption | 12 VA (Nominal), < 1 VA (Standby) |
| Connector | 2.54 mm Barrel Jack with Locking Screw (Center-Positive) |
| Fuse | Internal Polyfuse, Self-Resetting |
Operating Conditions |
|
| Temperature Range | +5 °C to +45 °C |
| Humidity | < 75%, Non-Condensing |
Form Factor |
|
| Rack Size | 19" / 1U |
| Dimensions | 50 × 4.4 × 19 cm |
| Weight | 2 kg |
