Fryette PS-100 Power Station 100W Dual-Mode Reactance Amplifier

Fryette PS-100 Power Station 100W Dual-Mode Reactance Amplifier

On order with the manufacturer!

View full details Liquid error (sections/main-product line 888): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Tech Specs

The PS-100 is a 100-watt version of the award-winning Power Station® PS-2.

With two sets of foot switchable front panel controls and a foot switchable FX loop, the PS-100 is designed to be transparent, user friendly, reliable and ultra-responsive to a wide array of guitar amplifier and speaker types. It also integrates seamlessly with any combination of internal and external speaker configurations.

The PS-100 also excels as a power booster, something that no other attenuator can do. Just as a big amp can be connected to reduce output volume, the PS-100 can also be used to boost the output of a small amplifier. Imagine taking a mini-amp or small vintage combo to a gig with enough power to be heard without sacrificing feel and tonal quality. It is not only possible, but easy and fun!

Finally, the PS-100 functions as a versatile silent reactive load for direct recording by simply connecting the Balanced or Unbalanced Line out to a recording interface.

Fryette's Integrated Reactance Amplifier® is an easy to use, tunable reactive load coupled to a vacuum tube power amplifier that fine tunes amplifier response which then drives a speaker cabinet.

If users have ever used a resistive or inductive attenuator, they have already experienced the loss of tone and dynamics of an amplifier at various volume settings. They are already frustrated with the typical 3dB step switch that always seems one step too loud or one step too quiet. If they've used a solid state powered attenuator, they've already experienced the flat speaker cab response and finicky effects loop function that never seems to be the perfect level.

The Power Station® solves all of those problems in one convenient, lightweight product that sits neatly on top of any head or combo amplifier.

It serves as:

1) An attenuator for controlling the volume of high powered amplifiers with none of the drawbacks of a conventional attenuator.

  • Perfectly preserves the tone of the attenuated amplifier at any volume setting down to whisper level.
  • Preserves the dynamic feel and speaker response at any volume.
  • Allows users to extend the voicing of any amplifier - a vintage amp can sound more modern, a modern amp more vintage, a dull sounding amp more alive, and a "spongy" amp can sound tighter, etc.
  • Provides a post distortion effects loop for any amp whether or not it already has one.
  • Provides an unbalanced line out for any amp whether or not it already has one.
  • Completely safe for any amplifier.
  • Choose 4, 8 and 16 ohms separately for both the amplifier and cabinet matching. No more nerve-wracking impedance mis-matching that could damage an amplifier.
  • Compact and easy to carry, sit on top of an amp head, combo or desktop.
  • Silent direct recording via unbalanced out.

2) A power booster for low powered amps.

  • Can attenuate or boost the output of a lunchbox amp.
  • Any small amp, Tiny Terror, Tweed Champ, AC15, Princeton, etc., can cut a live gig with a full band with all original tone intact.
  • Allows users to extend the voicing of the amplifier - crank a mini amp to the threshold of destruction, then add top, bottom and volume to taste.
  • Silent direct recording via unbalanced out.

3) A high quality adjustable reactive load for silent recording.

Power Station can also perform as:

  • A post distortion effects loop for any amp that doesn't have one.
  • A mono power amplifier for guitar preamps, floor preamps and modeling preamps.
  • An effects power amp for Wet/Dry amp rig.
  • An onstage monitor power amp for live modeling direct to FOH system.
  • A desktop power amp for adding tube power sound to direct recording for any instrument or signal source.

The Power Station provides every guitar player a variety of performing and recording solutions for every kind of playing or performing application or environment.

More Information
Product Name Fryette PS-100 Power Station 100W Dual-Mode Reactance Amplifier
Brand Fryette
Condition New
MPN PS-100
UPC 851473006347
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Fryette PS-100 Power Station 100W Dual-Mode Reactance Amplifier
  • Power Cable
  • Output: 100W of pure tube power @ 4, 8 and16 ohms
  • Tubes: One 12AX7; two 6550 (Matched Pair)
  • Power Handling Capacity of Reactive Load (Max continuous): 200W @ 2/4 Ohms; 150W @ 8 Ohms; 200W @16 Ohms
  • Output Impedance: 2/4, 8 or 16 Ohms, selectable
  • Load Amp Impedance: 2/4, 8 or 16 Ohms, selectable
  • Can drive a 2 Ohm speaker load, using the 2/4 Ohm setting
  • Active safety bypass feature disables internal power amp and maintains critical load on your amplifier if speaker output jack is accidently unplugged

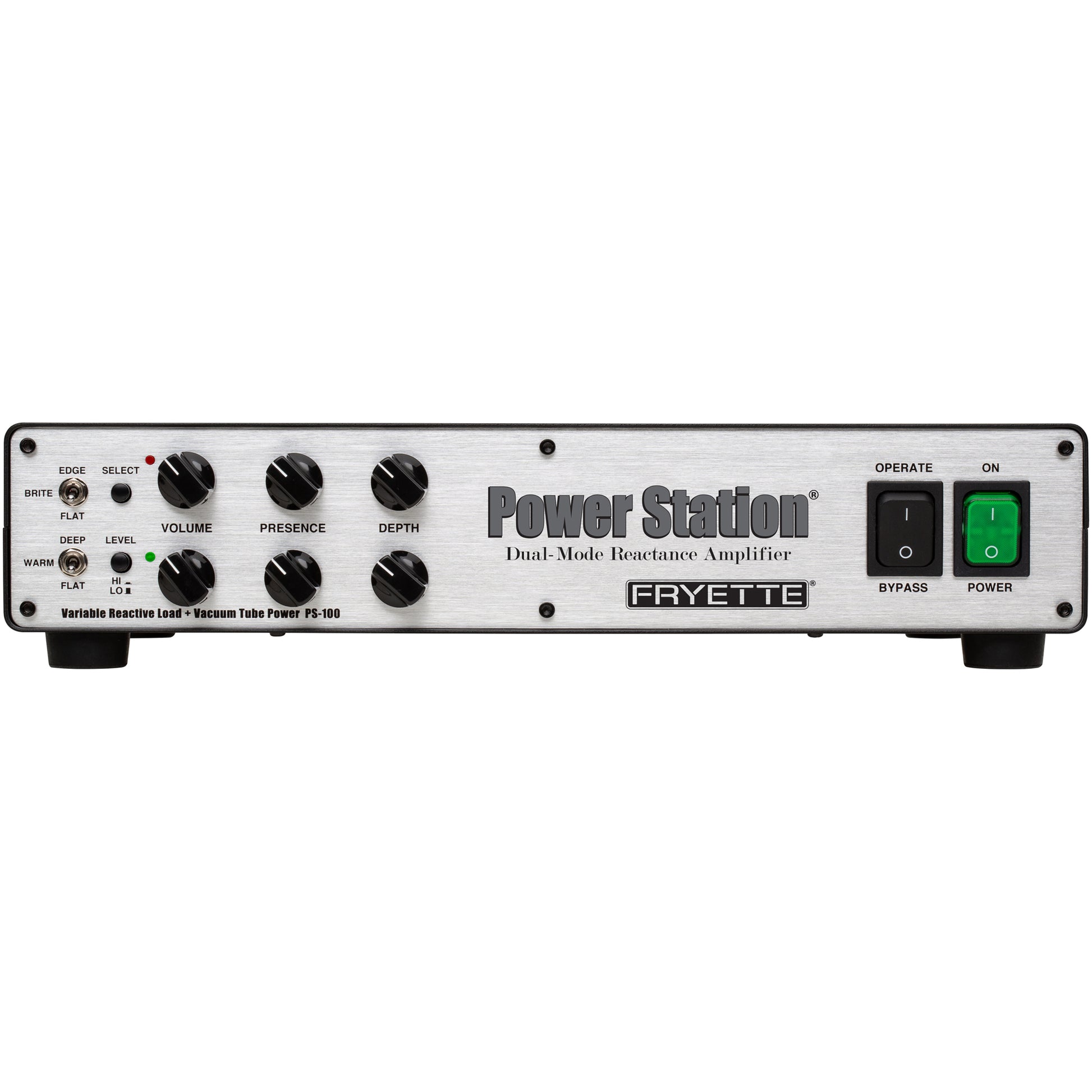

  • Front panel controls: A/B Select switch, Hi/Lo Input Level switch, High frequency response switch - Flat, Brite, Edge, Low frequency response switch - Flat, Warm, Deep, Volume, Presence and Depth controls, Bypass (standby) switch, Power switch

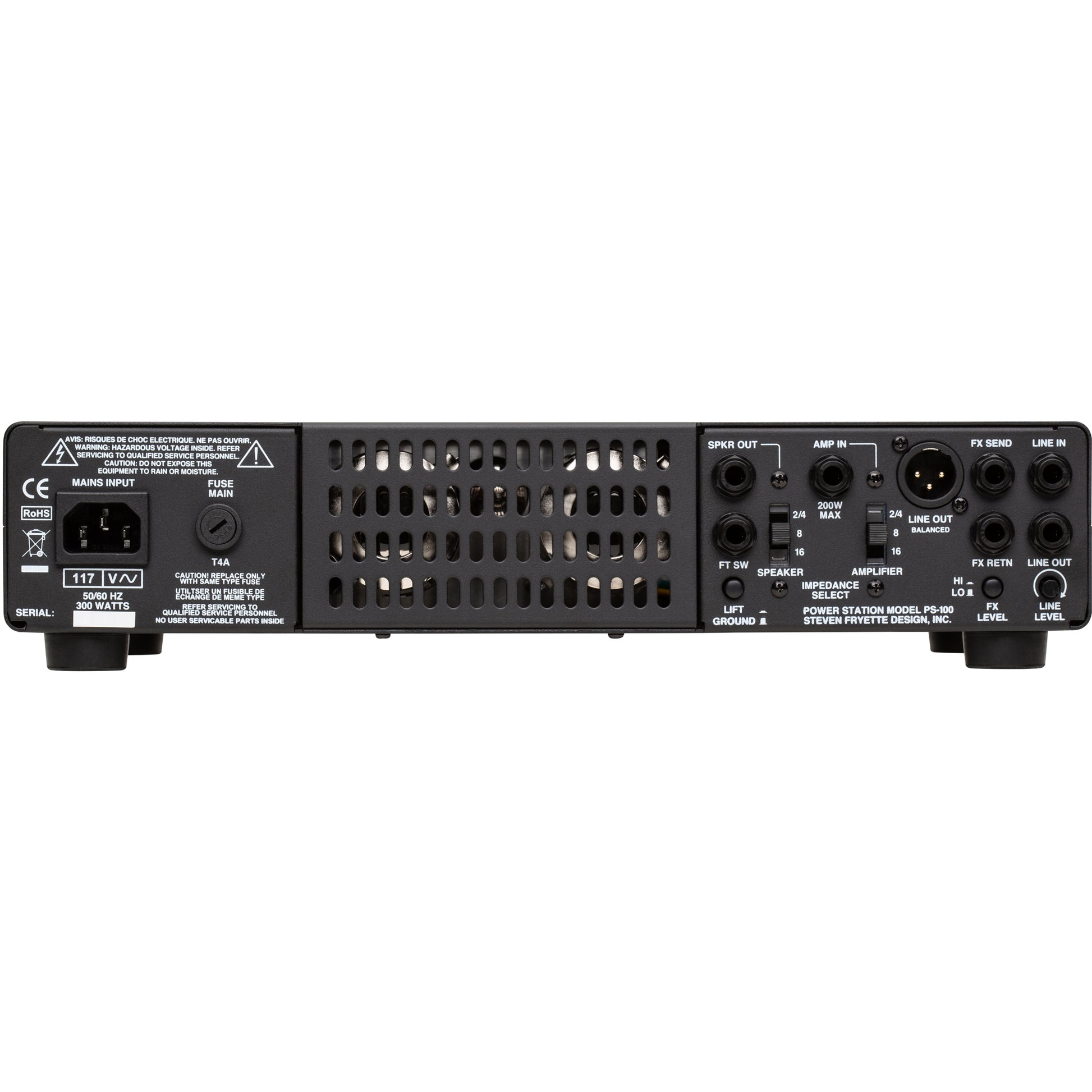

  • Rear panel features: Amp In, Amplifier Impedance select – 2/4, 8 or 16 Ohms, Balanced Line Out XLR with Level Control, Unbalanced 1/4” Line Out, FX Send, FX Return, FX Level Switch, Unbalanced 1/4” Line In, Speaker Impedance select 2/4, 8 or 16 Ohms, Speaker Out, Remote Footswitch jack, Ground Lift, Mains Fuse, AC Input
  • Carry bag and rack kits are available and sold separately
  • Dimensions: 14 x 2.75 x 9 in.
  • Weight: 16 lbs

General

Model POWER STATION 100
Model Number PS-100.

Power

Power Requirement 300W
Power Amp Output 100W RMS @ 5% THD, 1kHz sine into 8Ω

Connectivity

Input Impedance 2/4Ω/8Ω/16Ω (selectable)
Output Impedance 2/4Ω/8Ω/16Ω (selectable)

Fuse

100V-120V Units T4A, 125/250V
220V-240V Units T1.6A, 250V.

Dimensions

Height 3.6" (9.1 cm)
Width 14" (35.5 cm)
Depth 9" (22.8 cm)
Weight 16 lbs (7.3 kg)
