*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
Power supply not included.

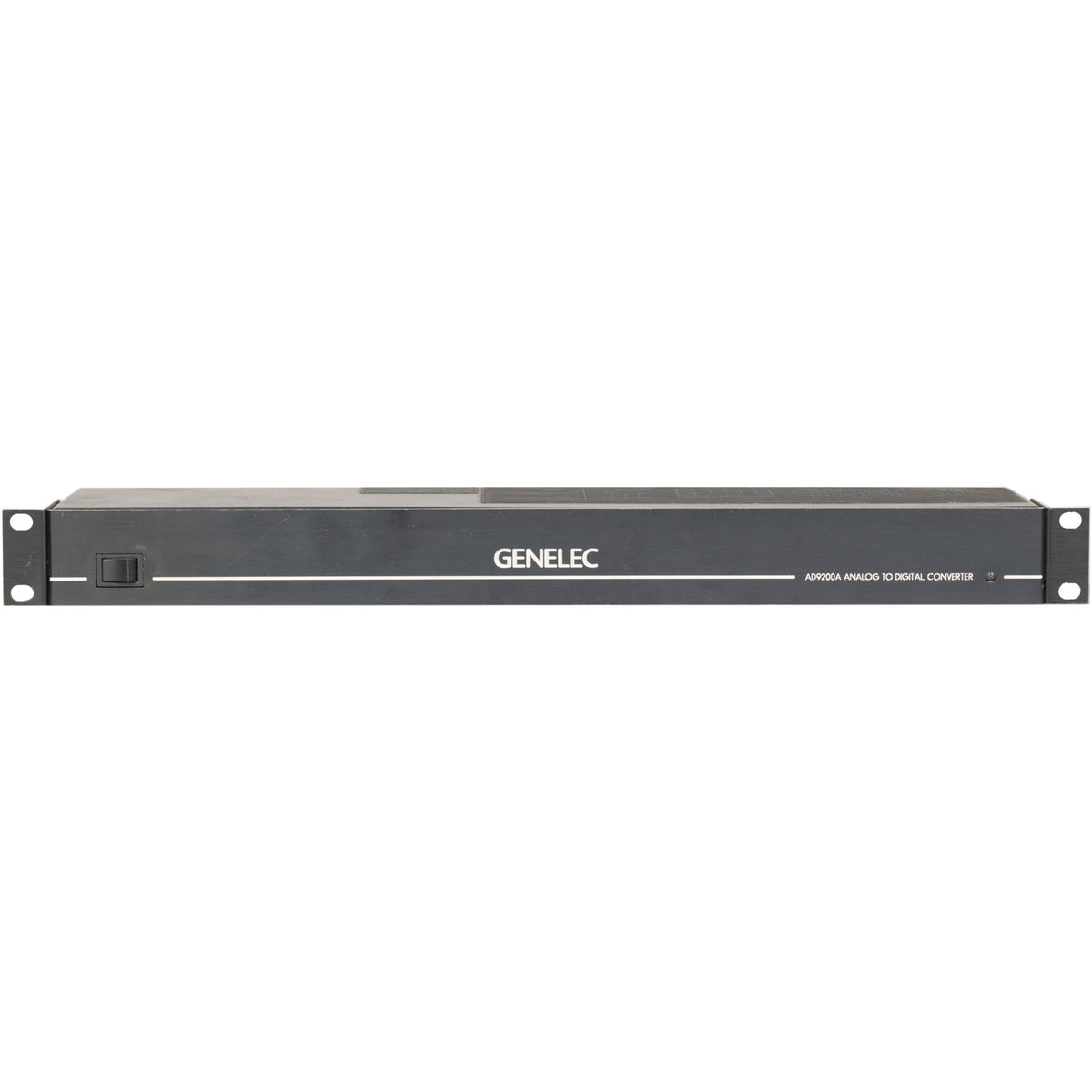

The AD9200A 8-Channel Analog to Digital Converter from Genelec is a rackmount converter that translates an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources.

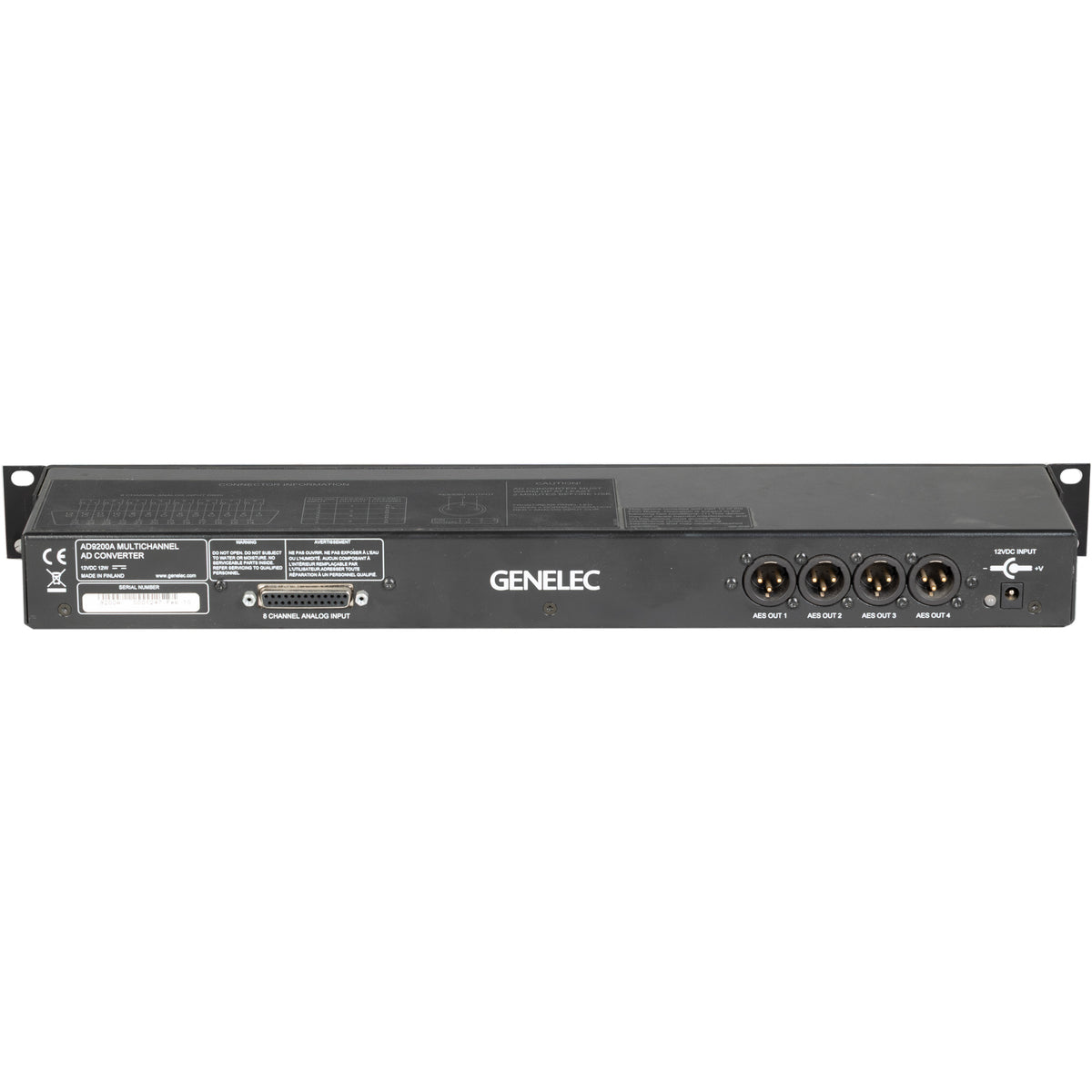

The unit has a 25-pin DB25 connector that accepts up to 8 channels of analog audio. The connector is wired with a standard Tascam/ProTools pinout for wide compatibility. The converter has 4 XLR output connectors, each of which carries 2 channels of AES/EBU digital audio. The digital audio is in AES3 format with a 24-bit word length and a 192kHz sample rate to deliver professional-quality results, consistent with the audio from Genelec's 8200 series DSP products. The converter operates via an external 12VDC power supply.
| Product Name | Genelec AD9200A 8-Channel Analog to Digital Converter |
|---|---|
| Brand | Genelec |
| Condition | Pre-Owned |
| MPN | AD9200A |
| UPC | 4580278651358 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Genelec AD9200A 8-Channel Analog to Digital Converter
- 1RU Rackmount Chassis
- 8-Channel Analog Input
- 24-bit/192kHz AES3 Output
| Frequency Response | 4Hz - 76kHz, -3dB Relative to 1kHz |
| Total Harmonic Distortion (THD) | 0.018%, +20dBu Input, 22Hz - 20kHz |
| Dynamic Range | 110dB, Linear |
| Digital Audio Format | AES/EBU (AES3), 24-bit/192kHz |
| Input Clipping Level | +21.5dBu |
| Connectors | 1 x 8-Channel Balanced DB25 Connector (Tascam/ProTools Pinout) 4 x XLR Outputs (2 Channels Each) |
| Power | Power Supply: FW74010/12, 12VDC Mains: 100-240VAC, 50/60Hz |
| Power Consumption | < 7W |
| Dimensions | 1.7 x 19 x 4.1" (43 x 483 x 105mm) |
| Weight | 4.4 lbs (2kg) |
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
Power supply not included.
The AD9200A 8-Channel Analog to Digital Converter from Genelec is a rackmount converter that translates an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources.
The unit has a 25-pin DB25 connector that accepts up to 8 channels of analog audio. The connector is wired with a standard Tascam/ProTools pinout for wide compatibility. The converter has 4 XLR output connectors, each of which carries 2 channels of AES/EBU digital audio. The digital audio is in AES3 format with a 24-bit word length and a 192kHz sample rate to deliver professional-quality results, consistent with the audio from Genelec's 8200 series DSP products. The converter operates via an external 12VDC power supply.
| Product Name | Genelec AD9200A 8-Channel Analog to Digital Converter |
|---|---|
| Brand | Genelec |
| Condition | Pre-Owned |
| MPN | AD9200A |
| UPC | 4580278651358 |
What's in the Box?
Genelec AD9200A 8-Channel Analog to Digital Converter- 1RU Rackmount Chassis
- 8-Channel Analog Input
- 24-bit/192kHz AES3 Output
| Frequency Response | 4Hz - 76kHz, -3dB Relative to 1kHz |
| Total Harmonic Distortion (THD) | 0.018%, +20dBu Input, 22Hz - 20kHz |
| Dynamic Range | 110dB, Linear |
| Digital Audio Format | AES/EBU (AES3), 24-bit/192kHz |
| Input Clipping Level | +21.5dBu |
| Connectors | 1 x 8-Channel Balanced DB25 Connector (Tascam/ProTools Pinout) 4 x XLR Outputs (2 Channels Each) |
| Power | Power Supply: FW74010/12, 12VDC Mains: 100-240VAC, 50/60Hz |
| Power Consumption | < 7W |
| Dimensions | 1.7 x 19 x 4.1" (43 x 483 x 105mm) |
| Weight | 4.4 lbs (2kg) |
