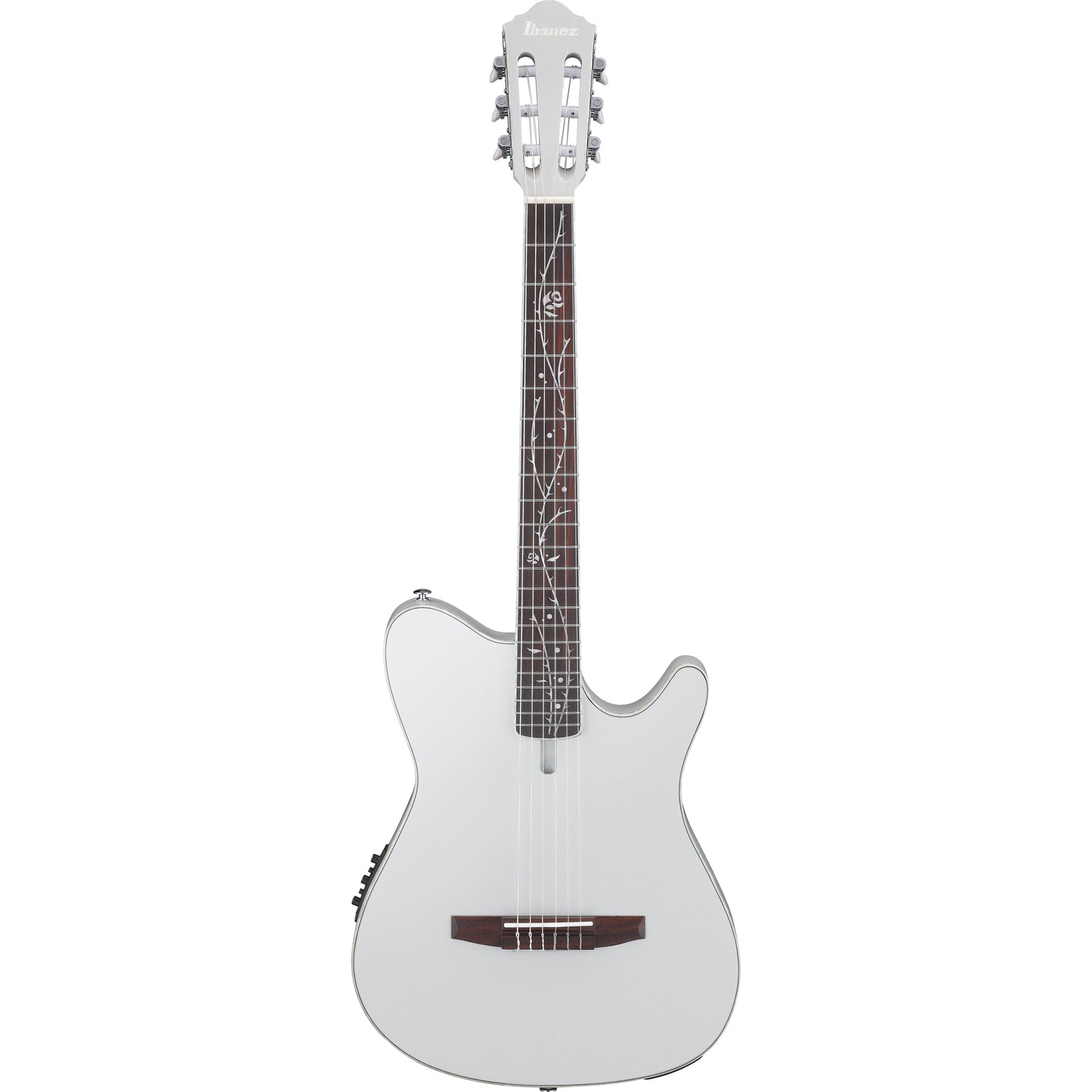

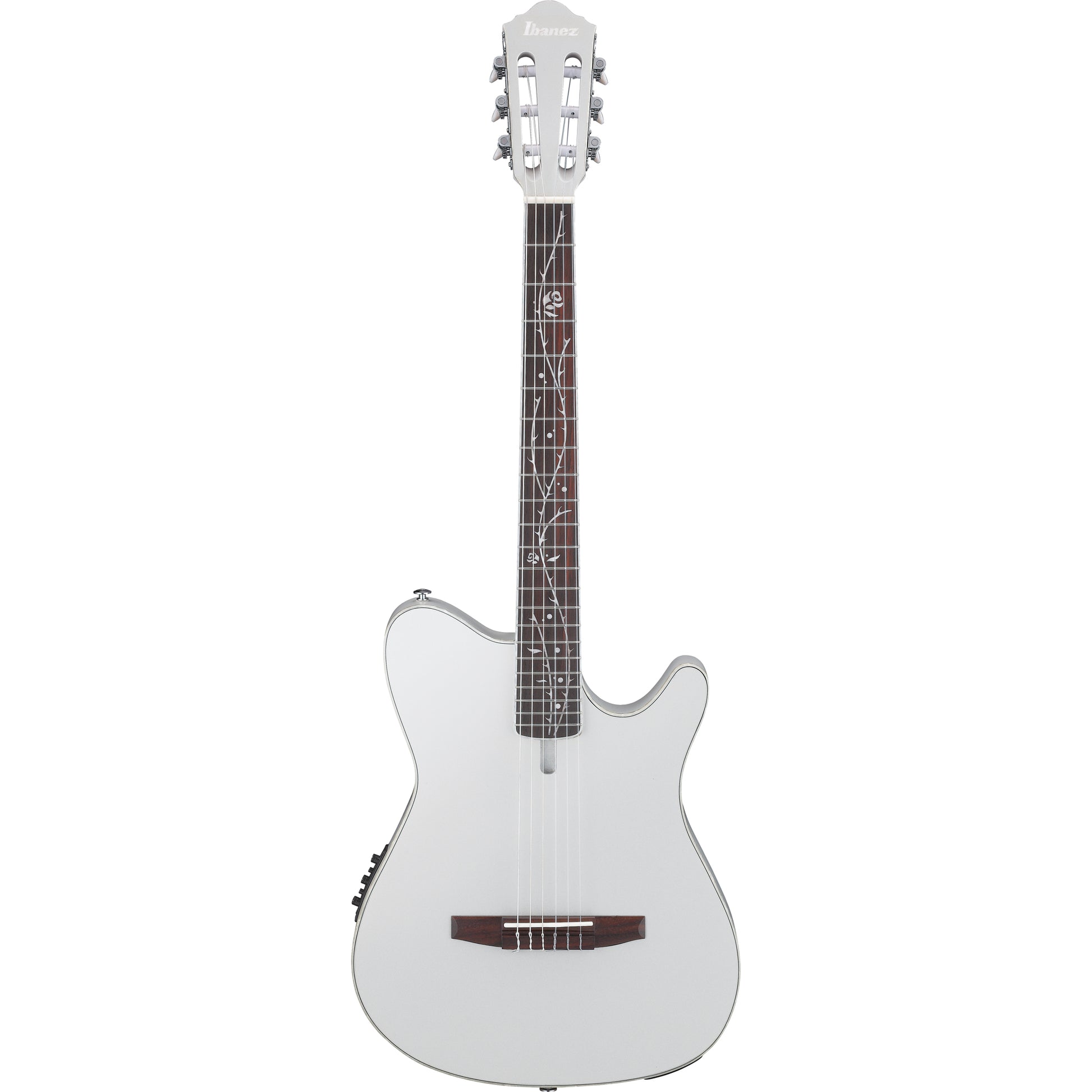

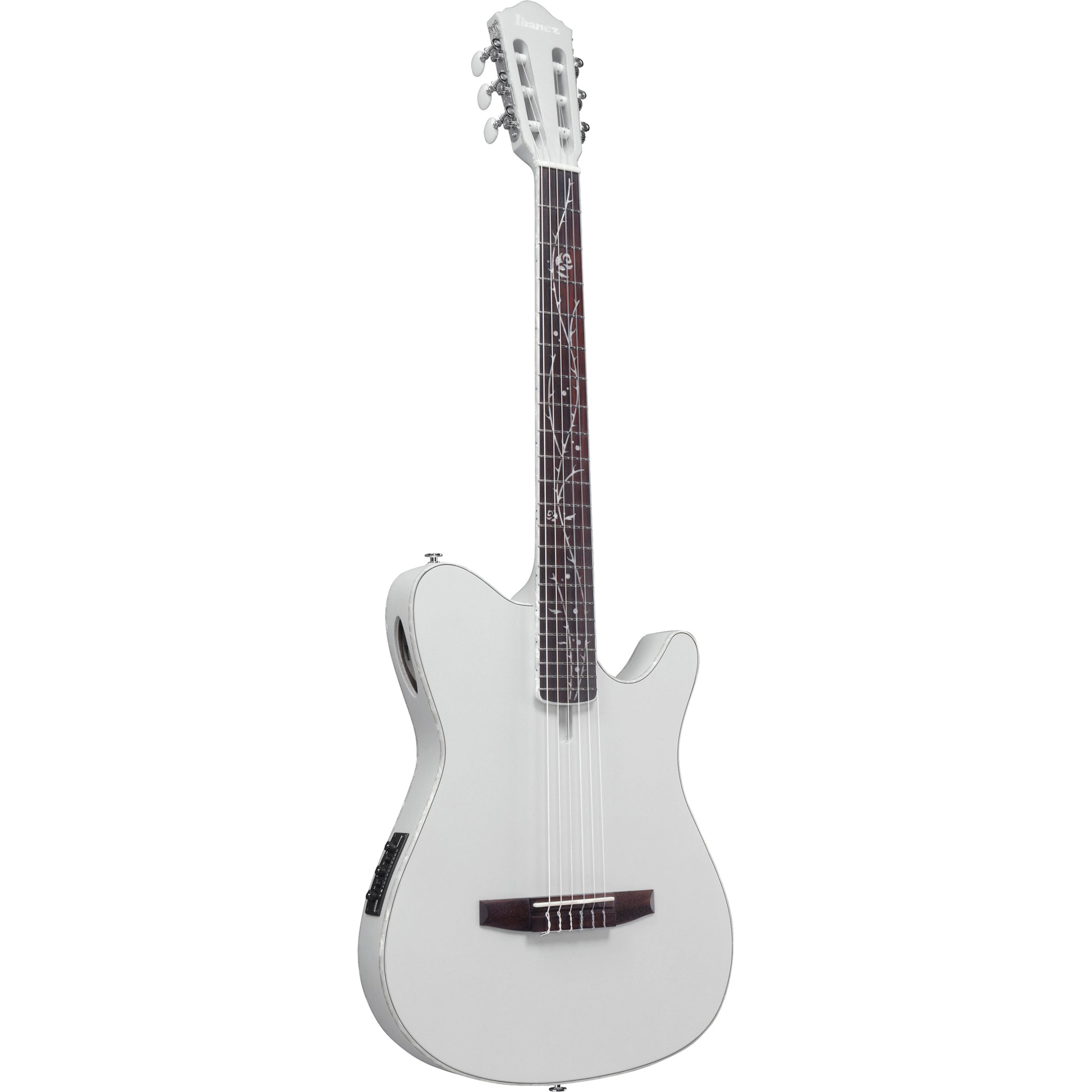

As an artist, Tim Henson is always trying to update, invigorate and reinvent his band’s image. He has taken that same approach with his signature nylon string electric guitar. The TOD’s most striking aesthetic feature may be the fingerboard inlay design, which Tim has dubbed as the “Tree of Death”. The name and the design are both nods to the iconic Ibanez “Tree of Life” inlay design, but with a twist.
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Fishman® S-Core pickup
The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.

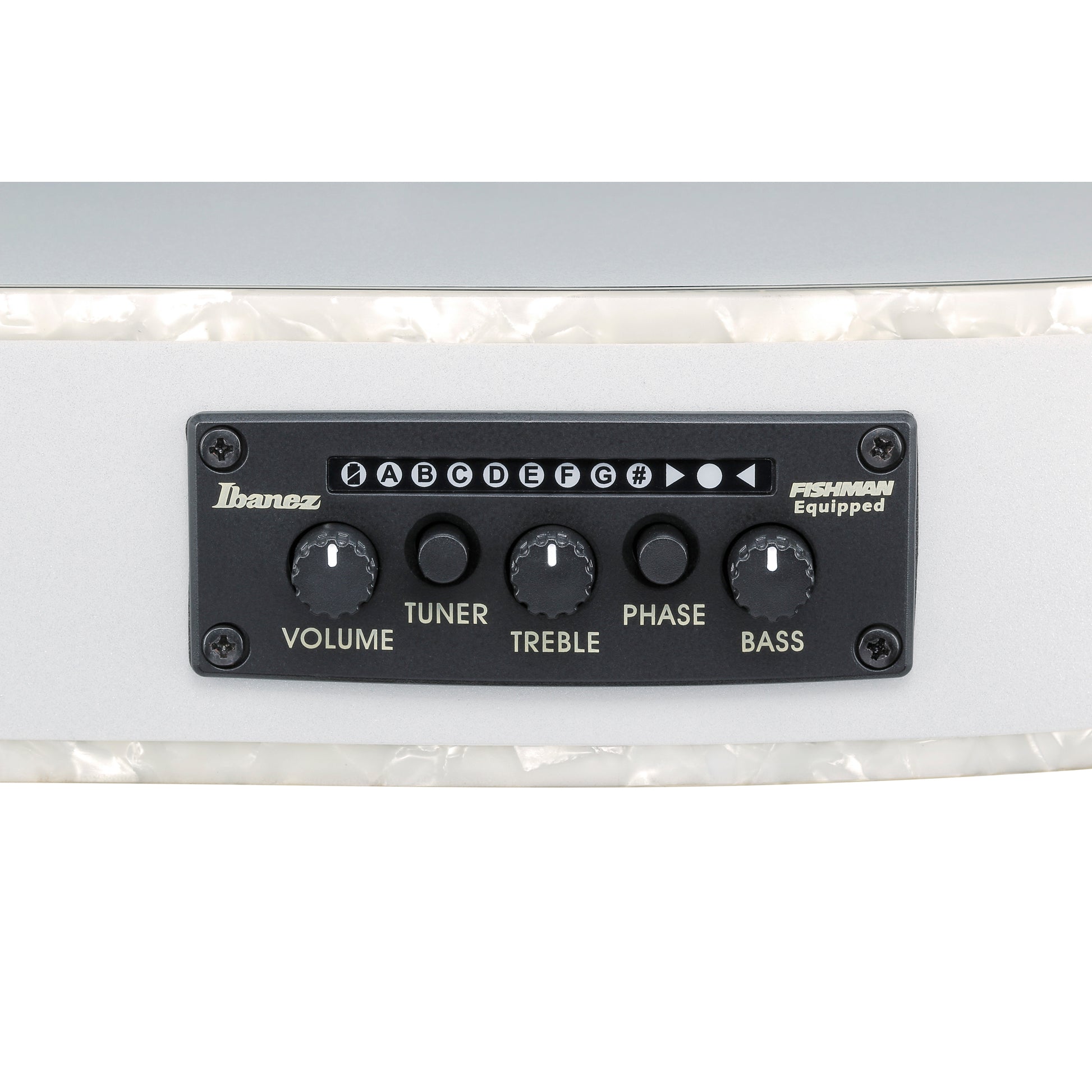

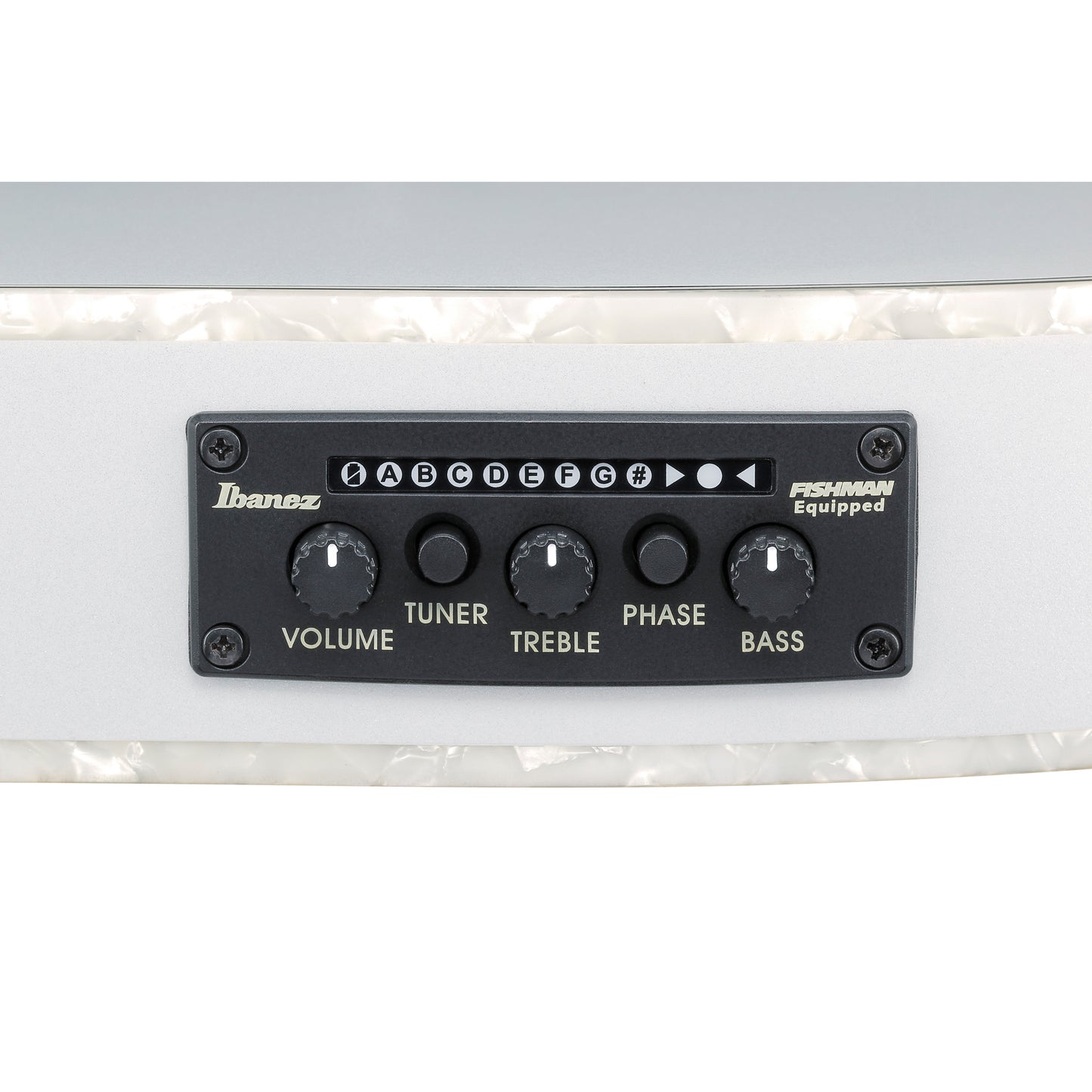

Ibanez AEQ210TF preamp w/Onboard tuner
The AEQ210TF preamp provides the extra punch of on-board EQ, and the convenience of an easy-to-read digital tuner.

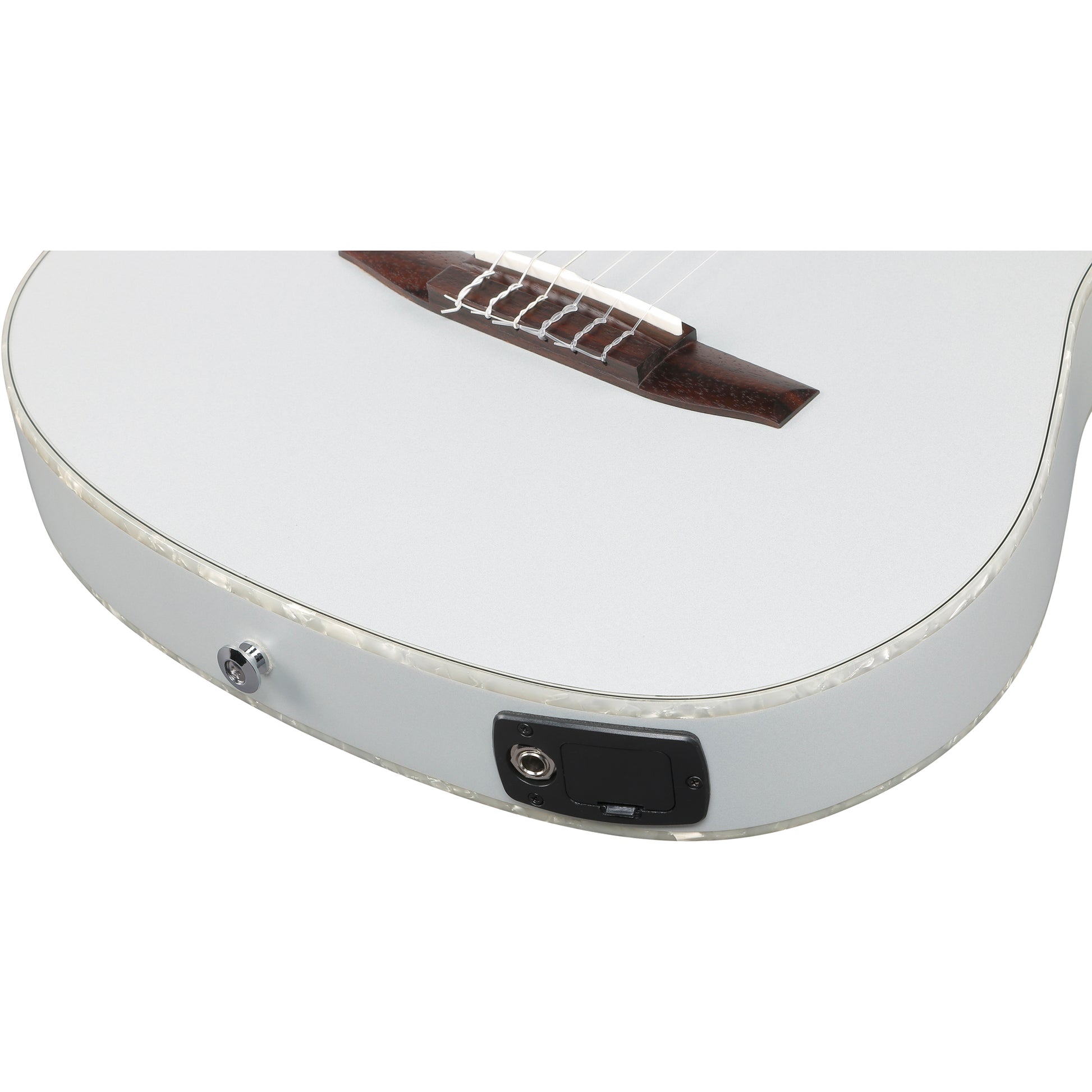

Rosewood bridge
The Rosewood bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Modified FR hollow body w/ Fan bracing
Its thin, compact body and superior high fret access contribute to the superb playability of this guitar.
It has less feedback as there’s no sound hole on the body top. Fan bracing, which is commonly used for classical guitars, allows this guitar to have a warm and natural nylon string sound.

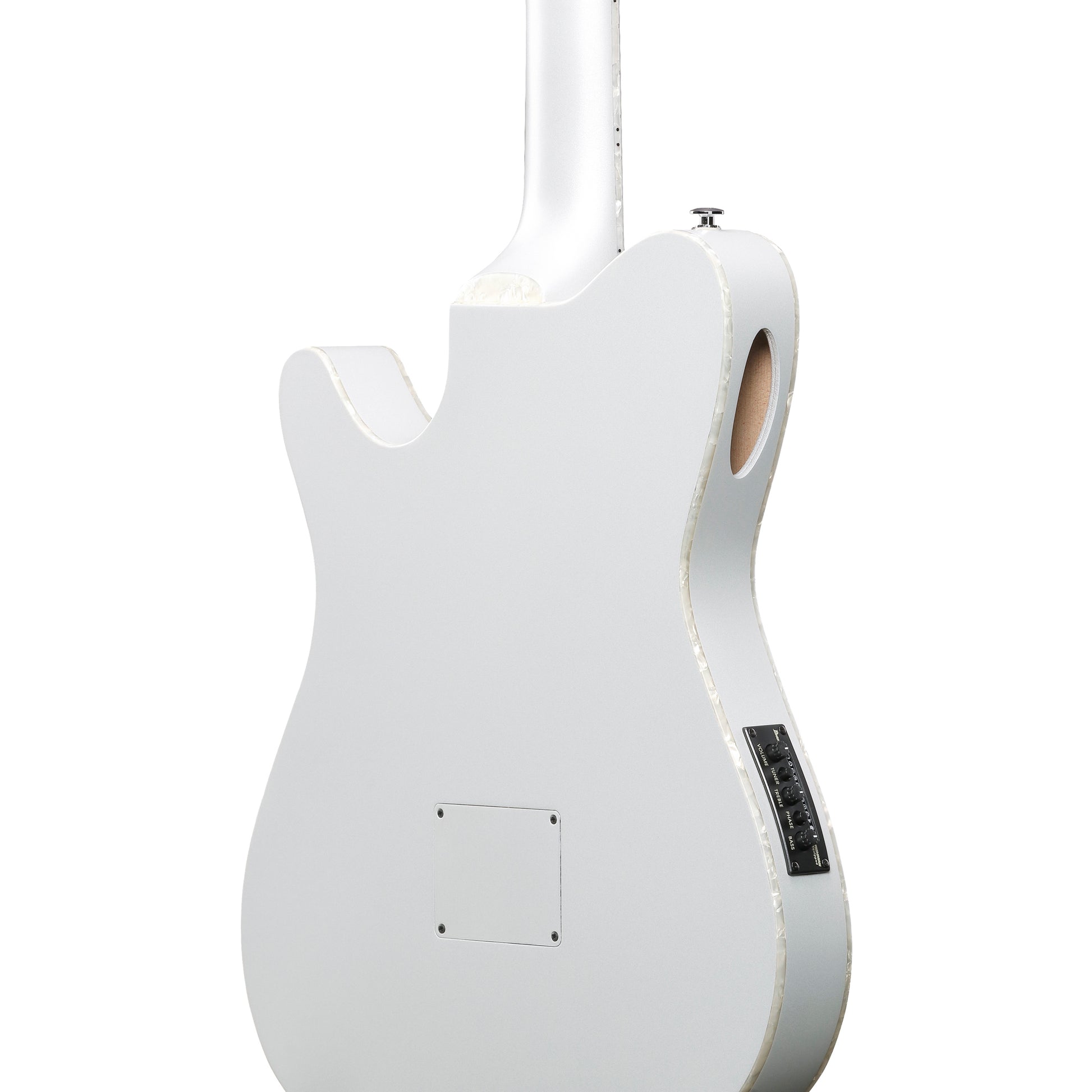

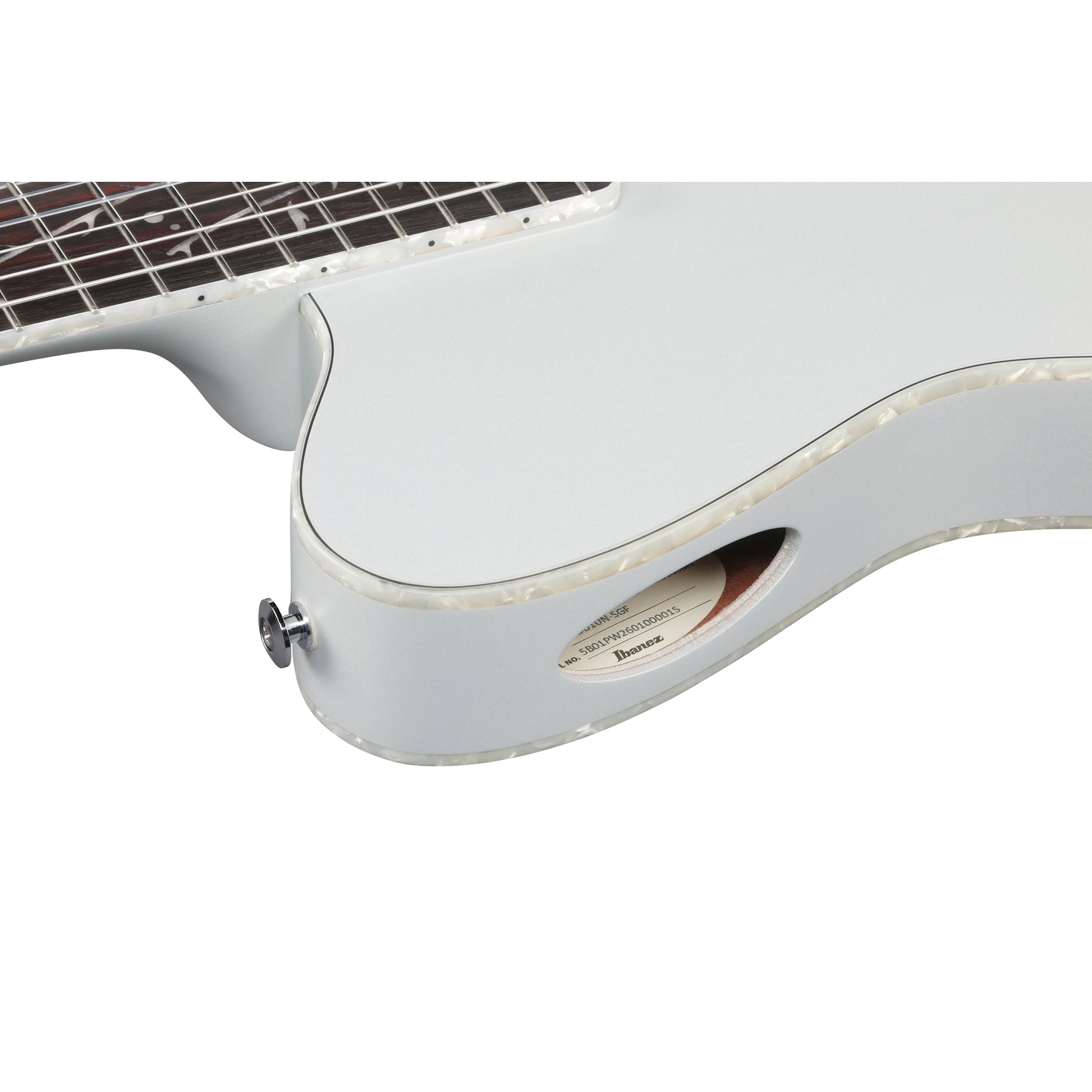

Side Sound Port
The sound port on the body side allows you to feel and hear the pure acoustic tone of this guitar more clearly and directly.
46mm width nut / 400mmR fretboard radius
The combination of a narrow 46mm width nut and 400mmR fretboard radius offers easy fingering.

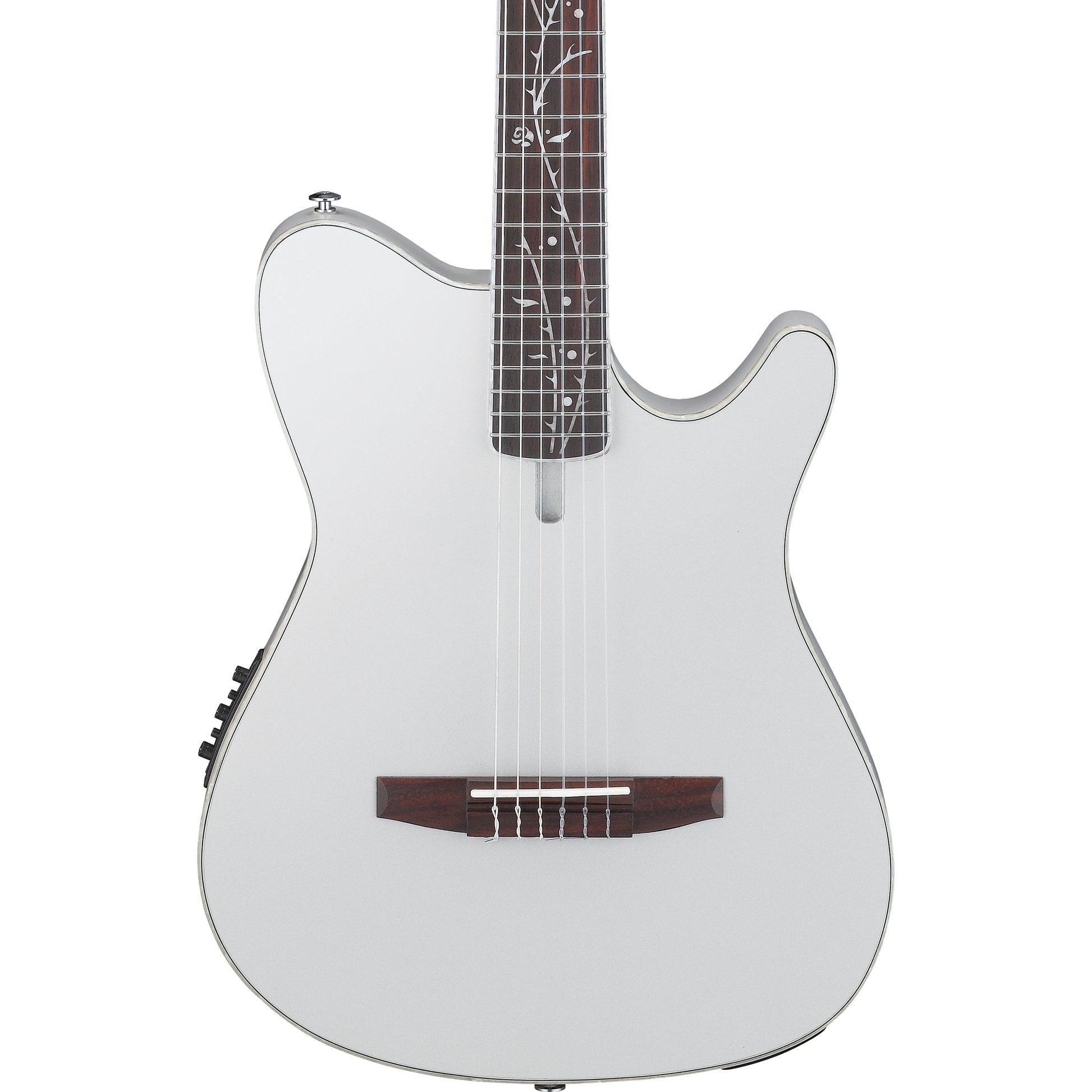

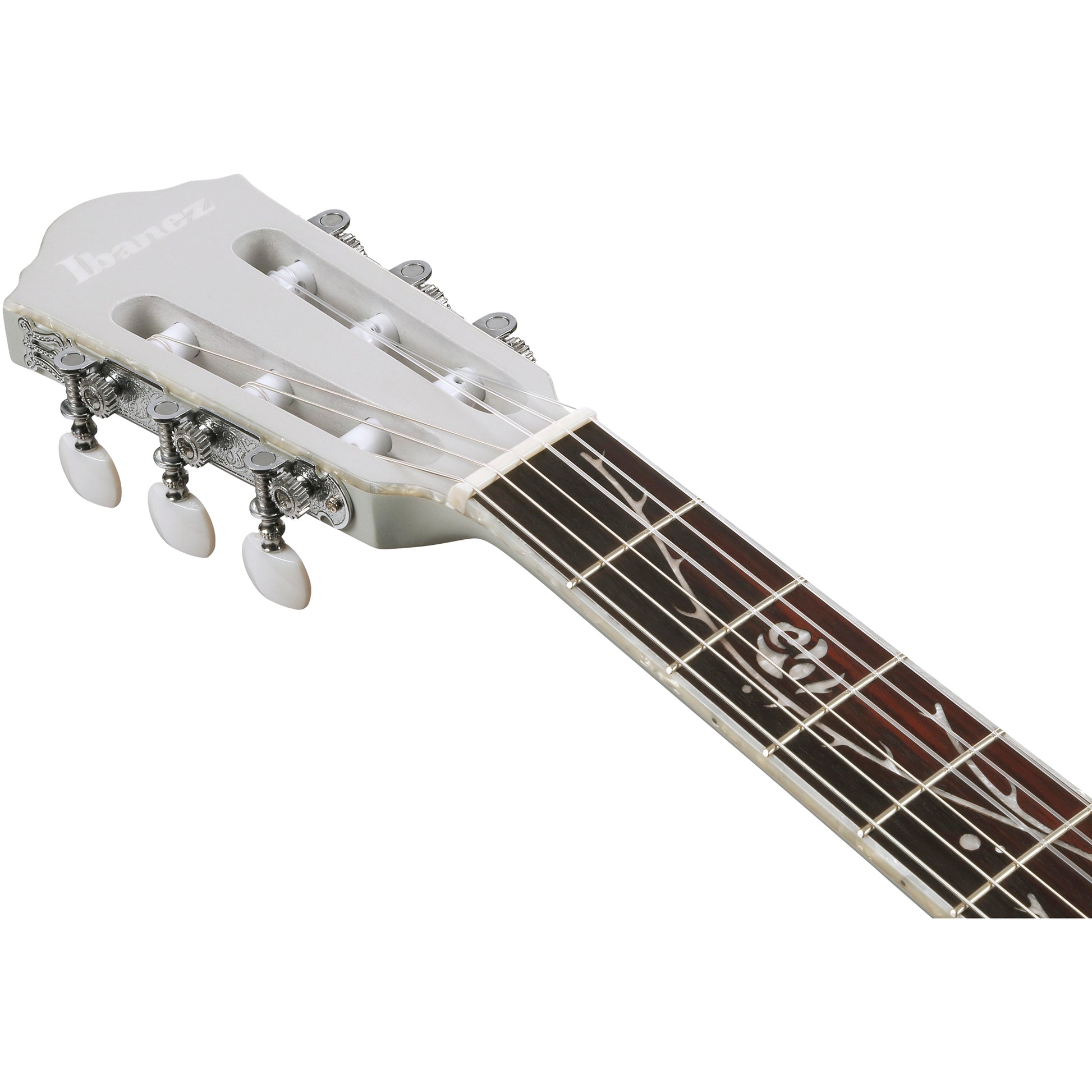

Tree of Death fingerboard inlay
The name and the design of this fingerboard inlay are both nods to the iconic Ibanez “Tree of Life” inlay design, but with a twist.
| Product Name | Ibanez TOD10N Tim Henson Acoustic Electric Guitar - Silver Metallic Flat |
|---|---|
| Brand | Ibanez |
| Condition | New |
| MPN | TOD10NSMF |
| UPC | 4549763398970 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Ibanez TOD10N Tim Henson Acoustic Electric Guitar - Silver Metallic Flat
- Hex Wrench
- Nyatoh neck
- Rosewood fretboard
- Solid Sitka Spruce top
- Sapele back and sides
- Fishman® S-Core pickup
- Ibanez AEQ210TF preamp w/Onboard tuner
- Rosewood bridge
- Modified FR hollow body w/ Fan bracing
- Side Sound Port
- 46mm width nut / 400mmR fretboard radius
- Tree of Death fingerboard inlay
| Neck Type | C shape |
| Neck Joint | Set-in |
| Neck Joint Position | 16th fret joint |
| Neck Material | Nyatoh |
| Neck finish | Satin Polyurethane |
| Neck thickness (1st fret) | 0.83" (21 mm) |
| Neck thickness (7th fret) | 0.87" (22 mm) |
| Scale | 25.50" (648 mm) |
| Nut width | 1.81" (46 mm) |
| End width | 2.28" (58 mm) |
| Number of fret | 22 |
| Fretboard | Rosewood |
| Fretboard Radius | 15.75" (400 mm) |
| Inlay | Tree of Death |
| Body Shape | FRH |
| Body Top material | Solid Sitka Spruce |
| Body Sides material | Sapele |
| Body Back material | Sapele |
| Body Depth | 1.97" (50 mm) |
| Body Width | 14.17" (360 mm) |
| Body Length | 17.32" (440 mm) |
| Body Binding | Pearloid binding |
| Bracing | Fan Bracing for FRH |
| Body Depth@Joint | 1.97" (50 mm) |
| Body Depth@End | 1.97" (50 mm) |
| Body finish | Satin Polyurethane |
| Total length | 38.98" (990 mm) |
| Body thickness | 1.97" (50 mm) |
| Body length | 17.32" (440 mm) |
| Body Width | 14.17" (360 mm) |
| Bridge | Rosewood |
| Saddle material | Bone |
| String spacing | 0.46" (11.6 mm) |
| Nut | Bone |
| Machine Head | Gold Classical tuners |
| Neck Pickup | Fishman® S-Core |
| Preamp (for Acoustic) | Ibanez AEQ210TF preamp w/Onboard tuner |
| Controls, Pickup selector | 1 Volume, Bass, Treble |
| Other Switches | Tuner on/off switch, Phase on/off switch |
| Output Jack | 1/4" output |
| String Gauges (from top to bottom) | .028/.032/.040/.028W/.035W/.044W |
| Special Strings | D'Addario® XTC45 |
| Tuning (from top to bottom) | 1E,2B,3G,4D,5A,6E |
| Recommended Bag | THGB1-BK |
| Other item(s) included | Hex wrench |
| Batteries Required | 9V x1 |
