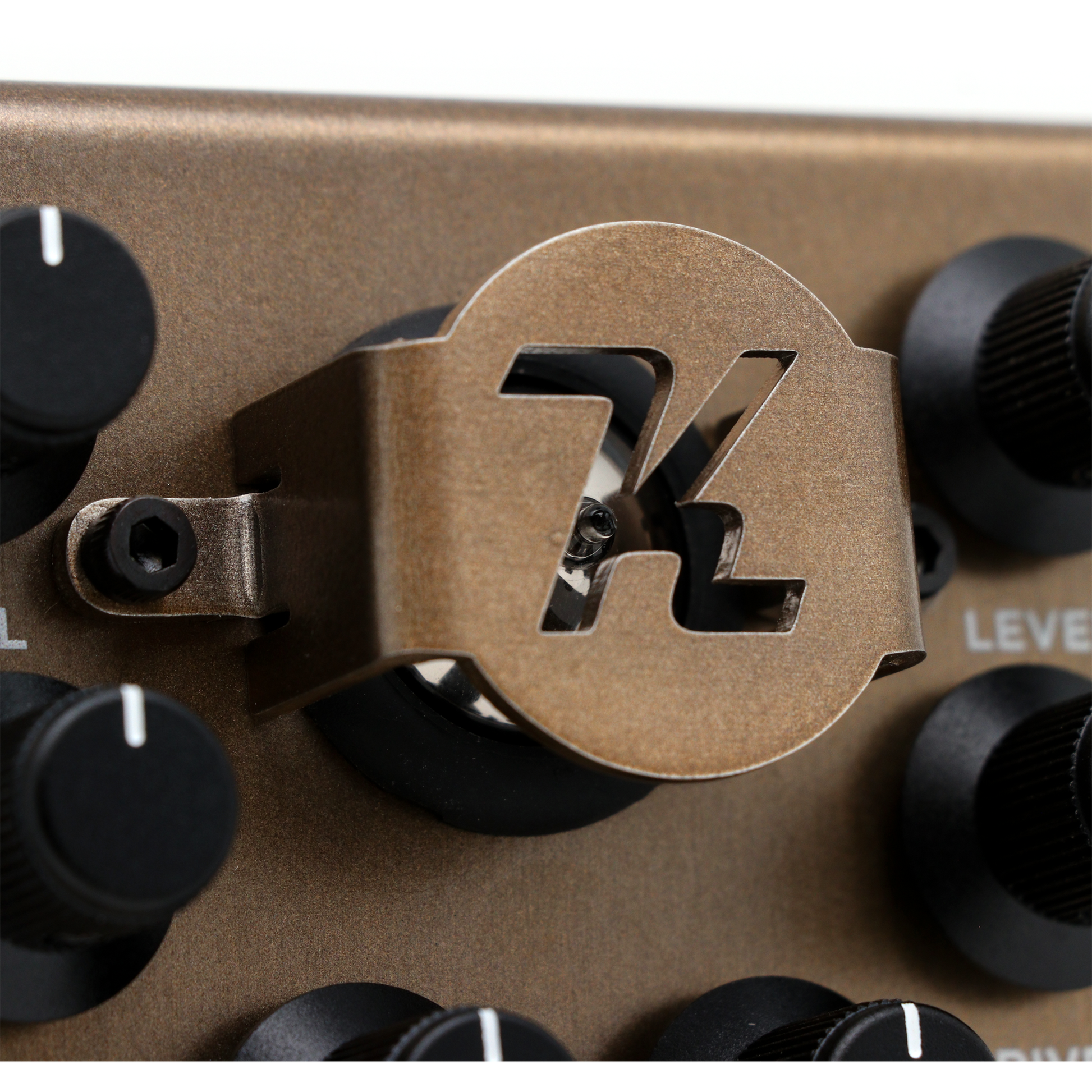

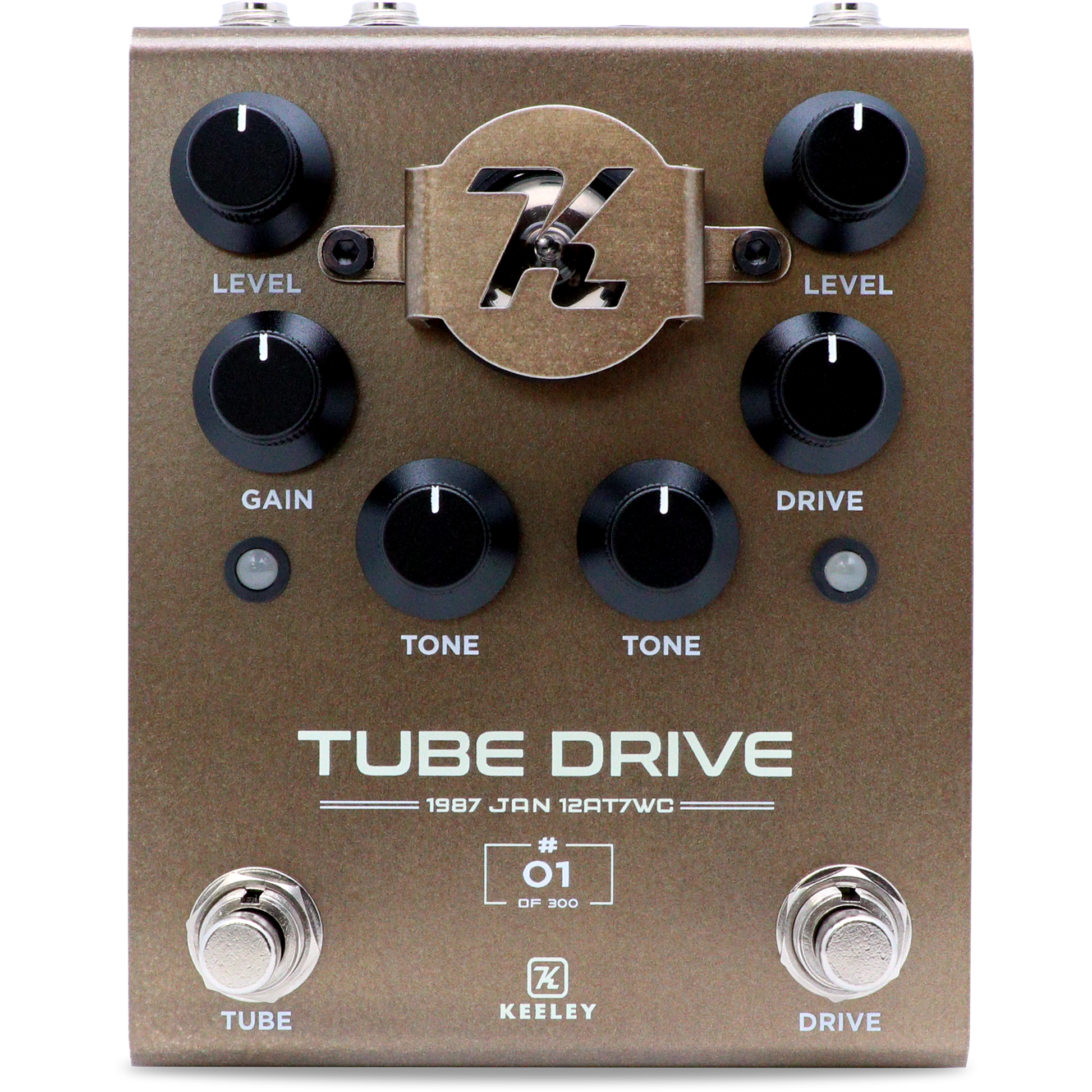

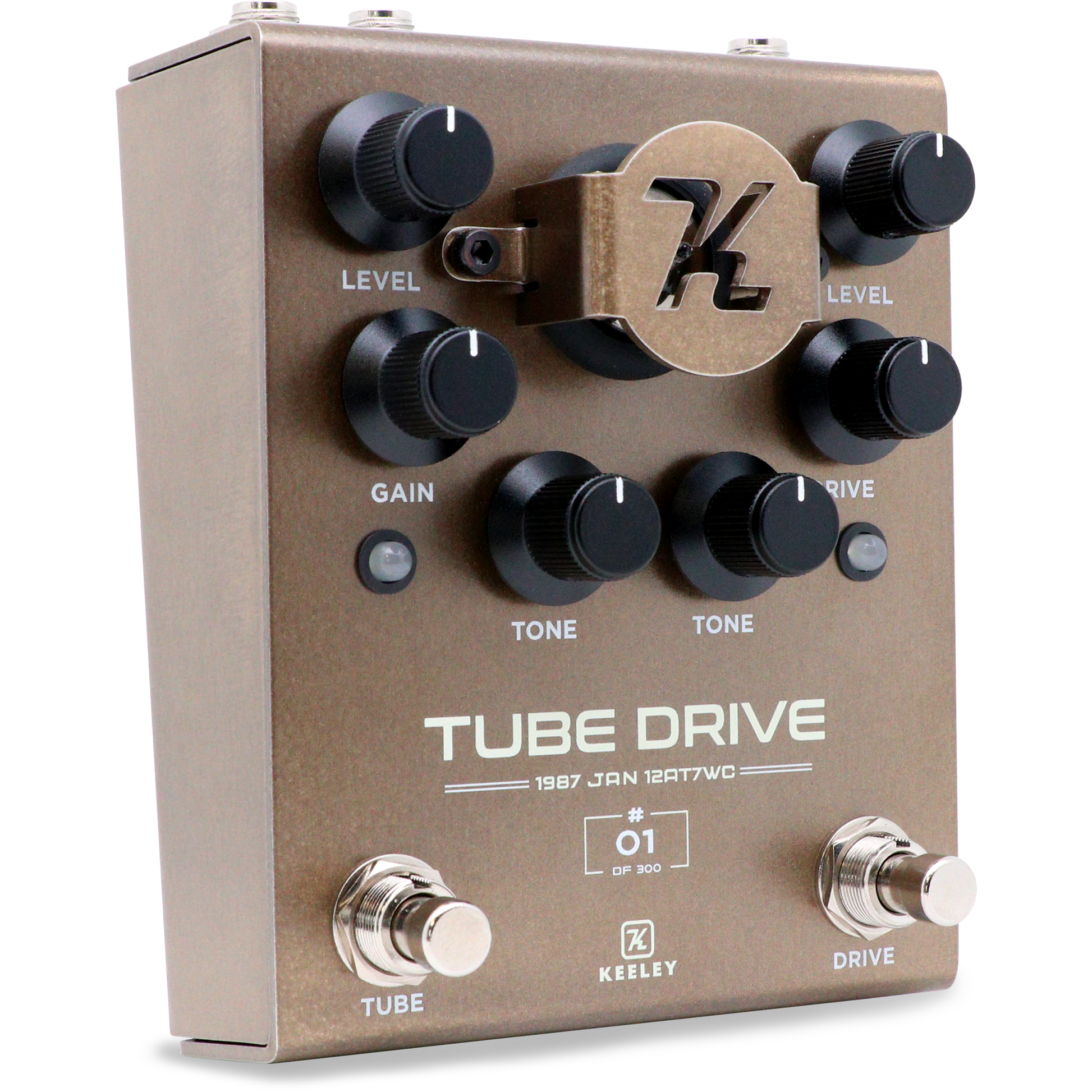

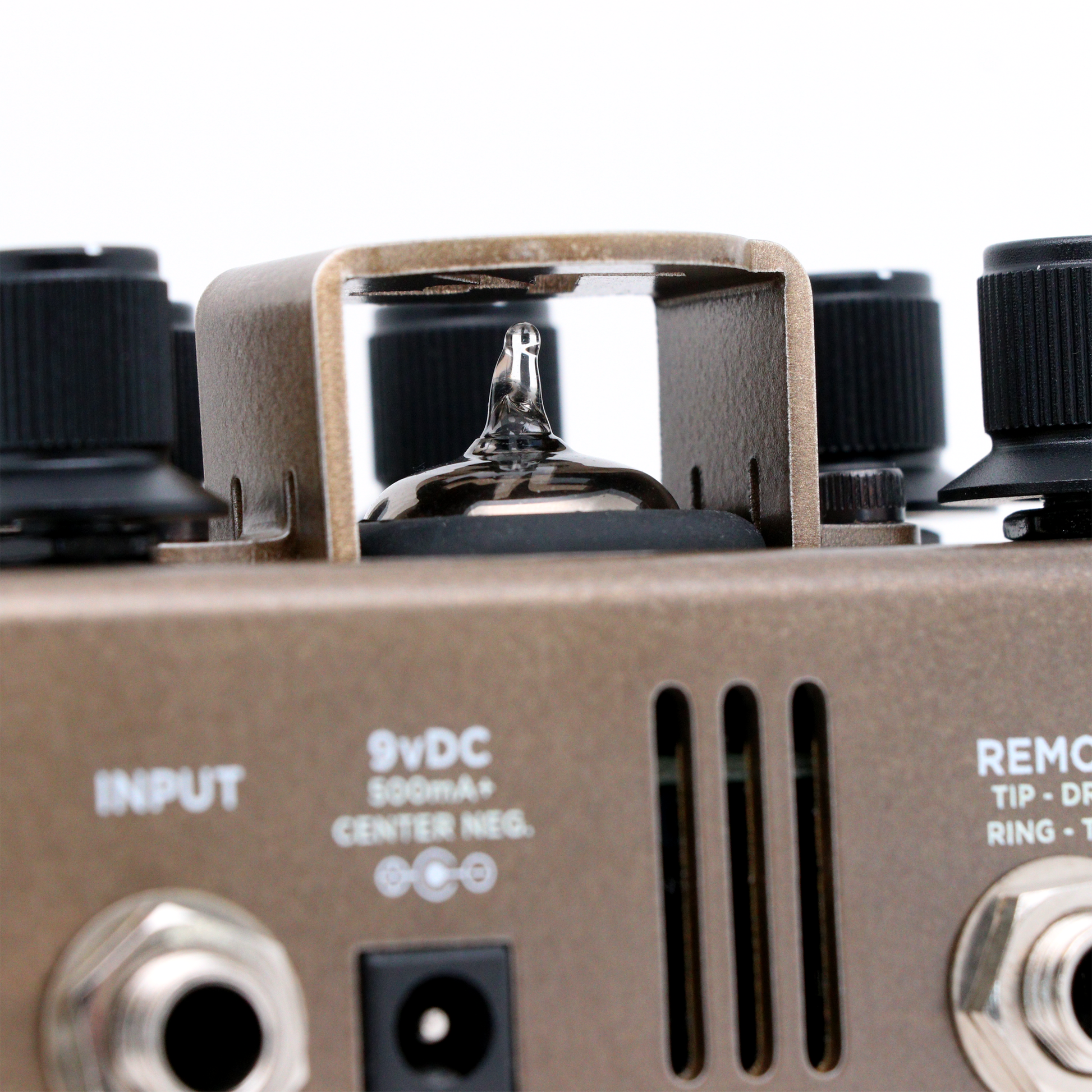

The Keeley Tube Drive is a powerful dual-overdrive pedal that packs two distinct voices into one rugged, great-looking enclosure. On one side, a genuine high-voltage vacuum tube overdrive. On the other, Keeley's legendary Phat Mod. At the center of this Dealer Exclusive Tube Drive is a vintage 1987 Philips JAN 12AT7WC proudly displayed behind a custom tube shield. This tube makes a real difference. Dial in everything from warm, touch-sensitive tube grit to punchy, chimey overdrive tones with military grade glass that’s built to last. A simple foot gesture can switch effect order or select between true-bypass and Keeley's renowned silent buffered switching, all on the fly. Manufactured from start to finish in Keeley's Oklahoma City headquarters, this is a pedal you’ll be proud to place at the heart of your rig. Delivering real tube warmth, modern flexibility, and uncompromising Keeley quality, the Tube Drive is a pedal that tone enthusiasts will absolutely love.
| Product Name | Keeley Limited Edition Tube Drive 1987 Philips JAN 12AT7WC Pedal |
|---|---|
| Brand | Keeley |
| Condition | New |
| MPN | KTUBEDRIVE-AT7 |
| UPC | 810026442360 |
| Shipping Option | Free Shipping to the Continental U.S. |
| Pedal Type | Dual-channel Drive/Distortion + High-Voltage Tube Preamp |
| Channels | 2 Independent (Drive/Distortion + 12AT7-style Tube Preamp) |
| Tube | 1 x Philips JAN 12AT7WC (high-voltage operation at ~160V for authentic tube performance) Approx 100V to plate |
| Controls | Drive Channel: Level, Drive, Tone Tube Channel: Level, Gain, Tone 2 x Footswitches (Channel engage + long-press functions) |
| Bypass Switching | Switchable True Bypass / Buffered (via long-press footswitch) |
| FX Order Switching | Drive → Tube or Tube → Drive (via long-press footswitch) |

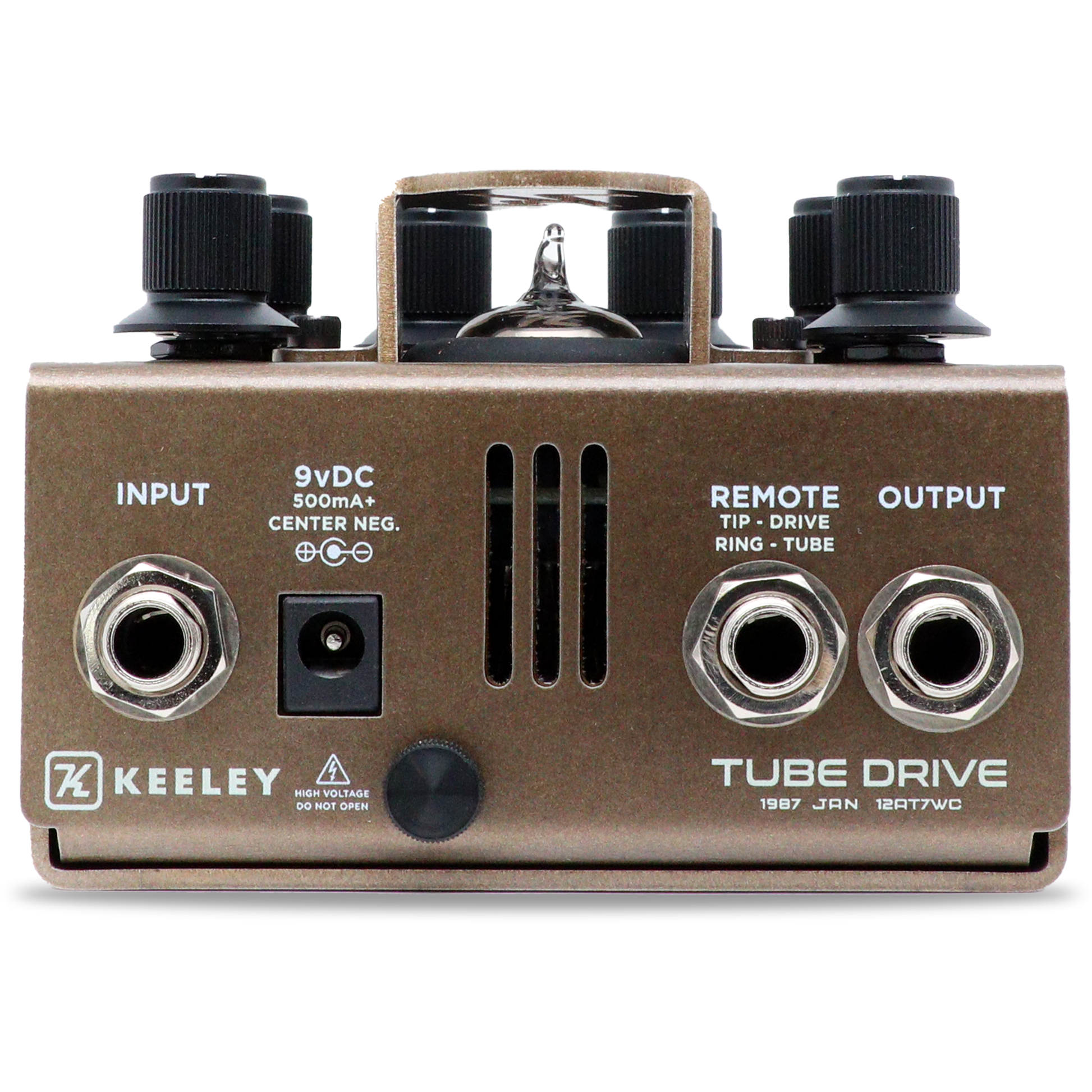

| Inputs | 1 x 1/4" Mono |
| Outputs | 1 x 1/4" Mono |
| Other I/O | 1 x 1/4" TRS Remote (T=Tube, R=Drive) |
| Input Impedance | 500 kΩ (both channels) |
| Output Impedance | 560 Ω (Drive), ~7 kΩ (Tube Preamp) |
| Power Source | 9V DC center-negative power supply (sold separately) |
| Current Draw | 500 mA |
| Included Accessories | Tube-removal tool, tube shield, tube grommet |
| True Bypass | Yes (switchable) |
Keeley Limited Edition Tube Drive 1987 Philips JAN 12AT7WC Pedal
The Keeley Tube Drive is a powerful dual-overdrive pedal that packs two distinct voices into one rugged, great-looking enclosure. On one side, a genuine high-voltage vacuum tube overdrive. On the other, Keeley's legendary Phat Mod. At the center of this Dealer Exclusive Tube Drive is a vintage 1987 Philips JAN 12AT7WC proudly displayed behind a custom tube shield. This tube makes a real difference. Dial in everything from warm, touch-sensitive tube grit to punchy, chimey overdrive tones with military grade glass that’s built to last. A simple foot gesture can switch effect order or select between true-bypass and Keeley's renowned silent buffered switching, all on the fly. Manufactured from start to finish in Keeley's Oklahoma City headquarters, this is a pedal you’ll be proud to place at the heart of your rig. Delivering real tube warmth, modern flexibility, and uncompromising Keeley quality, the Tube Drive is a pedal that tone enthusiasts will absolutely love.
| Product Name | Keeley Limited Edition Tube Drive 1987 Philips JAN 12AT7WC Pedal |
|---|---|
| Brand | Keeley |
| Condition | New |
| MPN | KTUBEDRIVE-AT7 |
| UPC | 810026442360 |
| Pedal Type | Dual-channel Drive/Distortion + High-Voltage Tube Preamp |
| Channels | 2 Independent (Drive/Distortion + 12AT7-style Tube Preamp) |
| Tube | 1 x Philips JAN 12AT7WC (high-voltage operation at ~160V for authentic tube performance) Approx 100V to plate |
| Controls | Drive Channel: Level, Drive, Tone Tube Channel: Level, Gain, Tone 2 x Footswitches (Channel engage + long-press functions) |
| Bypass Switching | Switchable True Bypass / Buffered (via long-press footswitch) |
| FX Order Switching | Drive → Tube or Tube → Drive (via long-press footswitch) |
| Inputs | 1 x 1/4" Mono |
| Outputs | 1 x 1/4" Mono |
| Other I/O | 1 x 1/4" TRS Remote (T=Tube, R=Drive) |
| Input Impedance | 500 kΩ (both channels) |
| Output Impedance | 560 Ω (Drive), ~7 kΩ (Tube Preamp) |
| Power Source | 9V DC center-negative power supply (sold separately) |
| Current Draw | 500 mA |
| Included Accessories | Tube-removal tool, tube shield, tube grommet |
| True Bypass | Yes (switchable) |
