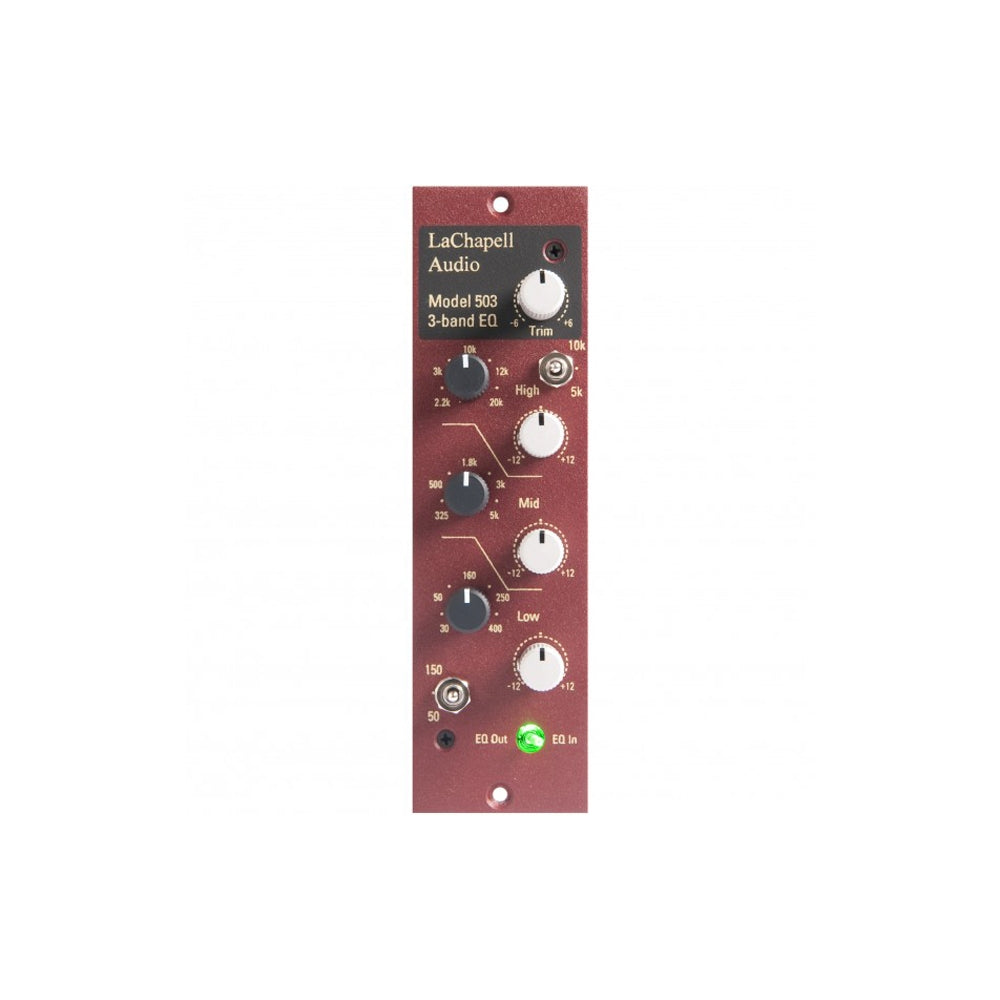

EQ’s come in all flavors, but sometimes you need a near colorless equalizer, and the 503 is it.  The LaChapell 503 500 series EQ sports a very low distortion signature with minimal phase deviation. Perfect for tracking, mixing, or mastering the 503 is extremely clear and transparent. With a 24dB range on each band plus selectable frequency high and low pass filters, the 503 is an incredible tone shaper.

Use when tracking to capture the essence of your source, or on mix down to make tracks sit perfectly in the mix. Because there is little phase interaction the LaChapell 503 can be used subtly or aggressively.

• NOISE FLOOR: -95dB
• THD+N: 0.012% (@ +4 output)
• FREQUENCY R0ESPONSE: 10Hz to 50KHz (flat)
• CUT / BOOST RANGE: +/- 12dBu
• MAXIMUM INPUT LEVEL: ≥25dB
• INPUT IMPEDANCE: 48KΩ
• INPUT / OUTPUT TYPE: TRANSFORMERLESS
