A powered speaker with natural, detailed coaxial sound.
The LD Systems ICOA PRO 15 A powered speaker delivers precision and power, thanks to its innovative coaxial design and high-performance 15ʺ loudspeaker. Built to meet the demands of professional audio applications, this speaker integrates a custom-engineered 15ʺ woofer with a 3ʺ voice coil and a 3ʺ titanium tweeter into a true point source. The result is exceptional coherence and timing accuracy, producing natural, detailed sound reproduction. Its rotatable, BEM-optimized horn ensures precise dispersion while providing horn loading for both the woofer and tweeter, enhancing sound wave bundling down to 500Hz. With airflow-optimized bass reflex ports, the ICOA PRO 15 A delivers tight, impactful low-end down to 50Hz, making it ideal for live events, club gigs, and installations that demand powerful sound.
Application Presets for Precision Control
Designed for professionals seeking reliable, high-quality audio, the ICOA PRO 15 A powered speaker combines cutting-edge technology with user-friendly features. With a powerful Class-D amplifier delivering up to 1,500W RMS (3,000W peak) and a max SPL of 135dB, this speaker is built to handle high-output environments without distortion. The modern SysCore DSP ensures clarity and punch through advanced limiters and FIR/IIR filters, while two line/mic input channels and an XLR mix output enable flexible connectivity. Four application presets, including a low-latency monitor mode and a parametric 4-band EQ provide customization for diverse setups. Shop now to bring professional-grade sound to your next performance or installation.
| Product Name | LD Systems ICOA Pro 15 A 15" Powered PA Loudspeaker |
|---|---|
| Brand | Ld Systems |
| Condition | New |
| MPN | LDS-ICOA15APROUS |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- LD Systems ICOA Pro 15 A 15" Powered PA Loudspeaker
- Power Cord
- 2-Year Manufacturer Warranty
- High-power loudspeaker with premium components for full-range, satellite, monitor, and integrated applications
- 135 dB max. SPL and 1500 W RMS / 3000 W peak
- Coaxial design with common motor for a true point source
- 15" woofer with 3" voice coil and 3" titanium HF driver
- Large, rotatable, BEM-optimised CD horn with 800 Hz crossover for homogeneous 90° x 50° dispersion
- Flow-optimised bass reflex ports for outstanding full-range performance
- SysCore® DSP with FIR/IIR filters and crossover for distortion-free sound, even at maximum volume

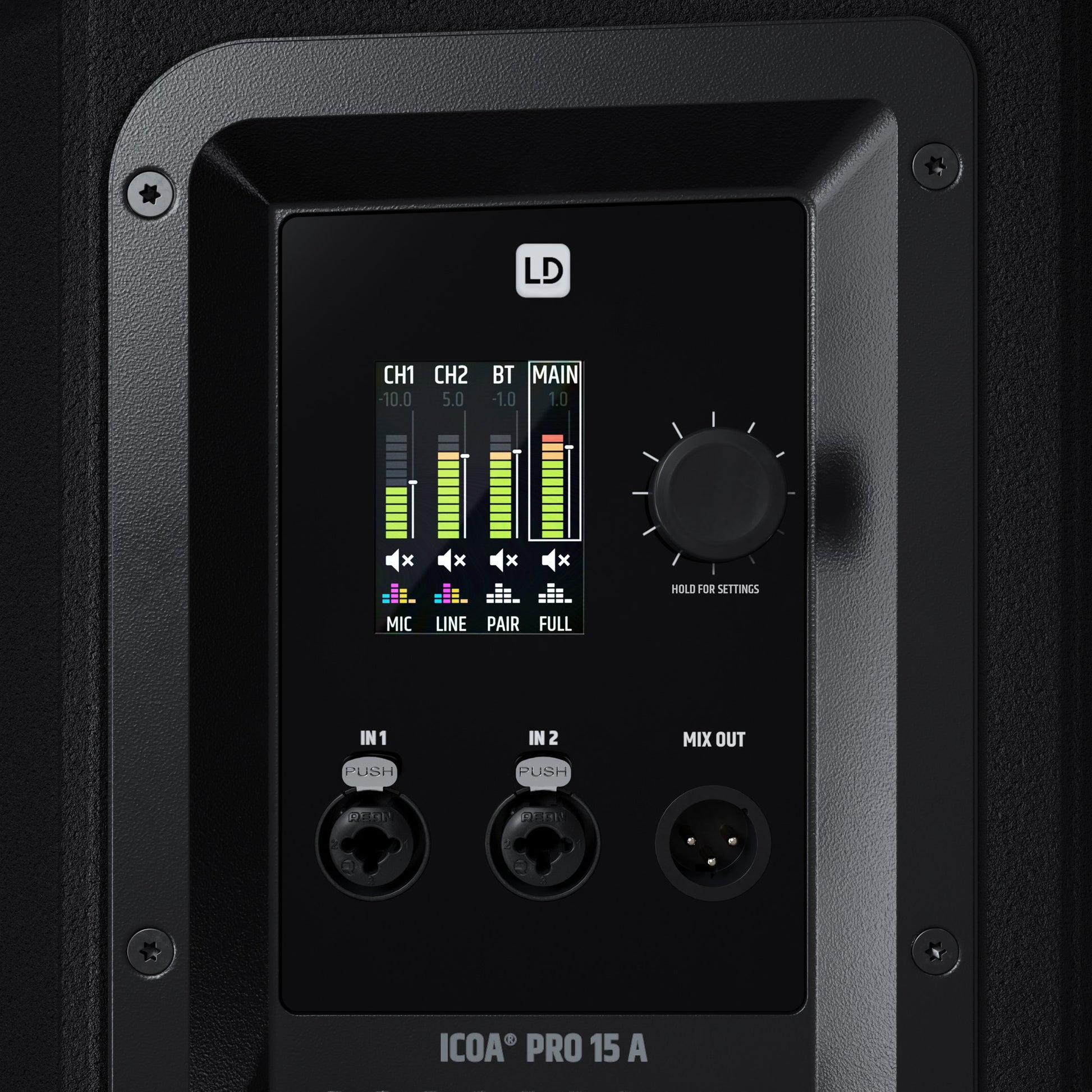

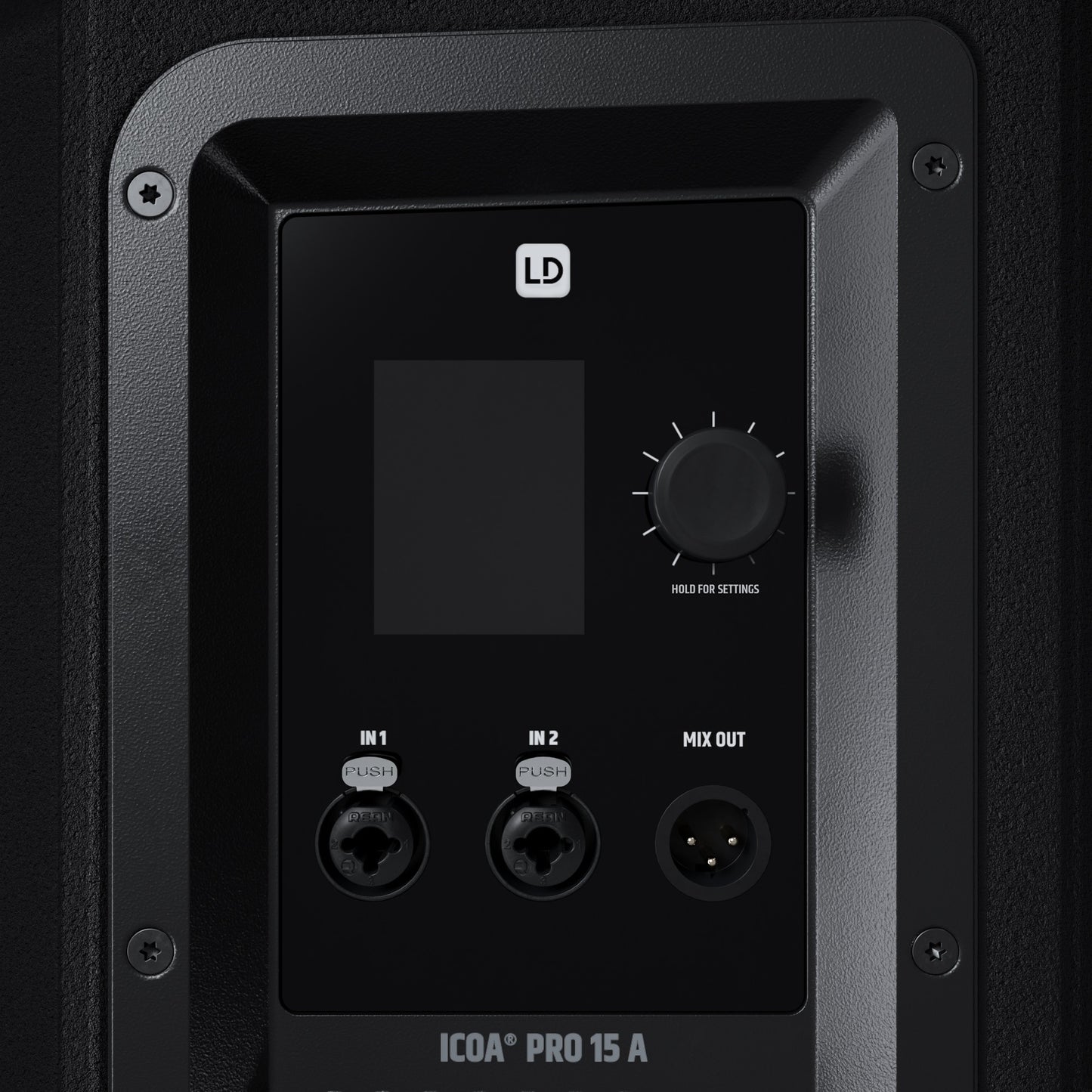

- 2 x line/mic inputs with individual gain control, plus 1x mono mix output
- Bluetooth® 5.1 and stereo streaming (TWS) with two ICOA PRO 15 A
- Free app for remote adjustments via smartphone and tablet (iOS and Android)
- 4-band parametric EQ, 4 application presets (incl. low-latency monitor) and delay function
- EasyMount® compatible for tool-free mounting, as well as 6 x M10 rigging points
- 35 mm dual-tilt stand attachment with 0° and 5° tilt angles
- Ultra-robust ABS housing with integrated steel construction and a shock-resistant grille
- Front LED indicator (identification, power and limiter)
- Extensive, optionally available accessories for outdoor use, installation and transport
General |
|
|---|---|
| Speaker Type | Active Loudspeaker |
| Configuration | 2-Way |
| Enclosure Type | Bass-Reflex |
| Total Output Power | 1500 W RMS / 3000 W Peak |
| Amplifier Class | Class-D |
Drivers |
|
| LF Driver | 1x 15" / 38.1 cm Woofer Voice Coil: 3" / 76.2 mm Magnet: Ferrite |
| HF Driver | 1x 3" / 76.2 mm Rotatable-Horn Tweeter Voice Coil: 3" / 76.2 mm Magnet: Ferrite |
Performance |
|
| Frequency Range/Response | 50 Hz to 20 kHz |
| Maximum SPL | 135 dB |
| Coverage Angle | 90° H x 50° V |
| Protections | DC Fault, Output Limiter, Short Circuit, Thermal |
Signal Processing |
|
| Crossover Frequency | 800 Hz |
| EQ & Filters | 4-Band Parametric EQ |
| Dynamic Processing | Multiband Limiter |
| Alignment Delay | No |
| Digital Signal Processing | 24-Bit DSP, Venue Settings |
Connectivity |
|
| Audio I/O | 2x Combo XLR-1/4" TRS Mic/Line Input 1x XLR 3-Pin Line Output |
| Network I/O | No |
| USB I/O | No |
| Wireless | No |
| Mobile App Compatible | Yes: Android & iOS |
| App Name | ICOA Pro Mobile |
| Functionality | Adjust Settings, Remote Control, Setup |
Power |
|
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V) |
| AC Power I/O | 1x IEC Input |
| Power Consumption | 950 W |
Physical |
|
| Color | Black |
| Mounting | Stand Mount 2 x 1.42" / 36 mm Dual-Angle Pole Socket (Bottom) Suspension Points 6 x M10 Fly Point |
| Handles | 4 |
| Construction Material | ABS |
| Environmental Resistance | No |
| Dimensions | 27.2 x 16.4 x 16.3" / 690.7 x 417 x 414.8 mm |
| Weight | 56.9 lb / 25.8 kg |
