M-Audio presents its Code Series keyboard controllers, a family of three full-featured models, combining all of the production power and performance you need to get the most from your music software and MIDI gear.
The Code Series offers several thoughtful design touches that enable you to create and perform your best. A keyboard should not be an obstacle standing in the way of creativity. Instead, it should function as a direct extension of your thoughts ensuring that you convey musical ideas with immediacy, precision and clarity.

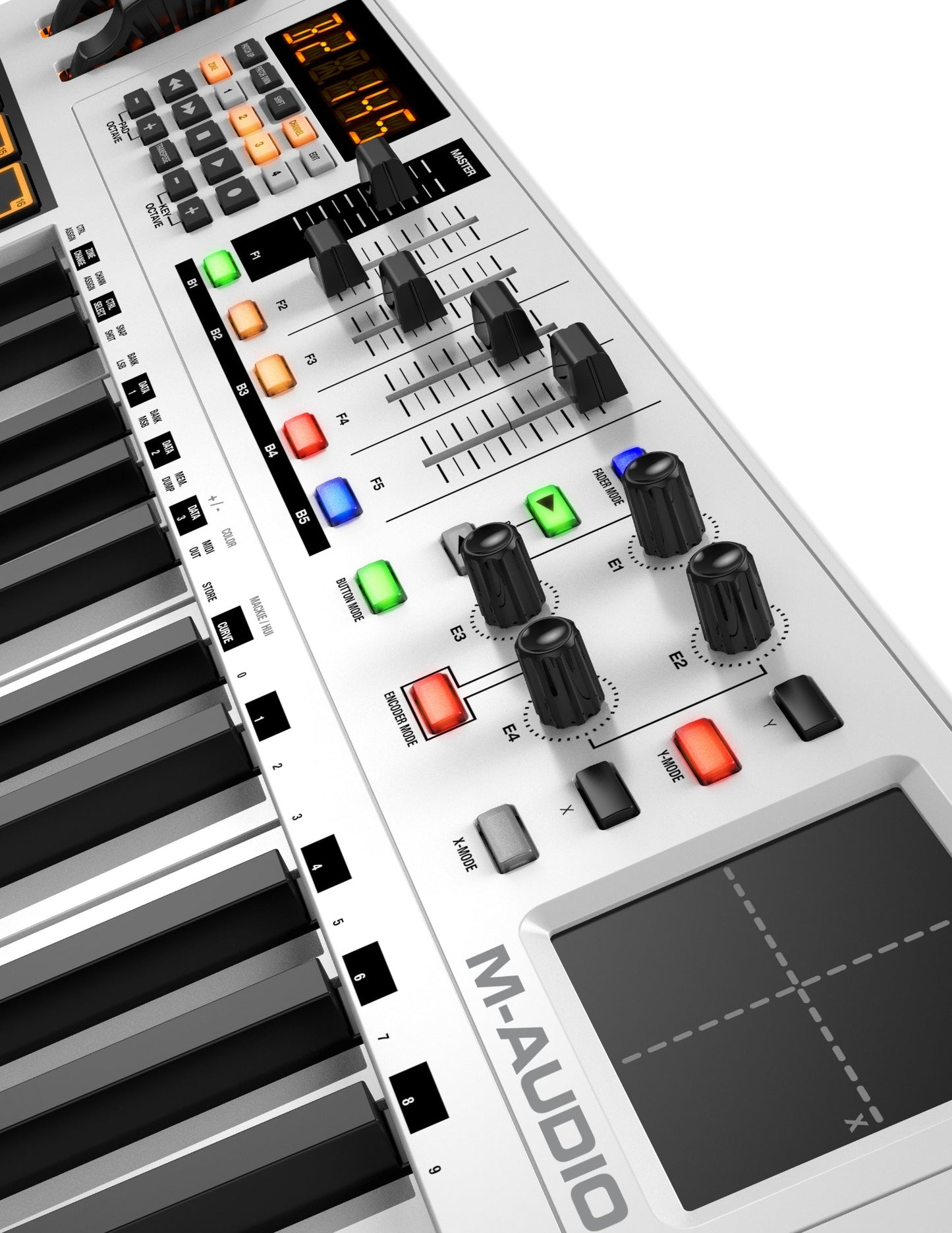

Code controllers are equipped with everything you need to produce some serious musical creations. Extensive assignable parameter control is a breeze with multiple banks of faders, knobs, buttons, pads, and a smooth feeling pitch bend and modulation wheel on top. New to the line of M-Audio controllers is the X/Y Touchpad, which provides additional and direct interaction with effects and instrument plugin parameters across an X/Y axis.
In addition, you can split the keyboards into four assignable zones to maximize the flexibility and functionality of your setup. For instance, trigger four different instruments in their own separate zone, or overlap zones and trigger two instruments at the same time.
| Product Name | M-Audio Code 25 | 25-Key USB MIDI Keyboard Controller with X/Y Touch Pad |
|---|---|
| Brand | M-Audio |
| Condition | New |
| MPN | CODE25 |
| UPC | 694318017050 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
-
Code 25 Keyboard
Quickstart Guide
USB Cable
User Guide (download)
Software Download Cards
Safety & Warranty Manual
- Spontaneously compose, record, remix, improvise and edit your musical ideas in a seamless audio/MIDI environment.
- 25 full-size, velocity-sensitive keys with aftertouch and four assignable zones for splits and layering
- Fully assignable XY pad for HID control and a unique way for controlling multiple parameters in virtual instruments
- LCD provides instant parameter feedback
- 16 fully assignable velocity-sensitive trigger pads for beat production, clip launching, and more
- 4 assignable 360 encoders for manipulating your DAW, virtual instruments and plugins
- 5 assignable faders lets you control your DAW, virtual instruments and plugins
- 5 assignable buttons lets you assign keyboard hotkey and MIDI messages for controlling your DAW and Virtual Instruments
- Sustain and Volume pedal input for further creative control
- USB-powered with 5 pin MIDI in and out allows for sending MIDI from PC sequencers to your favorite analog synth
Keyboard
- (25) velocity- and pressure-sensitive keys (with aftertouch). All 25 keys send secondary commands in Edit Mode
- (10)-octave range available with Key Octave –/+ buttons
- (4) assignable zones
Pads
- (16) assignable velocity-sensitive pads, multicolor-backlit
Faders
- (5) 30mm assignable faders
- (4) banks accessible via right/left buttons
Buttons
- (5) assignable buttons, multicolor-backlit
- (4) banks accessible via right/left buttons
Encoders
- (4) assignable 360° knobs
- (4) banks accessible via right/left buttons
X-Y Pad
- (1) 55mm x 55mm touch-sensitive pad
- (2) independently assignable axes: X (horizontal), Y (vertical)
Display
- 85mm x 25mm LCD

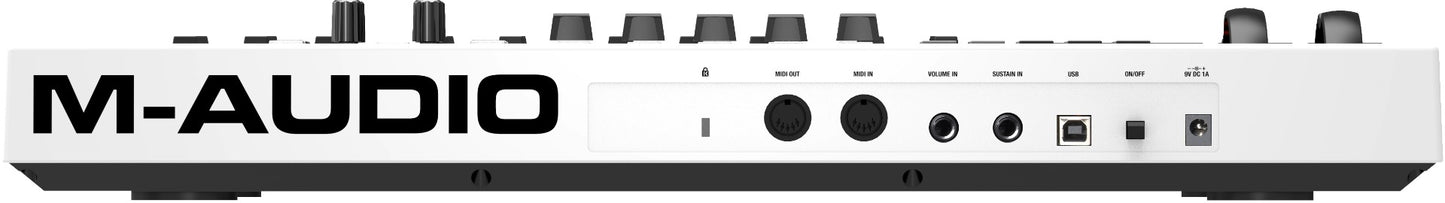

Connections
- (1) USB port
- (1) 1/4” TS sustain pedal/footswitch input
- (1) 1/4” TRS volume/expression pedal input
- (1) 5-pin MIDI input
- (1) 5-pin MIDI output
- (1) power adapter input (power adapter not included)
- (1) Kensington lock slot
Power
- via USB or via power adapter (9 VDC, 1A, center-positive, not included)
Dimensions (width x depth x height)
- 20.9” x 10.0” x 2.8”
Weight
- 6.2 lbs
M-Audio Code 25 | 25-Key USB MIDI Keyboard Controller with X/Y Touch Pad
M-Audio presents its Code Series keyboard controllers, a family of three full-featured models, combining all of the production power and performance you need to get the most from your music software and MIDI gear.
The Code Series offers several thoughtful design touches that enable you to create and perform your best. A keyboard should not be an obstacle standing in the way of creativity. Instead, it should function as a direct extension of your thoughts ensuring that you convey musical ideas with immediacy, precision and clarity.
Code controllers are equipped with everything you need to produce some serious musical creations. Extensive assignable parameter control is a breeze with multiple banks of faders, knobs, buttons, pads, and a smooth feeling pitch bend and modulation wheel on top. New to the line of M-Audio controllers is the X/Y Touchpad, which provides additional and direct interaction with effects and instrument plugin parameters across an X/Y axis.
In addition, you can split the keyboards into four assignable zones to maximize the flexibility and functionality of your setup. For instance, trigger four different instruments in their own separate zone, or overlap zones and trigger two instruments at the same time.
| Product Name | M-Audio Code 25 | 25-Key USB MIDI Keyboard Controller with X/Y Touch Pad |
|---|---|
| Brand | M-Audio |
| Condition | New |
| MPN | CODE25 |
| UPC | 694318017050 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
Code 25 KeyboardQuickstart Guide
USB Cable
User Guide (download)
Software Download Cards
Safety & Warranty Manual
- Spontaneously compose, record, remix, improvise and edit your musical ideas in a seamless audio/MIDI environment.
- 25 full-size, velocity-sensitive keys with aftertouch and four assignable zones for splits and layering
- Fully assignable XY pad for HID control and a unique way for controlling multiple parameters in virtual instruments
- LCD provides instant parameter feedback
- 16 fully assignable velocity-sensitive trigger pads for beat production, clip launching, and more
- 4 assignable 360 encoders for manipulating your DAW, virtual instruments and plugins
- 5 assignable faders lets you control your DAW, virtual instruments and plugins
- 5 assignable buttons lets you assign keyboard hotkey and MIDI messages for controlling your DAW and Virtual Instruments
- Sustain and Volume pedal input for further creative control
- USB-powered with 5 pin MIDI in and out allows for sending MIDI from PC sequencers to your favorite analog synth
Keyboard
- (25) velocity- and pressure-sensitive keys (with aftertouch). All 25 keys send secondary commands in Edit Mode
- (10)-octave range available with Key Octave –/+ buttons
- (4) assignable zones
Pads
- (16) assignable velocity-sensitive pads, multicolor-backlit
Faders
- (5) 30mm assignable faders
- (4) banks accessible via right/left buttons
Buttons
- (5) assignable buttons, multicolor-backlit
- (4) banks accessible via right/left buttons
Encoders
- (4) assignable 360° knobs
- (4) banks accessible via right/left buttons
X-Y Pad
- (1) 55mm x 55mm touch-sensitive pad
- (2) independently assignable axes: X (horizontal), Y (vertical)
Display
- 85mm x 25mm LCD
Connections
- (1) USB port
- (1) 1/4” TS sustain pedal/footswitch input
- (1) 1/4” TRS volume/expression pedal input
- (1) 5-pin MIDI input
- (1) 5-pin MIDI output
- (1) power adapter input (power adapter not included)
- (1) Kensington lock slot
Power
- via USB or via power adapter (9 VDC, 1A, center-positive, not included)
Dimensions (width x depth x height)
- 20.9” x 10.0” x 2.8”
Weight
- 6.2 lbs
