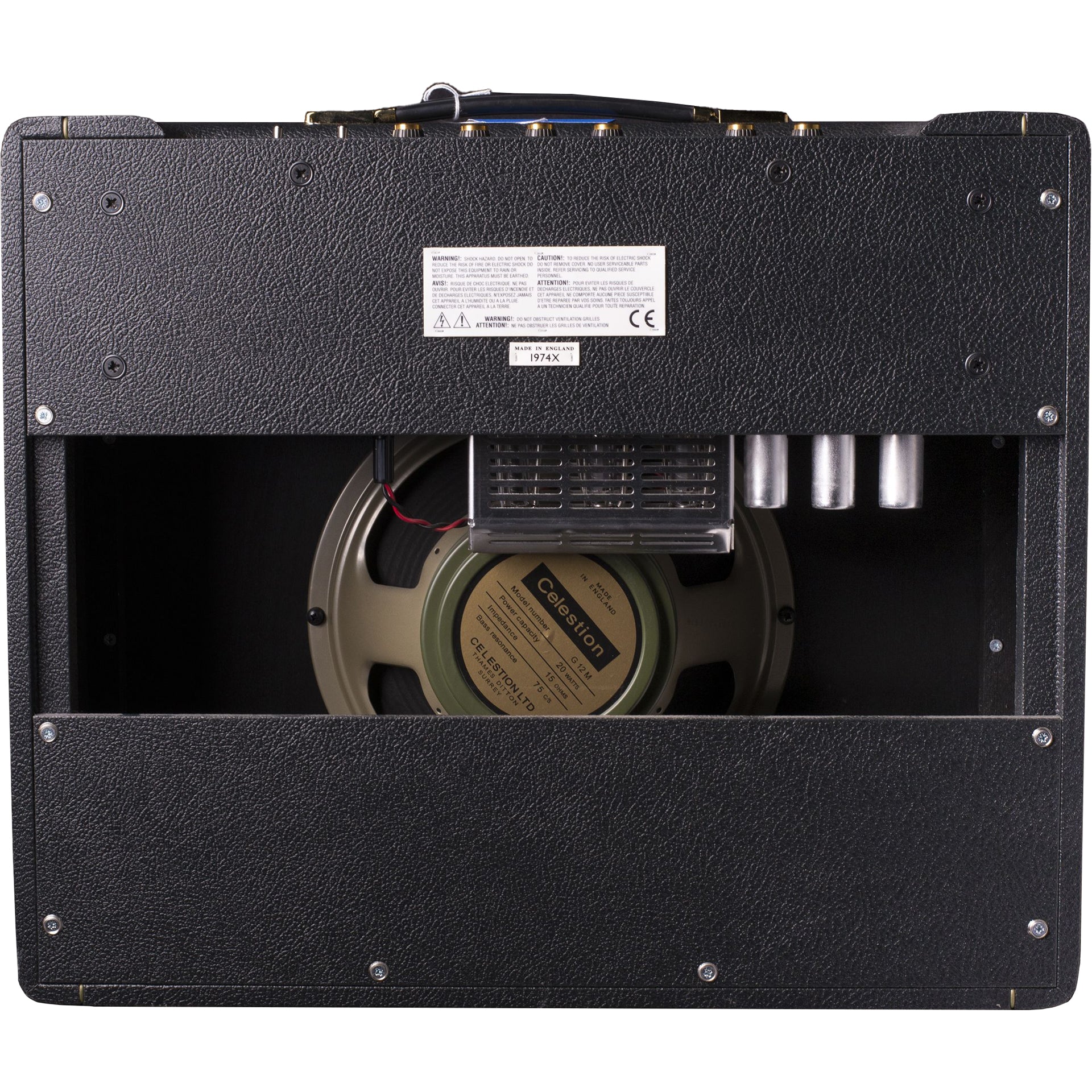

The 1974X is an authentic re-issue of the fabled model 1974 combo of the late sixties (1966-1968). Just like the original, it boasts a point-to-point, handwired, tagboard circuit housed in an aluminum chassis, plus a valve-driven tremolo circuit. At the very heart of its simple but effective two channel design can be found six valves; three ECC83'S in the preamp, an EZ81 rectifier and a pair of cathode biased EL84's in the power stage. As the output and mains transformers are vital components in any amplifier as they influence performance, sound and feel, we worked extremely closely with our associates at Dagnall in order to duplicate the original, "off-the-shelf" transformers in all areas.
| Product Name | Marshall Hand Wired 18-Watt Tube 1x12 Combo |
|---|---|
| Brand | Marshall |
| Condition | New |
| MPN | M-1974X-U |
| UPC | 886830405952 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Output: 18 watts
- Tremolo: Yes
- Speakers: G12M-20 Special
- Pre-Amp Valves: 3x ECC83
- Power Amp Valves: 2- EL84
- Valve Rectifier: 1 xEZ81
- Footswitch (supplied): PEDL-10034
- Dimensions (mm): 610x508x226
- Weight (kg): 19
GENERAL |
|
|---|---|
| Model: | 1974X |
| Range: | Handwired |
| Technology: | Valve |
| Channels: | 2 (Multi) non-master volume |
ELECTRONICS |
|
| Output wattage: | 18W |
| Outputs: | 2 x 1/4" jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω load |
| Inputs: | 4 (2 x High & 2 x Low) |
| Controls: | Channel 1 (tremolo speed, tremolo intensity, tone, volume), channel 2 (tone, volume) |
| Effects: | Footswitchable Tremolo |
| Effects loop: | No |
SPEAKERS |
|
| Speaker configuration: | 1x12" |
| Speaker model: | Celestion Heritage G12M-20 (15Ω, 20W) |
| Unit impedance: | 15Ω |
VALVES |
|
| Preamp valves: | 2 x ECC83, 1 x ECC83 (phase splitter) |
| Power amp valves: | 2 x EL84 |
| Rectifier: | 1 x EZ81 |
ACCESSORIES |
|
| Footswitch: | PEDL-10034 included |
| Cable: | Detachable power cable included |
| Dust cover: | M-COVR-00056 (sold separately) |
DIMENSIONS (including feet and handle) |
|
| Weight: 19 kg / 42 lbs | |
| Width: 610 mm / 24" | |
| Height: 535 mm / 21.1" | |
| Depth: 230 mm / 9.1" |

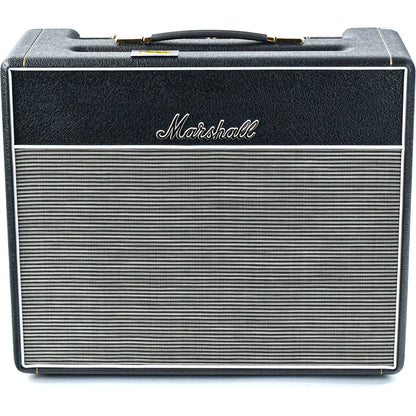

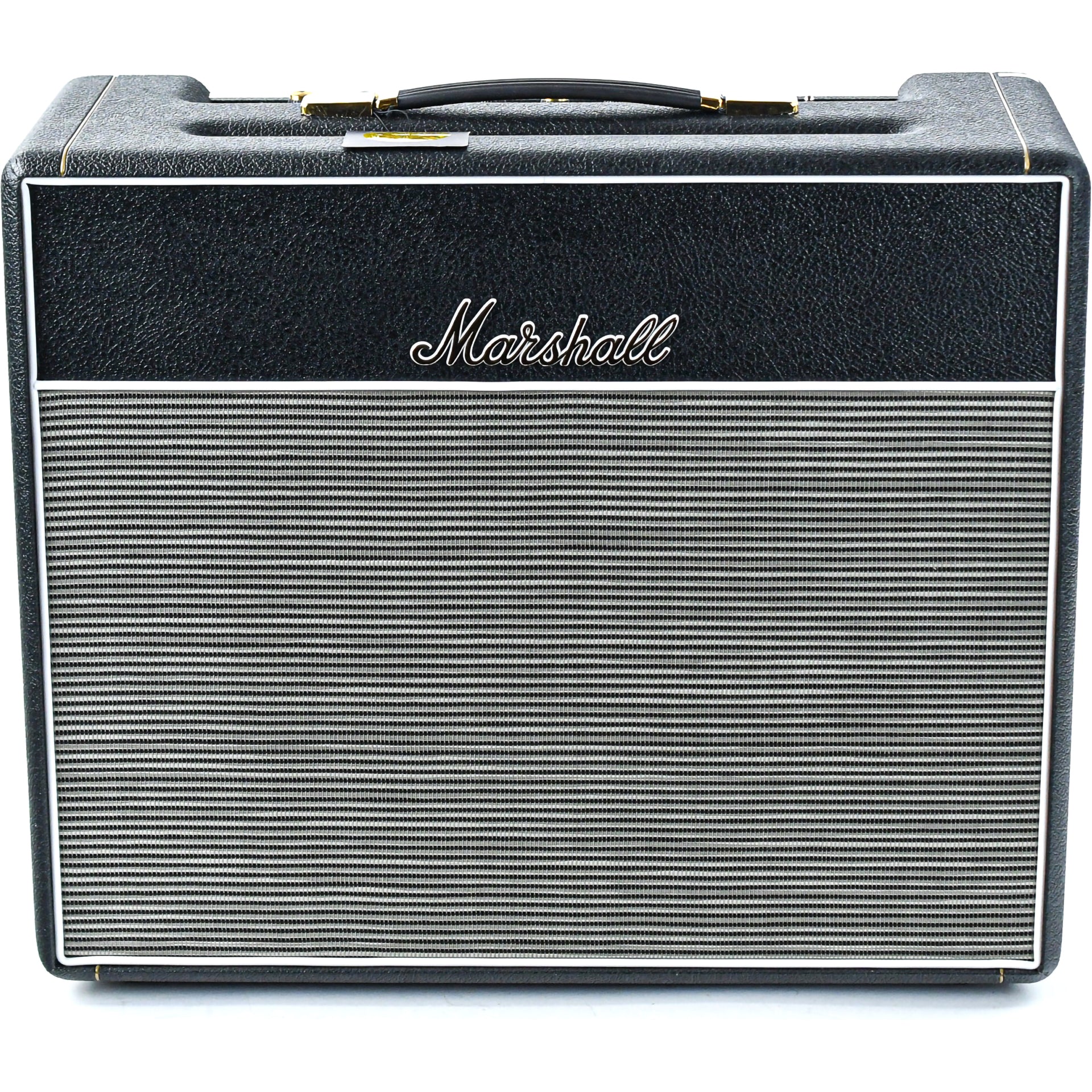

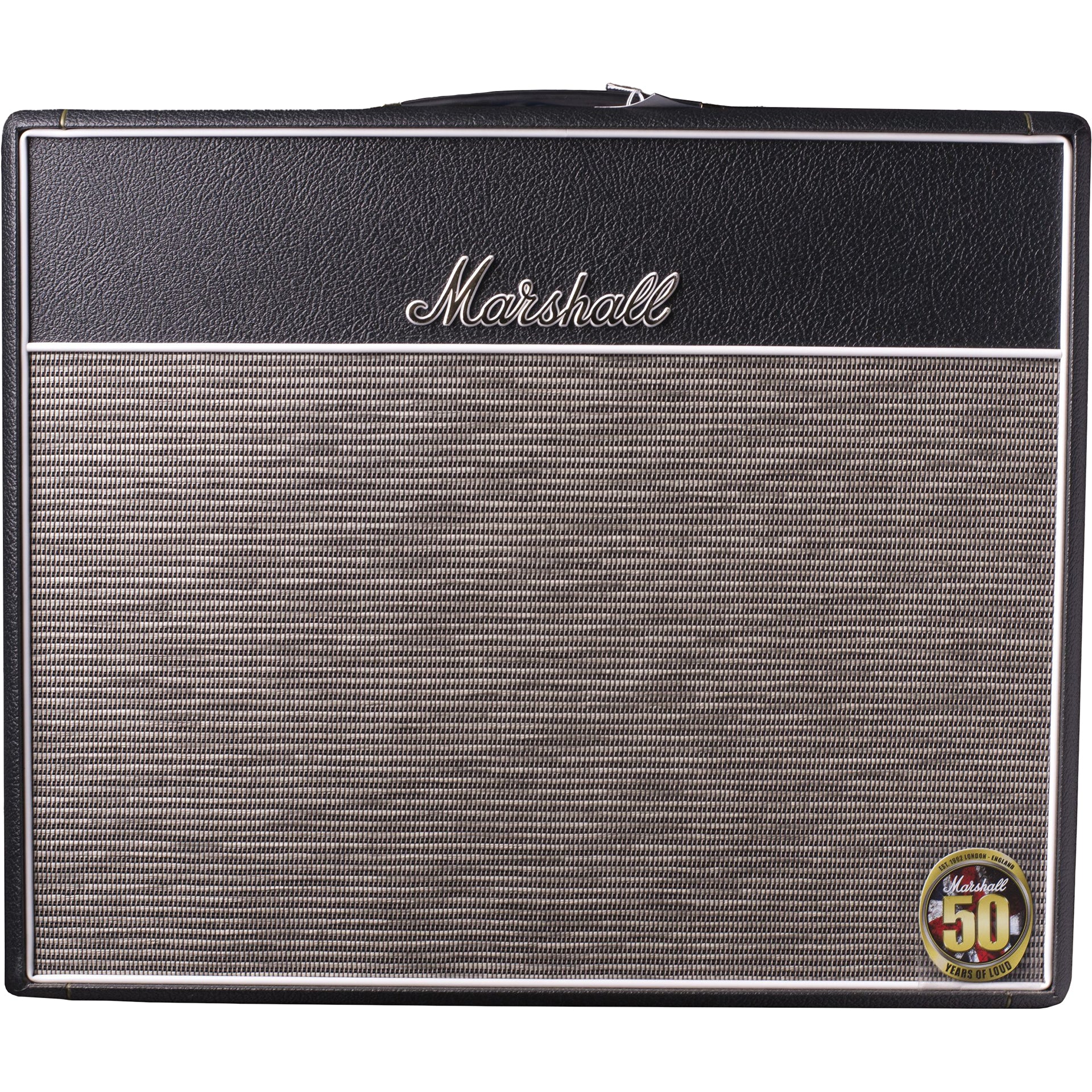

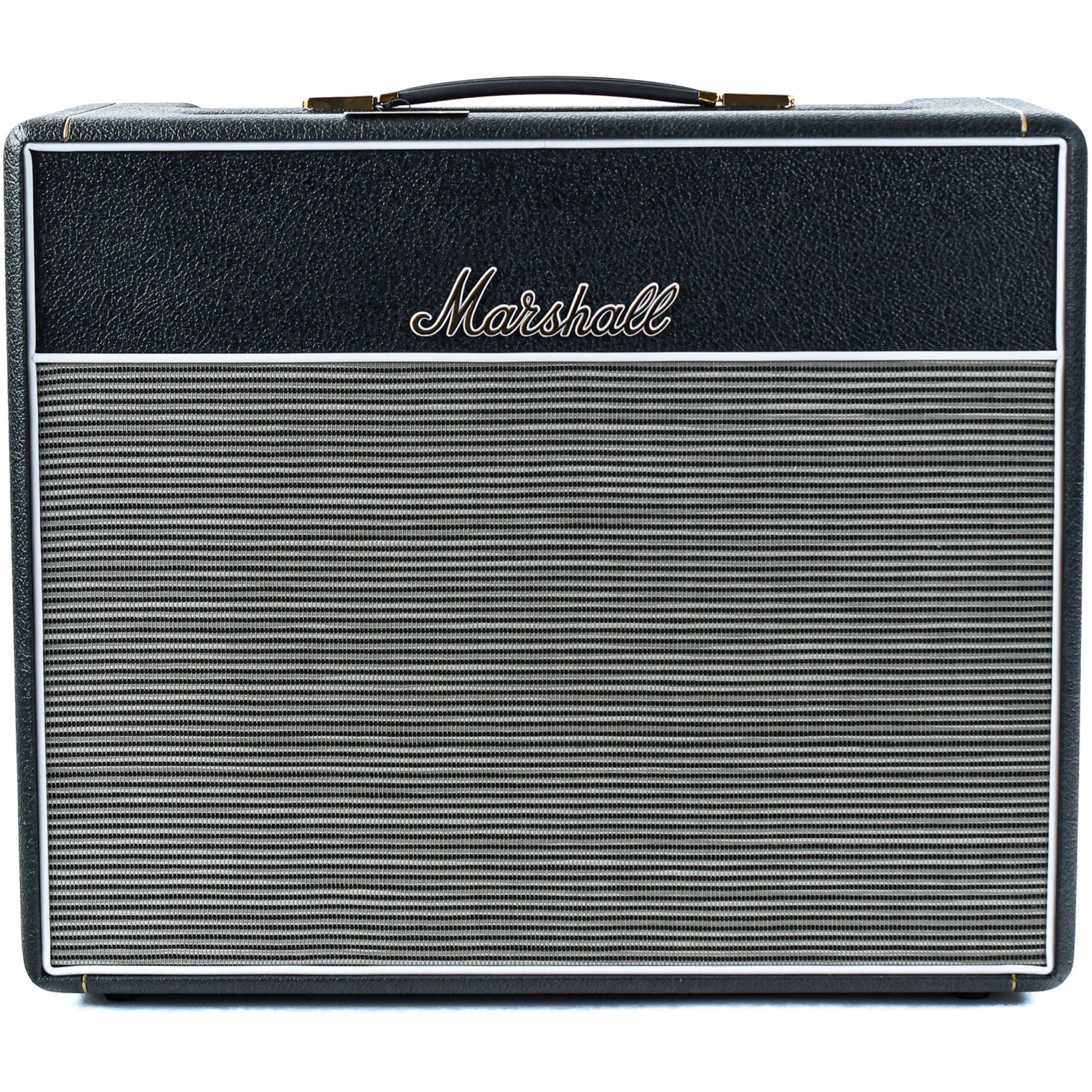

Marshall Hand Wired 18-Watt Tube 1x12 Combo
Details
The 1974X is an authentic re-issue of the fabled model 1974 combo of the late sixties (1966-1968). Just like the original, it boasts a point-to-point, handwired, tagboard circuit housed in an aluminum chassis, plus a valve-driven tremolo circuit. At the very heart of its simple but effective two channel design can be found six valves; three ECC83'S in the preamp, an EZ81 rectifier and a pair of cathode biased EL84's in the power stage. As the output and mains transformers are vital components in any amplifier as they influence performance, sound and feel, we worked extremely closely with our associates at Dagnall in order to duplicate the original, "off-the-shelf" transformers in all areas.
| Product Name | Marshall Hand Wired 18-Watt Tube 1x12 Combo |
|---|---|
| Brand | Marshall |
| Condition | New |
| MPN | M-1974X-U |
| UPC | 886830405952 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Output: 18 watts
- Tremolo: Yes
- Speakers: G12M-20 Special
- Pre-Amp Valves: 3x ECC83
- Power Amp Valves: 2- EL84
- Valve Rectifier: 1 xEZ81
- Footswitch (supplied): PEDL-10034
- Dimensions (mm): 610x508x226
- Weight (kg): 19
Tech Specs
GENERAL |
|
|---|---|
| Model: | 1974X |
| Range: | Handwired |
| Technology: | Valve |
| Channels: | 2 (Multi) non-master volume |
ELECTRONICS |
|
| Output wattage: | 18W |
| Outputs: | 2 x 1/4" jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω load |
| Inputs: | 4 (2 x High & 2 x Low) |

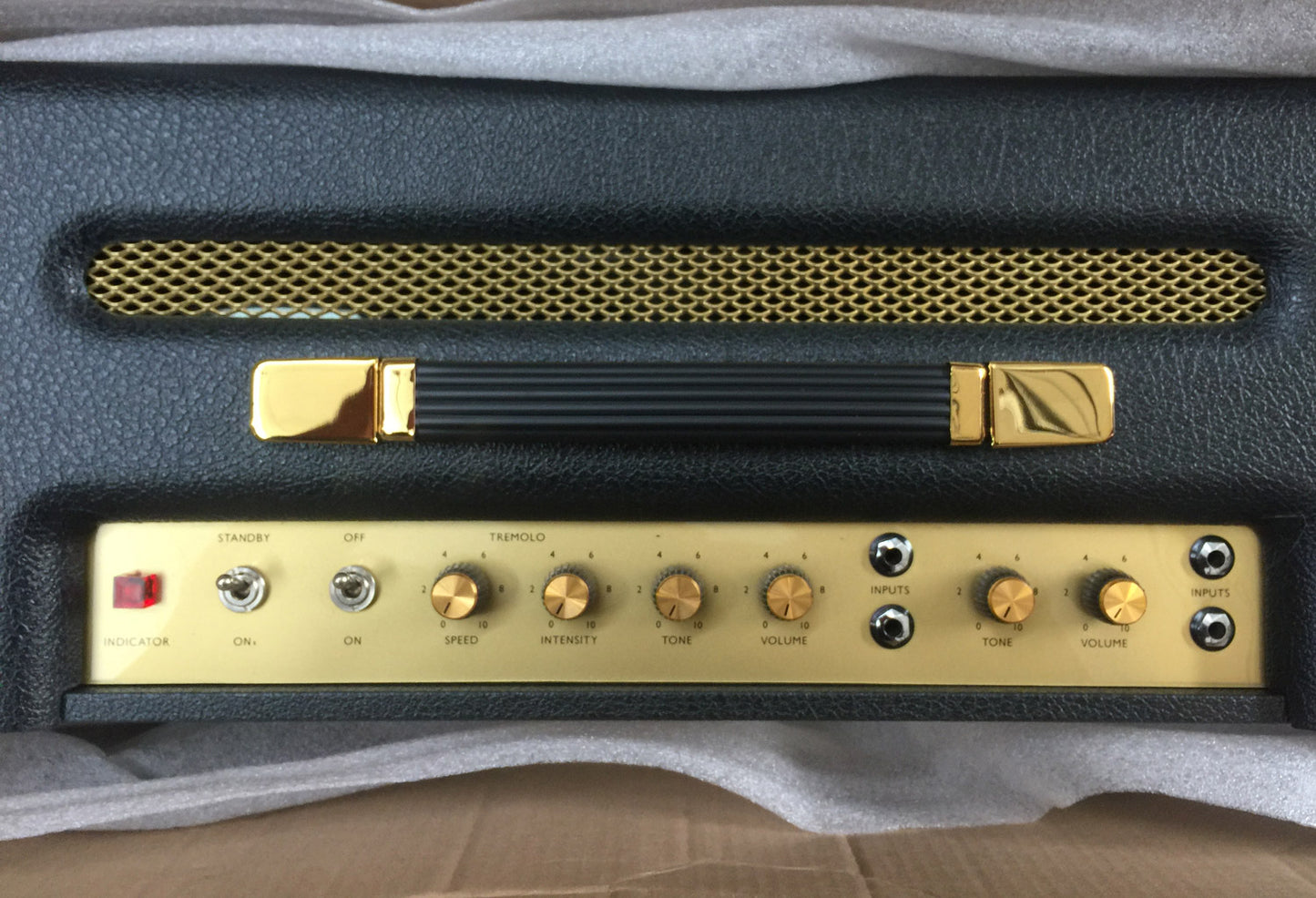

| Controls: | Channel 1 (tremolo speed, tremolo intensity, tone, volume), channel 2 (tone, volume) |
| Effects: | Footswitchable Tremolo |
| Effects loop: | No |
SPEAKERS |
|
| Speaker configuration: | 1x12" |

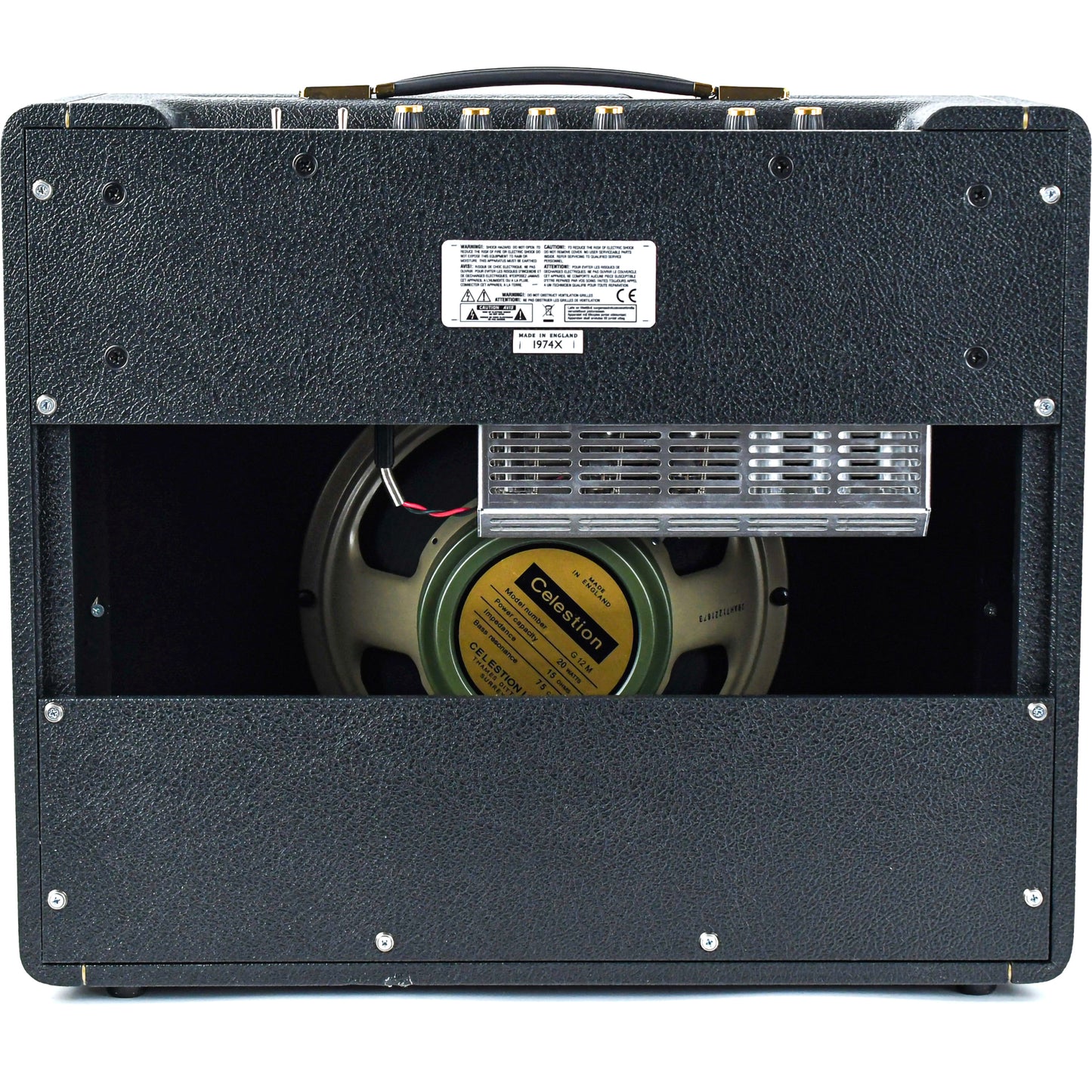

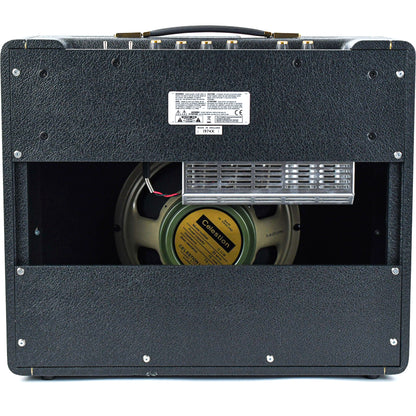

| Speaker model: | Celestion Heritage G12M-20 (15Ω, 20W) |
| Unit impedance: | 15Ω |
VALVES |
|
| Preamp valves: | 2 x ECC83, 1 x ECC83 (phase splitter) |
| Power amp valves: | 2 x EL84 |
| Rectifier: | 1 x EZ81 |
ACCESSORIES |
|

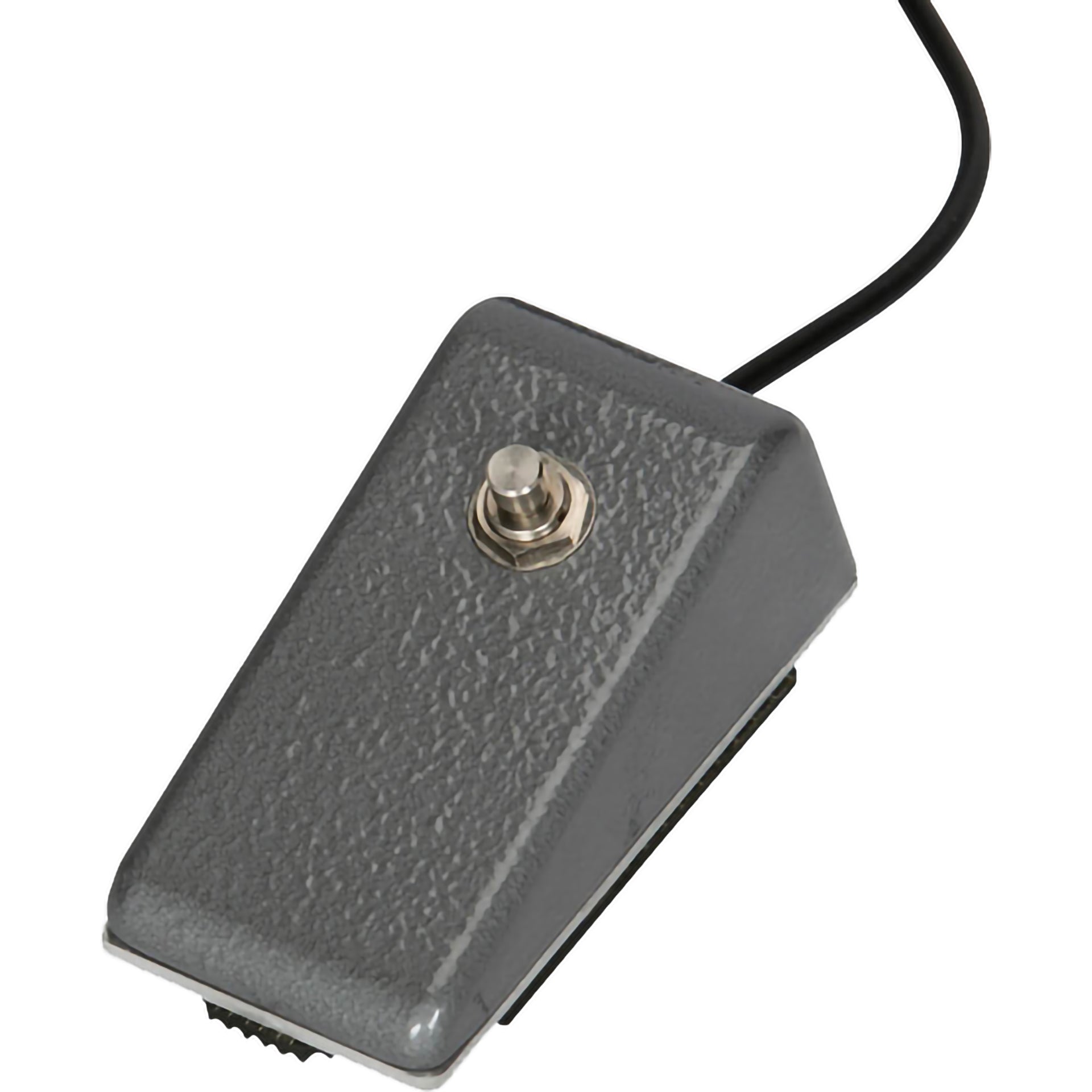

| Footswitch: | PEDL-10034 included |
| Cable: | Detachable power cable included |
| Dust cover: | M-COVR-00056 (sold separately) |
DIMENSIONS (including feet and handle) |
|
| Weight: 19 kg / 42 lbs | |
| Width: 610 mm / 24" | |
| Height: 535 mm / 21.1" | |
| Depth: 230 mm / 9.1" |
