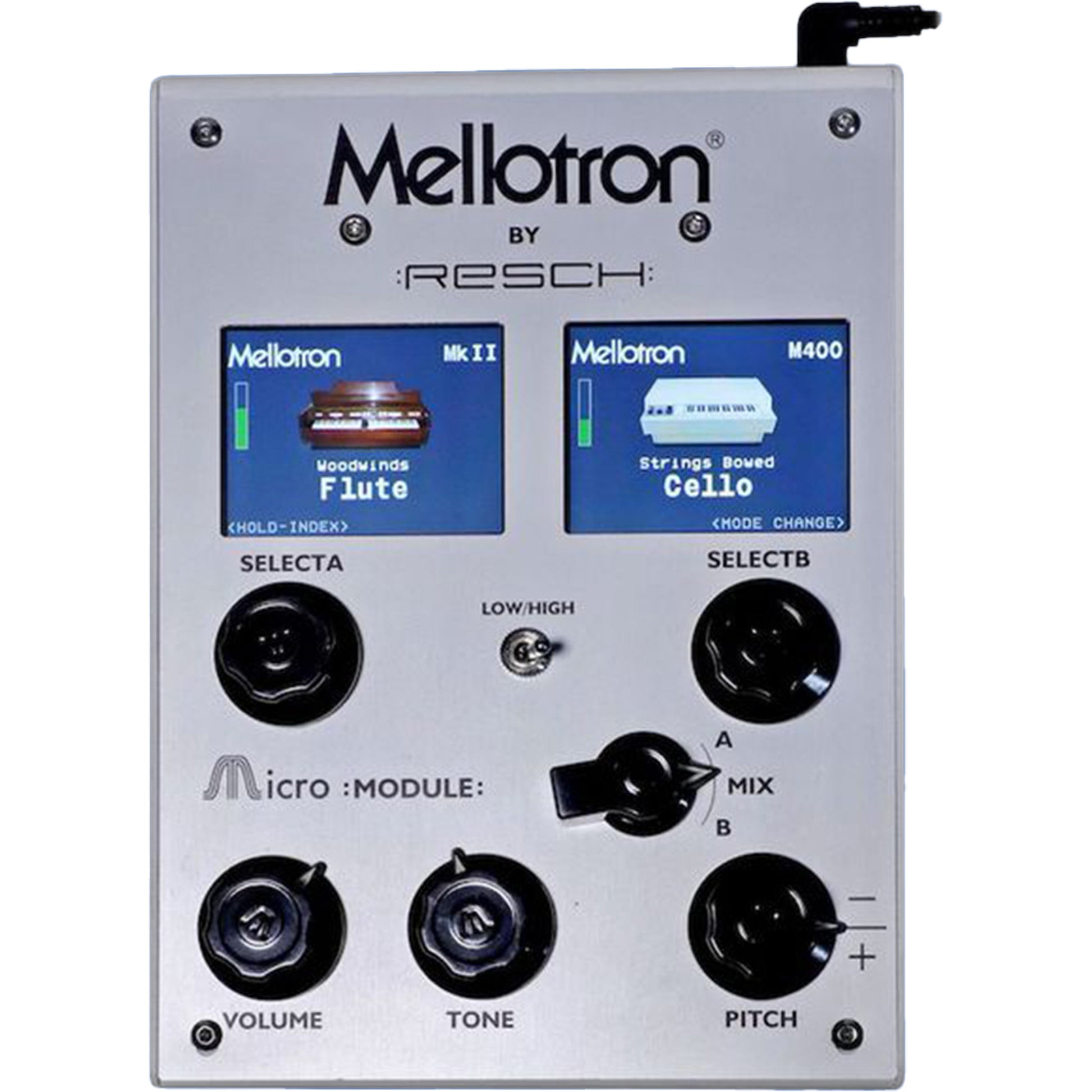

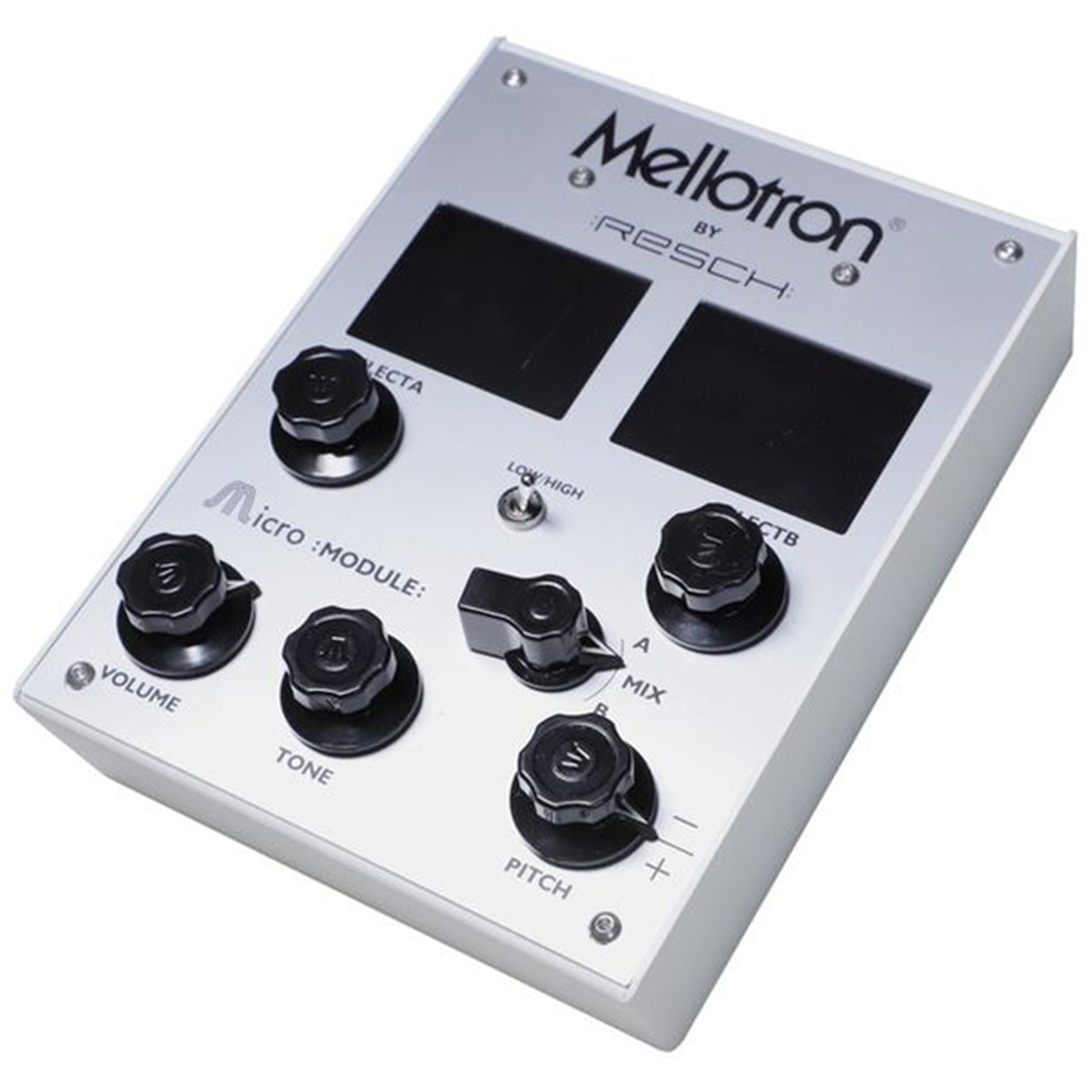

The Mellotron Micro Module is the smallest version available of the Digital Mellotron, and includes many of the features of the Micro. It includes one hundred 24-bit uncompressed sounds sourced from original first-generation Mellotron and Chamberlin tape libraries. Sound Card 01 is the built-in library for the Micro and M4000D series of instruments. The Module includes a power supply, mains cable and a 3.5 mm to 5 pin male type "B" Midi cable.
The Micro Module basically is a Mellotron Micro without the keyboard. The only other differences are:
- The "Octave" switch for the keyboard on the Micro is a High/Low switch on the Micro Module. The High/Low switch can be set to lower the playback speed of the samples by one or two octaves.
- The Midi jacks are 3.5 mm, not 5 pin DIN. Note: The "B" standard is used for the 3.5 mm jacks.
- It can handle both Midi mono aftertouch and polyphonic aftertouch.
- There is no Midi out.
- It can NOT be expanded with CF expansion cards, it is based on Micro SD storage.
| Product Name | Mellotron Micro Module Synthesizer |
|---|---|
| Brand | Mellotron |
| Condition | New |
| MPN | MICROMODULE |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Mellotron Micro Module Synthesizer
- Controller for high/low, volume, tone, pitch and A/B mix
- 2 Displays
- The "Octave" switch for the keyboard on the Micro is a High/Low switch on the Micro Module.
- The High/Low switch can be set to lower the playback speed of the samples by one or two octaves.

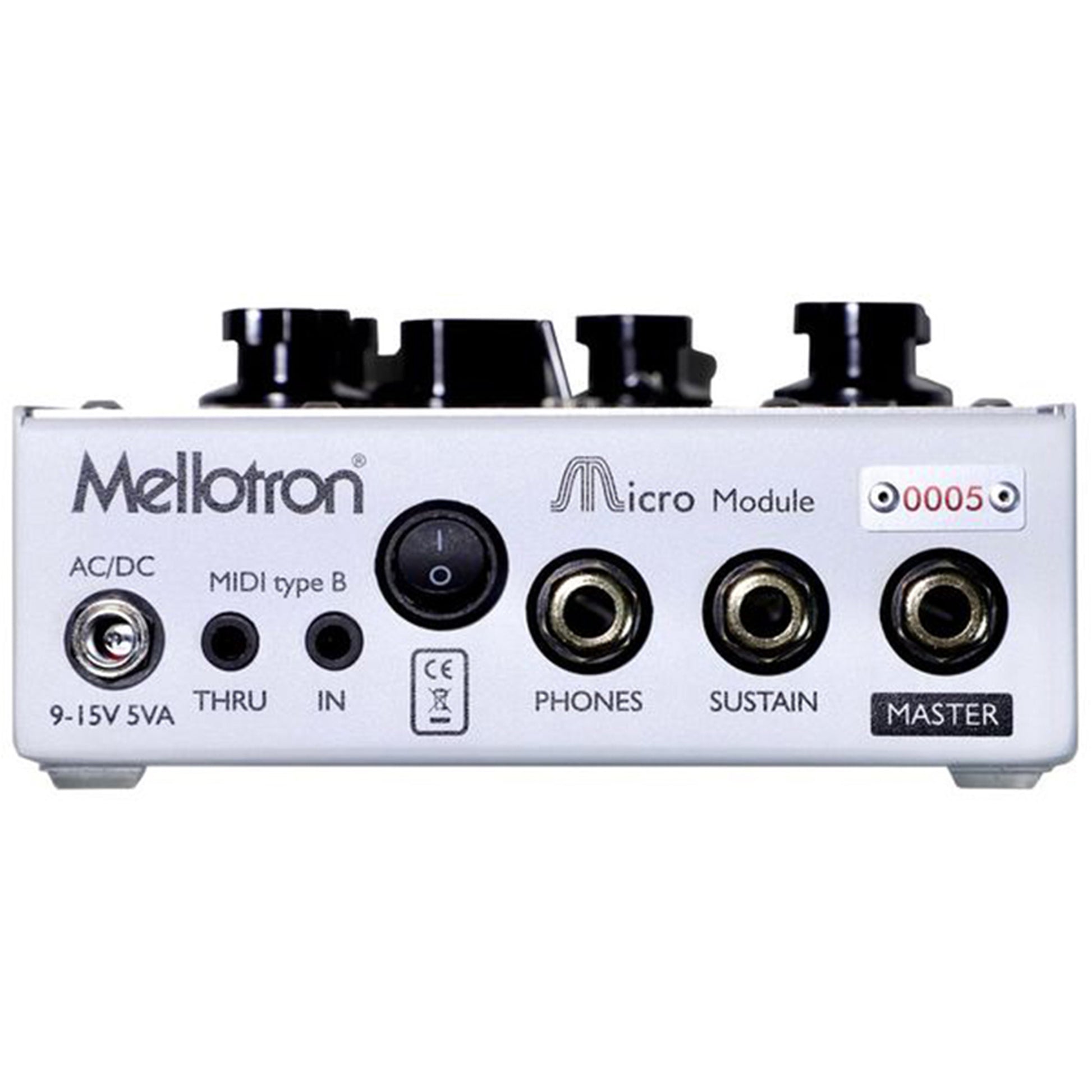

- Two gold plated 1/4" line outputs (Master, Headphone)
- Gold plated Sustain jack
- Gold plated 3.5 mm MIDI IN and THRU (no MIDI out)
- It can handle both Midi mono aftertouch and polyphonic aftertouch.
- Dimensions: 7.2 x 5.3 x 2.6 in(184 x 135 x 65 mm)
- Weight: 1.57 lbs (710g)
- Updates via Updater app for iOS
- 100 instantly accessible Mellotron and Chamberlin sounds, captured from original tape sources at 24-bits, uncompressed
- The Midi jacks are 3.5 mm, not 5 pin DIN. Note: The "B" standard is used for the 3.5 mm jacks.
- External power supply connection
Mellotron Micro Module Synthesizer
The Mellotron Micro Module is the smallest version available of the Digital Mellotron, and includes many of the features of the Micro. It includes one hundred 24-bit uncompressed sounds sourced from original first-generation Mellotron and Chamberlin tape libraries. Sound Card 01 is the built-in library for the Micro and M4000D series of instruments. The Module includes a power supply, mains cable and a 3.5 mm to 5 pin male type "B" Midi cable.
The Micro Module basically is a Mellotron Micro without the keyboard. The only other differences are:
- The "Octave" switch for the keyboard on the Micro is a High/Low switch on the Micro Module. The High/Low switch can be set to lower the playback speed of the samples by one or two octaves.
- The Midi jacks are 3.5 mm, not 5 pin DIN. Note: The "B" standard is used for the 3.5 mm jacks.
- It can handle both Midi mono aftertouch and polyphonic aftertouch.
- There is no Midi out.
- It can NOT be expanded with CF expansion cards, it is based on Micro SD storage.
| Product Name | Mellotron Micro Module Synthesizer |
|---|---|
| Condition | New |
| MPN | MICROMODULE |
What's in the Box?
Mellotron Micro Module Synthesizer- Controller for high/low, volume, tone, pitch and A/B mix
- 2 Displays
- The "Octave" switch for the keyboard on the Micro is a High/Low switch on the Micro Module.
- The High/Low switch can be set to lower the playback speed of the samples by one or two octaves.
- Two gold plated 1/4" line outputs (Master, Headphone)
- Gold plated Sustain jack
- Gold plated 3.5 mm MIDI IN and THRU (no MIDI out)
- It can handle both Midi mono aftertouch and polyphonic aftertouch.
- Dimensions: 7.2 x 5.3 x 2.6 in(184 x 135 x 65 mm)
- Weight: 1.57 lbs (710g)
- Updates via Updater app for iOS
- 100 instantly accessible Mellotron and Chamberlin sounds, captured from original tape sources at 24-bits, uncompressed
- The Midi jacks are 3.5 mm, not 5 pin DIN. Note: The "B" standard is used for the 3.5 mm jacks.
- External power supply connection
