Your Tube Amp. 16 Legendary IR Cabinet Simulations. Direct to Studio, Stage or Headphones...All in One Compact Box

There’s no substitute for your favorite MESA®, or really any, tube amplifier paired with your favorite cab in a magical sounding room or favorite environment. We also know the challenges and potential costs of capturing great tone and recreating that tone from venue to venue for recording or live stage environments.

Many players prefer a variety of sounds, yet collecting multiple cabs, gear, and gaining access to great acoustic spaces can be challenging both logistically and financially. Sometimes the convenience of going direct—for recording or live use—without cabs, microphones, placement challenges, or bleed issues is simply necessary.

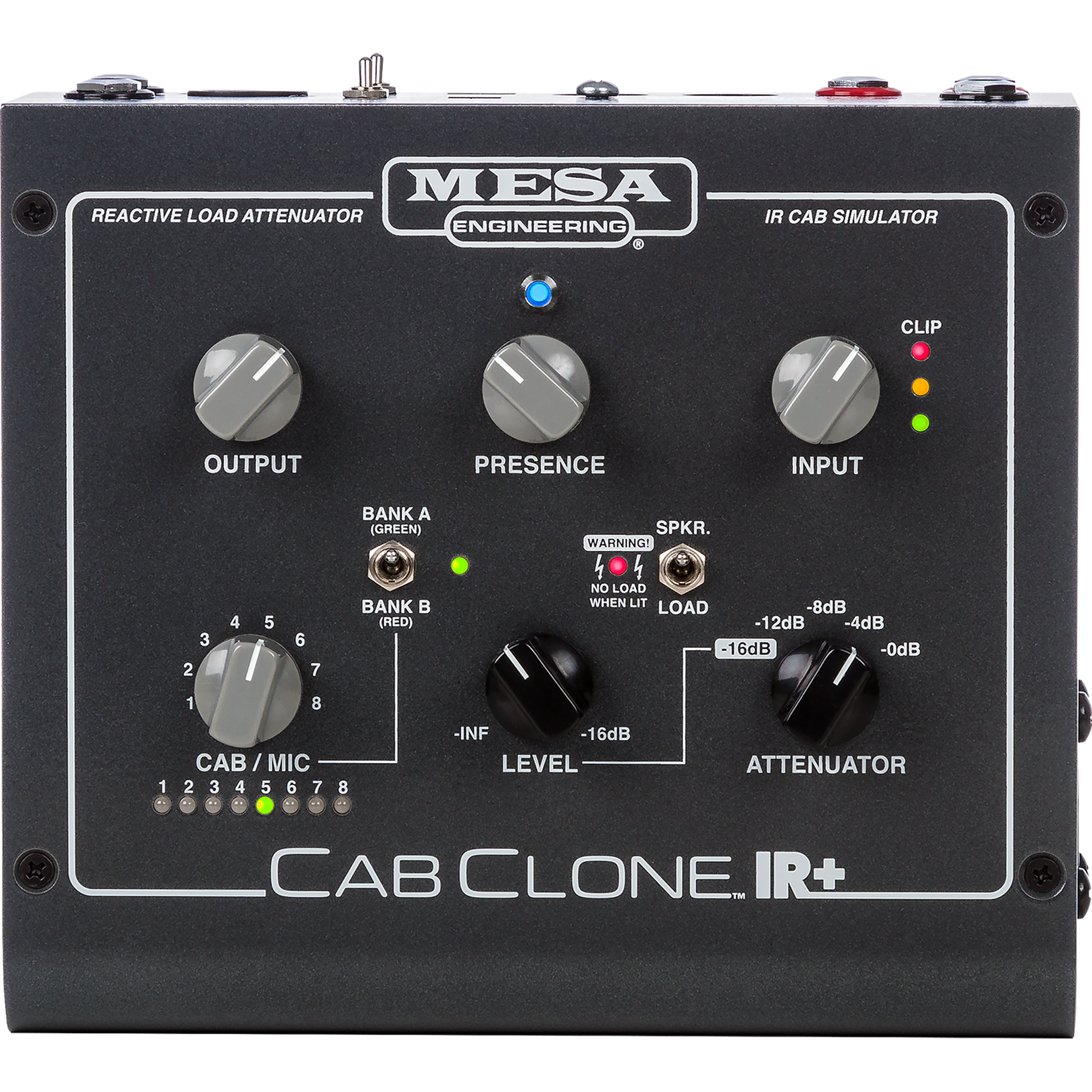

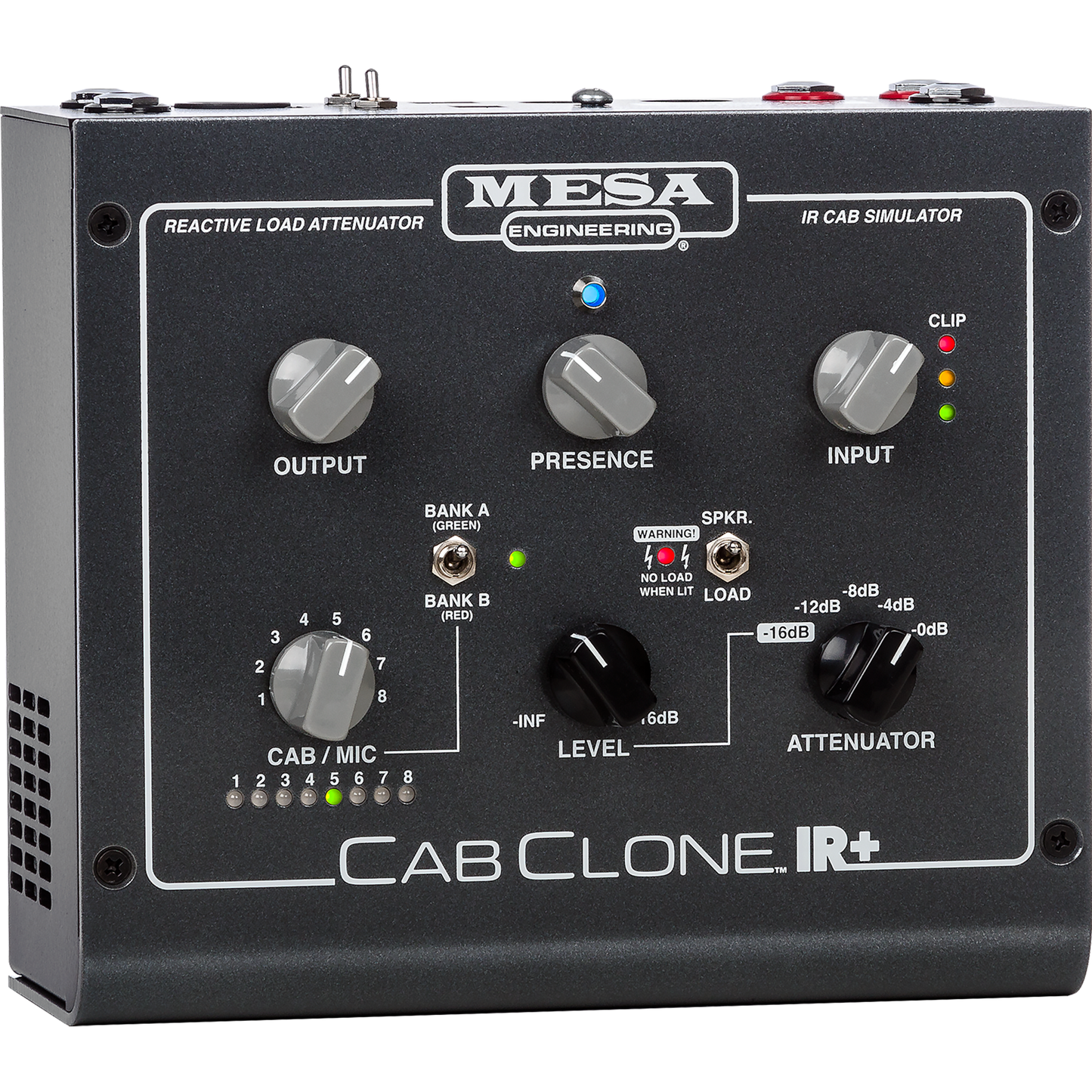

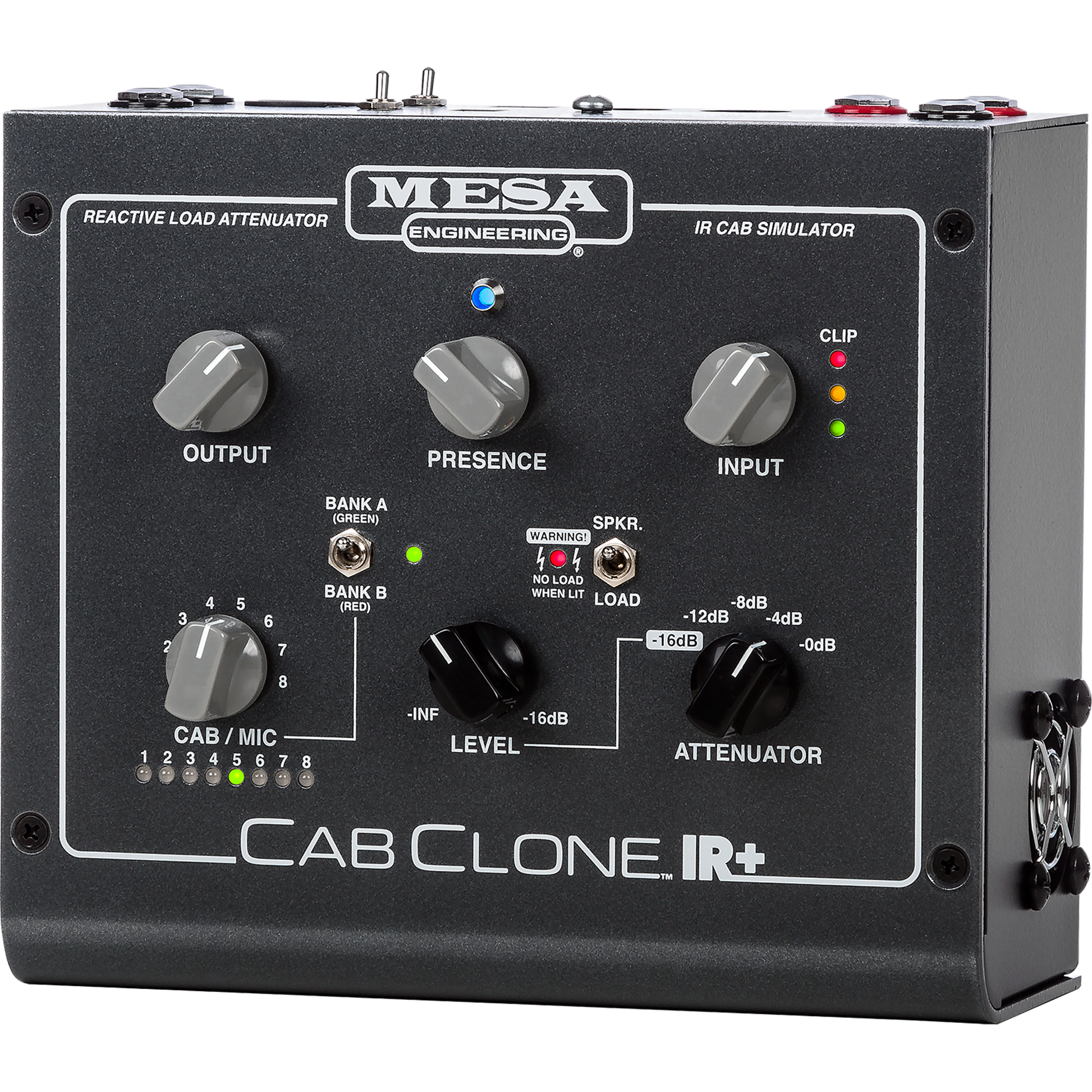

Your ultimate solution Tone Tool is here. The CabClone™ IR PLUS Cabinet Simulator/IR Reader delivers true MESA quality and sound, offering portability, flexible control, and tonal consistency from venue to venue. Featuring a wide array of popular MESA cabinets captured by a professional engineer with iconic mics in a state-of-the-art studio, it fits right on your pedalboard or in your gig bag.

Go direct to an interface or console for recording or live performance, or plug straight into headphones for silent practice with the CabClone IR PLUS.

8 Legendary MESA Cabs, Meticulously Captured Two Ways

The CabClone IR PLUS includes 16 MESA Proprietary Cabinet Impulse Responses loaded into two banks of 8 presets:

• BANK A – “LIVE” IRs: Recorded with Dynamic and Ribbon microphones
• BANK B – “STUDIO” IRs: Recorded with Condenser and Ribbon microphones

Each bank contains the same eight popular MESA cabinets in the same order, allowing easy comparison by simply flipping the BANK switch.

• 4x12 RECTO STANDARD with Celestion V30s – 8 Ohm
• 4x12 RECTO TRADITIONAL with Celestion V30s – 8 Ohm
• 2x12 RECTO HORIZONTAL with Celestion V30s – 16 Ohm
• 1x12 RECTO 1x12 with Celestion V30 – 8 Ohm
• 1x12 THIELE with Celestion C90 – 8 Ohm
• 2x12 LONE STAR with Celestion C90 – 16 Ohm
• 1x12 LONE STAR 23 with Celestion C90 – 8 Ohm
• 1x12 CALIFORNIA TWEED 23 with Jensen Alnico “Blackbird” – 8 Ohm

Powerful DI + Perfect Power; On-Board Attenuation

The CabClone IR PLUS features a built-in attenuator, allowing you to use your favorite power window to achieve the perfect sound and feel with your chosen Cab Simulation. This powerful attenuation system adds flexibility and convenience beyond others in its class.

• Four power reduction settings plus –0dB/Bypass
• Lowest setting: -16dB with rheostat (pot) for infinite control down to silent/off
• Warning LED alerts you to a No-Load scenario when signal is present

MIDI Control

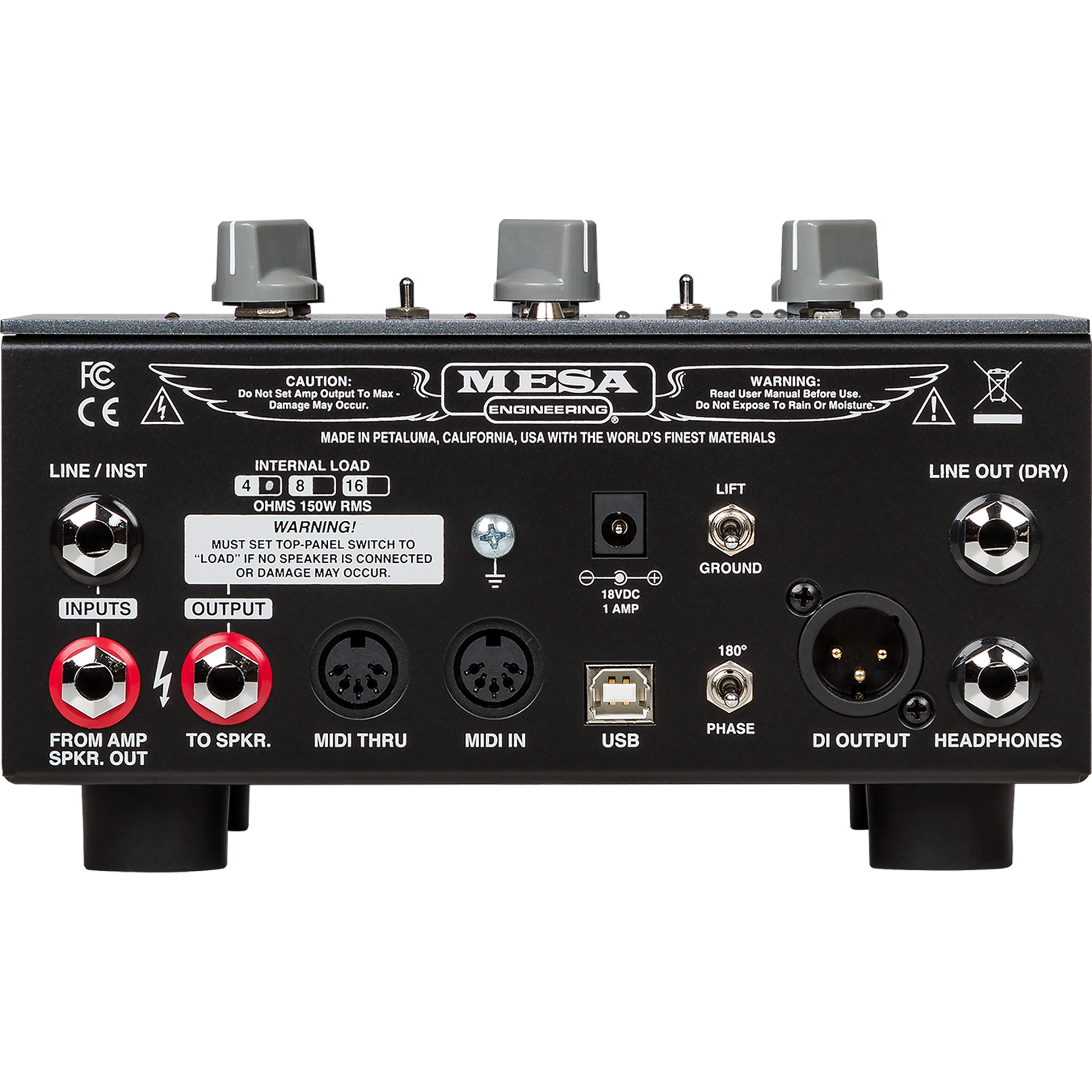

MIDI (Program Change) messages are supported, providing access to all 16 Cabinet Simulations across the two banks via a standard 5-pin MIDI IN connector. A MIDI THRU passes program change messages to other MIDI-capable devices in your rig.

This allows you to assign different cabinets to different amp channels or sounds. For example:

• Open-Back 2x12 (LIVE BANK) for Clean
• Closed-Back 4x12 (LIVE BANK) for Crunch Rhythm
• Closed-Back 1x12 (STUDIO BANK) for Solo

You can also assign multiple Cab Sims to the same channel for different vibes—such as a ceramic 1x12 for rhythm and an Alnico 1x12 for lead. MIDI compatibility allows instant access via a single controller button.

No Additional Load Box Needed

The Internal Reactive Load provides an impedance-matched (per your purchase selection) safe solution for running without a speaker cabinet or combo speaker. Record direct or send a silent DI signal to FOH/monitor consoles.

You may also use a speaker cabinet simultaneously for stage monitoring without affecting the selected Cab Sim/IR sent to the console.

Third-Party IR Compatibility

In addition to the 16 factory MESA IRs, the CabClone IR PLUS allows you to download and store a large library of third-party IRs in its internal memory.

Via USB connection, the unit appears as a standard file directory on your computer. Simply drag or copy IR files into any of the 16 preset locations across the two banks.

This allows full customization of instantly accessible presets for your recording sessions or live performance sets.

Stage, Studio or Silent Practice at Home

Pair your favorite MESA (or any) tube amplifier with the CabClone IR PLUS and experience newfound flexibility, grab-and-go portability, and total control through sound isolation.

Go direct silently or with your cab for recording, live performance, or headphone practice—with instant access to 16 real MESA cabinets mic’d two ways in a professional environment. Consistent tone from venue to venue, all in one compact box.

Demo the CabClone IR PLUS at a MESA dealer near you today.
