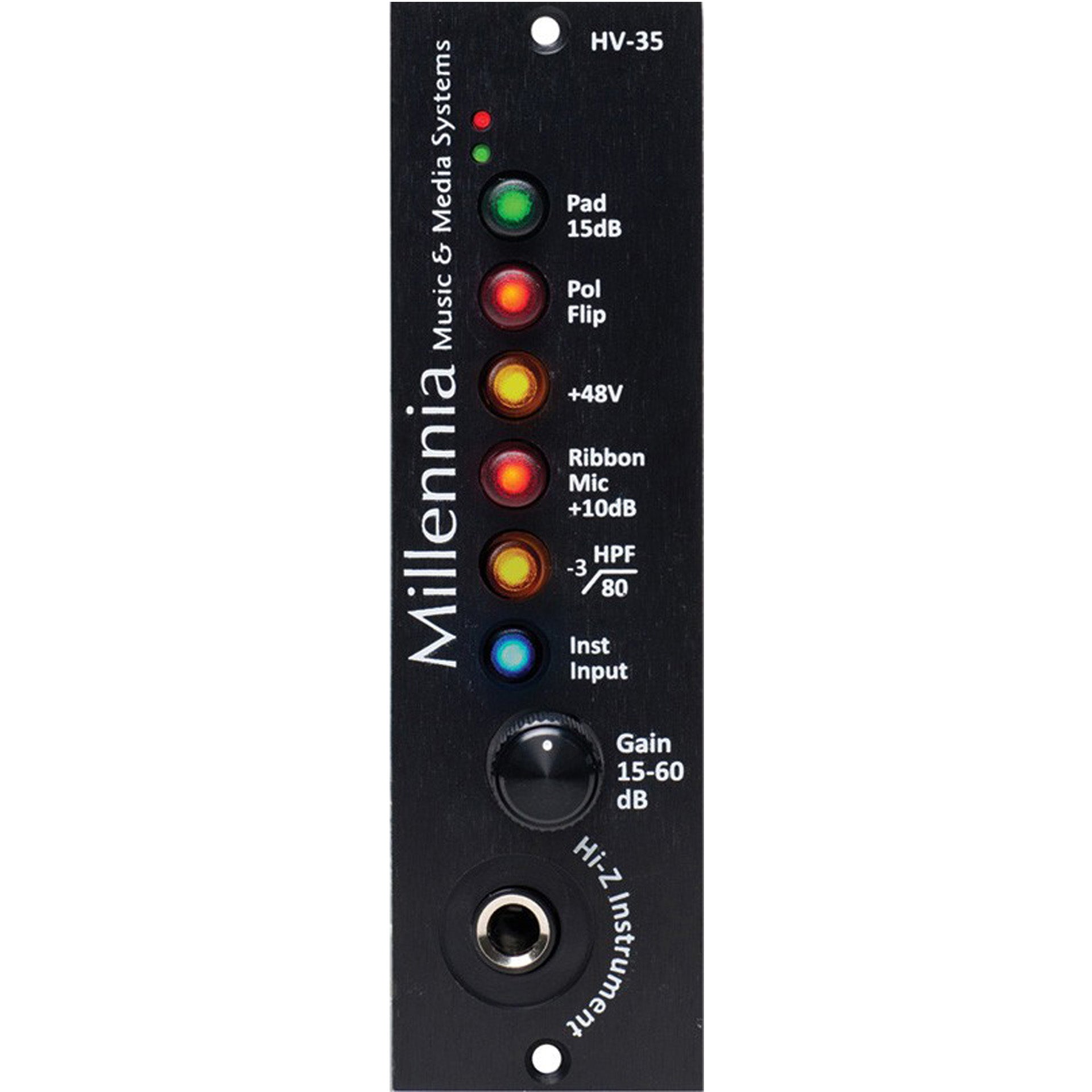

Millennia HV-35 500-Series Mic and Instrument Pre Amp

Millennia HV-35 500-Series Mic and Instrument Pre Amp

$855.00
$855.00
Sale Sold out

+ Free Shipping

On order with the manufacturer!
Millennia HV-35 500 Series Mic and Instrument Pre Amp.
View full details
  • Details
  • Reviews



Millennia HV-35 500 Series Mic and Instrument Pre Amp



HV-35
Authentic Transparency for Unrestricted Creativity

Continuously variable gain control
Front panel instrument input
DC coupled ribbon mic with 10dB gain boost setting
80 Hz rolloff filter
48V phantom power
15 dB Pad
Polarity flip
API 500 series compatible format

Specifications:

Minimum Gain  8.5 dB
Maximum Gain   (continuously variable)      60 dB (70 dB in Ribbon Mode)
Frequency Response  +0 / -3 dB               sub 3 Hz to beyond 300 kHz
Noise   60 dB Gain, 10 Hz - 30 kHz, Inputs common           -133 dB EIN
Total Harmonic Distortion + Noise    35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out    < .001%, Typ. < .0005% (< 5 ppm)
Intermodulation Distortion   (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out     < .0009%
Phase Response   35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out      < 2 degrees deviation
Common Mode Rejection Ratio   35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.     > 65 dB, Typ > 85 dB
Slew Rate   35 dB Gain, +27 dBu Out                 > 25 Volts per microsecond
Maximum Input Level   20 Hz - 40 kHz            +20 dBu (no attenuator pads required)
Maximum Output Level   20 Hz - 40 kHz         +28 dBu
Phantom Input Impedance   1 kHz                    6,750 ohms
Output Impedance  24.3 Ohms (x2)
Phantom Powering  +48 V dc, +/- 2 V dc
Dimensions/Shipping Weight  1.5” W x 5.25” H x 6” D, 3 lbs..
More Information
Product Name Millennia HV-35 500-Series Mic and Instrument Pre Amp
Brand Millennia
Condition New
MPN HV35
UPC 799456981925
Shipping Option Free Shipping to the Continental U.S.
