Since its release in 1970, the Minimoog Model D has been in a category of its own. As the world’s first analog keyboard synth made for portability and immediate playability, it cemented the synthesizer as a go-to creative tool for musicians and brought the Moog sound to the masses. Of course, none of this would be possible without Bob Moog himself.
The Bob Moog Tribute Edition Minimoog Model D celebrates the technology and imagination of early electronic musical instrument design. Preserving the Minimoog Model D’s iconic sound and soul, this limited-edition release features 100% analog circuitry, modern functional updates from the instrument’s 2022 re-release, a custom quartersawn oak wood enclosure, a unique back-panel decal, and an included SR Series travel case.
Each Bob Moog Tribute Edition Minimoog Model D synthesizer is assembled by hand in Moog’s North Carolina production facility. Only 500 units of this edition will be manufactured and available to purchase. To honor Bob Moog’s legacy and continue to support the future of synth education and innovation, $500 from each instrument sold will be donated to the Bob Moog Foundation.
| Product Name | Moog Minimoog Model D Analog Synthesizer - Bob Moog Edition |
|---|---|
| Brand | Moog |
| Condition | New |
| MPN | MIN-MOOG-D-08-01 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Moog Minimoog Model D Analog Synthesizer - Bob Moog Edition
- This reissue features the identical sound engine and signal path of the 1970s Minimoog Model D plus a series of popular modifications, including:
- MIDI integration
- Dedicated analog LFO with triangle and square waveshapes
- Premium Fatar keybed with velocity and aftertouch available via top panel CV jacks with onboard trimpots
- Mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob
- A spring-loaded pitch wheel with center deadband
- Strictly limited edition of 500 units
- Custom quartersawn white oak cabinet
- Classic metal reverse screen printed Minimoog badges on front and rear

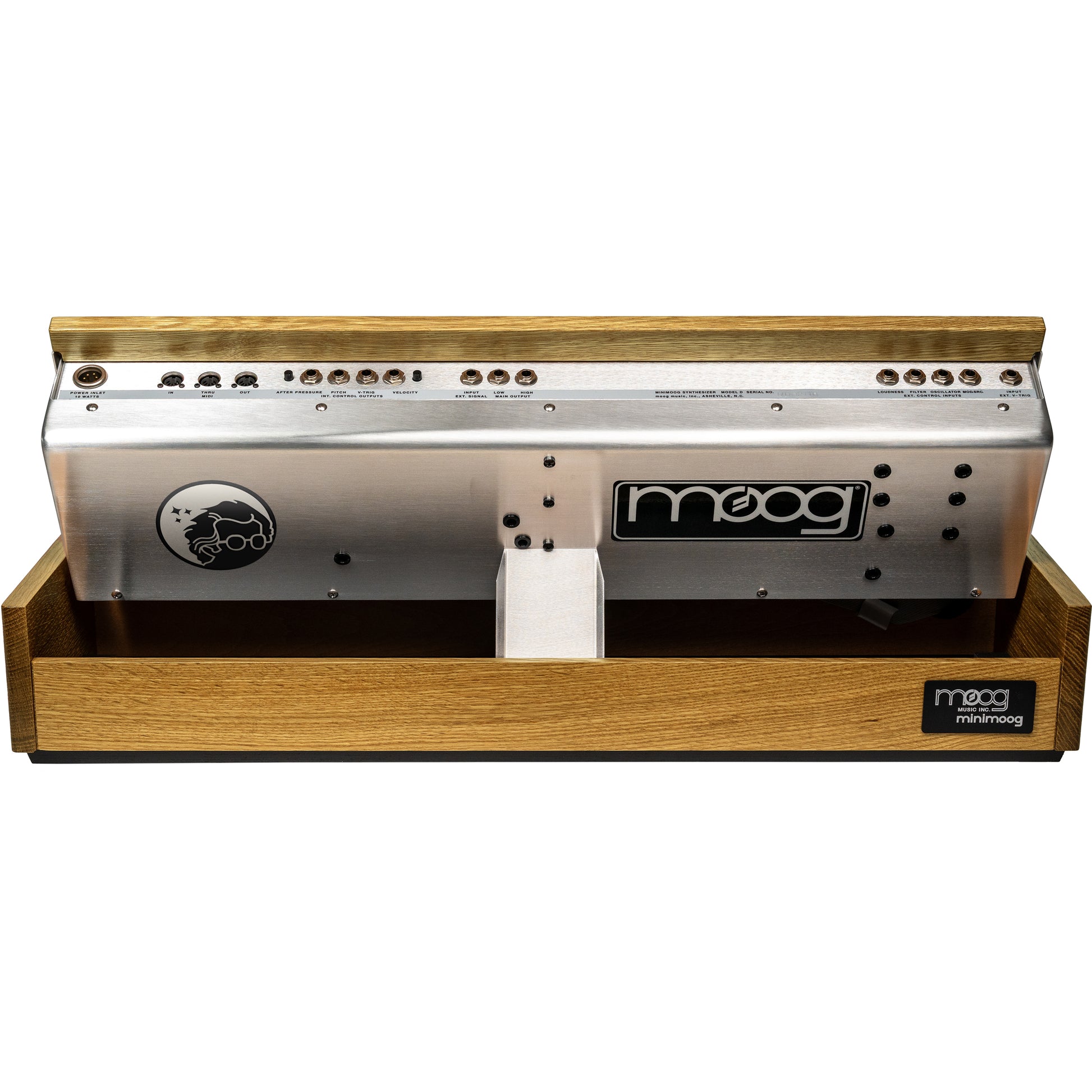

- Custom Bob Moog Foundation sticker on rear panel
- Hand-built by the Moog Music team in North Carolina
- Included semi-rigid case designed specially for the Minimoog Model D
- $500 from each unit will be donated to the Bob Moog Foundation to directly support the Moogseum, Dr. Bob’s Sound School, and the Bob Moog Foundation Archives
Dimensions & Weight |
|
|---|---|
| Width | 28.625" (727 mm) |
| Depth | 17.125" (435 mm) |
| Height | 5.75" (146 mm) |
| Weight | 32 lb (14.5 kg) |
Temperature |
|
| Storage Temperature | 5°F to 140°F (2°C to 60°C) |
| Nominal Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Operational Temperature | 50°F to 122°F (10°C to 50°C) |
Sound Sources |
|
| Sources | Oscillators ×3, Noise Generator, External Input |
Oscillators |
|
| Frequency Range | 0.1 Hz to 20 kHz |
| Stability (Short Term) | > 0.25% |
| Waveforms | Triangle, Triangle-Sawtooth (OSC 1 & 2), Reverse Sawtooth (OSC 3), Sawtooth, Rectangle, Wide Pulse, Narrow Pulse |
Noise Generator |
|
| Type | White and Pink |
LFO |
|
| Rate | 0.05 Hz to 200 Hz |
| Waveform | Triangle (knob down), Square (knob up) |
External Input |
|
| Input Range | +10 mV to +2 V |
| Input Impedance | 1 MΩ |
Filter |
|
| Type | Voltage-Controlled Low Pass (Moog Ladder Filter) |
| Cutoff Range | 10 Hz to 20 kHz |
| Slope | 24 dB/octave |
| Resonance | At cutoff frequency |
Contour Generators |
|
| Attack Time | 1 ms to 10 s |
| Decay Time | 4 ms to >35 s |
| Sustain Level | 0 to 100% |
| Filter Contour Width | 0 to 4 octaves |
VCA |
|
| Dynamic Range | 80 dB |
Audio Input Levels |
|
| 1/4" Input Voltage | +10 mV (min) to +10 V (max) |
| Nominal Input Impedance | 100 kΩ |
Audio Output Levels |
|
| High Level Output | 0.5 V typical, 4.2 V peak-to-peak max |
| High Level Output Impedance | 3 kΩ |
| Low Level Output | 15 mV typical |
| Low Level Output Impedance | 1 kΩ |
| Headphone Output | 0.3 V max, 8 Ω impedance |
Keyboard |
|
| Key Action | Synthesizer (Spring) |
| Number of Keys | 44 |
| Key Range | F0 to C4 |
| Priority | Low / High / Last (user selectable) |
| Hardwired Connections | Oscillator-1 (Pitch), Oscillator-2 (Pitch), Filter Contour (Trigger), Loudness Contour (Trigger) |
| Switchable Connections | Oscillator-3 (Pitch), Filter Tracking 1/3, Filter Tracking 2/3 |
| Output Voltage | 0.5 V typical, 4.0 V peak-to-peak max |
| Output Impedance | 3 kΩ |
| Glide Rate | 1 ms to 10 s per octave |
| Pitch Bend Range | ±7 semitones |

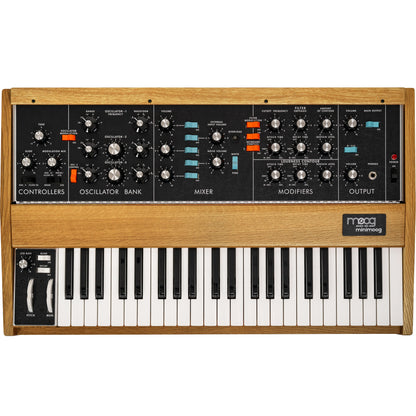

Moog Minimoog Model D Analog Synthesizer - Bob Moog Edition
Since its release in 1970, the Minimoog Model D has been in a category of its own. As the world’s first analog keyboard synth made for portability and immediate playability, it cemented the synthesizer as a go-to creative tool for musicians and brought the Moog sound to the masses. Of course, none of this would be possible without Bob Moog himself.
The Bob Moog Tribute Edition Minimoog Model D celebrates the technology and imagination of early electronic musical instrument design. Preserving the Minimoog Model D’s iconic sound and soul, this limited-edition release features 100% analog circuitry, modern functional updates from the instrument’s 2022 re-release, a custom quartersawn oak wood enclosure, a unique back-panel decal, and an included SR Series travel case.
Each Bob Moog Tribute Edition Minimoog Model D synthesizer is assembled by hand in Moog’s North Carolina production facility. Only 500 units of this edition will be manufactured and available to purchase. To honor Bob Moog’s legacy and continue to support the future of synth education and innovation, $500 from each instrument sold will be donated to the Bob Moog Foundation.
| Product Name | Moog Minimoog Model D Analog Synthesizer - Bob Moog Edition |
|---|---|
| Brand | Moog |
| Condition | New |
| MPN | MIN-MOOG-D-08-01 |
What's in the Box?
Moog Minimoog Model D Analog Synthesizer - Bob Moog Edition- This reissue features the identical sound engine and signal path of the 1970s Minimoog Model D plus a series of popular modifications, including:
- MIDI integration
- Dedicated analog LFO with triangle and square waveshapes
- Premium Fatar keybed with velocity and aftertouch available via top panel CV jacks with onboard trimpots
- Mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob
- A spring-loaded pitch wheel with center deadband
- Strictly limited edition of 500 units
- Custom quartersawn white oak cabinet
- Classic metal reverse screen printed Minimoog badges on front and rear
- Custom Bob Moog Foundation sticker on rear panel
- Hand-built by the Moog Music team in North Carolina
- Included semi-rigid case designed specially for the Minimoog Model D
- $500 from each unit will be donated to the Bob Moog Foundation to directly support the Moogseum, Dr. Bob’s Sound School, and the Bob Moog Foundation Archives
Dimensions & Weight |
|
|---|---|
| Width | 28.625" (727 mm) |
| Depth | 17.125" (435 mm) |
| Height | 5.75" (146 mm) |
| Weight | 32 lb (14.5 kg) |
Temperature |
|
| Storage Temperature | 5°F to 140°F (2°C to 60°C) |
| Nominal Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Operational Temperature | 50°F to 122°F (10°C to 50°C) |
Sound Sources |
|
| Sources | Oscillators ×3, Noise Generator, External Input |
Oscillators |
|
| Frequency Range | 0.1 Hz to 20 kHz |
| Stability (Short Term) | > 0.25% |
| Waveforms | Triangle, Triangle-Sawtooth (OSC 1 & 2), Reverse Sawtooth (OSC 3), Sawtooth, Rectangle, Wide Pulse, Narrow Pulse |
Noise Generator |
|
| Type | White and Pink |
LFO |
|
| Rate | 0.05 Hz to 200 Hz |
| Waveform | Triangle (knob down), Square (knob up) |
External Input |
|
| Input Range | +10 mV to +2 V |
| Input Impedance | 1 MΩ |
Filter |
|
| Type | Voltage-Controlled Low Pass (Moog Ladder Filter) |
| Cutoff Range | 10 Hz to 20 kHz |
| Slope | 24 dB/octave |
| Resonance | At cutoff frequency |
Contour Generators |
|
| Attack Time | 1 ms to 10 s |
| Decay Time | 4 ms to >35 s |
| Sustain Level | 0 to 100% |
| Filter Contour Width | 0 to 4 octaves |
VCA |
|
| Dynamic Range | 80 dB |
Audio Input Levels |
|
| 1/4" Input Voltage | +10 mV (min) to +10 V (max) |
| Nominal Input Impedance | 100 kΩ |
Audio Output Levels |
|
| High Level Output | 0.5 V typical, 4.2 V peak-to-peak max |
| High Level Output Impedance | 3 kΩ |
| Low Level Output | 15 mV typical |
| Low Level Output Impedance | 1 kΩ |
| Headphone Output | 0.3 V max, 8 Ω impedance |
Keyboard |
|
| Key Action | Synthesizer (Spring) |
| Number of Keys | 44 |
| Key Range | F0 to C4 |
| Priority | Low / High / Last (user selectable) |
| Hardwired Connections | Oscillator-1 (Pitch), Oscillator-2 (Pitch), Filter Contour (Trigger), Loudness Contour (Trigger) |
| Switchable Connections | Oscillator-3 (Pitch), Filter Tracking 1/3, Filter Tracking 2/3 |
| Output Voltage | 0.5 V typical, 4.0 V peak-to-peak max |
| Output Impedance | 3 kΩ |
| Glide Rate | 1 ms to 10 s per octave |
| Pitch Bend Range | ±7 semitones |
