The Moog Model 210 is a flagship full-range, flat-response instrument amplifier built for musicians who demand powerful performance, authoritative low-end response, and complete control of their stage sound without sacrificing sonic integrity.
Designed for synthesizers, keyboards, electronic drums, modeling systems, and other electronic instruments, it delivers accurate all-analog amplification with effectively zero perceptible latency, allowing every tone and texture to be heard exactly as intended. Inspired by Moog's long-standing commitment to craftsmanship and musical expression, Model 210 provides a premium amplification experience that feels as inspiring as the instrument (or instruments) it serves.
With 550W RMS of system power, dual 10-inch woofers, extended low-frequency response, and wide dispersion, Model 210 is made to command the stage. A built-in 4-channel stereo mixer, musical 3-band Baxandall EQ, balanced outputs, headphone monitoring, and Bluetooth streaming provide a complete monitoring and rig-management solution for modern performers. On its own, Model 210 delivers everything musicians need for rehearsal and live performance, while Stereo Link offers the option to expand two units into a true stereo system.
Powerful yet refined, the stage-ready Model 210 delivers the depth, detail, and connection musicians need to bring their performances to life.

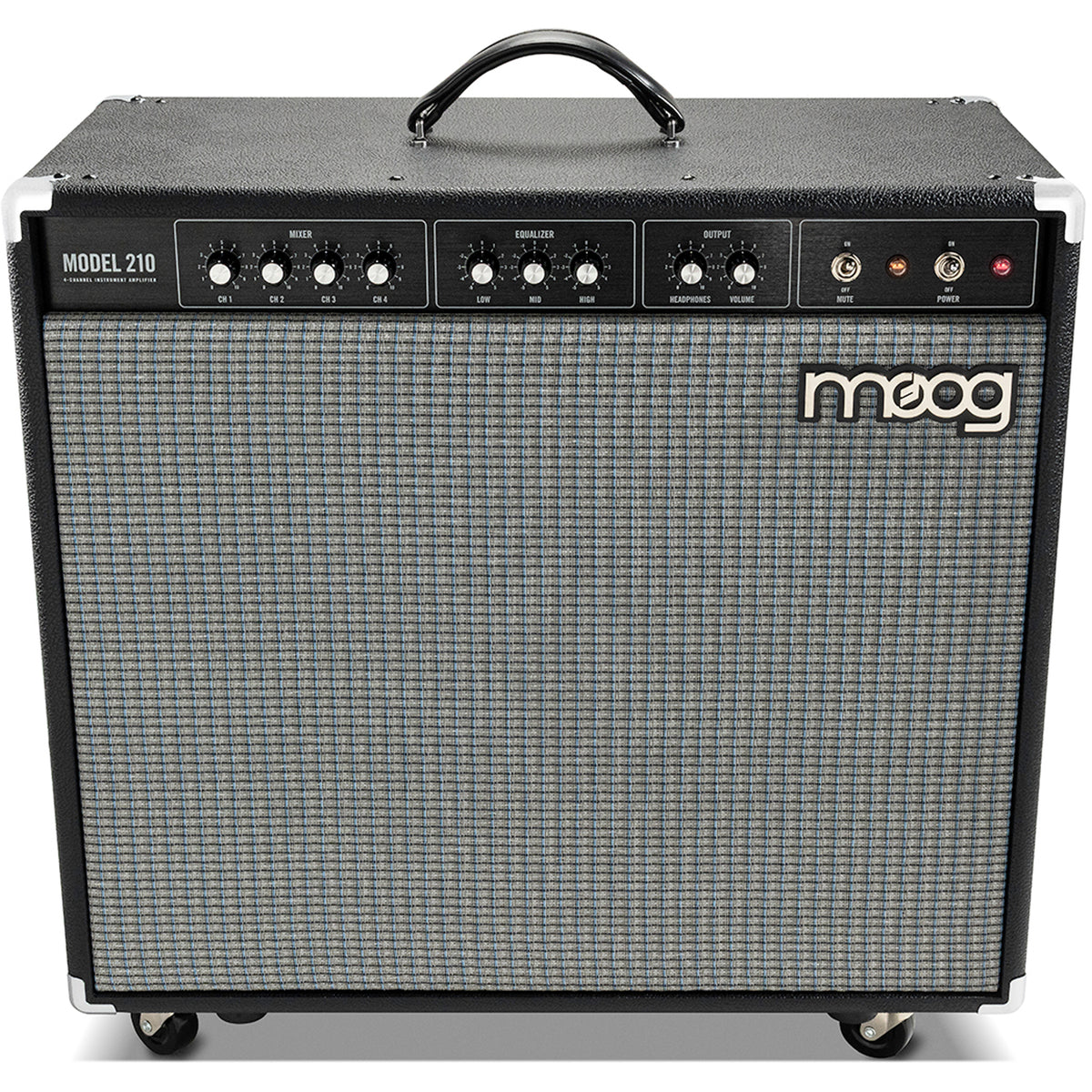

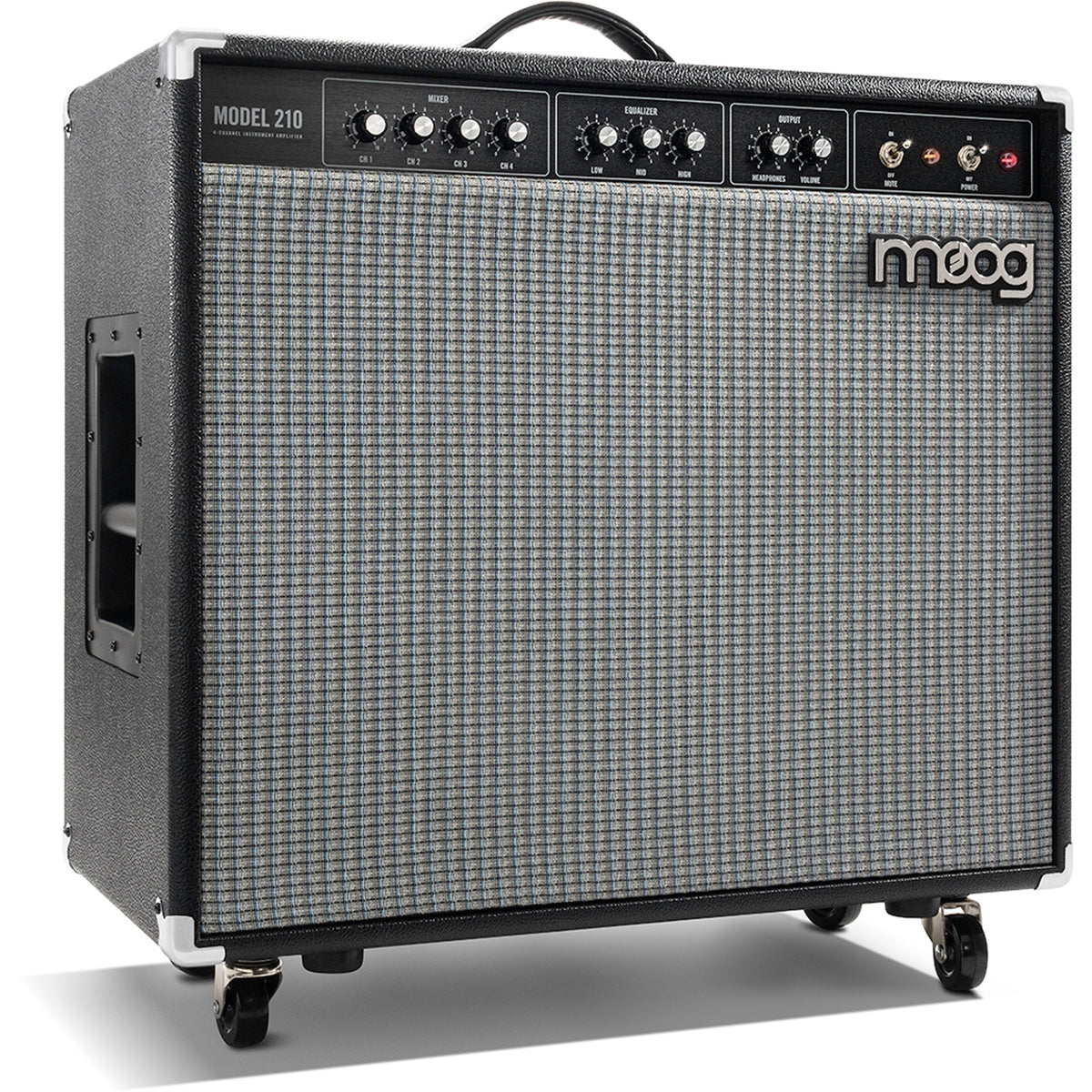

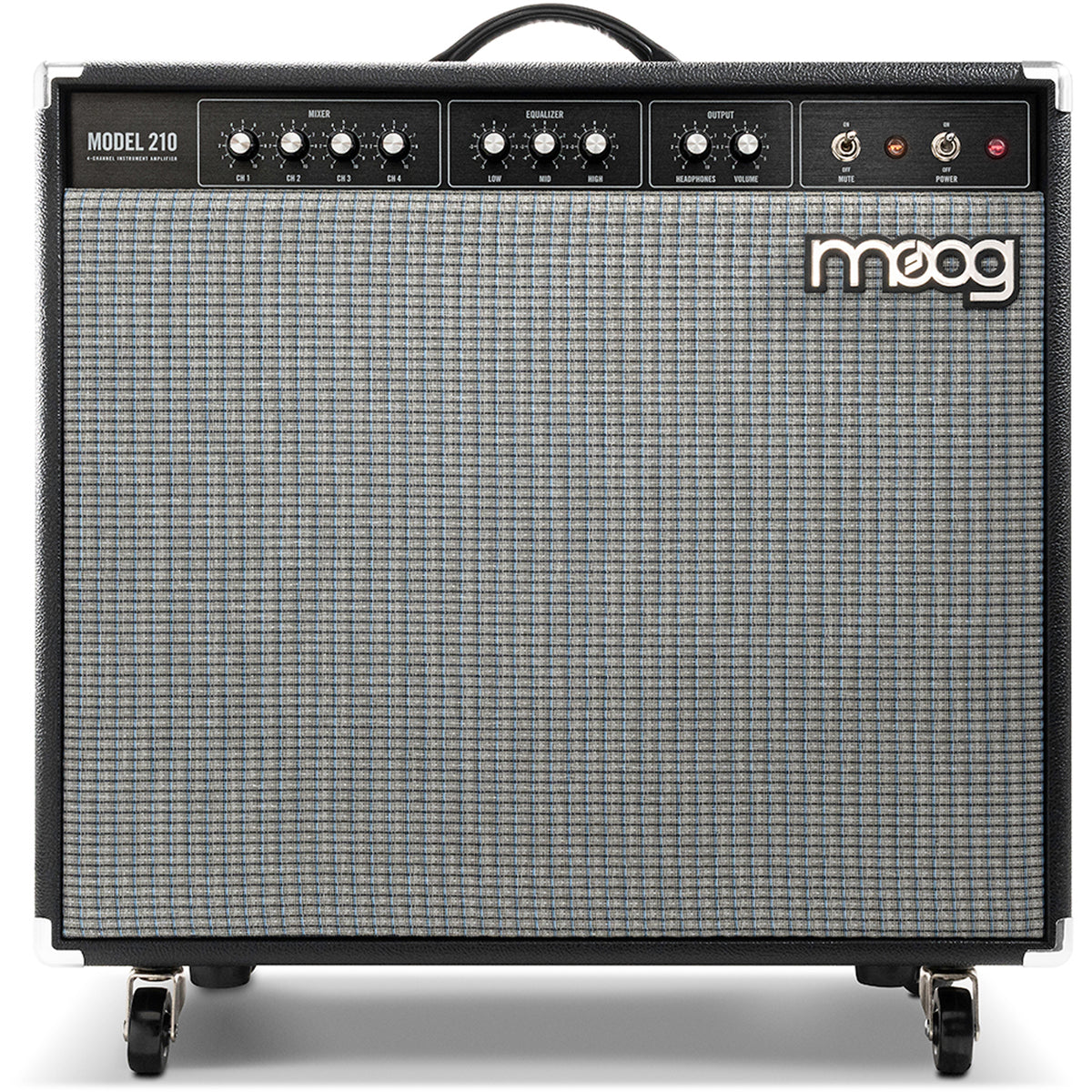

| Product Name | Moog Model 210 2x10 Instrument Amplifier |
|---|---|
| Brand | Moog |
| Condition | New |
| MPN | MODEL210XUS |
| UPC | 0694318027073 |
| Shipping Option | Contact for a shipping quote |
What's in the Box?
- Moog Model 210 2x10 Instrument Amplifier
- All-analog full-range, flat-response amplification with effectively zero perceptible latency
- 550 W RMS system power (510W LF + 40W HF, bi-amplified)
- Extended low-frequency response (35Hz-20kHz)
- Dual 10-inch woofers and 1-inch compression driver with 90° conical horn
- 2.5-way design for even frequency response
- Integrated 4-channel analog stereo mixer with Channel 1 mic preamp
- 3-band Baxandall master EQ for venue optimization
- Bluetooth® 6.0 audio streaming

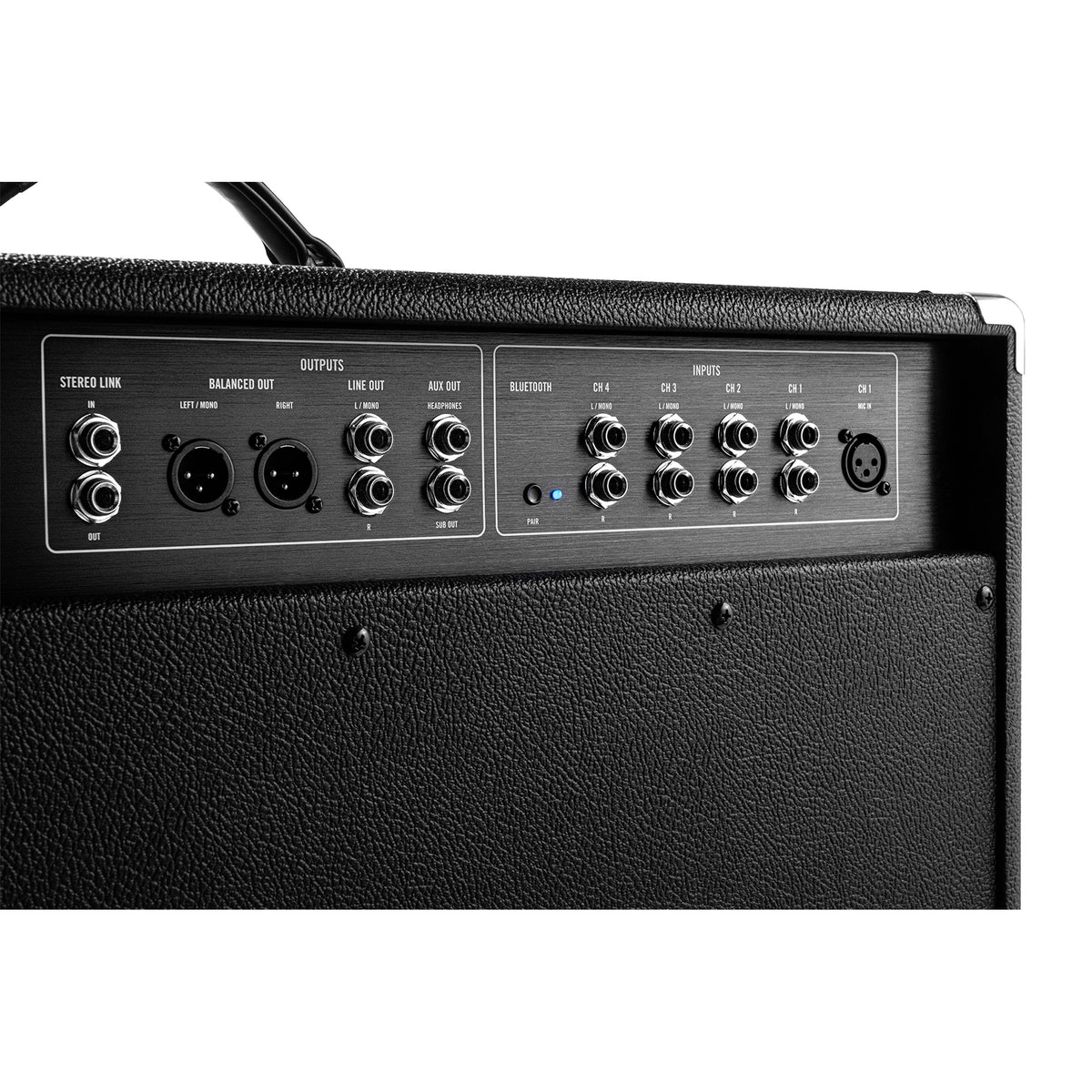

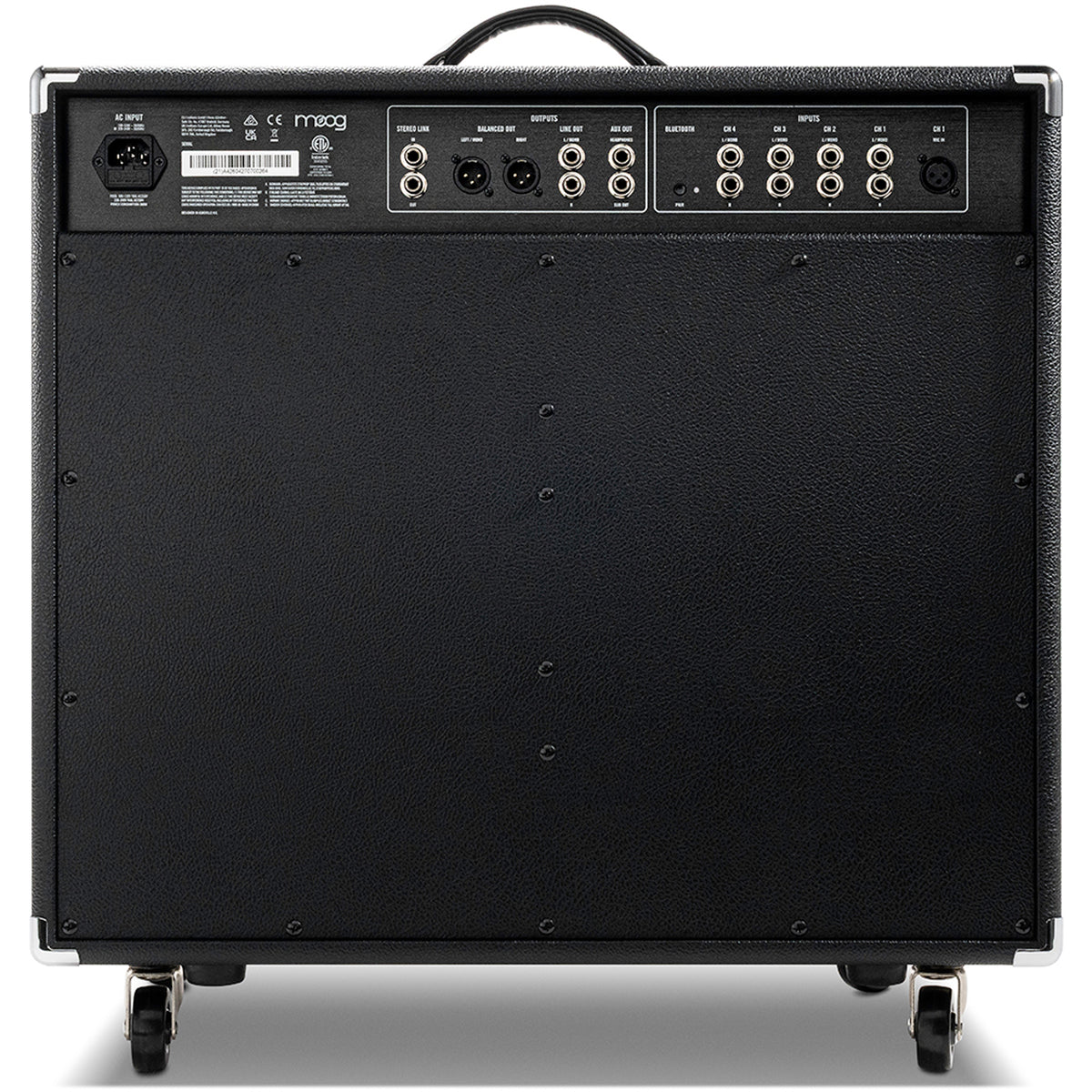

- Stereo XLR and TRS outputs for PA connectivity
- Stereo Link for true stereo amplifier configurations

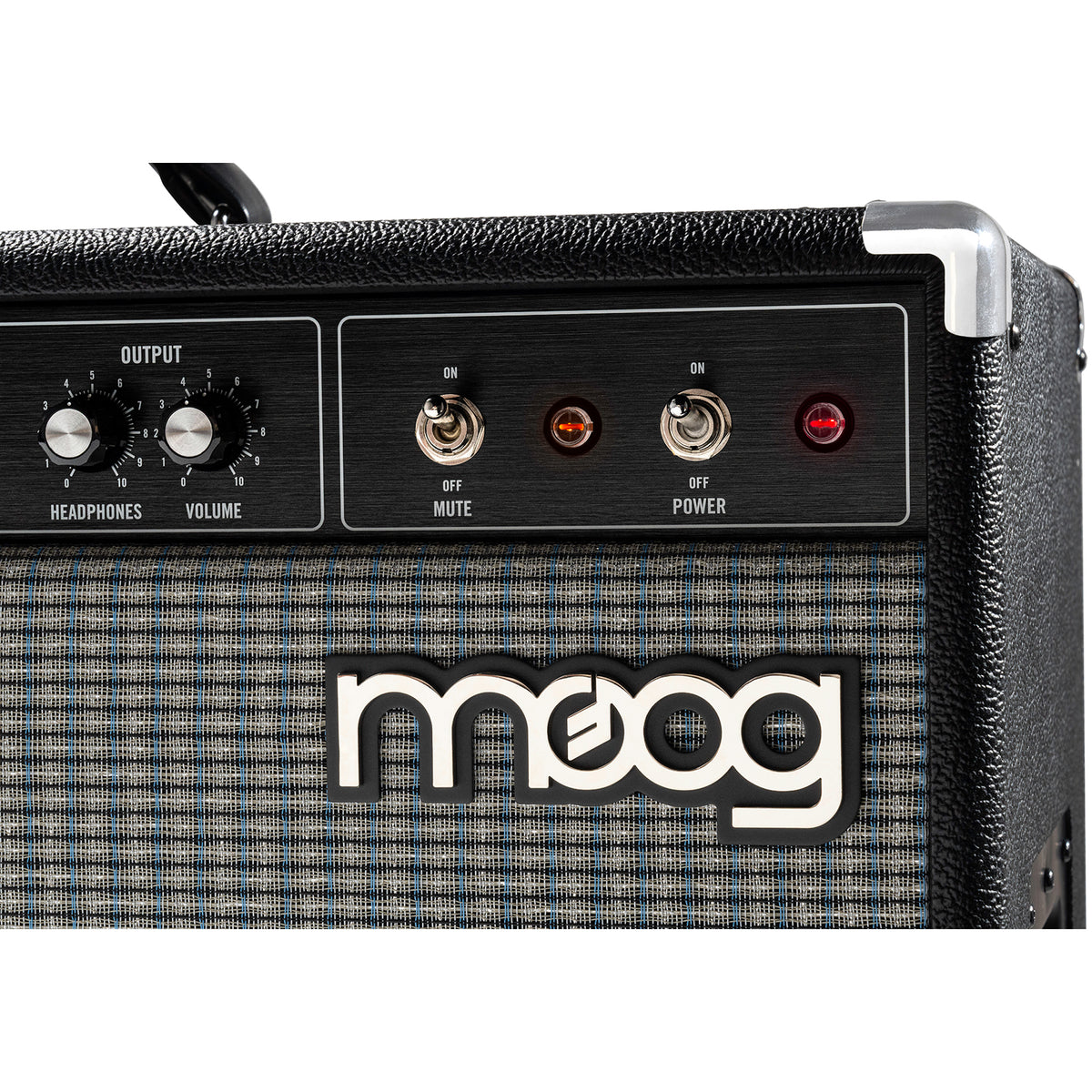

- Built-in headphone amp for silent rehearsal

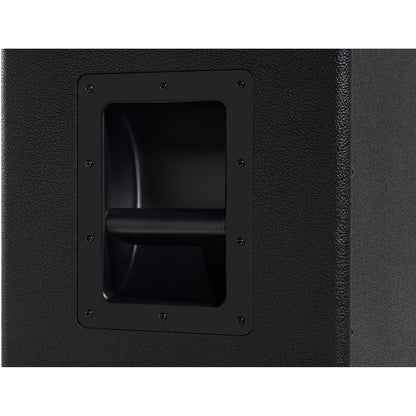

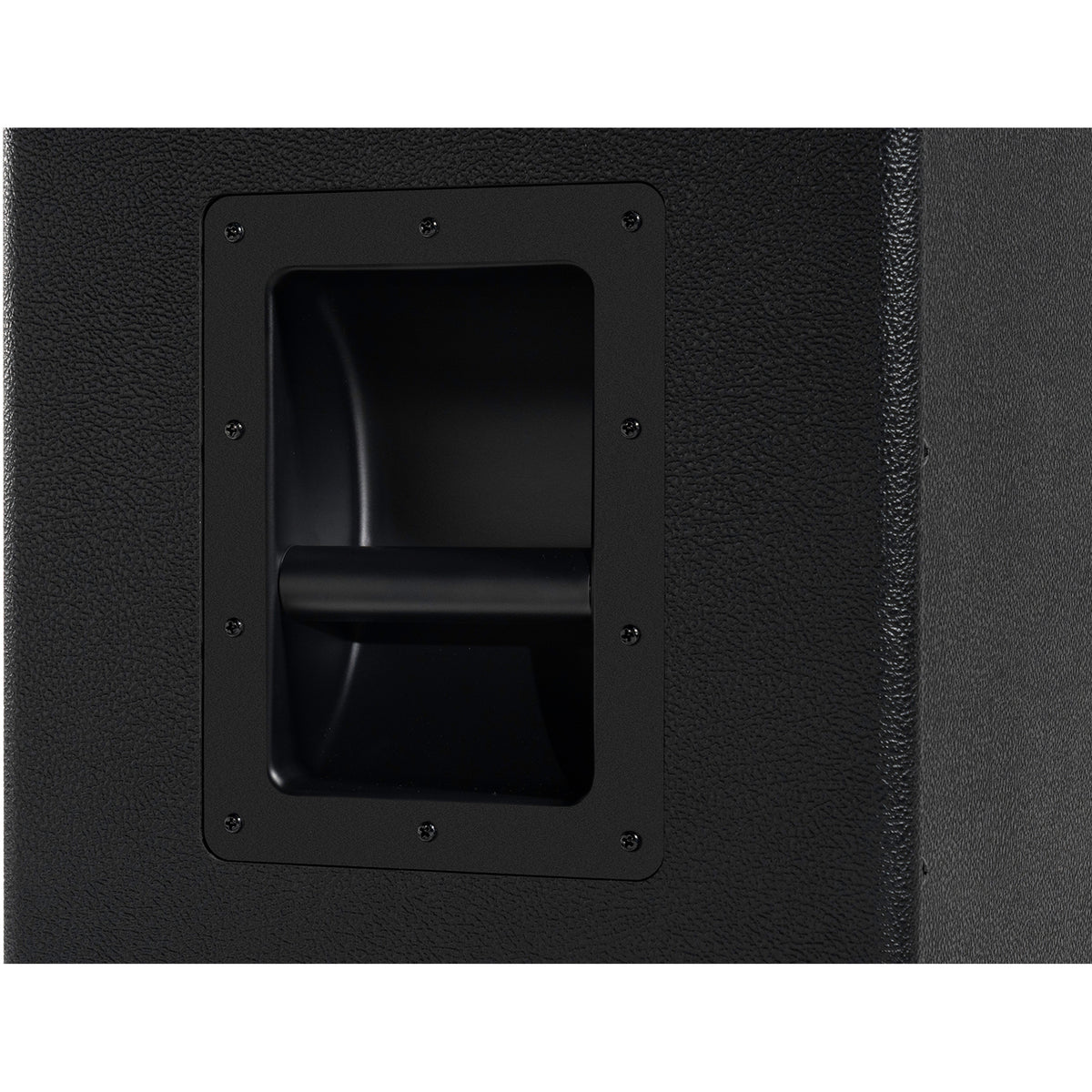

- Convenient top handle, full-grip side handles, and removable casters
- Rugged Moog tolex covering and vintage grille cloth
MIC INPUTS (CH 1) |
|
| Connector | XLR |
| Maximum Input Level | +18 dBu |
| Frequency Response | 20 Hz–20 kHz (+/- 3 dB) |
| Input Impedance | 600 Ohms |
LINE INPUTS (CH 1–4) |
|
| Connector | 2 x TRS input connectors (left mono) |
| Maximum Input Level | +18 dBu |
| Frequency Response | 20 Hz–20 kHz (+/- 3 dB) |
| Input Impedance | Line 22K Ohms |
MAIN OUTPUTS |
|
| Connector | 2 x XLR + 2 x TRS |
| Output Level (for 0.5% THD) | Nominal +4 dBu |
| Input Impedance (unbalanced) | 100 Ohms |
BLUETOOTH |
|
| Specification | 6.0 |
| Profiles | A2DP, AVRCP |
GENERAL |
|
| Peak System / RMS Power | 1100W Peak / 550W RMS (510W LF / 40W HF bi-amplified) |
| LF Driver | Dual 10-inch |
| HF Driver | 1-inch compression driver |
| Coverage (H x V) | 100 x 100 |
| Frequency Response (-3 dB / -10 dB) | 38 Hz–20 kHz / 35 Hz–23 kHz |
| AC Power Input | 100–120VAC / 60Hz; 220–240VAC / 50Hz |
| Power Connector | IEC |
| Enclosure | Tolex-wrapped wood with protective metal corners |

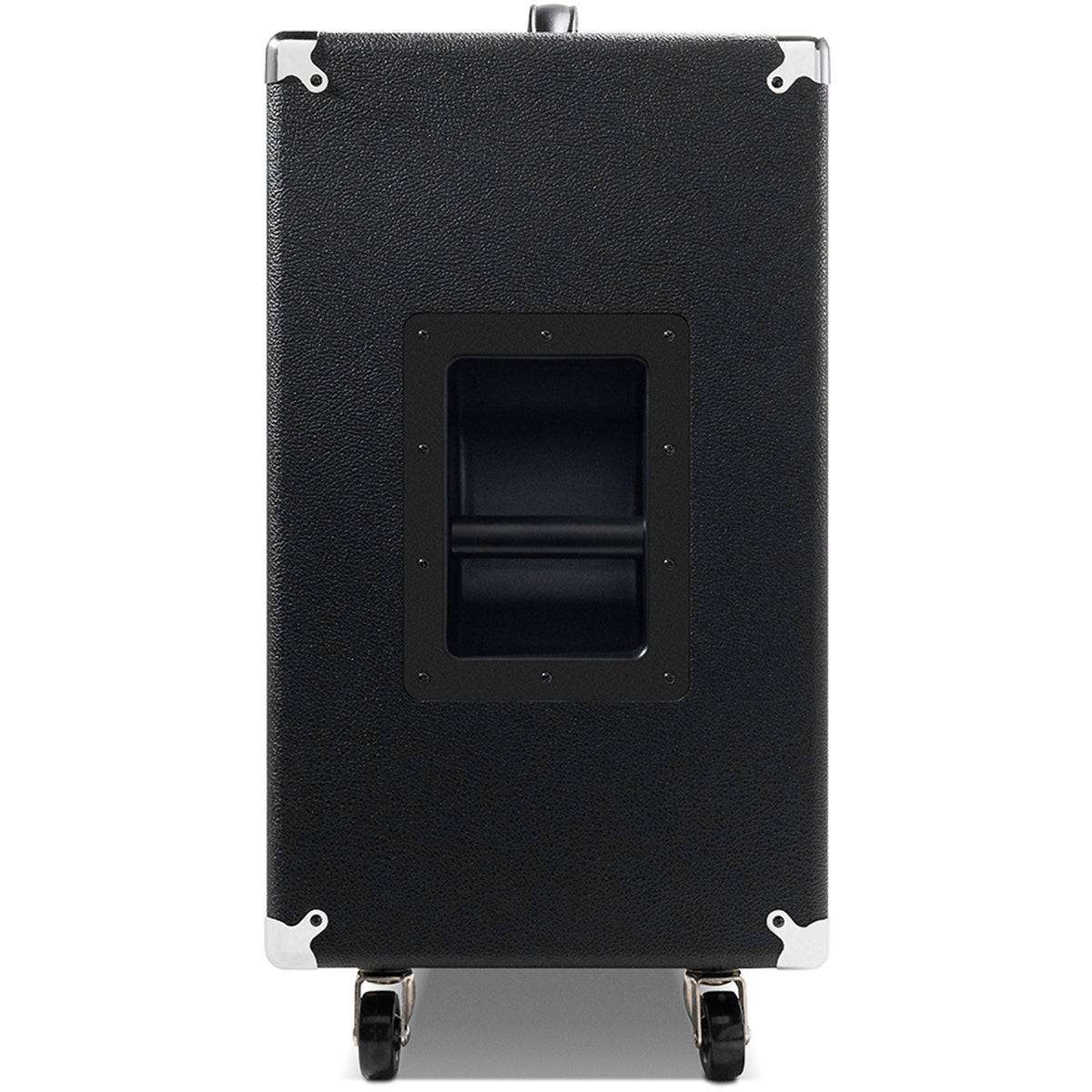

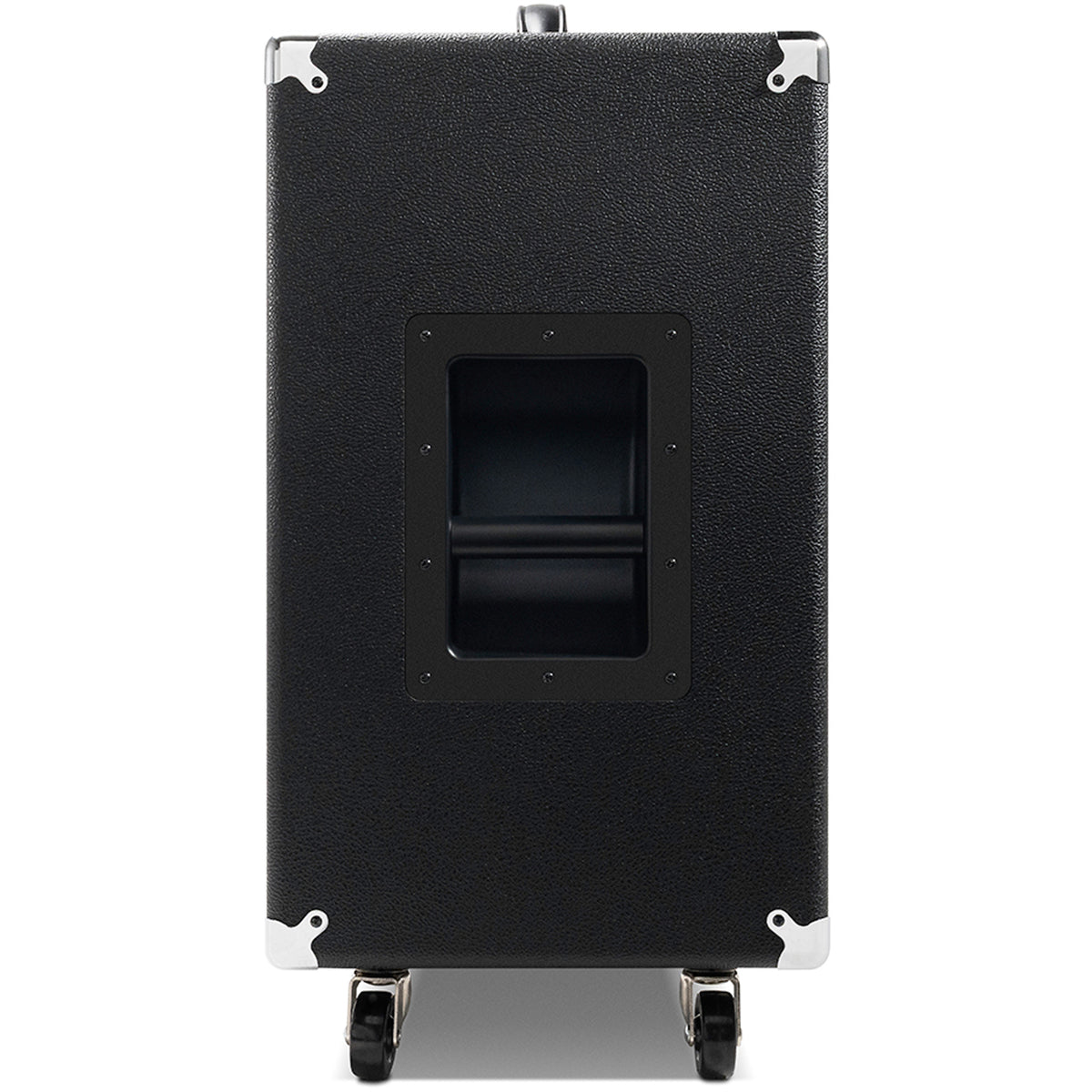

| Handles | 2 x full-grip side handles and removable casters |
| Sub Dimensions (HWD) | 22.0 x 24.2 x 13.3 inches / 56.0 x 61.5 x 33.7 cm |
| Weight | 69.89 lbs / 31.7 kg |
The Moog Model 210 is a flagship full-range, flat-response instrument amplifier built for musicians who demand powerful performance, authoritative low-end response, and complete control of their stage sound without sacrificing sonic integrity.
Designed for synthesizers, keyboards, electronic drums, modeling systems, and other electronic instruments, it delivers accurate all-analog amplification with effectively zero perceptible latency, allowing every tone and texture to be heard exactly as intended. Inspired by Moog's long-standing commitment to craftsmanship and musical expression, Model 210 provides a premium amplification experience that feels as inspiring as the instrument (or instruments) it serves.
With 550W RMS of system power, dual 10-inch woofers, extended low-frequency response, and wide dispersion, Model 210 is made to command the stage. A built-in 4-channel stereo mixer, musical 3-band Baxandall EQ, balanced outputs, headphone monitoring, and Bluetooth streaming provide a complete monitoring and rig-management solution for modern performers. On its own, Model 210 delivers everything musicians need for rehearsal and live performance, while Stereo Link offers the option to expand two units into a true stereo system.
Powerful yet refined, the stage-ready Model 210 delivers the depth, detail, and connection musicians need to bring their performances to life.
| Product Name | Moog Model 210 2x10 Instrument Amplifier |
|---|---|
| Brand | Moog |
| Condition | New |
| MPN | MODEL210XUS |
| UPC | 0694318027073 |
What's in the Box?
Moog Model 210 2x10 Instrument Amplifier- All-analog full-range, flat-response amplification with effectively zero perceptible latency
- 550 W RMS system power (510W LF + 40W HF, bi-amplified)
- Extended low-frequency response (35Hz-20kHz)
- Dual 10-inch woofers and 1-inch compression driver with 90° conical horn
- 2.5-way design for even frequency response
- Integrated 4-channel analog stereo mixer with Channel 1 mic preamp
- 3-band Baxandall master EQ for venue optimization
- Bluetooth® 6.0 audio streaming
- Stereo XLR and TRS outputs for PA connectivity
- Stereo Link for true stereo amplifier configurations
- Built-in headphone amp for silent rehearsal
- Convenient top handle, full-grip side handles, and removable casters
- Rugged Moog tolex covering and vintage grille cloth
MIC INPUTS (CH 1) |
|
| Connector | XLR |
| Maximum Input Level | +18 dBu |
| Frequency Response | 20 Hz–20 kHz (+/- 3 dB) |
| Input Impedance | 600 Ohms |
LINE INPUTS (CH 1–4) |
|
| Connector | 2 x TRS input connectors (left mono) |
| Maximum Input Level | +18 dBu |
| Frequency Response | 20 Hz–20 kHz (+/- 3 dB) |
| Input Impedance | Line 22K Ohms |
MAIN OUTPUTS |
|
| Connector | 2 x XLR + 2 x TRS |
| Output Level (for 0.5% THD) | Nominal +4 dBu |
| Input Impedance (unbalanced) | 100 Ohms |
BLUETOOTH |
|
| Specification | 6.0 |
| Profiles | A2DP, AVRCP |
GENERAL |
|
| Peak System / RMS Power | 1100W Peak / 550W RMS (510W LF / 40W HF bi-amplified) |
| LF Driver | Dual 10-inch |
| HF Driver | 1-inch compression driver |
| Coverage (H x V) | 100 x 100 |
| Frequency Response (-3 dB / -10 dB) | 38 Hz–20 kHz / 35 Hz–23 kHz |
| AC Power Input | 100–120VAC / 60Hz; 220–240VAC / 50Hz |
| Power Connector | IEC |
| Enclosure | Tolex-wrapped wood with protective metal corners |
| Handles | 2 x full-grip side handles and removable casters |
| Sub Dimensions (HWD) | 22.0 x 24.2 x 13.3 inches / 56.0 x 61.5 x 33.7 cm |
| Weight | 69.89 lbs / 31.7 kg |
