The LP32 provides four independent banks of 8-channel ADAT optical I/O, 64 channels of USB I/O, 32 channels of AVB-TSN network I/O and a headphone output, for a total of 258 simultaneous I/O channels.
High-performance computer connectivity
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the LP32 delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).
A flexible digital converter, router, splitter and repeater
Send any input to any output, or split to multiple output channels. Convert any format to any other (Optical, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.
DSP mixing and effects processing
Stand-alone operation with wireless control
Connect an Apple Airport or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
Web app control
The software that you use to control the LP32 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the LP32's on-board DSP, mixing, and device settings from the web app software running in your favorite web browser on the computer, or even a tablet or smartphone on the same Wi-Fi network as your computer.
Comprehensive Metering

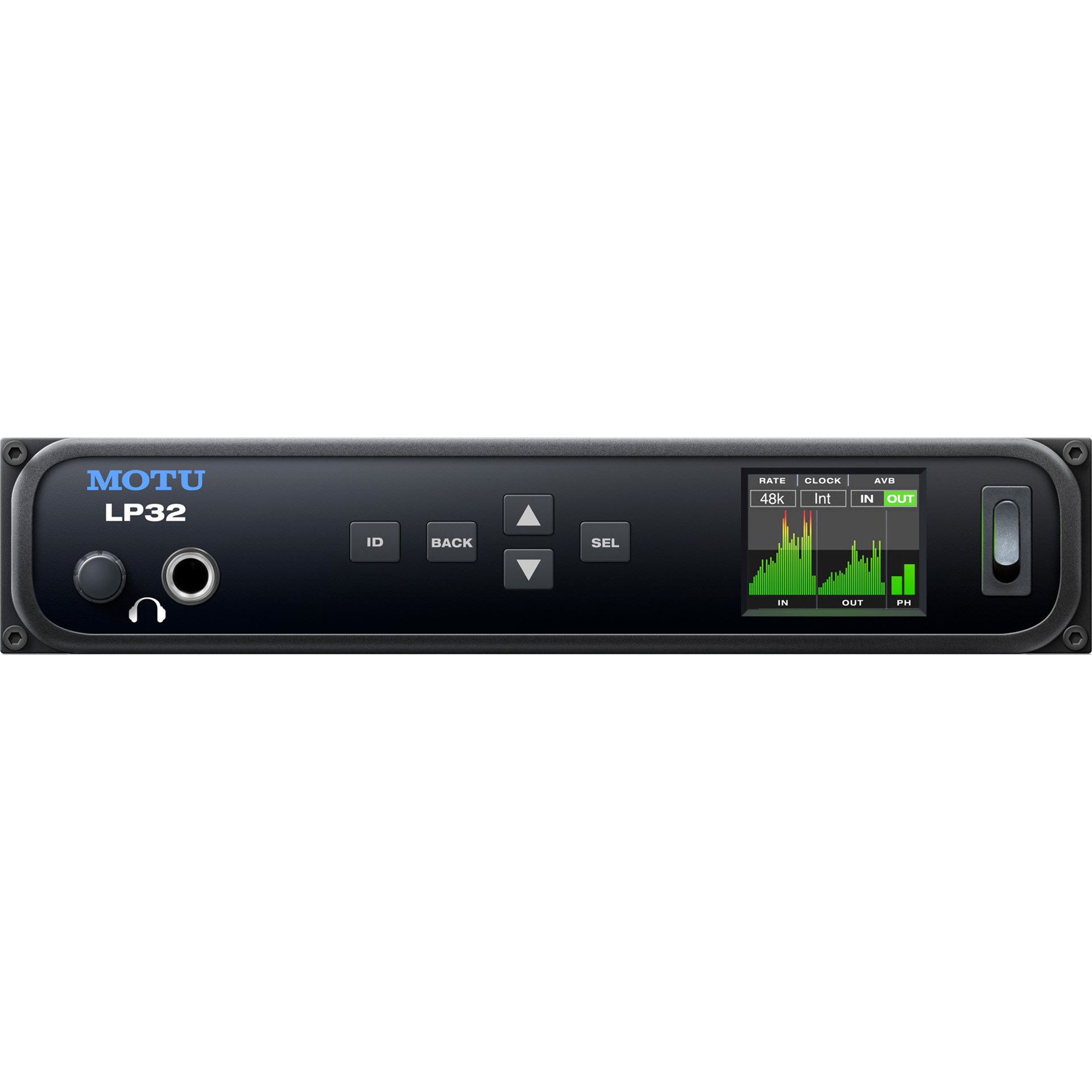

The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.
Word Clock
Standard word clock input and output allows you to resolve the LP32 to other digital audio gear or house sync.
Convenient headphone monitoring
Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair.
Mix and math with other MOTU gear
An included mounting bracket kit joins the LP32 side-by-side with any other MOTU half-rack unit to create a single rack-space configuration consisting of customized analog, digital and/or MIDI I/O configuration tailored just for you.
Audio analysis tools
Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "water- fall" display, full-featured oscillioscope, X-Y plot and phase analyzer.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
| Product Name | Motu LP32 USB2 / AVB Ethernet ADAT Lightpipe Audio Interface with DSP |
|---|---|
| Brand | MOTU |
| Condition | New |
| MPN | 9370 |
| UPC | 839128006089 |
| Shipping Option | Free Shipping on orders over $94.72 |
- Sample rates
- 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Digital I/O
- 4 banks of 8-ch ADAT optical at 1x sample rates
- 4 banks of 4-ch SMUX optical at 2x sample rates
- Individually switchable to
- stereo TOSLink (optical S/PDIF)
- Total I/O
- 32 in / 32 out (64 total) at 1x sample rates
- 16 in / 16 out (32 total) at 2x sample rates
- Computer I/O
- 1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
- 1 x USB 2.0 audio class compliant
- Computer I/O channels
- 64 in/out at 1x (44.1 to 48 kHz)
- 32 in/out at 2x (88.2 to 96 kHz)
- 24 in/out at 4x (176.4 to 192 kHz)
- Headphone
- 1 x 1/4" TRS stereo phone (assignable)
- Front panel
- 1 x 1/4" TRS headphone output
- 4x switches for menu navigation
- 160 x 128 RGB LCD for level meters / menu
- Power
- External 12-18V DC power supply
- 1.0A max • tip pos or neg
- Dimensions and weight
- (width x depth x height, enclosure only)
- 8.6 x 7 x 1.75 inches
- 22 x 17.75 x 4.5 cm
- 2.0 lbs / 0.9 kg
Motu LP32 USB2 / AVB Ethernet ADAT Lightpipe Audio Interface with DSP
The LP32 provides four independent banks of 8-channel ADAT optical I/O, 64 channels of USB I/O, 32 channels of AVB-TSN network I/O and a headphone output, for a total of 258 simultaneous I/O channels.
High-performance computer connectivity
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the LP32 delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).
A flexible digital converter, router, splitter and repeater
Send any input to any output, or split to multiple output channels. Convert any format to any other (Optical, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.
DSP mixing and effects processing
Stand-alone operation with wireless control
Connect an Apple Airport or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
Web app control
The software that you use to control the LP32 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the LP32's on-board DSP, mixing, and device settings from the web app software running in your favorite web browser on the computer, or even a tablet or smartphone on the same Wi-Fi network as your computer.
Comprehensive Metering
The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.
Word Clock
Standard word clock input and output allows you to resolve the LP32 to other digital audio gear or house sync.
Convenient headphone monitoring
Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair.
Mix and math with other MOTU gear
An included mounting bracket kit joins the LP32 side-by-side with any other MOTU half-rack unit to create a single rack-space configuration consisting of customized analog, digital and/or MIDI I/O configuration tailored just for you.
Audio analysis tools
Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "water- fall" display, full-featured oscillioscope, X-Y plot and phase analyzer.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
| Product Name | Motu LP32 USB2 / AVB Ethernet ADAT Lightpipe Audio Interface with DSP |
|---|---|
| Brand | MOTU |
| Condition | New |
| MPN | 9370 |
| UPC | 839128006089 |
| Shipping Option | Free Shipping on orders over $94.72 |
- Sample rates
- 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Digital I/O
- 4 banks of 8-ch ADAT optical at 1x sample rates
- 4 banks of 4-ch SMUX optical at 2x sample rates
- Individually switchable to
- stereo TOSLink (optical S/PDIF)
- Total I/O
- 32 in / 32 out (64 total) at 1x sample rates
- 16 in / 16 out (32 total) at 2x sample rates
- Computer I/O
- 1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
- 1 x USB 2.0 audio class compliant
- Computer I/O channels
- 64 in/out at 1x (44.1 to 48 kHz)
- 32 in/out at 2x (88.2 to 96 kHz)
- 24 in/out at 4x (176.4 to 192 kHz)
- Headphone
- 1 x 1/4" TRS stereo phone (assignable)
- Front panel
- 1 x 1/4" TRS headphone output
- 4x switches for menu navigation
- 160 x 128 RGB LCD for level meters / menu
- Power
- External 12-18V DC power supply
- 1.0A max • tip pos or neg
- Dimensions and weight
- (width x depth x height, enclosure only)
- 8.6 x 7 x 1.75 inches
- 22 x 17.75 x 4.5 cm
- 2.0 lbs / 0.9 kg
