More Control. More Creativity.

The Impact LX range of budget USB MIDI controller delivers performance way above its class.

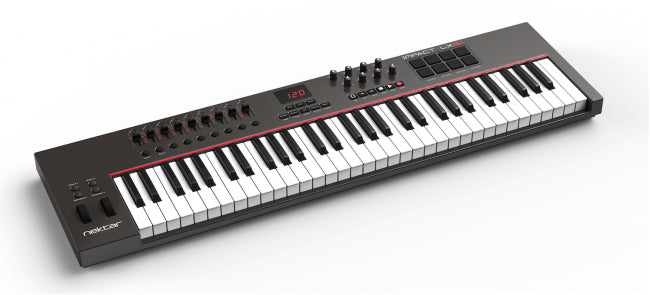

From the 49 or 61 note velocity sensitive keyboard, 8 velocity sensitive pads to the rubberized fader caps

and low-profile design, Impact LX49 and LX61 feels, looks, performs and is supported like a class act.

DAW integration with most of the popular DAWs makes it easy to get going and a breeze to set up.

With Impact LX49 the hard work is done*, so you can focus on your creativity.

KEYBOARD

The 49 or 61 note velocity sensitive keyboard is un-mistakenly synth action with a medium tension. The full-size, piano-style keys are covered to protect against dirt and dust while also complementing the Impact LX design. With 4 velocity curves gradually increasing in dynamics there is choice for any playing style. If you don't need velocity, 3 fixed velocity levels to caters for a consistent output. Octave and transpose buttons as well as pitch bend and modulation wheels are within reach, so you quickly can shift the keyboard up or down as needed, or apply additional articulation with the wheels.

OCTAVE & TRANSPOSE BUTTONS

There is more to the 4 Octave & Transpose buttons than meets the eye. 4 functions are selectable on the fly so you can make important changes at any time, even while you play. A key combination makes assignment quick and easy. Choices include sending out MIDI Program Messages, change the Global MIDI Channel or select any of Impact LX's 5 user presets with either the Octave or Transpose buttons.

PADS

For groove and beat creation Impact LX's 8 velocity sensitive pads makes life easy. Each pad can be assigned any MIDI note number or MIDI cc message, for use as MIDI trigger or toggle buttons. But the best part is the "Pad Learn" feature which allows you to just select a pad, play the note or drum sound you want on the keyboard and assignment is done. No complex menus for a task that's essential for getting the most out of your pads. Assignments are stored over power cycling so you don't lose your settings when you switch your system off for the night. In addition, 4 pad map locations can store your settings for future recall.

USER PRESETS & PROGRAMMING MIDI

If you mainly want to use your DAWs MIDI learn features, Impact LX is easy to come to grips with.

There are 2 non-overlapping, read-only presets on the Mixer and Instrument buttons so you can quickly switch between independent and

unique setups. These presets are also used for Impact LX's integrated DAW support.

In addition, 5 user presets are programmed for GM compatible and "learn-friendly" setups plus they can of course be overwritten with your own settings.

With the Impact LX's "Null" function switched to on, parameter values are stored when you switch between presets so you avoid parameter jumping.

DAW CONTROL

Impact LX49 and LX61 software integration supports most of the popular DAWs. A common workflow gives access to many of the functions you are most likely to need when recording and performing with your Impact LX. The best part is that it's all done for you. All you have to do is complete the installation process and start making music. Impact LX DAW integration currently supports Cubase, Digital Performer, Garageband, Logic, Nuendo, Reaper, Reason, Sonar and Studio One. DAWs are different and the Impact LX DAW integration caters for each DAWs uniqueness while maintaining a common workflow. Relying on your computer screen for constant feedback, important and essential windows related to what you are controlling can be open and closed as needed, right from Impact LX49 or LX61. The following is a brief overview of the common workflow.

TRANSPORT & NAVIGATION

The 6 dedicated transport buttons are always within reach and mapped to control Cycle, Rewind, Forward, Stop, Play and Record. Press Shift to get access to alternate functions such as Goto L, Set L, Set R, Undo, Click and Mode*. Additional alternate DAW functions include Track up/down and Patch up/down to change your instrument patches are available via the display buttons.

MIXER PRESET

Press mixer and the first 8 Impact LX faders are assigned to control 8 channels of your DAWs mixer. The alternate Bank up/down function moves control assignments to the next or previous group of 8 channels. The 9th fader is assigned to the currently selected channel so you always know where to find it. The buttons under the faders follow the channel assignment of their corresponding fader and can control Mute or Solo. Pan for the group of 8 channels controlled by the faders is handled by the 8 pots. To help you get the best out of your screen real estate, Impact LX also has shortcuts for opening and closing your DAWs mixer window so you can see what's going on.

INSTRUMENT PRESET

The Instrument preset assigns all controls to instrument parameters once an instrument track is selected in your DAW. Using Nektar mapping, a typical control layout places amp and filter envelopes on the faders and the parameters that have the biggest impact on the instruments sound, on the pots. This means you often have filter cutoff and resonance on pots 1 and 2 for example. Using a unique Impact LX "grab" mode you can quickly assign parameters for individual instruments to controls and create the setup you want. The hardware is done, but flexibility remains.

STUDIO ONE™ ARTIST

Studio One™ Artist is a powerful recording and production platform that lets you work quickly and stay focused on your inspiration. Incredibly easy to learn, it offers unlimited tracks and plug-ins and delivers features not normally found in entry-level DAWs.

Access powerful editing tools without wading through menus. Load and save audio clips, MIDI files, effects, and VIs by drag-and-drop. Need an instrument, effects plug-in, or drum loop? Just drag what you need from the content Browser, drop it into the arrangement, and everything is taken care of.

At mixdown, process your tracks using more than 20 high-quality Native Effects; Studio One's cutting-edge mix engine delivers stunning results. Studio One makes it easy!

No other entry-level DAW is this easy to use, yet offers unlimited tracks and plug-in instantiations, extensive use of drag-and-drop, and in-depth editing features. Best of all, Studio One Artist is included with the Impact LX USB keyboard!

CONNECTIONS

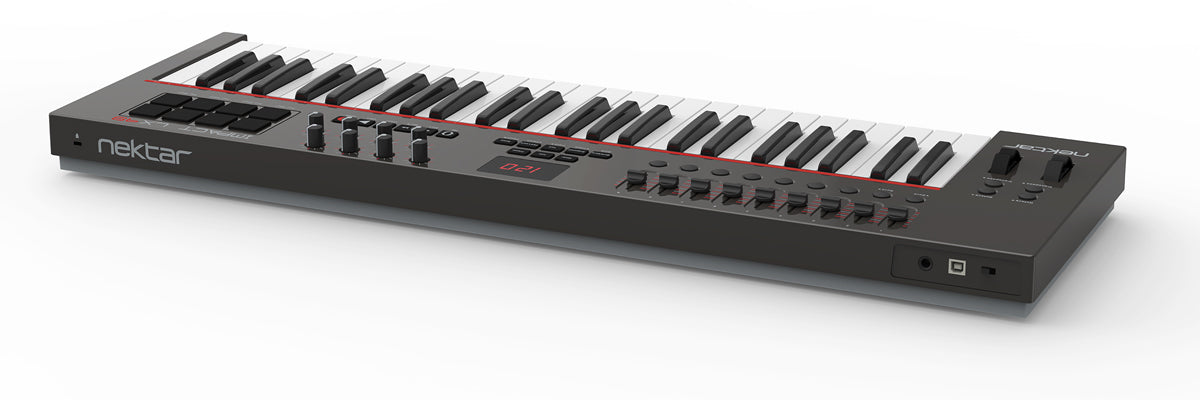

On the back of Impact LX49 and LX61 you find the connection points including:

USB port for power and data connection to your computer

Foot switch jack, assignable (pedal not included)

On/off switch

SPECIFICATIONS

Keyboard

49 note (61 on LX61) velocity-sensitive synth-action keyboard

4 velocity curves plus 3 fixed

Pitch bend & Modulation assignable wheels

Octave shift buttons

Transpose shift buttons

Foot switch pedal socket (sustain)

System Requirements

Class compliant (no driver needed): OSX and Windows XP or higher

Daw Integration

Mac OS X 10.7 or higher, Windows Vista, 7 & 8 or higher

Pads

8 velocity sensitive pads

4 velocity curves plus 3 fixed

Note-learn

Pads assignable notes and  MIDI cc messages

Load or Save to any of 4 pad maps

Weight & Dimensions

Dimensions: 31 5/8"(L) x 10 1/2"(D) 3 "(H)

Weight: 7 Lbs

Controls

8 potentiometers

9 30mm faders

9 assignable buttons

6 dedicated transport buttons

5 preset locations store control settings

Integration files for major DAWs

Connections

Foot switch (sustain) 1/4" jack input (pedal not included)

USB port for power and communication with computer
