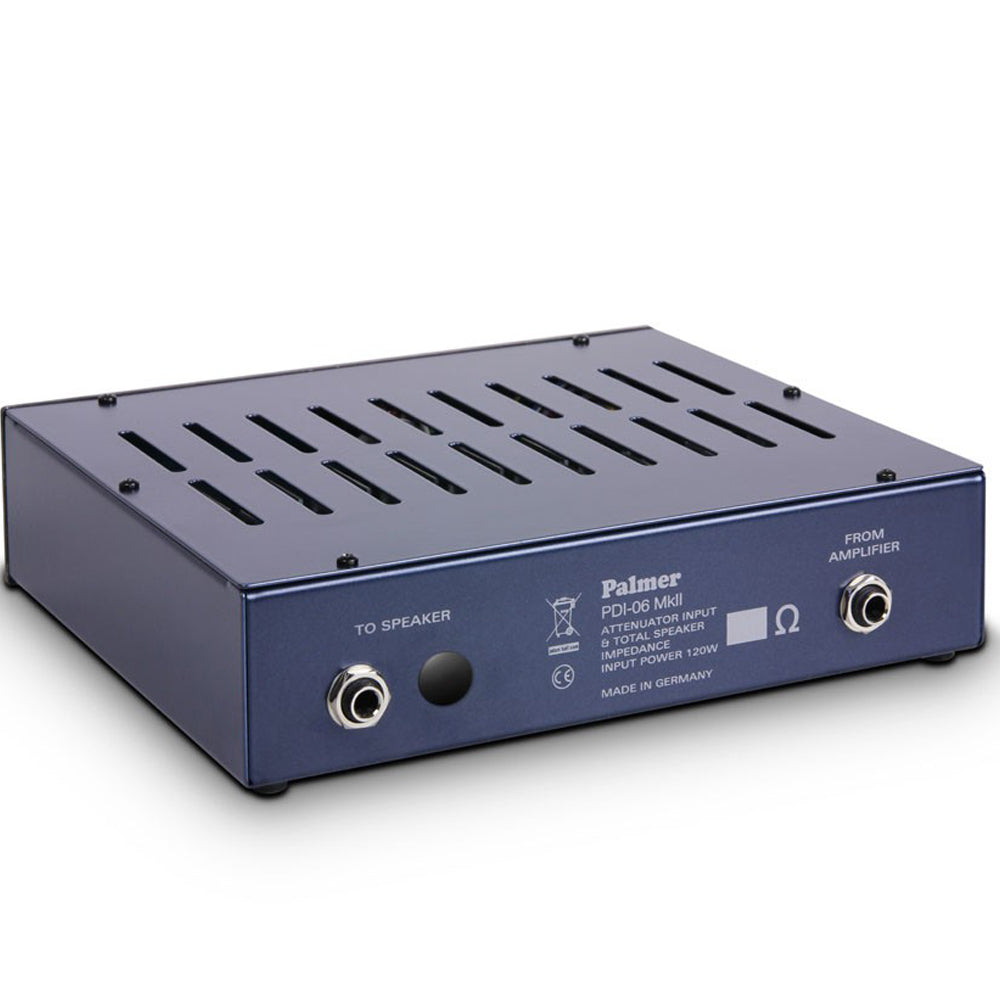

The 16ohms PDI06L16 Power Attenuator from Palmer can be used is live applications and allows for stage distortion of tube aplifiers while reducing the associated high volume level. The device is connected between the amplifier output and the speaker cabinet and permits practical volume reduction in six increments from 100% to 18%. A mute setting silences the speaker, allowing the device to function as a load box and absorb the entire output power of the amplifier. The PDI06L16 features an input for the speaker signal from the amplifier and outputs for connecting to a speaker cabinet.
| Product Name | Palmer PDI06L08 8 Ohm Power Attenuator |
|---|---|
| Brand | Palmer Audio |
| Condition | New |
| MPN | PDI06L08 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Palmer PDI06L08 8 Ohm Power Attenuator
- Format: 9.5''/ 1 RU
- Adjustable in 6 steps (100%, 70%, 50%, 35%, 25%, 18%)
- Reduces the volume of a guitar speaker at full saturation of the tubes
- Made for 8 Ohm loudspeakers
- Bypass/ attenuator switch for fast switching between full and reduced output power
- Input: 1x 6.3 mm jack socke
- Output for loudspeaker 1x 6.3 mm jack socket in parallel
- Output impedance: 8 Ohm
| Type | Passive power attenuator |
| Channels | 1 |
| Input Connections | 1 x 6.3 mm input jack |
| Output Type | Unbalanced |
| Output Connectors | 2 x 6.3 mm jack |
| Controls | Rotary attenuation switch, bypass |
| Impedance | 8 ohms (dummy load) |
| Power Load | 120 W maximum |
| Material | Powder-coated sheet steel |
| Dimensions | 4.7 x 4.7 x 2.0" / 120.0 x 120.0 x 50.0 mm |
| Weight | 1.5 lb / 0.7 kg |

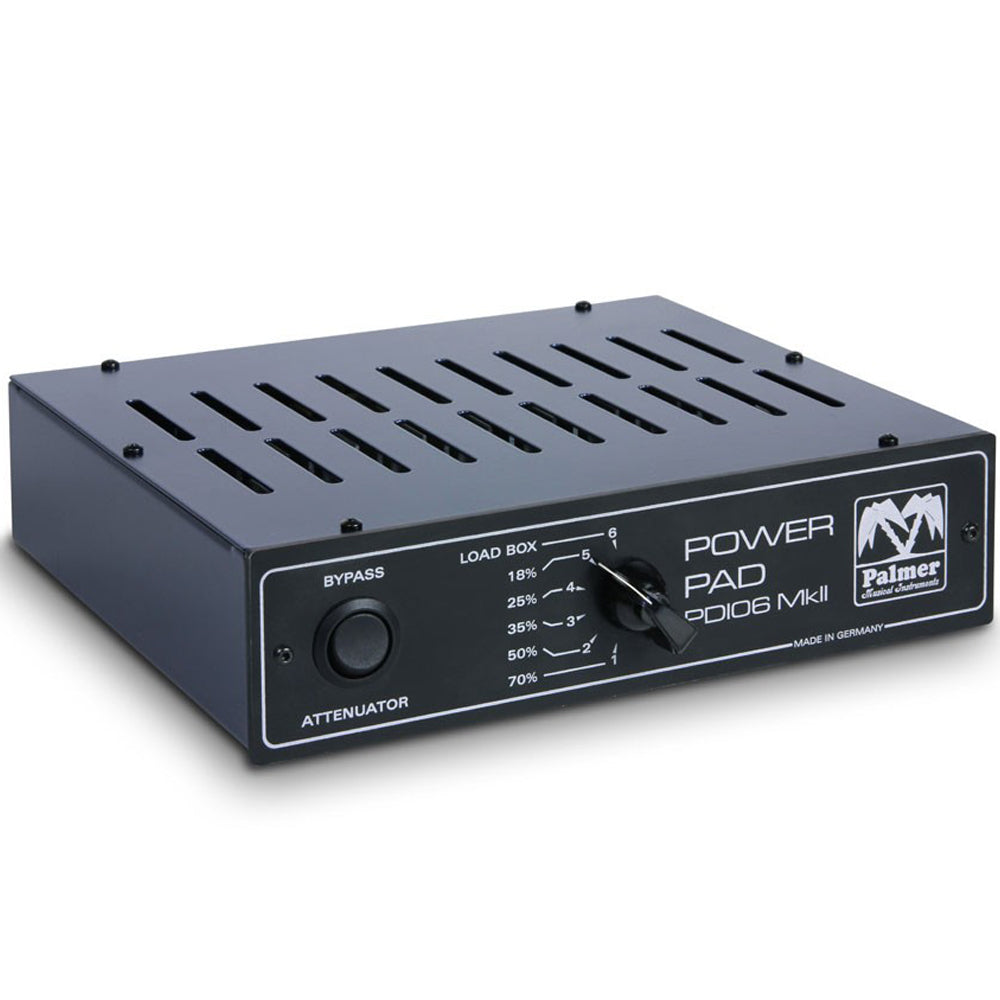

Palmer PDI06L08 8 Ohm Power Attenuator
The 16ohms PDI06L16 Power Attenuator from Palmer can be used is live applications and allows for stage distortion of tube aplifiers while reducing the associated high volume level. The device is connected between the amplifier output and the speaker cabinet and permits practical volume reduction in six increments from 100% to 18%. A mute setting silences the speaker, allowing the device to function as a load box and absorb the entire output power of the amplifier. The PDI06L16 features an input for the speaker signal from the amplifier and outputs for connecting to a speaker cabinet.
| Product Name | Palmer PDI06L08 8 Ohm Power Attenuator |
|---|---|
| Brand | Palmer Audio |
| Condition | New |
| MPN | PDI06L08 |
What's in the Box?
Palmer PDI06L08 8 Ohm Power Attenuator- Format: 9.5''/ 1 RU
- Adjustable in 6 steps (100%, 70%, 50%, 35%, 25%, 18%)
- Reduces the volume of a guitar speaker at full saturation of the tubes
- Made for 8 Ohm loudspeakers
- Bypass/ attenuator switch for fast switching between full and reduced output power
- Input: 1x 6.3 mm jack socke
- Output for loudspeaker 1x 6.3 mm jack socket in parallel
- Output impedance: 8 Ohm
| Type | Passive power attenuator |
| Channels | 1 |
| Input Connections | 1 x 6.3 mm input jack |
| Output Type | Unbalanced |
| Output Connectors | 2 x 6.3 mm jack |
| Controls | Rotary attenuation switch, bypass |
| Impedance | 8 ohms (dummy load) |
| Power Load | 120 W maximum |
| Material | Powder-coated sheet steel |
| Dimensions | 4.7 x 4.7 x 2.0" / 120.0 x 120.0 x 50.0 mm |
| Weight | 1.5 lb / 0.7 kg |
