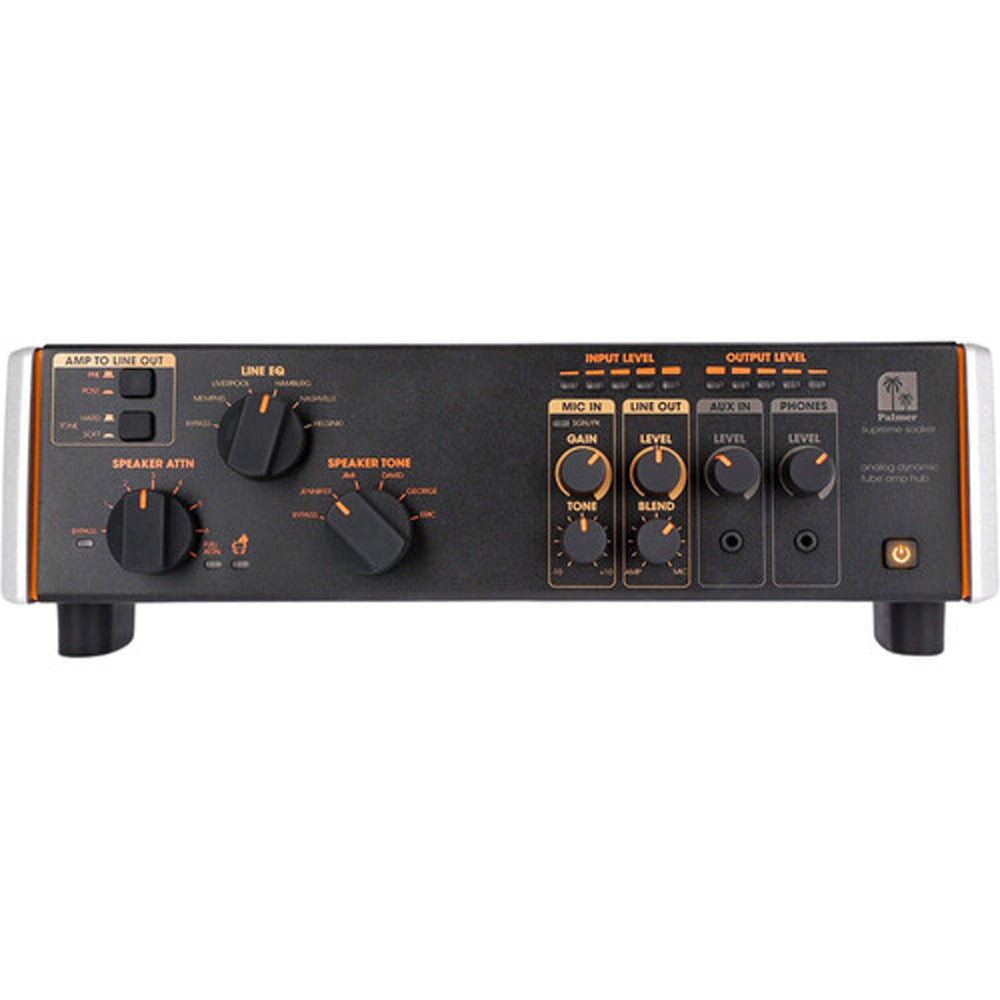

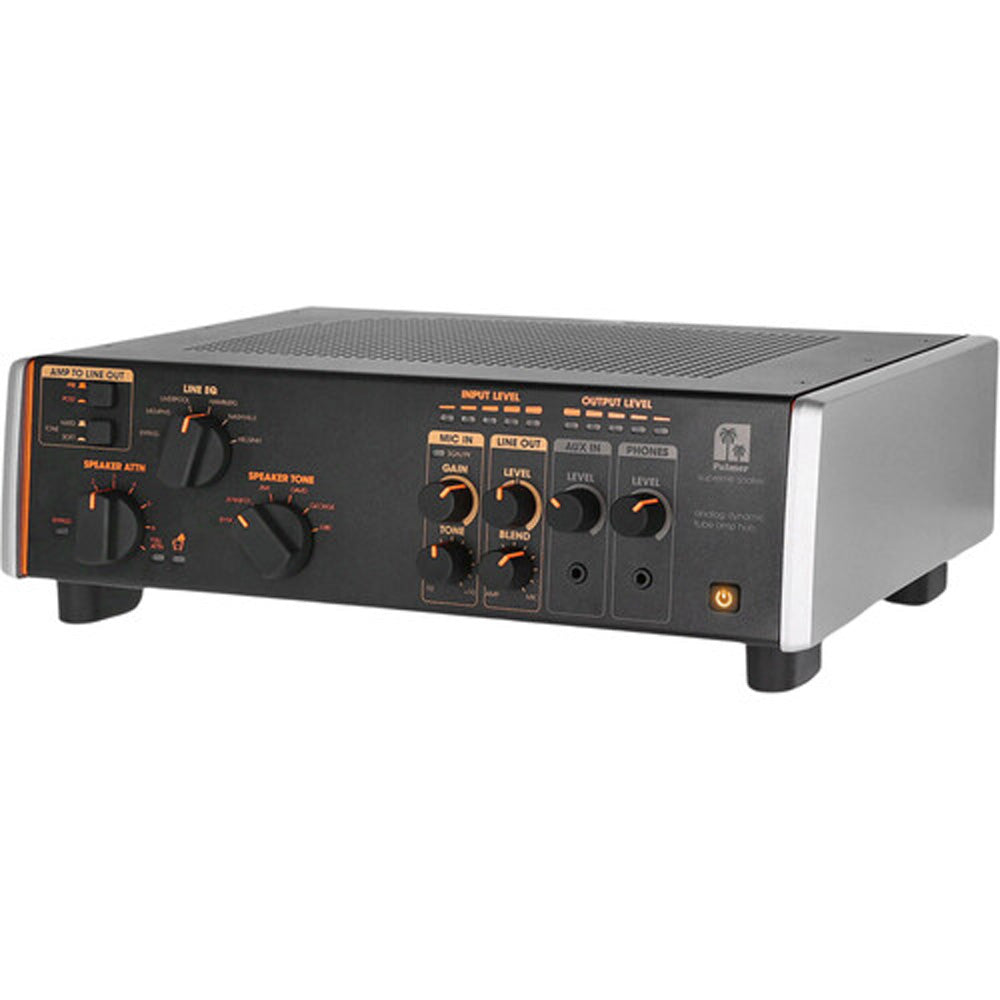

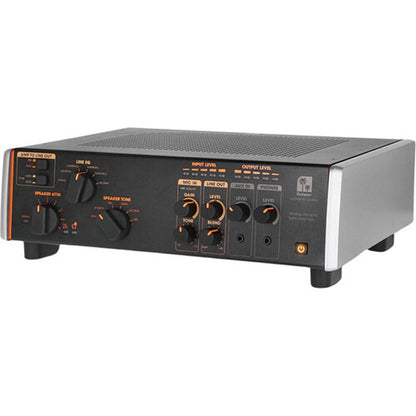

Your Analog Dynamic Tube Amp Hub
Discerning guitarists can maximize the potential of their tube amp with the Palmer Supreme Soaker, a reactive power reducer and load box with a finely tuned analog-loudspeaker simulator, ideal for playing and recording at home, rehearsing with a band, or playing a live gig. This dynamic tube amp hub allows you to permanently dial in the sweet spot of your tube amp, so you can enjoy your amp's tone, feel, and dynamics to the fullest anytime and anywhere, and at any volume—without sacrificing any aspect of your guitar tone.
Use the Supreme Soaker as a power soaker, attenuator, load box, analog speaker simulator, re-amping device, DI box, and headphone amp.
| Product Name | Palmer Supreme Soaker Analog Dynamic Tube Amp Hub |
|---|---|
| Brand | Palmer Audio |
| Condition | New |
| MPN | PSUPSOAK |
| UPC | 4049521904332 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Palmer Supreme Soaker Analog Dynamic Tube Amp Hub
- Power supply
- Reactive Attenuator and Loadbox
- Rated for Amps up to 150W
- For 8- and 16 Ohms Setup
- Re-Amping Out
- 5 Speaker Simulator Settings
- 5 Speaker Tone Controls
- Mic/Line Input, Aux Input
- Stereo FX Loop
- Balanced Stereo XLR-Line Outputs
- Headphones Output
Inputs/Outputs |
|
|---|---|

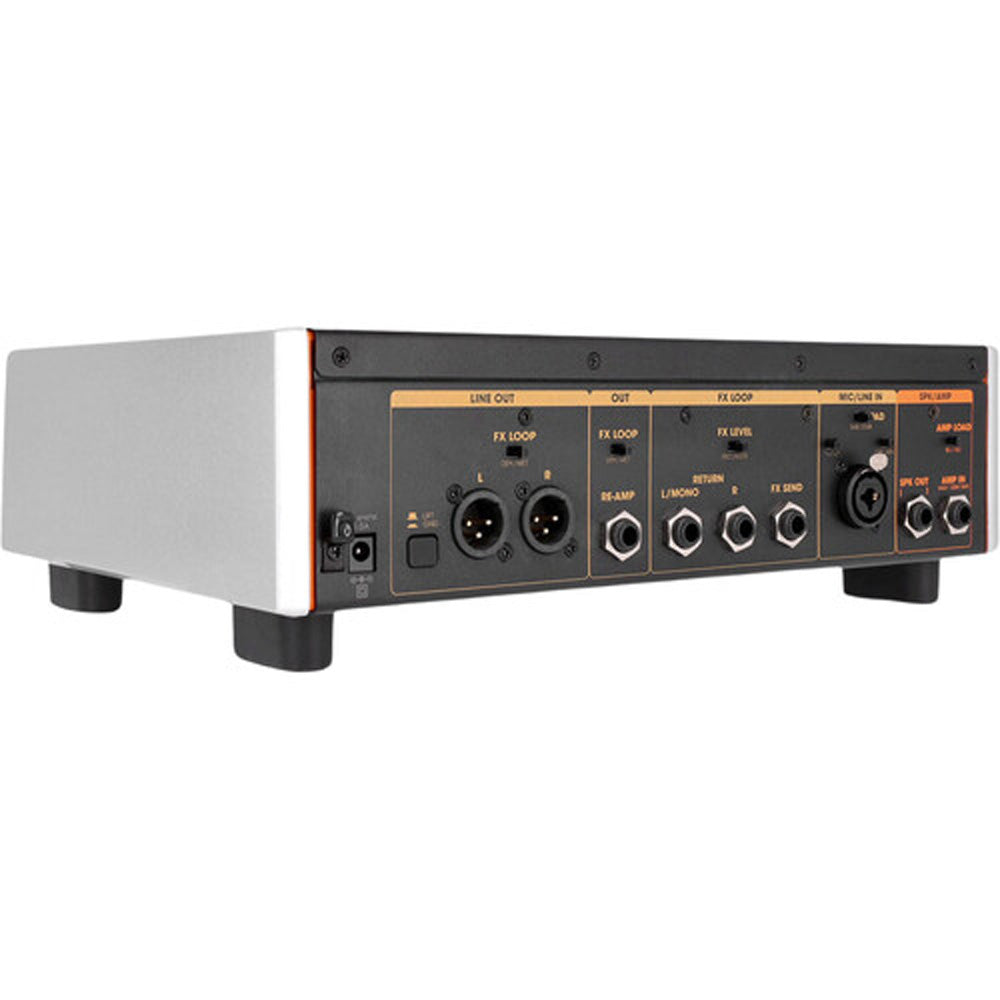

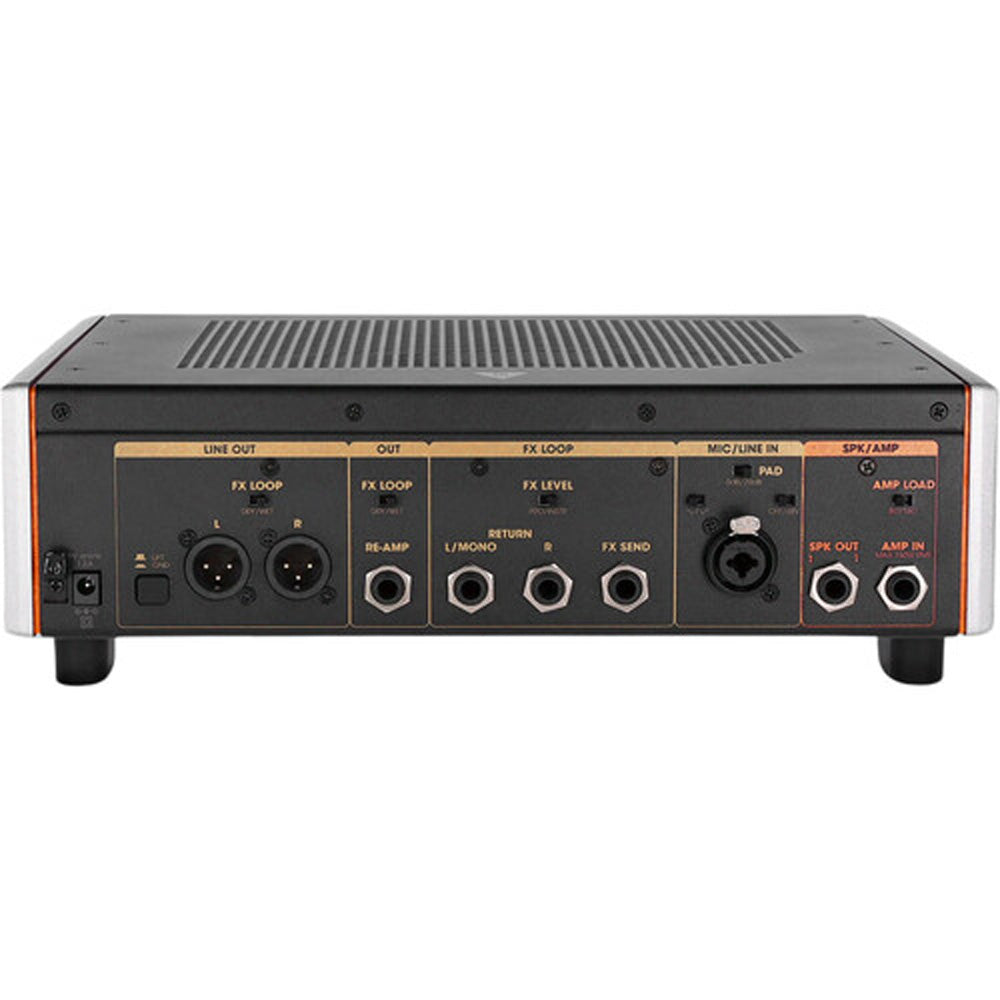

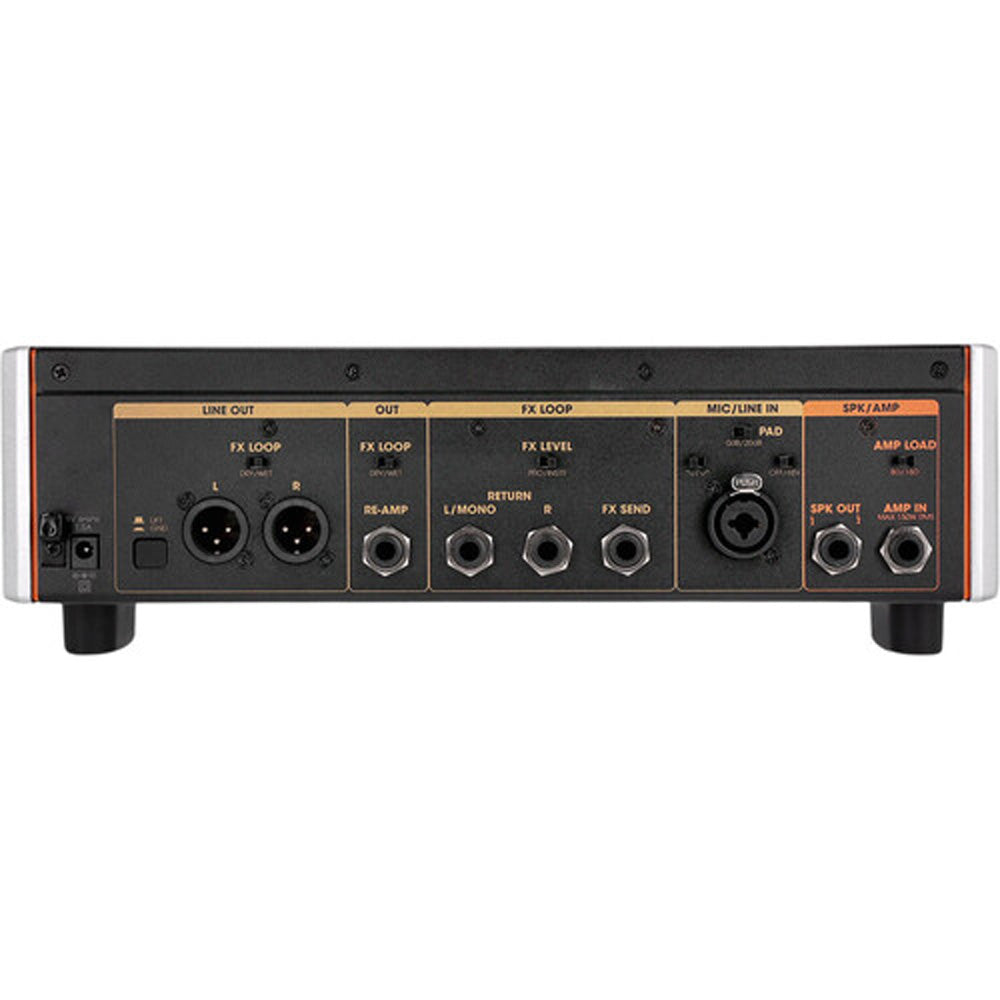

| Audio I/O | 1x 1/4" Input (Amplifier In) 1x 1/4" Output (Speaker Out) 1x Combo XLR-1/4" TRS Line/Mic Input 2x XLR 3-Pin Line Output 1x 1/8" / 3.5 mm TRS Aux Input 1x 1/4" TS Line Output (FX Send) 2x 1/4" TS Line Input (Stereo FX Returns) 1x 1/4" TS Output (Reamp) |
| Outputs | Line: +18 dBu, Max (<1% THD) RE-Amp: +1.5 dBv, Max (<1% THD) Phones Out: 1.4 V RMS (<1% THD, 1kHz) Phones Output Impedance: 33 Ohms (Minimum) |
| Inputs | From Amp: 150 W Peak, 100 W RMS Aux: 9 dBV |
| Phantom Power | 48 V, Switchable |
| Pad | -20 dB |
| Ground Lift | Yes |
| Amp Load | 8 an 16 Ohms, Switchable |
| Mic / Line Inputs | Mic Maximum Gain: 58 dB Mic / Line Input Gain Range: 0 to 25 dB Mix (XLR) Maximum Input Level: + 1 dBu (<1% THD, 1 kHz) Line (TRS) Maximum Input Level: + 22 dBu (<1% THD, 1 kHz) Mic In to Line Out THD+N: <0.006 % (1 kHz, +4 dBu) Mic In to Line Out THD+N: < 0.04 % (20 Hz to 20 kHz, +4 dBu) Mic In to Line Out EIN: -114 dBu (Max. Gain, Unweighted) Mic In to Line Out SNR: 105 dB (All Bypass) Mic / Line Input Pad Attenuation: 20 dB Mic In (XLR) Input Impedance (Balanced): 1500 Ohms Line In (TRS) Input Impedance (Balanced): 24000 Ohms Mic / Line In Low-Cut Frequency: 90 Hz (-3 dB) |
Wireless |
|
| Mobile App Compatible | No |
Power |
|
| Power Source | AC Adapter with Power Brick |
| DC Input Power | 9 VDC at 1.5 A |
| Power Consumption | 13.5 W (Maximum) 0.3 W (Standby) |
Physical |
|
| Color | Black |
| Dimensions | 13.1 x 10.8 x 4.3" / 33.4 x 27.4 x 10.8 cm |
| Weight | 14.6 lb / 6.6 kg |
Packaging Info |
|
| Package Weight | 17.025 lb |
| Box Dimensions (LxWxH) | 17.3 x 14.6 x 8.9" |

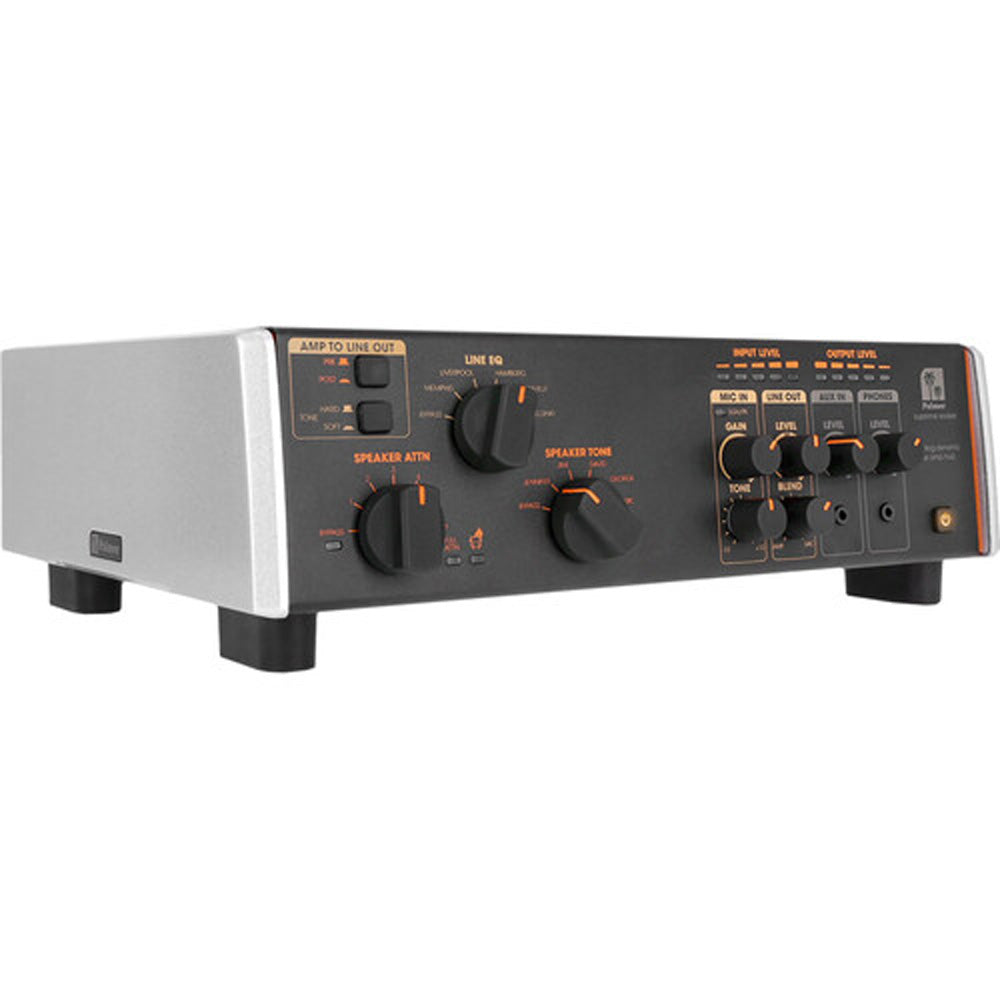

Palmer Supreme Soaker Analog Dynamic Tube Amp Hub
