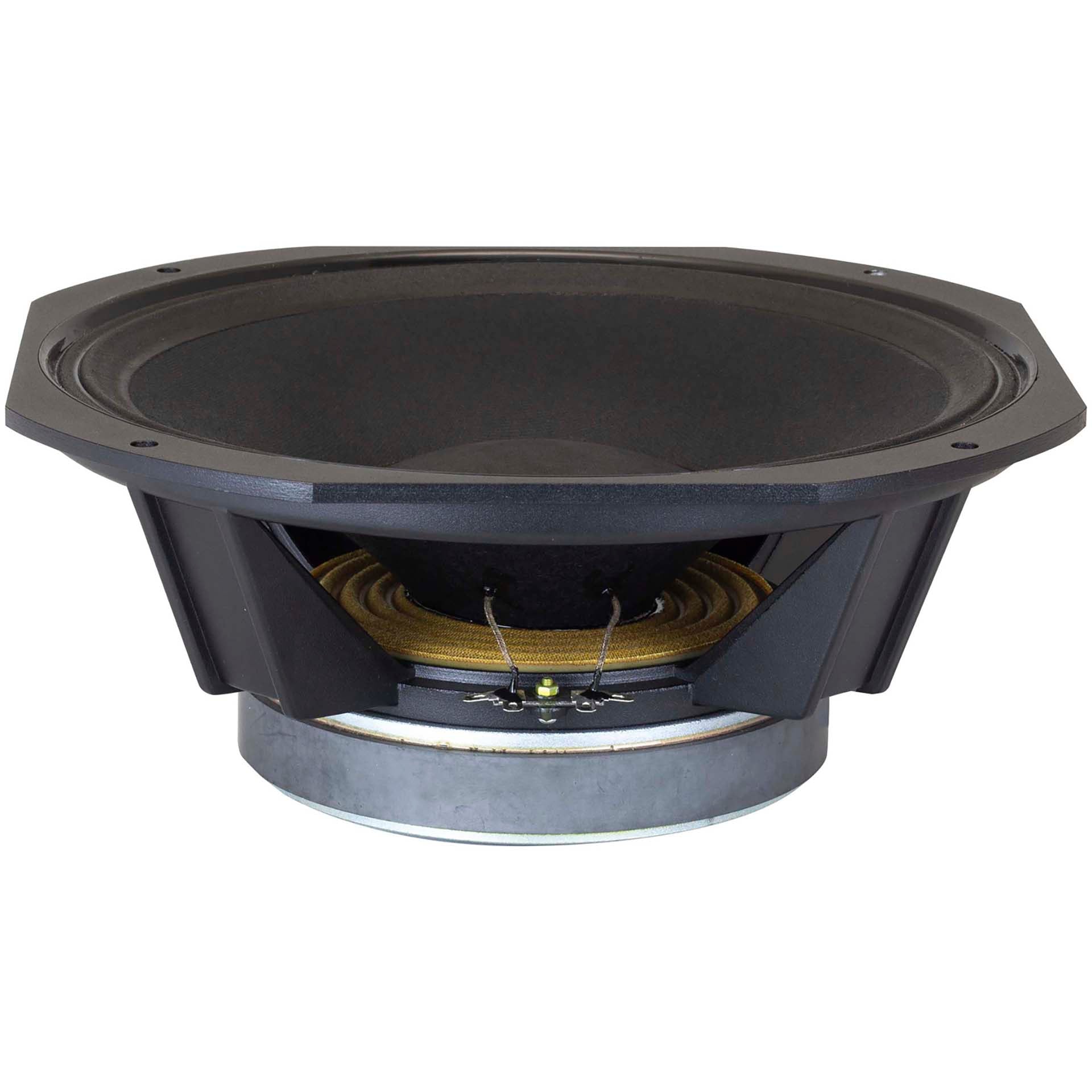

Peavey Scorpion SP-12825 Low Frequency Driver (12")

Peavey Scorpion SP-12825 Low Frequency Driver (12")

On order with the manufacturer!

View full details
  • Details
  • Reviews

Scorpion® SP-12825 8 Ohm

  • 12"
  • Impedance: 8 Ohms
  • Power capacity: 800 W Peak 400 W Program 200 W Continuous
  • Sensitivity: 98.7 dB / 1 W 1 m
  • Usable freq. range: 60 Hz ~ 4 kHz
  • Cone: Kevlar® impregnated cellulose
  • Voice coil diameter: 2.5" / 63.5 mm
  • Voice coil material: Aluminum ribbon wire Kapton former Nomex® stiffener Solderless diffusion welded OFHC copper leads
  • Net weight lb. / kg: 9.8 lbs. / 4.5 kg
  • Znom (ohms) 8
  • Revc (ohms) 5.70
  • Sd (Square Meters) 0.050
  • BL (T/M) 14.66
  • Fo (Hz) 77.5
  • Vas (liters) 44.8
  • Cms (uM/N) 126.2
  • Mms (gm) 33.40
  • Qms 6.58
  • Qes 0.431
  • Qts 0.404
  • Xmax (mm) 0.25
  • Le (mH) 0.35
  • SPL (1W 1m) 98.7
  • No (%) 4.70%
  • Vd (cu. in. / ml) 0.76/12.5
  • Pmax (Watts pgm.) 400
  • Disp (cu. in. / ml) 100 / 1639
  • Weight Unpacked: 11.00 lb(4.99 kg)
  • Weight Packed: 13.50 lb(6.123 kg)
  • Width Packed: 15.5"(39.37 cm)
  • Height Packed: 16"(40.64 cm)
  • Depth Packed: 6.5"(16.51 cm)
More Information
Product Name Peavey Scorpion SP-12825 Low Frequency Driver (12")
Brand Peavey
Condition New
MPN Sp-12825
UPC 014367000238
Shipping Option Free Shipping to the Continental U.S.

Peavey Scorpion SP-12825 Low Frequency Driver (12")

Details

Scorpion® SP-12825 8 Ohm

  • 12"
  • Impedance: 8 Ohms
  • Power capacity: 800 W Peak 400 W Program 200 W Continuous
  • Sensitivity: 98.7 dB / 1 W 1 m
  • Usable freq. range: 60 Hz ~ 4 kHz
  • Cone: Kevlar® impregnated cellulose
  • Voice coil diameter: 2.5" / 63.5 mm
  • Voice coil material: Aluminum ribbon wire Kapton former Nomex® stiffener Solderless diffusion welded OFHC copper leads
  • Net weight lb. / kg: 9.8 lbs. / 4.5 kg
  • Znom (ohms) 8
  • Revc (ohms) 5.70
  • Sd (Square Meters) 0.050
  • BL (T/M) 14.66
  • Fo (Hz) 77.5
  • Vas (liters) 44.8
  • Cms (uM/N) 126.2
  • Mms (gm) 33.40
  • Qms 6.58
  • Qes 0.431
  • Qts 0.404
  • Xmax (mm) 0.25
  • Le (mH) 0.35
  • SPL (1W 1m) 98.7
  • No (%) 4.70%
  • Vd (cu. in. / ml) 0.76/12.5
  • Pmax (Watts pgm.) 400
  • Disp (cu. in. / ml) 100 / 1639
  • Weight Unpacked: 11.00 lb(4.99 kg)
  • Weight Packed: 13.50 lb(6.123 kg)
  • Width Packed: 15.5"(39.37 cm)
  • Height Packed: 16"(40.64 cm)
  • Depth Packed: 6.5"(16.51 cm)
More Information
Product Name Peavey Scorpion SP-12825 Low Frequency Driver (12")
Brand Peavey
Condition New
MPN Sp-12825
UPC 014367000238
Shipping Option Free Shipping to the Continental U.S.
