*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

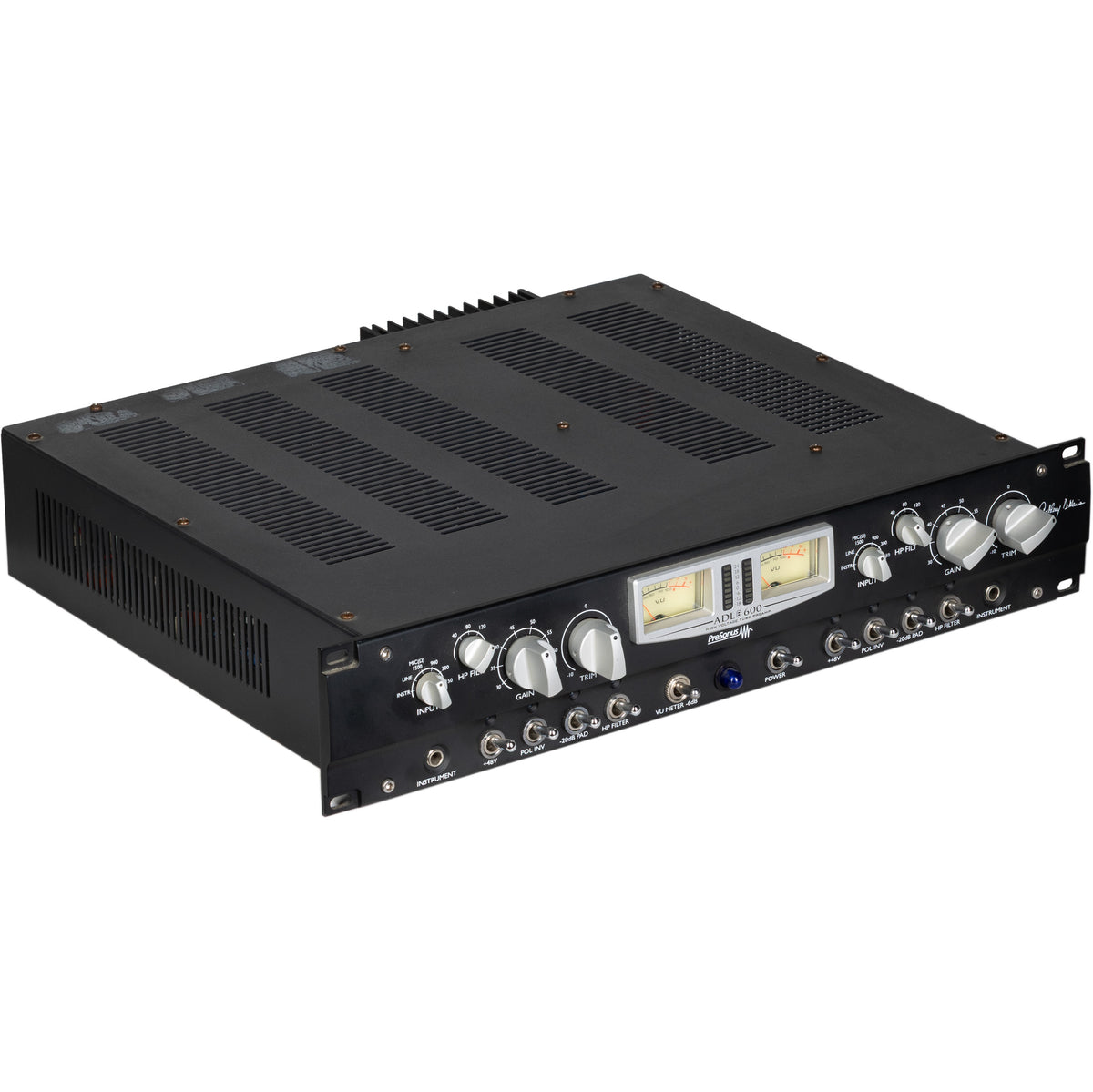

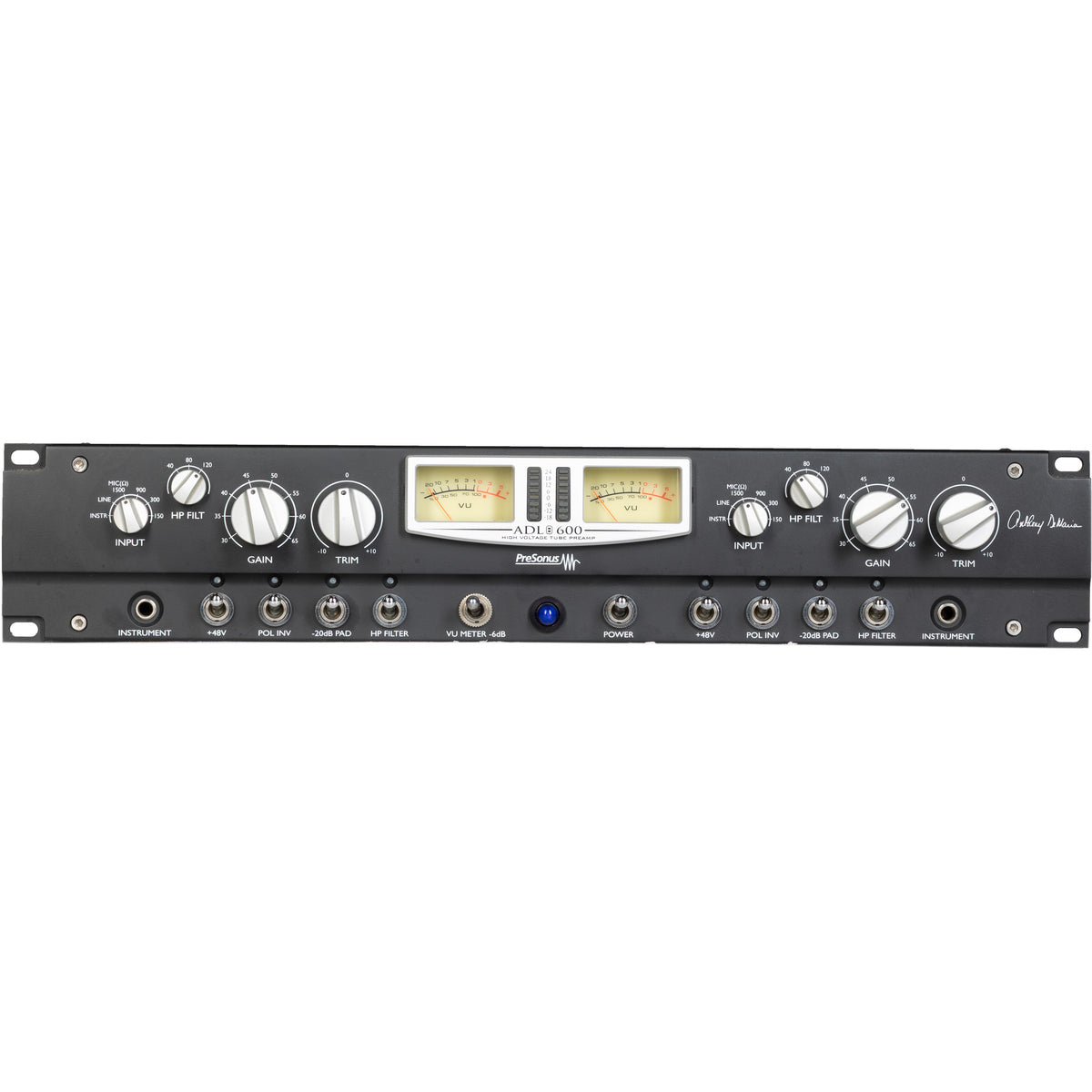

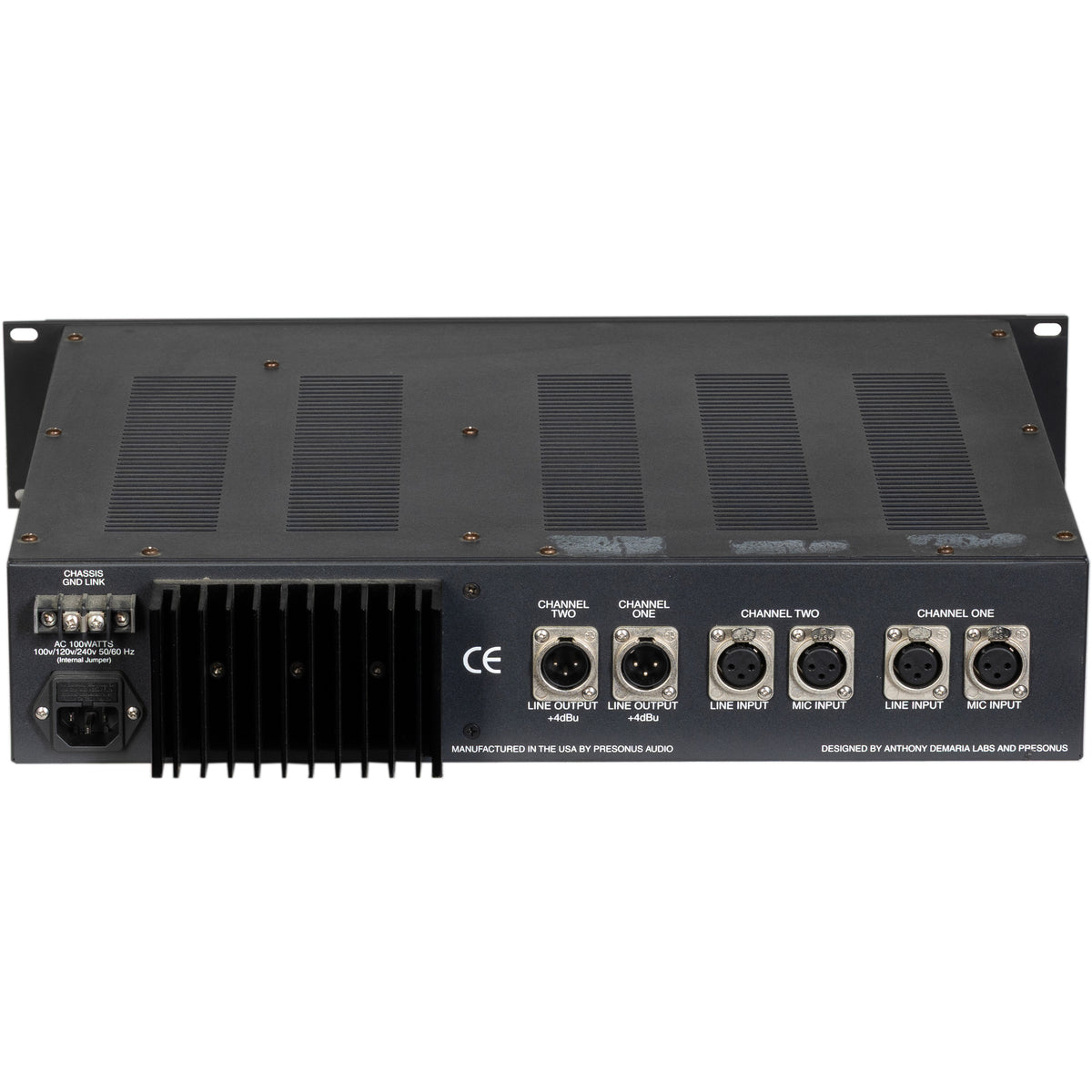

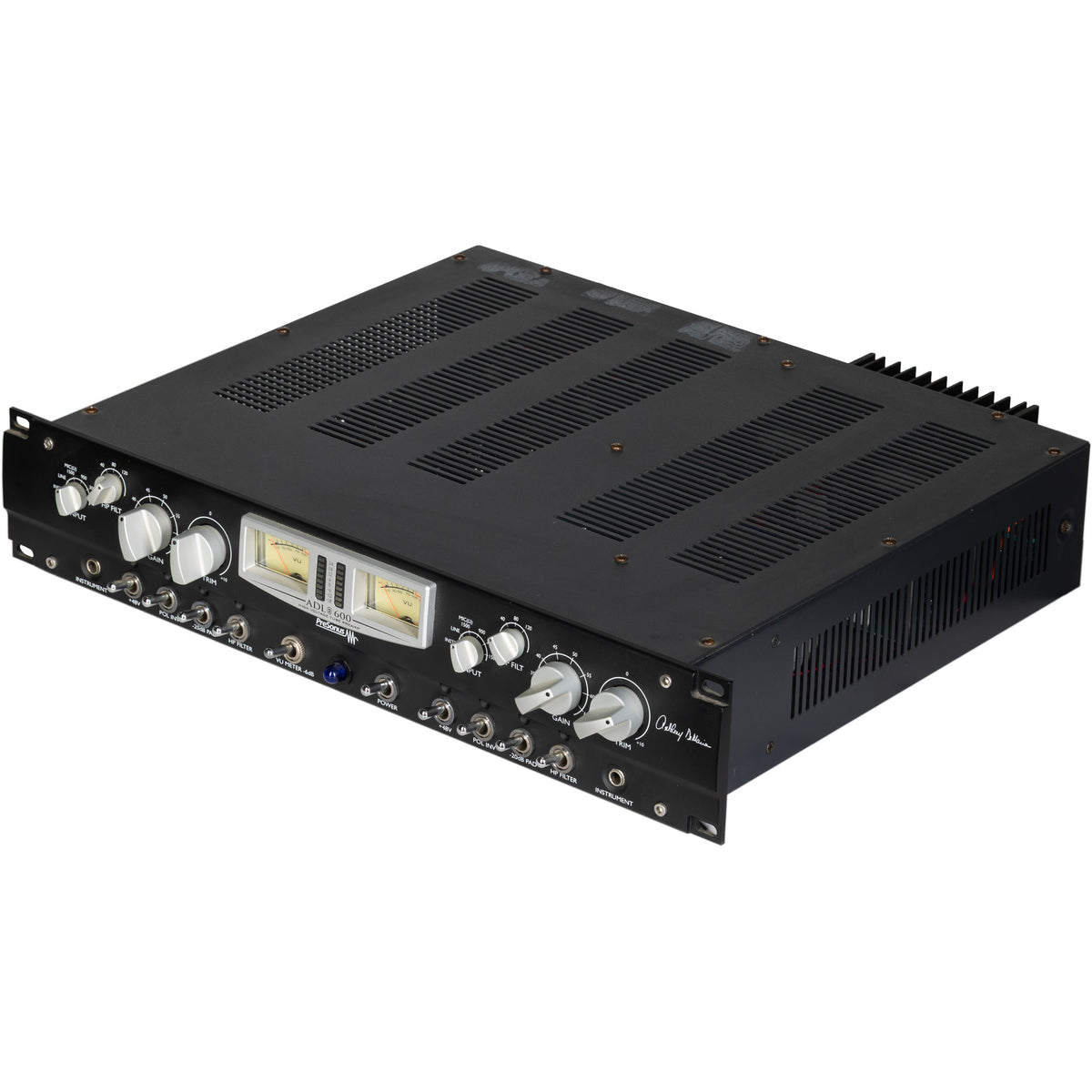

The PreSonus ADL-600 is a premium, dual-channel Class A vacuum-tube microphone preamplifier designed to deliver exceptional clarity, warmth, and dynamic range for professional recording applications. Developed in collaboration with renowned tube-circuit designer Anthony DeMaria, the ADL-600 features a high-voltage tube architecture and dual-transformer signal path that produce a rich, detailed sound with smooth harmonic character and generous headroom. Its versatile design accommodates microphones, line-level sources, and instruments, making it well suited for recording vocals, guitars, drums, keyboards, and other critical audio sources.
Equipped with selectable microphone input impedance, switchable 48V phantom power, a -20dB pad, polarity reversal, and a three-position high-pass filter, the ADL-600 provides extensive control over signal conditioning. Independent gain and output controls allow precise level management, while illuminated VU meters and LED peak metering offer clear visual monitoring. Housed in a rugged 2U rackmount chassis, the PreSonus ADL-600 combines classic analog tube character with professional studio flexibility, making it a valuable addition to high-end recording and mixing environments.
| Product Name | Presonus ADL-600 2-Channel Microphone Preamp |
|---|---|
| Brand | Presonus |
| Condition | Pre-Owned |
| MPN | ADL-200 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Presonus ADL-600 2-Channel Microphone Preamp
- Dual-channel, high-voltage Class A vacuum-tube microphone preamplifier
- Designed in collaboration with renowned tube-circuit designer Anthony DeMaria
- Dual-transformer signal path delivers warm, smooth, detailed sound with generous headroom
- Three vacuum tubes per channel for rich, expressive analog character
- Microphone, line, and instrument inputs for versatile studio applications
- Selectable microphone input impedance: 150Ω, 300Ω, 900Ω, and 1,500Ω
- Variable high-pass filter with 40Hz, 80Hz, and 120Hz settings
- Eight-position gain switch with variable output trim for precise level control
- Switchable +48V phantom power for condenser microphones
- -20dB pad for handling high-level microphone signals
- Polarity-reverse switch for managing phase relationships
- Backlit analog VU meter with selectable -6dB metering range
- Eight-segment LED metering for monitoring signal peaks
- Transformer-balanced XLR microphone and line inputs and outputs
- Dual front-panel 1/4-inch instrument inputs
- Rugged 2U, 19-inch rackmount steel chassis
| Product Type | 2-Channel Tube Microphone Preamp |
| Channels | 2 |
| Circuit Design | Discrete Class A, high-voltage tube |
| Transformers | Dual-transformer design |
| Tube Complement | 6 tubes total: 2 × 12AT7A and 4 × 6922 |
| Maximum Gain | Greater than 73dB |
| Microphone Gain Range | 18dB to 72dB |
| Line Gain Range | -12dB to +40dB |
| Instrument Gain Range | -5dB to +42dB |
| Microphone Input Impedance | 150Ω, 300Ω, 900Ω, 1,500Ω |
| Line Input Impedance | 2kΩ |
| Instrument Input Impedance | 100kΩ |
| Maximum Microphone Input Level | +5dBu (pad off); +25dBu (pad on) |
| Maximum Line Input Level | +30dBu |
| Maximum Instrument Input Level | +30dBu |
| Equivalent Input Noise (EIN) | -125dBu, A-weighted |
| Noise Floor | -95dBu, A-weighted, at minimum gain |
| Frequency Response | 10Hz – 45kHz (±1dB) |
| Maximum Output Level | +23dBu at 0.5% THD+N |
| Output Impedance | 600Ω |
| High-Pass Filter | 40Hz, 80Hz, 120Hz |
| Phantom Power | +48V |
| Pad | -20dB |
| Analog Inputs | 2 × XLR microphone, 2 × XLR line, 2 × 1/4-inch instrument |
| Analog Outputs | 2 × XLR line output |
| Metering | Backlit VU meters and 8-segment LED meters |
| Power Supply | Internal |
| Power Requirements | 115V or 230V AC, 100W, factory-configured |
| Rack Format | 2U, 19-inch rackmount |
| Dimensions (W × H × D) | 19 × 3.5 × 17 inches |
| Weight | 28 lb |
| Status | Discontinued |
| Additional Information | Specifications are based on the manufacturer's documentation and owner's manual. |
| Brand | PreSonus |
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The PreSonus ADL-600 is a premium, dual-channel Class A vacuum-tube microphone preamplifier designed to deliver exceptional clarity, warmth, and dynamic range for professional recording applications. Developed in collaboration with renowned tube-circuit designer Anthony DeMaria, the ADL-600 features a high-voltage tube architecture and dual-transformer signal path that produce a rich, detailed sound with smooth harmonic character and generous headroom. Its versatile design accommodates microphones, line-level sources, and instruments, making it well suited for recording vocals, guitars, drums, keyboards, and other critical audio sources.
Equipped with selectable microphone input impedance, switchable 48V phantom power, a -20dB pad, polarity reversal, and a three-position high-pass filter, the ADL-600 provides extensive control over signal conditioning. Independent gain and output controls allow precise level management, while illuminated VU meters and LED peak metering offer clear visual monitoring. Housed in a rugged 2U rackmount chassis, the PreSonus ADL-600 combines classic analog tube character with professional studio flexibility, making it a valuable addition to high-end recording and mixing environments.
| Product Name | Presonus ADL-600 2-Channel Microphone Preamp |
|---|---|
| Brand | Presonus |
| Condition | Pre-Owned |
| MPN | ADL-200 |
What's in the Box?
Presonus ADL-600 2-Channel Microphone Preamp- Dual-channel, high-voltage Class A vacuum-tube microphone preamplifier
- Designed in collaboration with renowned tube-circuit designer Anthony DeMaria
- Dual-transformer signal path delivers warm, smooth, detailed sound with generous headroom
- Three vacuum tubes per channel for rich, expressive analog character
- Microphone, line, and instrument inputs for versatile studio applications
- Selectable microphone input impedance: 150Ω, 300Ω, 900Ω, and 1,500Ω
- Variable high-pass filter with 40Hz, 80Hz, and 120Hz settings
- Eight-position gain switch with variable output trim for precise level control
- Switchable +48V phantom power for condenser microphones
- -20dB pad for handling high-level microphone signals
- Polarity-reverse switch for managing phase relationships
- Backlit analog VU meter with selectable -6dB metering range
- Eight-segment LED metering for monitoring signal peaks
- Transformer-balanced XLR microphone and line inputs and outputs
- Dual front-panel 1/4-inch instrument inputs
- Rugged 2U, 19-inch rackmount steel chassis
| Product Type | 2-Channel Tube Microphone Preamp |
| Channels | 2 |
| Circuit Design | Discrete Class A, high-voltage tube |
| Transformers | Dual-transformer design |
| Tube Complement | 6 tubes total: 2 × 12AT7A and 4 × 6922 |
| Maximum Gain | Greater than 73dB |
| Microphone Gain Range | 18dB to 72dB |
| Line Gain Range | -12dB to +40dB |
| Instrument Gain Range | -5dB to +42dB |
| Microphone Input Impedance | 150Ω, 300Ω, 900Ω, 1,500Ω |
| Line Input Impedance | 2kΩ |
| Instrument Input Impedance | 100kΩ |
| Maximum Microphone Input Level | +5dBu (pad off); +25dBu (pad on) |
| Maximum Line Input Level | +30dBu |
| Maximum Instrument Input Level | +30dBu |
| Equivalent Input Noise (EIN) | -125dBu, A-weighted |
| Noise Floor | -95dBu, A-weighted, at minimum gain |
| Frequency Response | 10Hz – 45kHz (±1dB) |
| Maximum Output Level | +23dBu at 0.5% THD+N |
| Output Impedance | 600Ω |
| High-Pass Filter | 40Hz, 80Hz, 120Hz |
| Phantom Power | +48V |
| Pad | -20dB |
| Analog Inputs | 2 × XLR microphone, 2 × XLR line, 2 × 1/4-inch instrument |
| Analog Outputs | 2 × XLR line output |
| Metering | Backlit VU meters and 8-segment LED meters |
| Power Supply | Internal |
| Power Requirements | 115V or 230V AC, 100W, factory-configured |
| Rack Format | 2U, 19-inch rackmount |
| Dimensions (W × H × D) | 19 × 3.5 × 17 inches |
| Weight | 28 lb |
| Status | Discontinued |
| Additional Information | Specifications are based on the manufacturer's documentation and owner's manual. |
| Brand | PreSonus |
