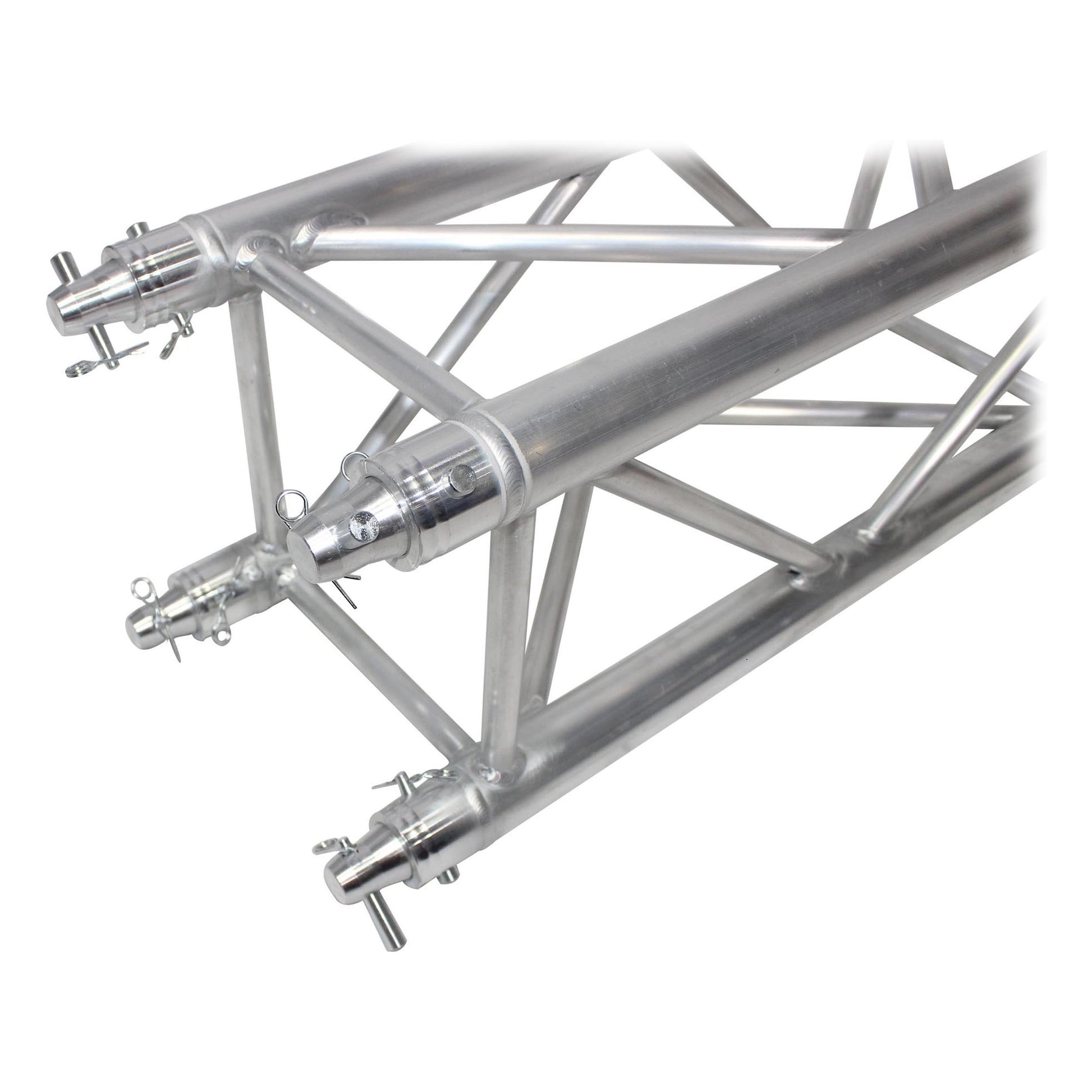

ProX XT-SQ820 8.20ft Square Truss Segment

ProX XT-SQ820 8.20ft Square Truss Segment

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

  • Tolerance Free Standard Conical connector
  • Main tube wall thickness of .08in / 2mm
  • Constructed to the highest safety ratings by certified welders
More Information
Product Name ProX XT-SQ820 8.20ft Square Truss Segment
Brand ProX
Condition New
MPN XT-SQ820
UPC 741459147303
Shipping Option Free Shipping to the Continental U.S.
  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: ~5.0 lbs/ft / ~7.0/m
  • Main Tube: 2in / 50mm
  • Braces: .75in / 20mm
  • Material: EN-AWT6 6082 Aluminum
  • Actual Height:  8.2 ft (2.5 Meter) Square Truss Segment
  • Actual Weight: 36 lbs.
  • Outside: 290mm - 11 7/16"
  • Tubing: 2"
  • Bracing: 3/4"

ProX XT-SQ820 8.20ft Square Truss Segment

Details

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

  • Tolerance Free Standard Conical connector
  • Main tube wall thickness of .08in / 2mm
  • Constructed to the highest safety ratings by certified welders
More Information
Product Name ProX XT-SQ820 8.20ft Square Truss Segment
Brand ProX
Condition New
MPN XT-SQ820
UPC 741459147303
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: ~5.0 lbs/ft / ~7.0/m
  • Main Tube: 2in / 50mm
  • Braces: .75in / 20mm
  • Material: EN-AWT6 6082 Aluminum
  • Actual Height:  8.2 ft (2.5 Meter) Square Truss Segment
  • Actual Weight: 36 lbs.
  • Outside: 290mm - 11 7/16"
  • Tubing: 2"
  • Bracing: 3/4"
