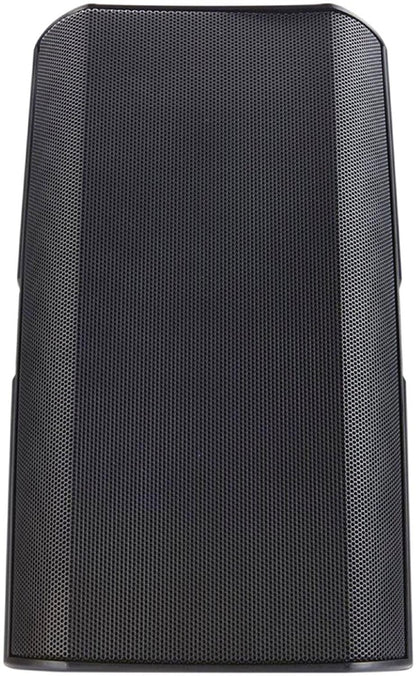

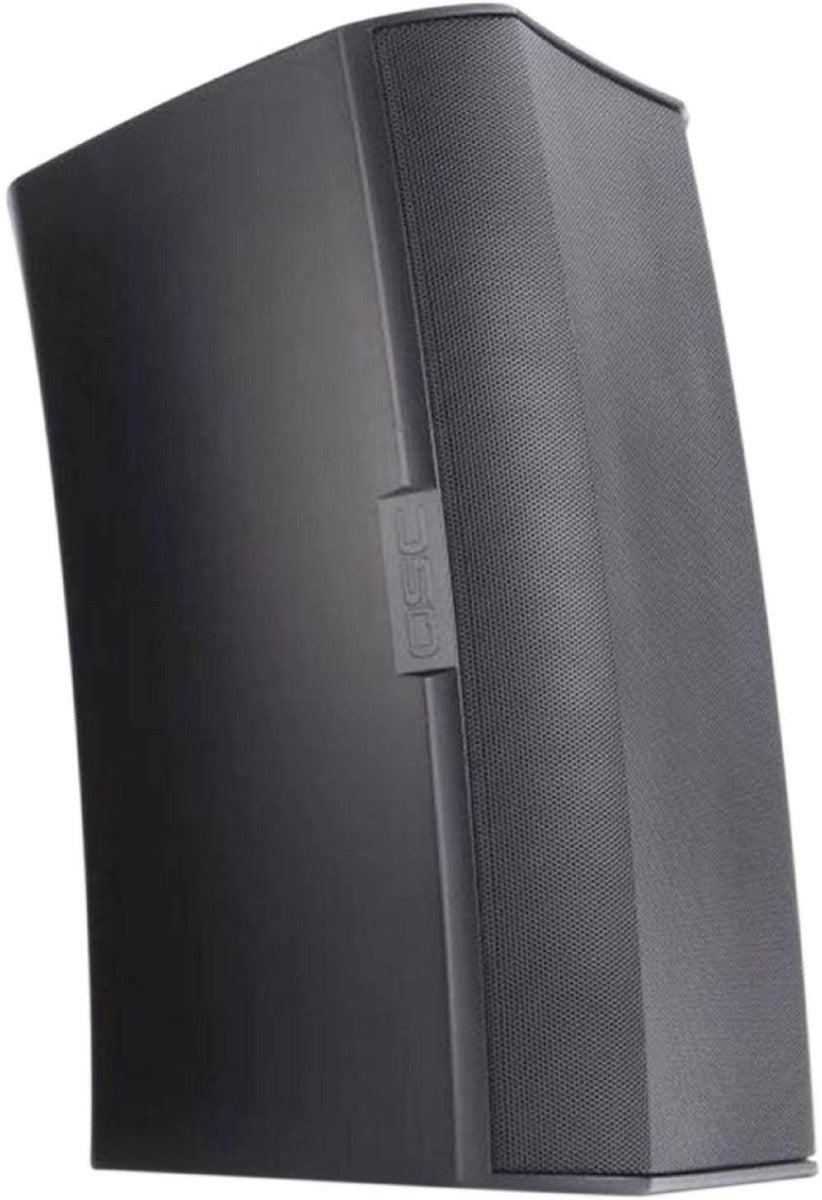

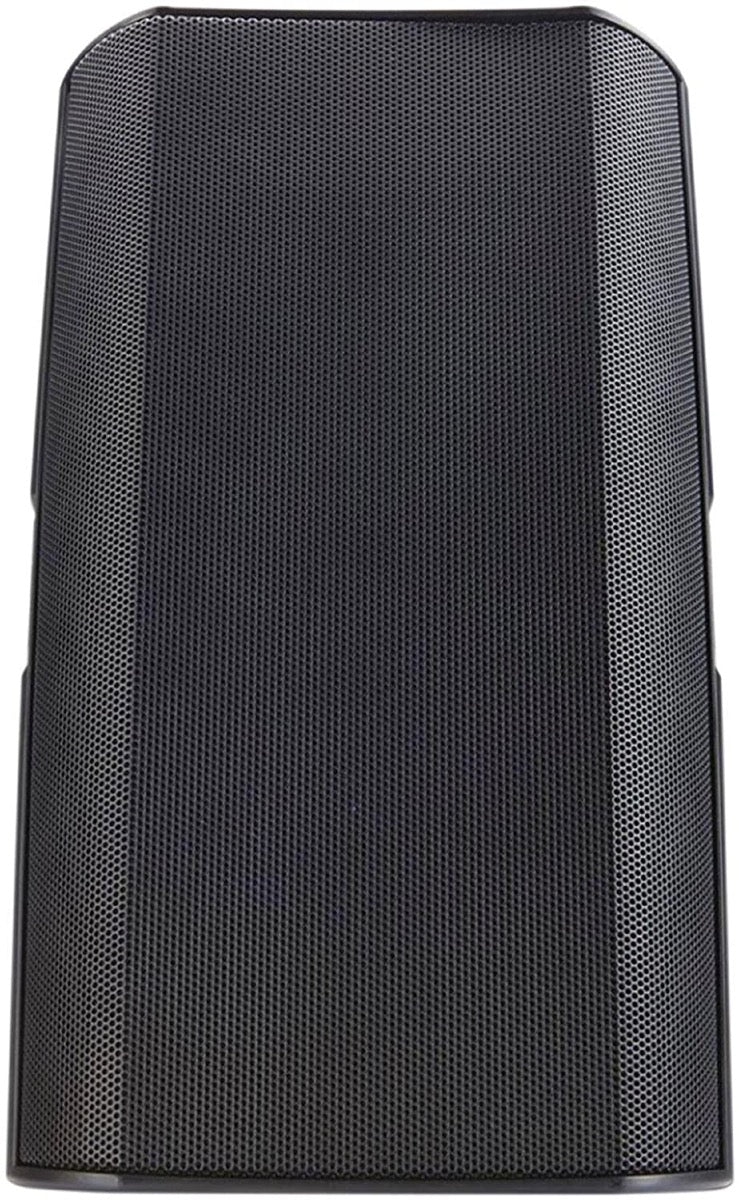

QSC AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker - Black

QSC AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker - Black

On order with the manufacturer!

View full details
  • Details
  • Features
  • Reviews

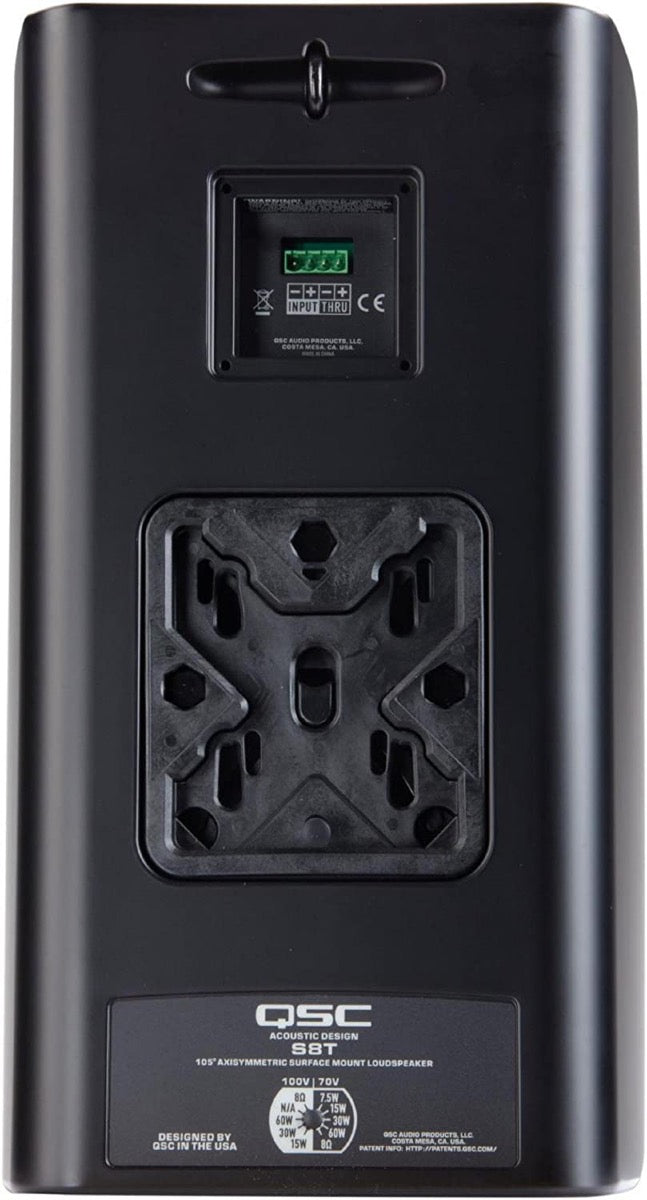

AD-S8T Surfact Mount Loudspeaker Black 8 in. The AD-S8T, part of the AcousticDesign series, offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications. Consistent and even axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response. The AD-S8T features low-loss, low-saturation transformers with selectable taps, including an 8? bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet. With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance. Installers will appreciate the award-winning X-Mount system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments.

More Information
Product Name QSC AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker - Black
Shipping Option Free Shipping to the Continental U.S.
  • 8-inch weather treated woofer; 1.4-inch compression driver
  • 105° conical DMT coverage
  • 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
  • Maximum peak SPL 119 dB (8Ω bypass)
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS or CXD amplifier platform
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

QSC AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker - Black

Details

AD-S8T Surfact Mount Loudspeaker Black 8 in. The AD-S8T, part of the AcousticDesign series, offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications. Consistent and even axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response. The AD-S8T features low-loss, low-saturation transformers with selectable taps, including an 8? bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet. With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance. Installers will appreciate the award-winning X-Mount system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments.

More Information
Product Name QSC AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker - Black
Shipping Option Free Shipping to the Continental U.S.
Features
  • 8-inch weather treated woofer; 1.4-inch compression driver
  • 105° conical DMT coverage
  • 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
  • Maximum peak SPL 119 dB (8Ω bypass)
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS or CXD amplifier platform
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online
