Rane Four Advanced Four-Channel Stems DJ Controller

Rane Four Advanced Four-Channel Stems DJ Controller

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

DESIGNED FOR CREATIVITY, BUILT TO LAST

The FOUR brilliantly combines the latest in performance-focused DJ technology with RANE’s tried-and-true build and industry-leading sound quality. The result is a bulletproof, great sounding, feature-packed DJ controller that will unleash exciting new levels of creativity in your DJ sets and livestreams. With never-before-seen features like STEM-SPLIT, Performance Pad OLED displays, and a new dynamic internal FX engine, the FOUR is the world’s most advanced 4-channel Stems DJ controller.

HARNESS THE POWER OF SERATO STEMS

RANE and Serato have a long history of creating groundbreaking DJ products together, dating back to the RANE SL1 box in 2004. The RANE FOUR takes this partnership to the next level by melding the industrial-grade build and sound quality of RANE hardware with the powerful new Stems capabilities of Serato DJ software. The result is a next-level DJ controller with unprecedented Serato Stems control. A dedicated Stems Pad Mode, Instrumental and Acapella buttons, and RANE’s exclusive STEM-SPLIT feature provide you with the ultimate Stems workflow and experience to fully elevate your creativity as a DJ.

NEW LEVELS OF CREATIVE FX

The newly designed internal FX suite features 22 paddle-triggered, fully customizable Main FX and 4 knob-controlled Channel FX for adding flavor and personality to individual Stems elements and tracks. This robust FX suite features traditional FX classics like Reverb and Echo and exhilarating new additions including Scale Down, Recycler, Riser, and more. The Channel FX section offers dynamic, hands-on manipulation of 4 knob-controlled FX including Filter, Filter Roll, Noise, and Flanger. The RANE FOUR also allows you to switch seamless back and forth between the built-in hardware FX and Serato’s software FX, providing limitless options for any style of DJing.

FOUR CHANNELS OF PERFORMANCE POSSIBILITY

The 4-channel mixer section features full EQ control and intuitive FX assignment options, plus 2 external Line/Phono inputs for external turntables or decks. The FOUR is DVS-enabled and unlocks both Serato DJ Pro and Serato Pitch ‘n Time when connected to laptop running the latest version of Serato. Enhanced Sampler routing options allow you to control the Sampler volume via a dedicated knob, or assign the audio to Channel 4 so that you can layer FX on top of your DJ drops, instruments, and other samples. The quick-access deck selection buttons allow for swiftly switching platter control between software decks, and the FOUR also supports external modular decks like the RANE TWELVE MKII and the Denon DJ LC6000 for a full physical 4-deck mixing experience.

FOCUS ON YOUR PERFORMANCE, NOT YOUR LAPTOP

The 8 OLED displays above the Performance Pads on each deck offer visual feedback for all pad modes, making it easier than ever to see the function of each pad without having to look at the computer. See Cue, Loop, and Sample names as well as Roll and Loop lengths, beat divisions, Pitch Play tuning, and Stem elements and FX.

THE BEST STATIC PLATTERS..EVER

The 8.5” capacitive jog wheels were designed to be the smoothest and most accurate static jog wheels available on a DJ controller. A central color display indicates play head position, BPM, pitch percentage, pitch range, overview waveform with Hot Cue markers, song key, time, loop size, deck selection, Beat Jump length and more.

TRUSTED RANE QUALITY

The RANE FOUR is the only 4-channel DJ controller built to RANE’s rigorous standards. Solid, bulletproof construction, MAG-FOUR crossfader with curve adjustment and channel assignment switches, aluminum FX toggles, and industry- leading sound quality and connections ensure that the RANE FOUR will always perform like a champ, no matter what.

More Information
Product Name Rane Four Advanced Four-Channel Stems DJ Controller
Shipping Option Free Shipping to the Continental U.S.

Digital Audio

Converters Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing 32-bit, Floating Point, Double precision
Dynamic Range (A-weighted, unity gain) ADC: 113 dB
DAC: 113 dB
CD Input to Analog Output: 110 dB
CD Input to USB Output: 113 dB
USB Input to Analog Output: 113 dB

Inputs

Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS) Analog Gain: 25 dB
Maximum Input: 110 mV
Gain Trim: Off to +26 dB (unity at center)
Tone Control: 2-band
Line/Phono Inputs 3/4 (RCA stereo pairs, switchable) Line: Line
Maximum Input: 4 Vrms
Gain Trim: Off to +12 dB
Tone Control: 3-band, full-cut to +10 dB
THD+N (20 kHz BW @ 1 kHz): 0.004%
Phono: RIAA
RIAA Curve: +/-0.25 dB
Gain (@ 1 kHz): 31.5 dB
Maximum Input (@ 1 kHz): 106 mV
Dynamic Range (A-weighted): 102 dB

Outputs

Main Outputs (XLR) Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Main Outputs (RCA stereo pair) Maximum Output: 4 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Booth Outputs (1/4”) Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS) Maximum Output: 4 Vrms Voltage: (no load)
Output Power: 50 mW (50 ohms)
Dynamic Range (A-weighted): 108 dB

Pads

Pads (16) on/off multi-color back-lit pads (8 per deck, 9 modes each)

Wheel Displays

Wheel Displays (2) 320 x 240 Color LCD’s

Pad & FX Displays

Pad & FX Displays (9) 128 x 32 Monochrome OLED’s

Faders

Faders (1) MAG FOUR tension-adjustable crossfader with contour
(4) Standard channel faders

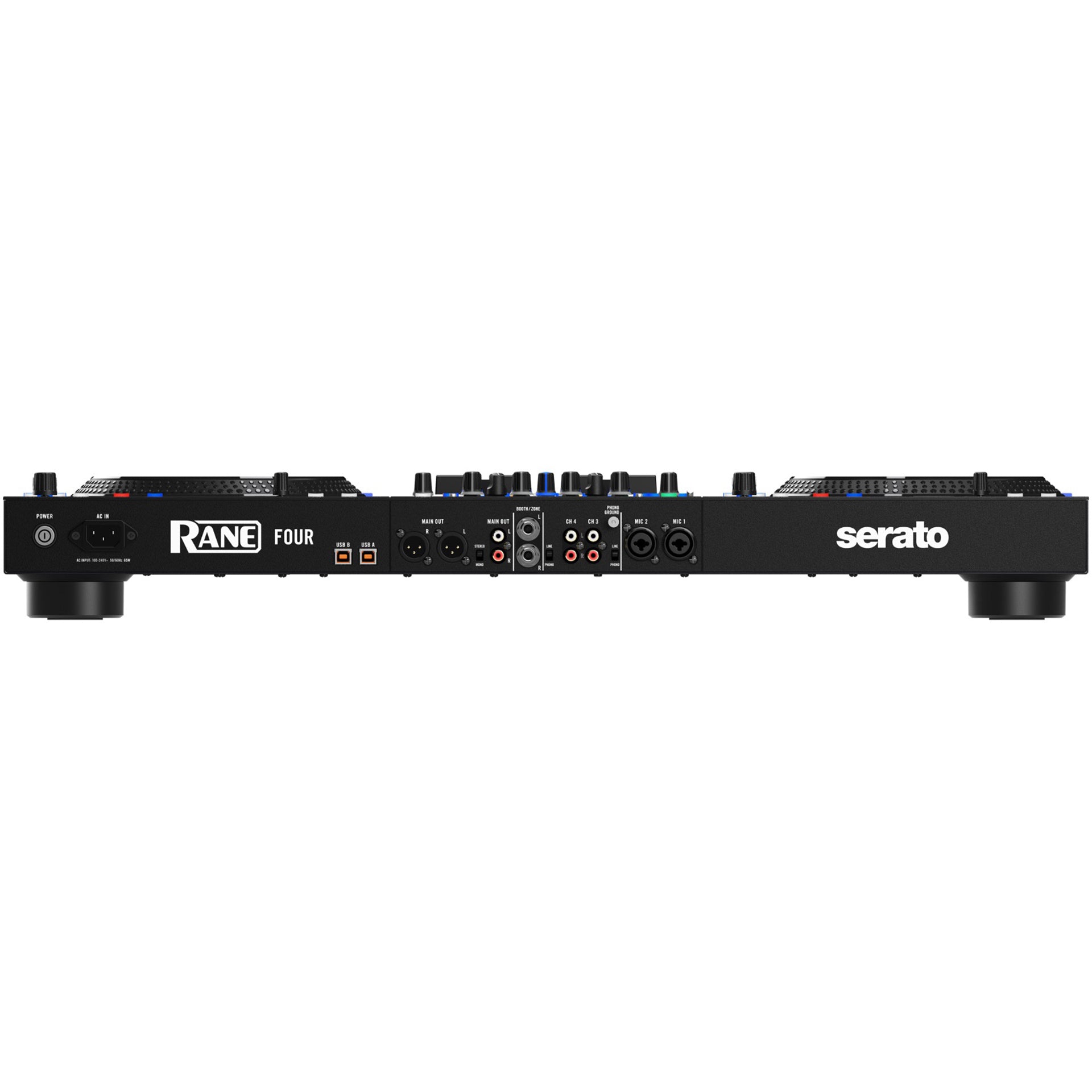

Connections

Connections (2) XLR outputs (Main)
(2) 1/4” outputs (Booth)
(1) RCA stereo output pair (Main)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(2) RCA stereo input pairs (Deck 3-4)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input

Power

Connection IEC
Voltage 100–240 V, 50/60 Hz
Consumption 20 W

Dimensions

Dimensions (width x depth x height) 30.8” x 15.9” x 4.2”
782.32 x 403.8 x 106.6 mm
Weight (including platters) 18.25 lbs.
8.27 kg
