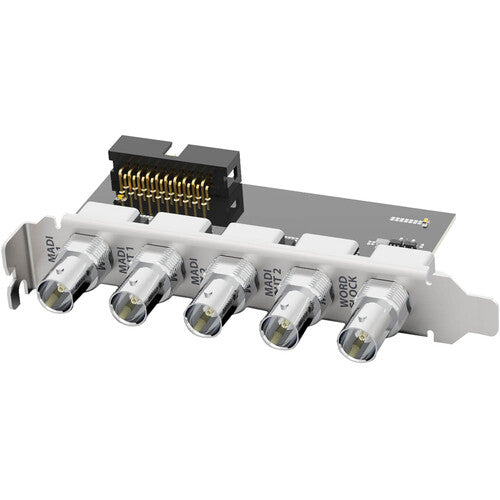

Designed as an expansion board that fits over the I/O connectors of the RME HDSPe AoX-M 512-channel PCIe audio interface card, the AoX-MADI-EXT-BNC is an expansion board that replaces the HDSPe AoX's RJ45 MADI ports with four BNC connectors.
These BNC jacks can distribute up to 128 channels of MADI I/O at 48 kHz. Along with the four BNC MADI connectors, this expansion board also provides a single BNC word clock jack for sync functionality.
| Product Name | RME AoX-MADI-EXT-BNC MADI Expansion Board |
|---|---|
| Brand | RME |
| Condition | New |
| MPN | AOXMADICOAX |
| UPC | 4260123363598 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- RME AoX-MADI-EXT-BNC MADI Expansion Board
- Expansion for HDSPe AoX-M PCIe Cards
- Adds Four MADI BNC Connectors
- Adds One BNC Word Clock Connector
- Up to 128 Channels of MADI I/O
- Supports 48 to 192 kHz Sampling Rates
General |
|
|---|---|
| Compatible Interfaces | RME HDSPe AoX |
Connectivity |
|
| Analog Audio I/O | No |
| Digital Audio I/O | 1x BNC Coaxial MADI Input 1x BNC Coaxial MADI Output |
| Host Connection / USB | No |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input or Output |
| Network I/O | No |
| MIDI I/O | No |
Digital Audio |
|
| Sample Rates | 48 to 192 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | MADI, Word Clock |
RME AoX-MADI-EXT-BNC MADI Expansion Board
Designed as an expansion board that fits over the I/O connectors of the RME HDSPe AoX-M 512-channel PCIe audio interface card, the AoX-MADI-EXT-BNC is an expansion board that replaces the HDSPe AoX's RJ45 MADI ports with four BNC connectors.
These BNC jacks can distribute up to 128 channels of MADI I/O at 48 kHz. Along with the four BNC MADI connectors, this expansion board also provides a single BNC word clock jack for sync functionality.
| Product Name | RME AoX-MADI-EXT-BNC MADI Expansion Board |
|---|---|
| Brand | RME |
| Condition | New |
| MPN | AOXMADICOAX |
| UPC | 4260123363598 |
What's in the Box?
RME AoX-MADI-EXT-BNC MADI Expansion Board- Expansion for HDSPe AoX-M PCIe Cards
- Adds Four MADI BNC Connectors
- Adds One BNC Word Clock Connector
- Up to 128 Channels of MADI I/O
- Supports 48 to 192 kHz Sampling Rates
General |
|
|---|---|
| Compatible Interfaces | RME HDSPe AoX |
Connectivity |
|
| Analog Audio I/O | No |
| Digital Audio I/O | 1x BNC Coaxial MADI Input 1x BNC Coaxial MADI Output |
| Host Connection / USB | No |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input or Output |
| Network I/O | No |
| MIDI I/O | No |
Digital Audio |
|
| Sample Rates | 48 to 192 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | MADI, Word Clock |
