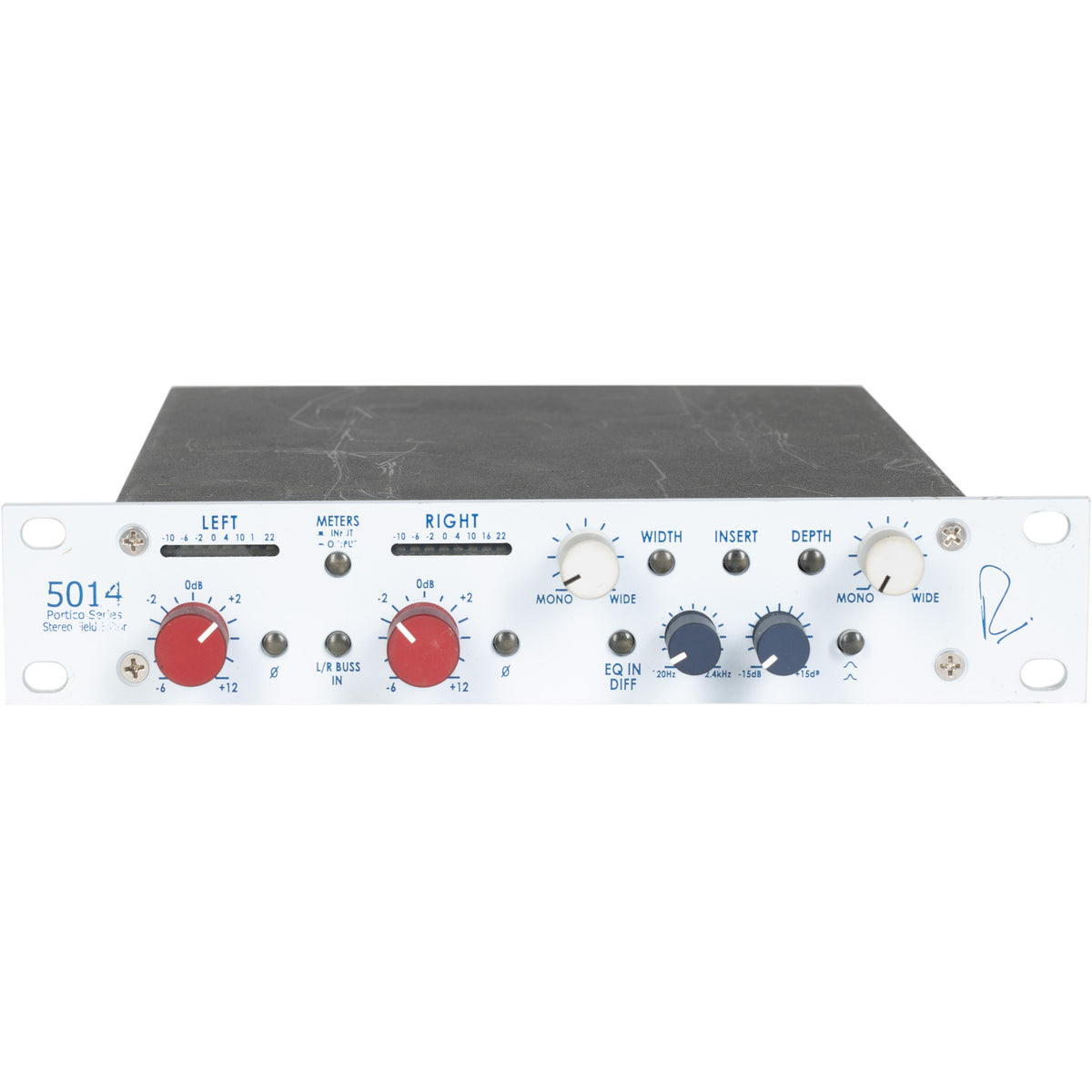

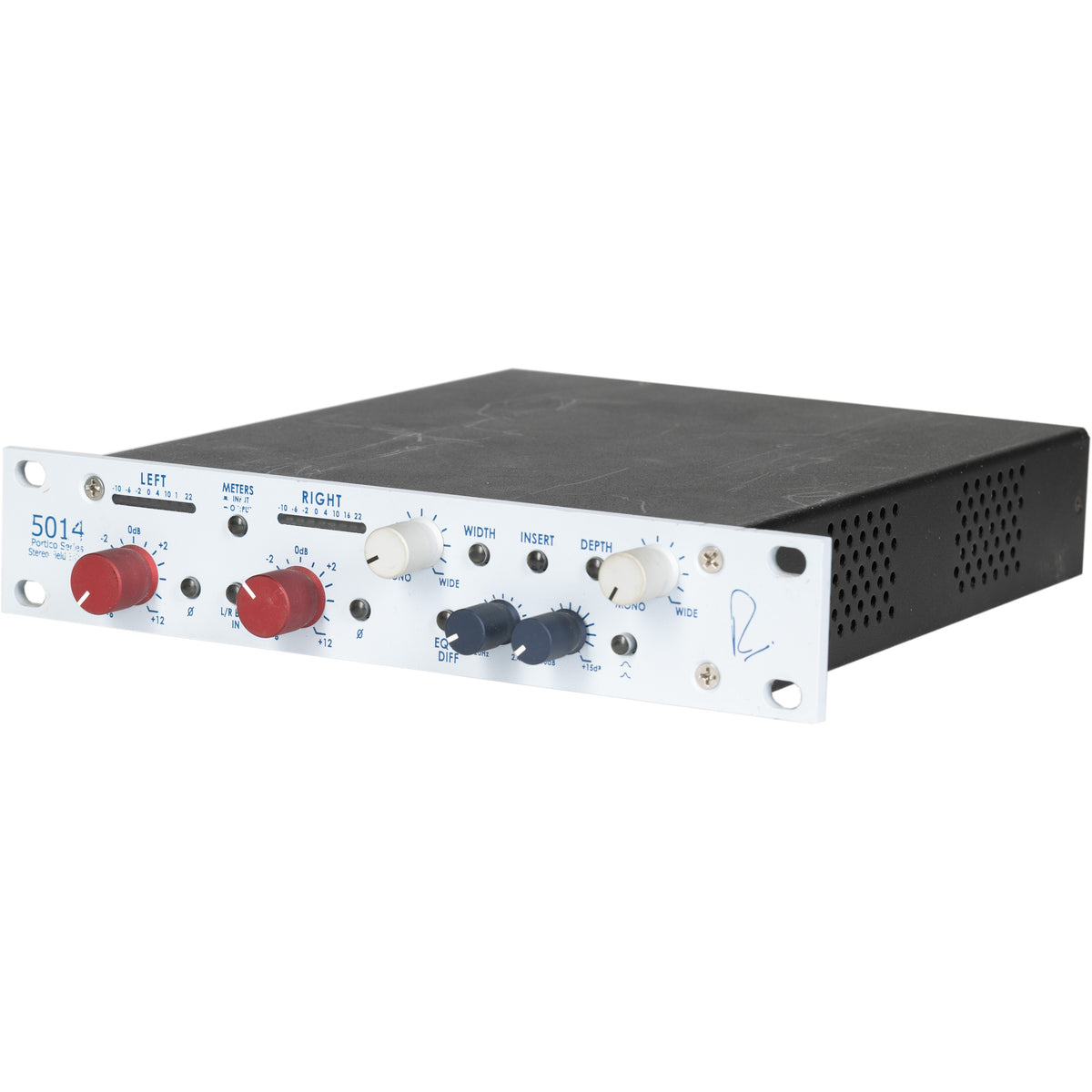

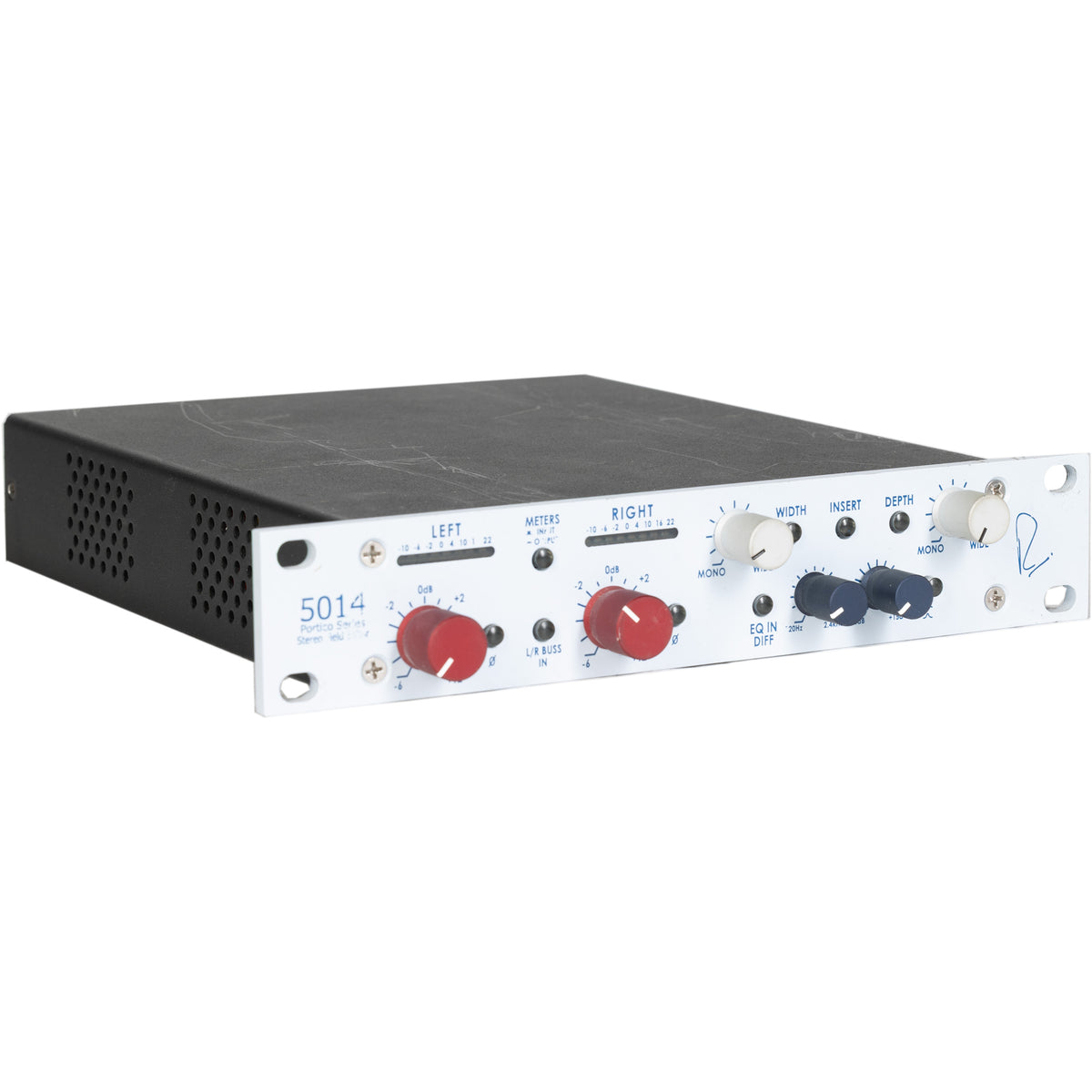

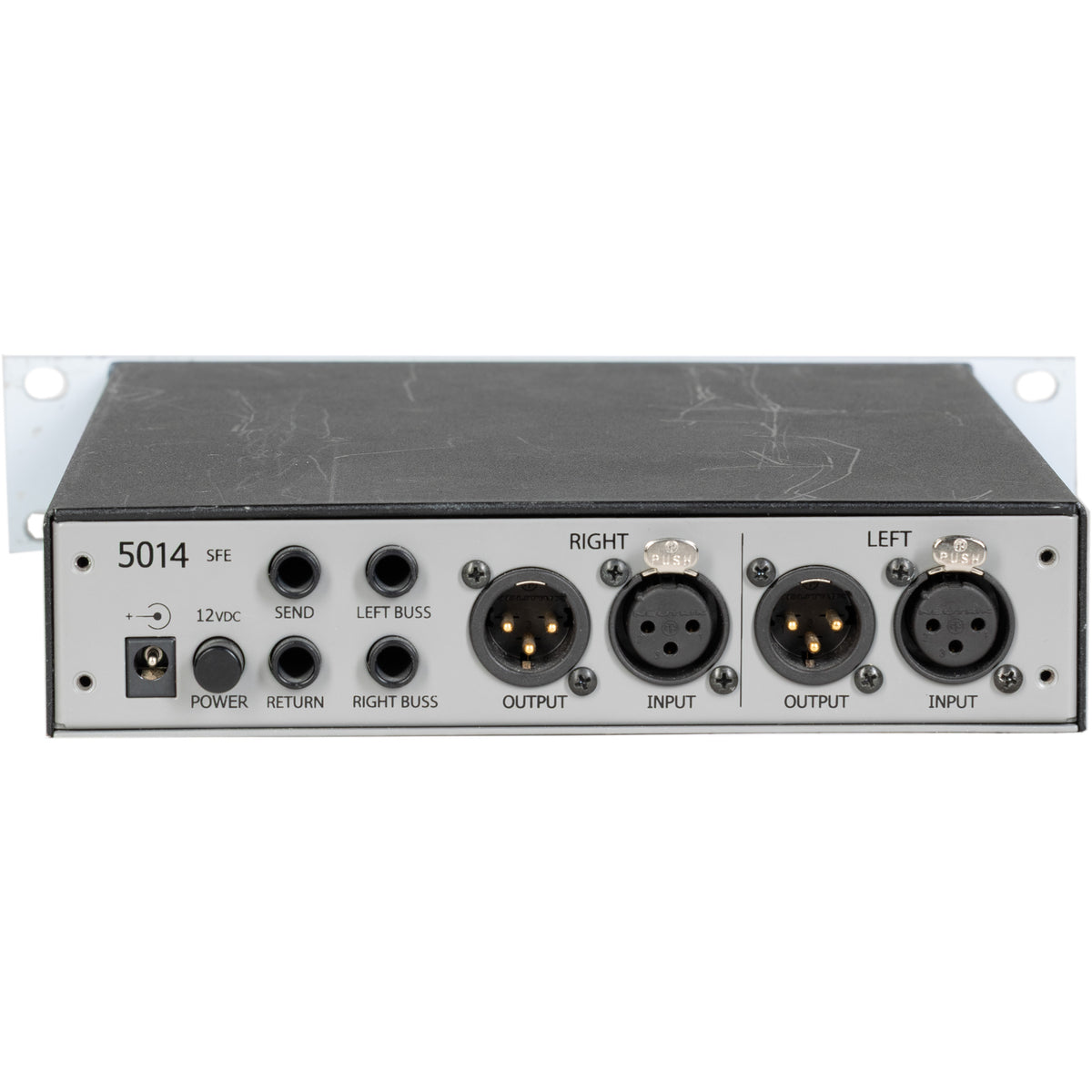

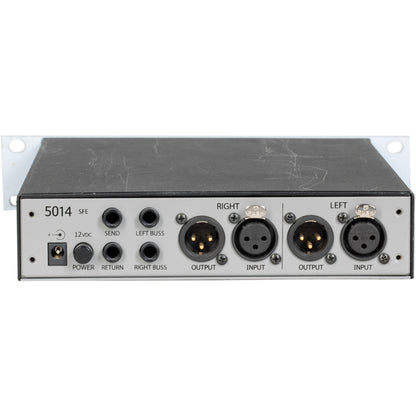

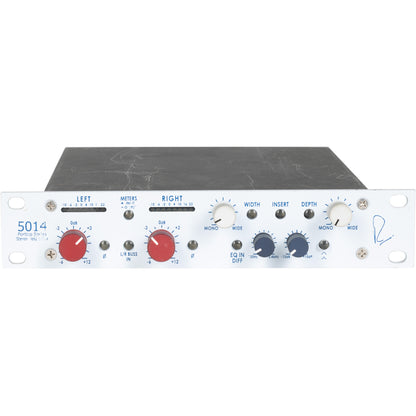

*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
Power supply not included
The Portico 5014 Stereo Field Editor introduces an innovative application of well-known techniques that redefines the boundaries and limitations of traditional 2-channel stereo recording and playback. Operating entirely in the analogue domain, the Portico 5014 uses discrete component circuits, comprising a variable sum and difference network with level and phase controls, together with other key features, to affect stereo sources.
| Product Name | Rupert Neve Designs Portico 5014 |
|---|---|
| Brand | Burl |
| Condition | Pre-Owned |
| MPN | 5014-H |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Rupert Neve Designs Portico 5014
- Two-channel stereo signal processing
- Fully analog signal path
- Transformer-coupled, balanced inputs and outputs
- Variable Width control from mono to expanded stereo
- Depth control for repositioning center-panned material within the soundstage
- Difference-channel EQ
- Difference-channel balanced insert for external processing
- Individual left/right level controls
- Phase/polarity inversion
- 8-segment LED metering for each channel
- Switchable input/output metering
- Compact half-rack, 1U design
- Suitable for mixing, mastering, stereo buss processing, and live sound
- Can be rack-mounted individually or combined with another Portico module
| Type | Stereo Field Editor / Stereo Processor |
| Channels | 2 |
| Processing | Analog |
| Architecture | Sum and Difference / Mid-Side |
| Width Control | Continuously variable Mono to Wide |
| Depth Control | Continuously variable |
| Difference EQ | Single-band semi-parametric |
| Difference EQ Frequency Range | 120 Hz – 2.4 kHz |
| Difference EQ Gain | ±15 dB |
| Difference EQ Q | 0.7 or 5 |
| Difference Insert | Balanced send/return |
| Insert Function | Difference channel only |
| Main Output THD+N | Better than 0.0015% |
| Frequency Response | 10 Hz – 100 kHz, ±0.50 dB |
| Extended Frequency Response | 18 Hz – 150 kHz, ±3 dB |
| Crosstalk | Better than 100 dB @ 16 kHz |
| Main Output Maximum Level | Balanced TRS: +28 dBu; Unbalanced: +22 dBu |
| Return Maximum Input Level | +25 dBu |
| Return Input Impedance | >10 kΩ |
| Metering | 8-segment LED, Left/Right |
| Power Requirement | 9–18 VDC, 12 W |
| Typical Current @ 9 VDC | 1.25 A |
| Typical Current @ 12 VDC | 1.0 A |
| Typical Current @ 15 VDC | 780 mA |
| Typical Current @ 18 VDC | 643 mA |
| Power Connector | 5.5 mm × 2.5 mm DC jack, center positive |
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
Power supply not included
The Portico 5014 Stereo Field Editor introduces an innovative application of well-known techniques that redefines the boundaries and limitations of traditional 2-channel stereo recording and playback. Operating entirely in the analogue domain, the Portico 5014 uses discrete component circuits, comprising a variable sum and difference network with level and phase controls, together with other key features, to affect stereo sources.
| Product Name | Rupert Neve Designs Portico 5014 |
|---|---|
| Brand | Burl |
| Condition | Pre-Owned |
| MPN | 5014-H |
What's in the Box?
Rupert Neve Designs Portico 5014- Two-channel stereo signal processing
- Fully analog signal path
- Transformer-coupled, balanced inputs and outputs
- Variable Width control from mono to expanded stereo
- Depth control for repositioning center-panned material within the soundstage
- Difference-channel EQ
- Difference-channel balanced insert for external processing
- Individual left/right level controls
- Phase/polarity inversion
- 8-segment LED metering for each channel
- Switchable input/output metering
- Compact half-rack, 1U design
- Suitable for mixing, mastering, stereo buss processing, and live sound
- Can be rack-mounted individually or combined with another Portico module
| Type | Stereo Field Editor / Stereo Processor |
| Channels | 2 |
| Processing | Analog |
| Architecture | Sum and Difference / Mid-Side |
| Width Control | Continuously variable Mono to Wide |
| Depth Control | Continuously variable |
| Difference EQ | Single-band semi-parametric |
| Difference EQ Frequency Range | 120 Hz – 2.4 kHz |
| Difference EQ Gain | ±15 dB |
| Difference EQ Q | 0.7 or 5 |
| Difference Insert | Balanced send/return |
| Insert Function | Difference channel only |
| Main Output THD+N | Better than 0.0015% |
| Frequency Response | 10 Hz – 100 kHz, ±0.50 dB |
| Extended Frequency Response | 18 Hz – 150 kHz, ±3 dB |
| Crosstalk | Better than 100 dB @ 16 kHz |
| Main Output Maximum Level | Balanced TRS: +28 dBu; Unbalanced: +22 dBu |
| Return Maximum Input Level | +25 dBu |
| Return Input Impedance | >10 kΩ |
| Metering | 8-segment LED, Left/Right |
| Power Requirement | 9–18 VDC, 12 W |
| Typical Current @ 9 VDC | 1.25 A |
| Typical Current @ 12 VDC | 1.0 A |
| Typical Current @ 15 VDC | 780 mA |
| Typical Current @ 18 VDC | 643 mA |
| Power Connector | 5.5 mm × 2.5 mm DC jack, center positive |
