*Please note this item is pre-owned and may show signs of use. Please see photos.
A Whole New Vintage – Over fifty years in the making, the Shelford Channel is the definitive evolution of the original technologies in Rupert’s classic console modules like the 1073, 1064, 1081 & 2254, thoughtfully advanced and refined for the 21st century studio. The Shelford Channel is built around Rupert Neve’s first new transformer-gain, class-A microphone preamplifier in over 40 years, the “best-of-the-classics” inductor EQ section from the Shelford 5052, a tone-packed Diode bridge compressor, the analog power of variable Silk saturation, a new dual-tap transformer output stage for maintaining headroom or allowing the full driving of the Channel without clipping standard converters, and twice the operating voltage of vintage designs.
With richly-colored tonal options for making bold statements with your music, and precisely-engineered detented controls for recall, the vintage-inspired Shelford Channel maintains the soul of Rupert’s classic designs with new levels of versatility, delivering what can only be described as the combined essence of fifty years of Rupert Neve’s designs.
| Product Name | Rupert Neve Designs Shelford-Channel Strip |
|---|---|
| Brand | Rupert Neve Designs |
| Condition | Pre-Owned |
| MPN | SHELFORDCHANNEL |
| UPC | 713803235615 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Rupert Neve Designs Shelford-Channel Strip
- Power supply

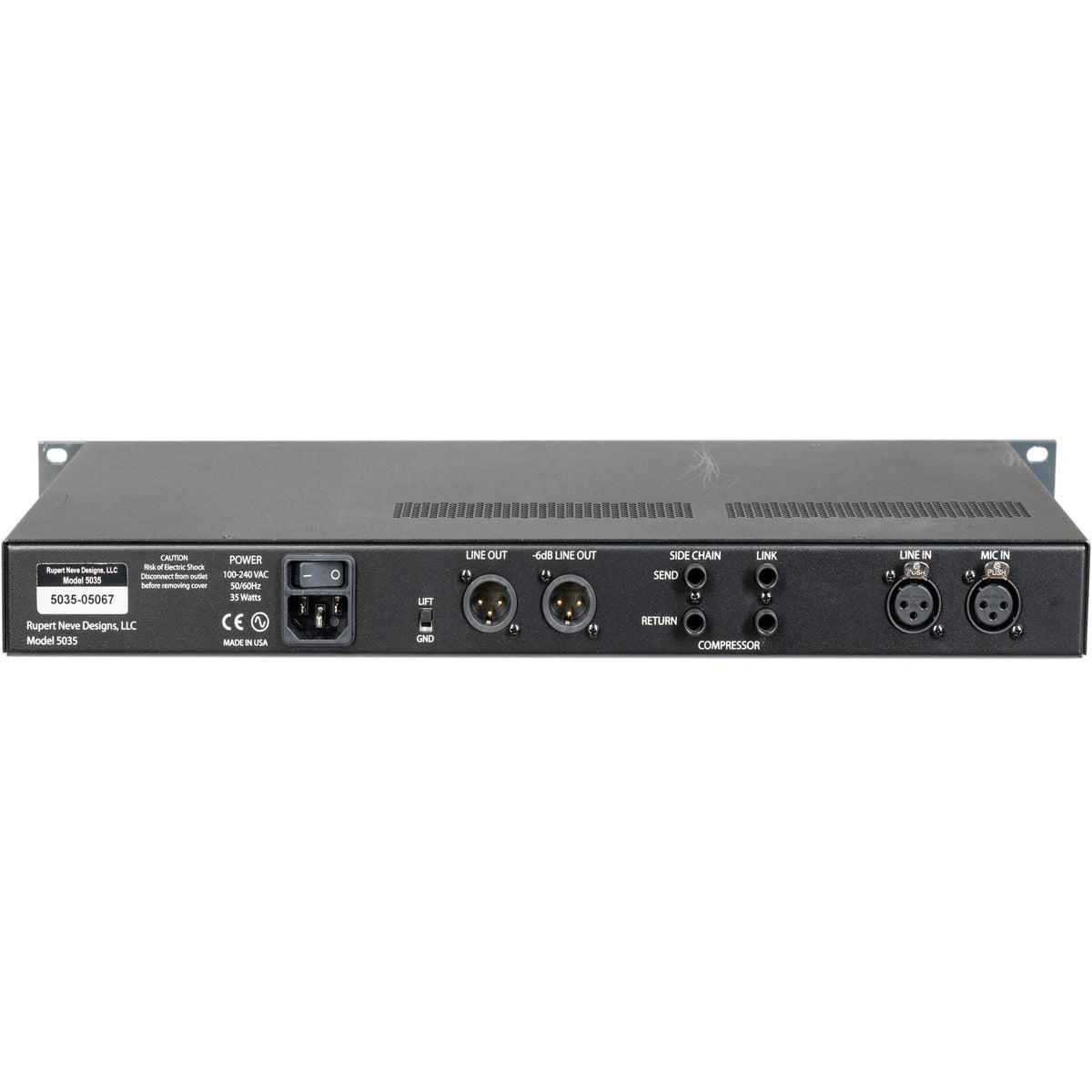

- XLR Microphone, Line & 1/4" DI Inputs
- XLR Line Output and -6 dB Line Output
- 1/4" Side Chain Send and Return
- High, Low-, and Mid-Frequency Control
- VU Meter Calibrated in dB
- Texture for Tuning of Harmonic Ratio
- Phase Inverts the Polarity of the Signal
- 48V Phantom Power for Mic Input
- Ground Lift Switch
Mic Preamp |
|
|---|---|
| Input Impedance | 2200 Ohms |
| Maximum Input | +21.5 dBu from 150 Hz to 22 kHz +8 dBu 20 Hz to 22 kHz |
| Gain Steps in dB | 12 settings, 0 to 66 dB in 6 dB steps |
| Noise | Un-weighted, 22 Hz to 22 kHz, Source Impedance 150 Ohms Balanced Main Out @ Unity Gain: -100.9 dBu -6 dB Out @ Unity Gain: -106.6 dBu +30 dB Gain (Main Out): -91.37 dBu +66 dB Gain (Main Out): -64.1 dBu Equivalent Input Noise: -121.37 dBu |
| Frequency Response | +/-0.25 dB from 17 Hz to 45 kHz |
Direct Input |
|
| Maximum Input | 8 dBu @ 20 Hz to 120 kHz |
| Noise | At Main Output: -100 dBu (22 Hz to 22 kHz) |
Line Input |
|
| Maximum Input Level | +30.5 dBu (20 Hz to 30 kHz) |
| Total Harmonic Distortion (THD) + N | @ 1 kHz, +20 dBu Output Level, No Load: Better than 0.002% @ 20 Hz, +20 dBu Output Level, No Load: 0.05% typical (2nd and 3rd harmonic) |
| Noise | At Main Output: -101.1 dBu (Un-weighted, 22 Hz to 22 kHz, source impedance 40 Ohms balanced, no load) |
| Frequency Response | +/- 0.25 dBu from less than 10 Hz to 110 kHz -0.32 dB @ 120 kHz |
| Maximum Output Level | +26 dBu @ 16 Hz to 20 kHz |
THD + N |
|
| Red | Texture @ Min: @ 100 Hz, +20 dBu input level, no load 0.0131%, mostly 3rd harmonic (typical) TEXTURE @ Max: @ 100 Hz, +20 dBu input level, no load 1.66%, mostly 2nd harmonic (typical) |
| Blue | Texture @ Min: @ 100 Hz, +20 dBu input level, no load 0.0079%, mostly 3rd harmonic (typical) Texture @ Max: @ 100 Hz, +20 dBu input level, no load 0.941%, mostly 2nd harmonic (typical) |
| High-Pass Filter | Continuously variable swept frequency from 20 Hz to 250 Hz Slope: 12 dB/octave |
Equalization |
|
| Noise | Un-weighted, 22 Hz to 22 kHz: -92 dBu |
Signal Level LEDs |
|
| Signal | Illuminates green when input stage signal level reaches -20 dBu |
| Overload | Illuminates red when input stage signal level reaches +23 dBu |
Compressor |
|
| Noise | BW 22 Hz to 22 kHz: 0 dB Makeup Gain: -84.5 dBu +20 dB Makeup Gain: -64.2 dBu |
| Time Constants | Measurements taken represent full range achievable between 1.5:1 ratio and 8:1ratio setting 0 dBu I/P 1 kHz burst tone used for all recorded measurements Fast (TC1): Attack 180 µS - 1.8 ms, release 100 ms to 150 ms MedFast (TC2): Attack 750 µS - 5.25 ms, release 160 ms to 250 ms Med (TC3): 2.7 ms to 18 ms, release 350 ms to 525 ms MedSlow (TC4): 4.6 ms to 38 ms, release 600 ms to 1 sec Slow (TC5): 11 ms to 72.5 ms, release 800 ms to 1.25 sec Auto (TC6): 5.75 ms to 35.5 ms, release T1 400 ms to 850 ms, T2 TBD "Fast" Mode Multiplier: Modifies aforementioned TC's by 70% of original value |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
