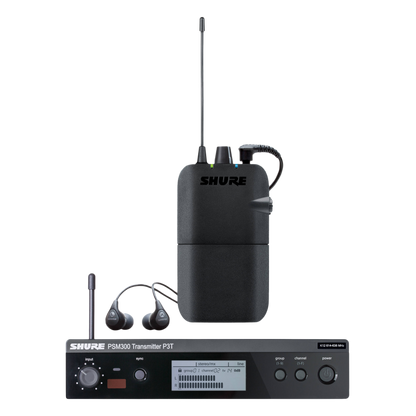

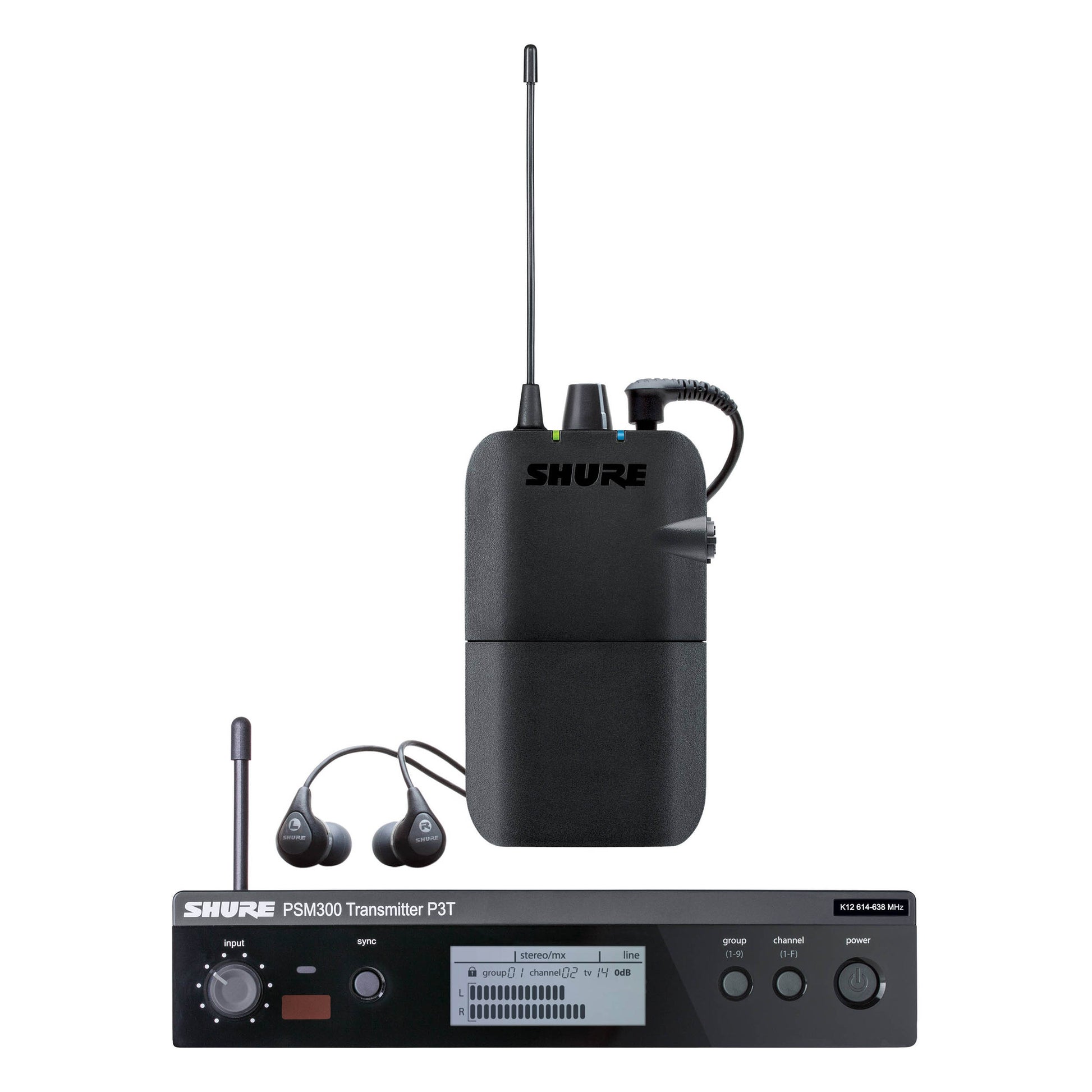

Shure P3TR112GR PSM300 Wireless System
The P3TR112GR Stereo Personal Monitor System delivers detailed 24-bit digital audio and reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Dependable wireless coverage extends over 300 feet (90 meters) of range and eliminates dropouts. Easy to setup and operate, P3TR112GR systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio. P3TR112GR systems include SE112 Sound Isolating Earphones for great sound with deep bass and up to 37 dB of ambient noise reduction.
- Featuring SE112 Sound Isolating Earphones, P3TR112GR provides great sound and simple setup for entry-level users
- The P3TR112GR is part of the PSM300 wireless systems family
- PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage; patented Audio Reference Commanding ensures the clearest sound, with ultra-low noise and no artifacts
- Easy to setup and operate, PSM300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel; adjust the volume and use Mix Mode technology or stereo mode to create a personal mix from two channels of audio
- Includes P3R, P3T, SE112, rack mount and hardware kits, 1/4 wave antenna, BNC bulkhead adapter, BNC cable, power supply, 2 AA batteries, zipper bag, and user guide
| Product Name | Shure P3TR112GR PSM300 Wireless System |
|---|---|
| Brand | Shure |
| Condition | New |
| MPN | P3TR112GR-H20 |
| UPC | 700315926261 |
| Shipping Option | Free Shipping to the Continental U.S. |
P3T Wireless Transmitter for PSM300 (G20: 488-512 MHz)
| Performance | |
|---|---|
| Frequency Range | G20: 488-512 MHz |
| RF Output Power | 10, 20, 30 mW Note: varies by region |
| RF Output Impedance | 50 ohms (typical) |
| Transmission Range | 300' (90 m) |
| Audio Input | |
|---|---|
| Connector Type | 1/4" TRS (6.35 mm) |
| Polarity | Tip positive with respect to ring |
| Configuration | Electronically balanced |
| Impedance | 40 kOhms (actual) |
| Nominal Input Level | Switchable, +4 dBu, -10 dBV |
| Maximum Input Level | +4 dBu: +22 dBu -10 dBV: +12.2 dBu |
| Pin Assignments | Tip=hot, Ring=cold, Sleeve=ground |
| Phantom Power Protection | Up to 60 VDC |
| Audio Output | |
|---|---|
| Connector Types | 1/4" TRS (6.35 mm) |
| Configuration | Electronically balanced |
| Impedance | Connected directly to inputs |
| General | |
|---|---|
| Antenna | 1/4 wave, detachable |
| Power Requirement | 12 to 15 VDC, 260 mA maximum |
| Dimensions (H x W x D) | 1.7 x 7.8 x 6.8" (43 x 198 x 172 mm) |
| Net Weight | 27.6 oz (783 g) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 18.5 x 14.75 x 3.75" |
P3R-G20 Wireless Bodypack Receiver for PSM300 (G20: 488-512 MHz)
| RF Sensitivity | Active: 2.2 μV (at 20 dB SINAD) |
| Image Rejection | >90 dB |
| Adjacent Channel Rejection | >60 dB |
| Intermodulation Attenuation | >50 dB |
| Blocking | >60 dB |
| Audio Output Power | 1 kHz @ <1% distortion, Peak Power, @32 ohms: 80 mW (per output) |
| Minimum Load Impedance | 16 ohms |
| Headphone Output | 1/8" (3.5 mm) stereo |
| Battery Life | 5-7 hours (continuous use) AA batteries |
| Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 × 64 × 21 mm) |
| Weight | 3.5 oz (98 g) without batteries |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.3" |
SE112 Sound Isolating Earphones (Gray)
| Type | Single dynamic MicroDriver |
| Sensitivity | 108 dB SPL/mW |
| Frequency Range | 25 Hz to 17 kHz |
| Cable Length | 50" (127 cm) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 7.4 x 3.4 x 2.4" |
Shure P3TR112GR PSM300 Wireless System
Shure P3TR112GR PSM300 Wireless System
The P3TR112GR Stereo Personal Monitor System delivers detailed 24-bit digital audio and reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Dependable wireless coverage extends over 300 feet (90 meters) of range and eliminates dropouts. Easy to setup and operate, P3TR112GR systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio. P3TR112GR systems include SE112 Sound Isolating Earphones for great sound with deep bass and up to 37 dB of ambient noise reduction.
- Featuring SE112 Sound Isolating Earphones, P3TR112GR provides great sound and simple setup for entry-level users
- The P3TR112GR is part of the PSM300 wireless systems family
- PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage; patented Audio Reference Commanding ensures the clearest sound, with ultra-low noise and no artifacts
- Easy to setup and operate, PSM300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel; adjust the volume and use Mix Mode technology or stereo mode to create a personal mix from two channels of audio
- Includes P3R, P3T, SE112, rack mount and hardware kits, 1/4 wave antenna, BNC bulkhead adapter, BNC cable, power supply, 2 AA batteries, zipper bag, and user guide
| Product Name | Shure P3TR112GR PSM300 Wireless System |
|---|---|
| Brand | Shure |
| Condition | New |
| MPN | P3TR112GR-H20 |
| UPC | 700315926261 |
| Shipping Option | Free Shipping to the Continental U.S. |
P3T Wireless Transmitter for PSM300 (G20: 488-512 MHz)
| Performance | |
|---|---|
| Frequency Range | G20: 488-512 MHz |
| RF Output Power | 10, 20, 30 mW Note: varies by region |
| RF Output Impedance | 50 ohms (typical) |
| Transmission Range | 300' (90 m) |
| Audio Input | |
|---|---|
| Connector Type | 1/4" TRS (6.35 mm) |
| Polarity | Tip positive with respect to ring |
| Configuration | Electronically balanced |
| Impedance | 40 kOhms (actual) |
| Nominal Input Level | Switchable, +4 dBu, -10 dBV |
| Maximum Input Level | +4 dBu: +22 dBu -10 dBV: +12.2 dBu |
| Pin Assignments | Tip=hot, Ring=cold, Sleeve=ground |
| Phantom Power Protection | Up to 60 VDC |
| Audio Output | |
|---|---|
| Connector Types | 1/4" TRS (6.35 mm) |
| Configuration | Electronically balanced |
| Impedance | Connected directly to inputs |
| General | |
|---|---|
| Antenna | 1/4 wave, detachable |
| Power Requirement | 12 to 15 VDC, 260 mA maximum |
| Dimensions (H x W x D) | 1.7 x 7.8 x 6.8" (43 x 198 x 172 mm) |
| Net Weight | 27.6 oz (783 g) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 18.5 x 14.75 x 3.75" |
P3R-G20 Wireless Bodypack Receiver for PSM300 (G20: 488-512 MHz)
| RF Sensitivity | Active: 2.2 μV (at 20 dB SINAD) |
| Image Rejection | >90 dB |
| Adjacent Channel Rejection | >60 dB |
| Intermodulation Attenuation | >50 dB |
| Blocking | >60 dB |
| Audio Output Power | 1 kHz @ <1% distortion, Peak Power, @32 ohms: 80 mW (per output) |
| Minimum Load Impedance | 16 ohms |
| Headphone Output | 1/8" (3.5 mm) stereo |
| Battery Life | 5-7 hours (continuous use) AA batteries |
| Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 × 64 × 21 mm) |
| Weight | 3.5 oz (98 g) without batteries |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.3" |
SE112 Sound Isolating Earphones (Gray)
| Type | Single dynamic MicroDriver |
| Sensitivity | 108 dB SPL/mW |
| Frequency Range | 25 Hz to 17 kHz |
| Cable Length | 50" (127 cm) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 7.4 x 3.4 x 2.4" |
