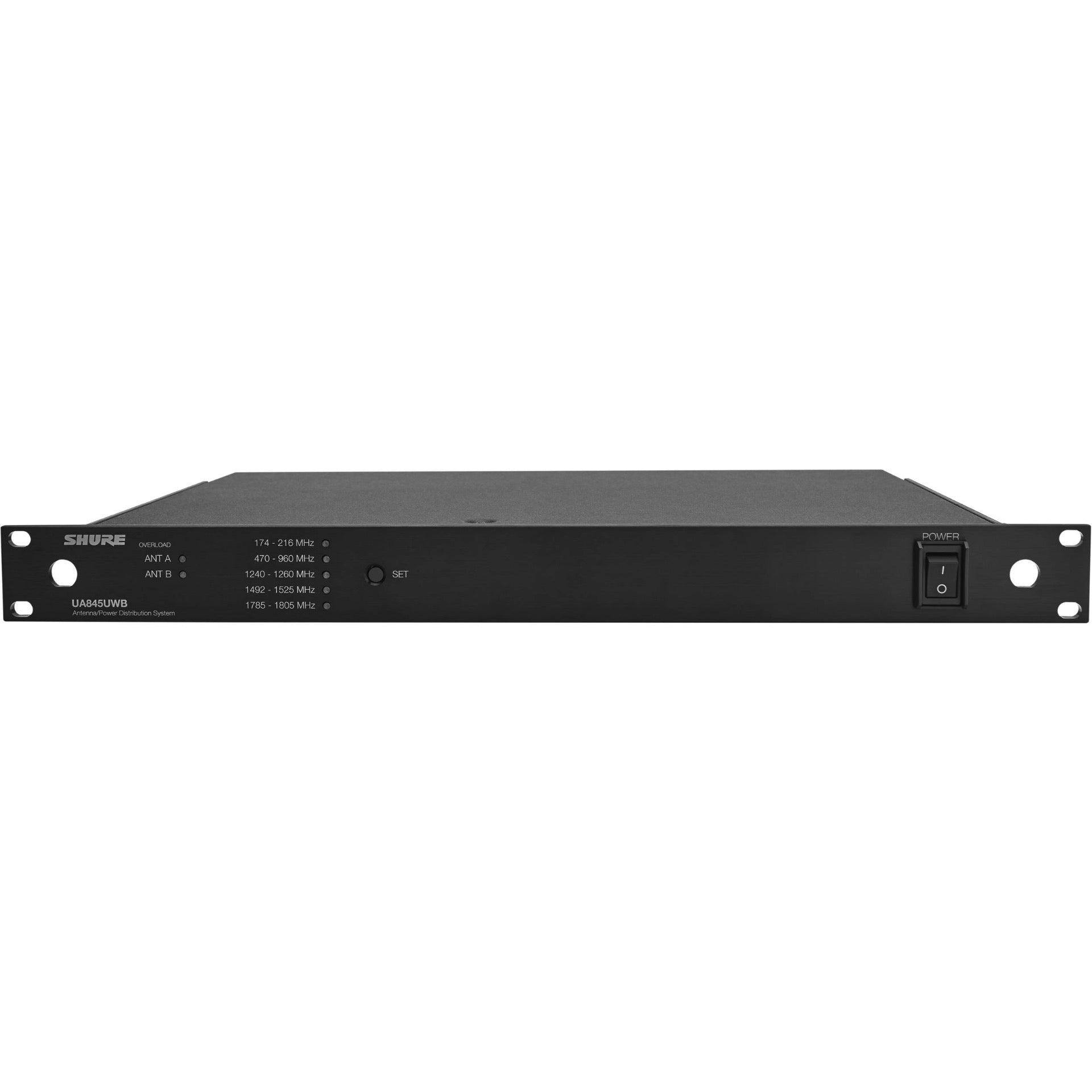

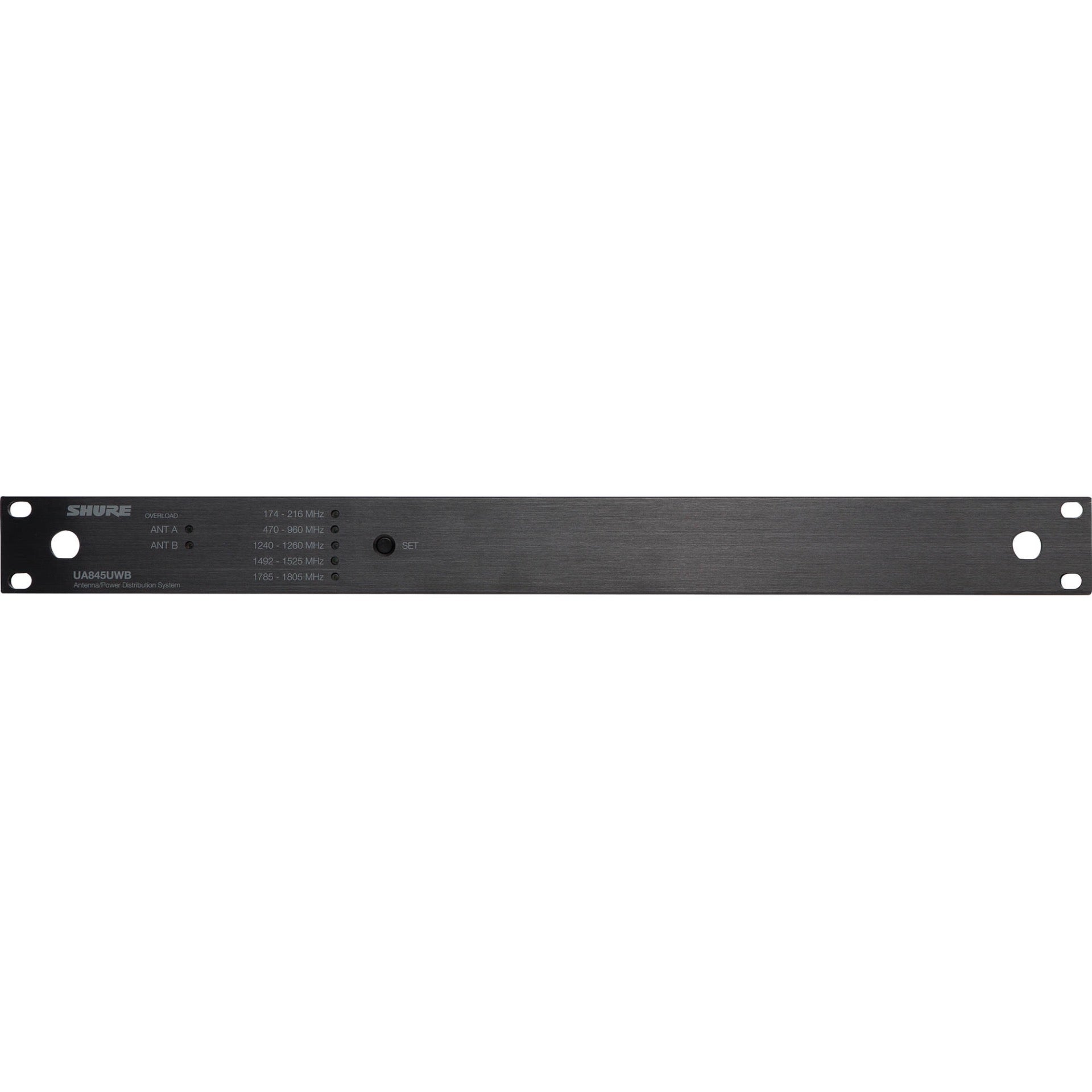

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
| Product Name | Shure UA845UWB - 5-way Active Antenna & Power Distribution System - 174-1805 MHz |
|---|---|
| Brand | Shure |
| Condition | New |
| MPN | UA845UWB |
| UPC | 042406461689 |
| Shipping Option | Free Shipping to the Continental U.S. |
- The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas.
- The cascade connectors allow connections to a fifth receiver or a second UA845UWB.
- There are also power connectors for distributing power to each receiver.
- RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs.
- A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
- 5 selectable frequency ranges (band selection on the front panel): 174 – 216 MHz / 470 – 960 MHz / 1240 – 1260 MHz / 1492 – 1525 MHz / 1785 – 1805 MHz.
- Antenna A and B input overload LED indicators / five-way RF signal output.
- Support Axient Digital, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers.
- Front-mounting antenna hardware, rack-mounting hardware and an internal power supply.
- 4 DC power feeds for receivers (15V, 2.5A max) / DC outputs for antenna bias (12V, 300mA max).
Details
The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
| Product Name | Shure UA845UWB - 5-way Active Antenna & Power Distribution System - 174-1805 MHz |
|---|---|
| Brand | Shure |
| Condition | New |
| MPN | UA845UWB |
| UPC | 042406461689 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas.
- The cascade connectors allow connections to a fifth receiver or a second UA845UWB.
- There are also power connectors for distributing power to each receiver.
- RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs.
- A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
- 5 selectable frequency ranges (band selection on the front panel): 174 – 216 MHz / 470 – 960 MHz / 1240 – 1260 MHz / 1492 – 1525 MHz / 1785 – 1805 MHz.
- Antenna A and B input overload LED indicators / five-way RF signal output.
- Support Axient Digital, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers.
- Front-mounting antenna hardware, rack-mounting hardware and an internal power supply.
- 4 DC power feeds for receivers (15V, 2.5A max) / DC outputs for antenna bias (12V, 300mA max).
