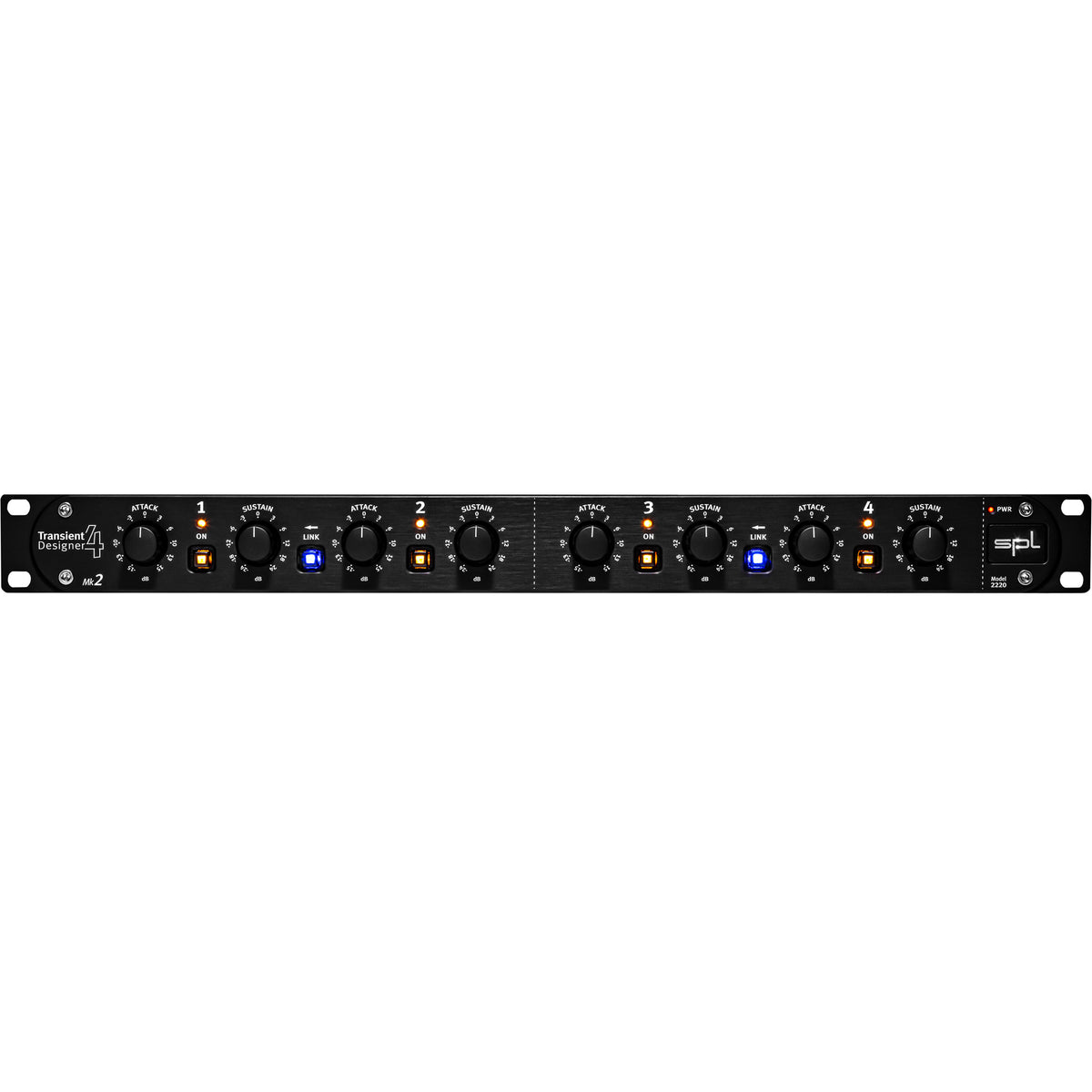

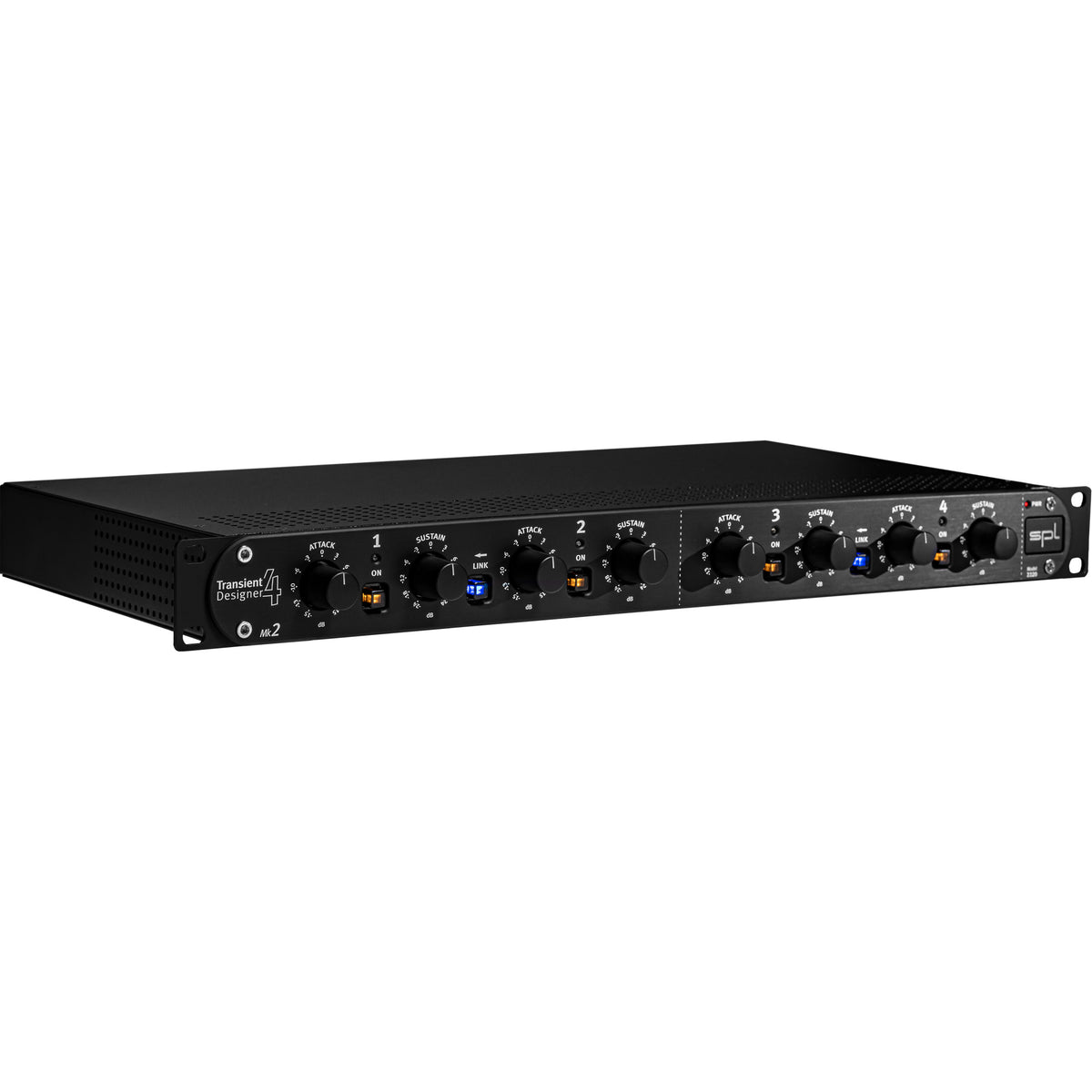

Transient Designer 4 Mk2
The original – redesigned.
In 1998, the SPL Transient Designer created a new breed of dynamic processors.
Level-independent processing of attack and sustain of audio signals has revolutionized
music production in a significant way.
The newest generation of the Transient Designer 4 features the same processing qualities as its predecessor, but comes in a new design and has an even better feel due to the solid aluminum knobs. The Transient Designer 4 Mk2 offers four Transient Designer channels in one 19″ device.
| Product Name | SPL Transient Designer 4 MK2 |
|---|---|
| Brand | SPL |
| Condition | New |
| MPN | TRANSDES4MK2 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- SPL Transient Designer 4 MK2

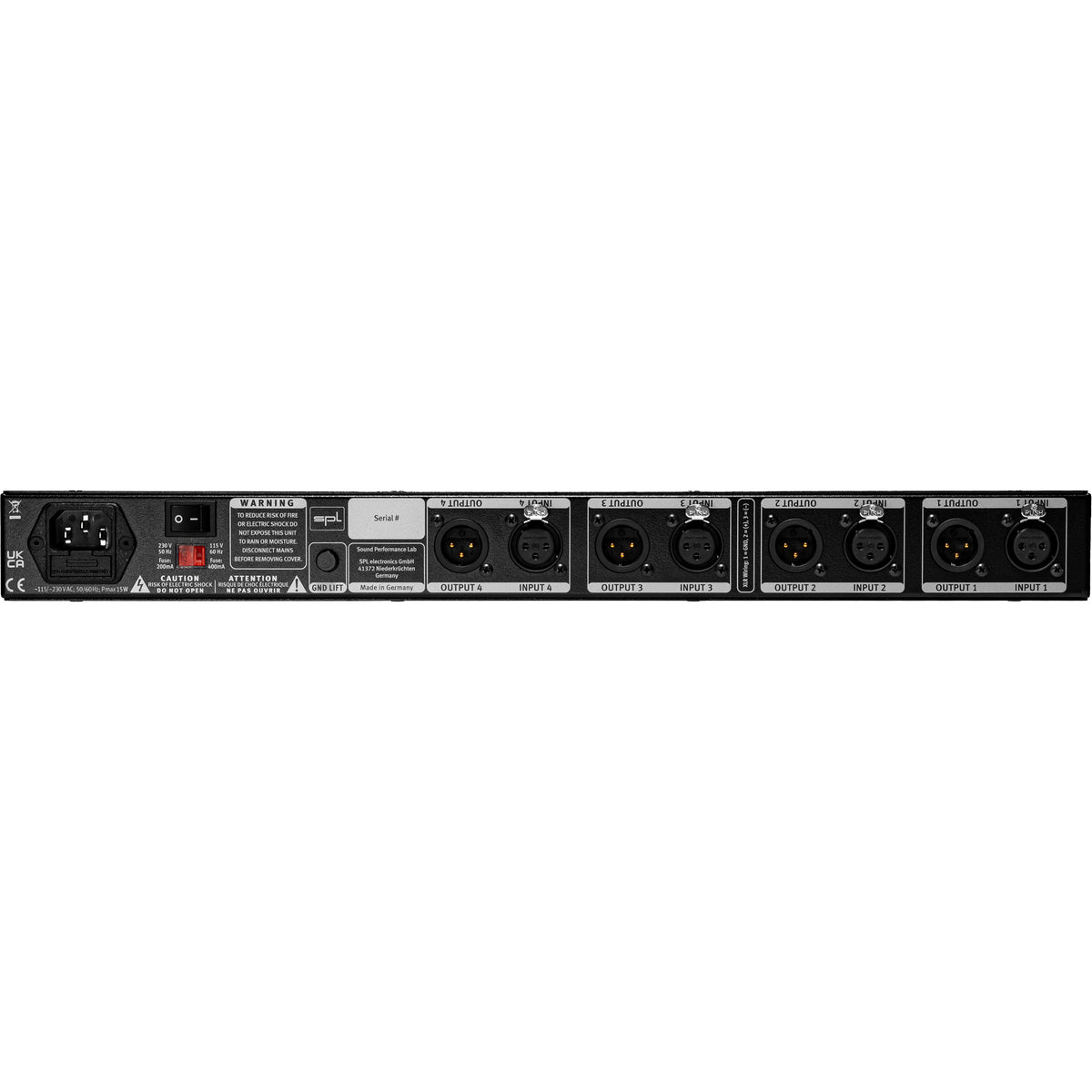

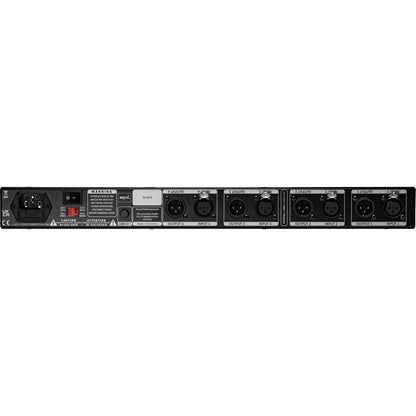

Analog Inputs & Outputs; XLR (Balanced) |
|
| Maximum Input Gain | 21 dBu |
| Input Impedance | 22 kΩ |
| Maximum Output Gain | 21 dBu |
| Output Impedance | 100 Ω |
| Common Mode Rejection (1 kHz) | 80 dB |
| Frequency Range (-3 dB) | 10 Hz – 100 kHz |
| THD + N (0 dBu, 10 Hz – 22 kHz) | -90 dB |
| Noise (A-weighted) | -97 dBu |
| Dynamic Range | 118 dB |
Internal Linear Power Supply with Toroidal Transformer |
|
| Operating Voltage for Analog Audio | +/- 15 V |
| Operating Voltage for Relays and LEDs | + 12 V |
Mains Power Supply |
|
| Mains Voltage (Selectable) | 230 V AC / 50; 115 V AC / 60 Hz |
| Fuse for 230 V | T 200 mA |
| Fuse for 115 V | T 400 mA |
| Power Consumption | max. 15 W |
Dimensions & Weight |
|
| W x H x D (Width x Height x Depth) | 482 x 44 x 237 mm |
| Dimensions | 19 x 1.73 x 9.33 inch |
| Unit Weight | 3.2 kg |
| Unit Weight | 7.27 lbs |
| Shipping Weight (incl. Packaging) | 4.45 kg |
| Shipping Weight (incl. Packaging) | 9.81 lbs |

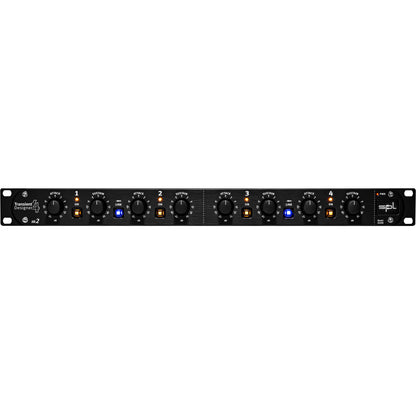

Transient Designer 4 Mk2
The original – redesigned.
In 1998, the SPL Transient Designer created a new breed of dynamic processors.
Level-independent processing of attack and sustain of audio signals has revolutionized
music production in a significant way.
The newest generation of the Transient Designer 4 features the same processing qualities as its predecessor, but comes in a new design and has an even better feel due to the solid aluminum knobs. The Transient Designer 4 Mk2 offers four Transient Designer channels in one 19″ device.
| Product Name | SPL Transient Designer 4 MK2 |
|---|---|
| Brand | SPL |
| Condition | New |
| MPN | TRANSDES4MK2 |
What's in the Box?
SPL Transient Designer 4 MK2Analog Inputs & Outputs; XLR (Balanced) |
|
| Maximum Input Gain | 21 dBu |
| Input Impedance | 22 kΩ |
| Maximum Output Gain | 21 dBu |
| Output Impedance | 100 Ω |
| Common Mode Rejection (1 kHz) | 80 dB |
| Frequency Range (-3 dB) | 10 Hz – 100 kHz |
| THD + N (0 dBu, 10 Hz – 22 kHz) | -90 dB |
| Noise (A-weighted) | -97 dBu |
| Dynamic Range | 118 dB |
Internal Linear Power Supply with Toroidal Transformer |
|
| Operating Voltage for Analog Audio | +/- 15 V |
| Operating Voltage for Relays and LEDs | + 12 V |
Mains Power Supply |
|
| Mains Voltage (Selectable) | 230 V AC / 50; 115 V AC / 60 Hz |
| Fuse for 230 V | T 200 mA |
| Fuse for 115 V | T 400 mA |
| Power Consumption | max. 15 W |
Dimensions & Weight |
|
| W x H x D (Width x Height x Depth) | 482 x 44 x 237 mm |
| Dimensions | 19 x 1.73 x 9.33 inch |
| Unit Weight | 3.2 kg |
| Unit Weight | 7.27 lbs |
| Shipping Weight (incl. Packaging) | 4.45 kg |
| Shipping Weight (incl. Packaging) | 9.81 lbs |
