The Next Generation
The most powerful delay pedal ever.
TimeLine MX delivers stunning studio quality delays and a host of new professional features in an elegant and intuitive stage-ready design. Every sound is carefully tuned to react musically to your playing, and every control has been calibrated for an intuitive feel and response. From classic echoes dripping with vintage vibe to captivating and modern sounds that push the envelope, TimeLine MX is full of fresh inspiration.
12 World-Class Delay Machines
TimeLine MX features new Oil Can, Spectral, Drum, Reverb and MultiTap engines in addition to significant enhancements to the other classic TimeLine delay machines.
Two Effects At Once
Dual delays can be routed in Series, Parallel or Split modes, and individually panned per engine.
Five Minute Stereo Looper
TimeLine MX features an integrated Stereo Looper with selectable multi or 1 Button Looper modes. The looper can be placed before or after the delay effects, and in 1 Button Mode it can be used on the fly without switching to Looper mode.
Reverb Plus Delay
In addition to 11 delay engines, a stellar new reverb engine is included, allowing TimeLine MX to be your all-in-one delay plus reverb pedal.
Full MIDI Control And More
Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Access the looper controls (including reverse, redo and half speed) without entering Looper mode. Adjust controls via an expression pedal while you play. All this and more in an elegant and easy-to-use pedal.

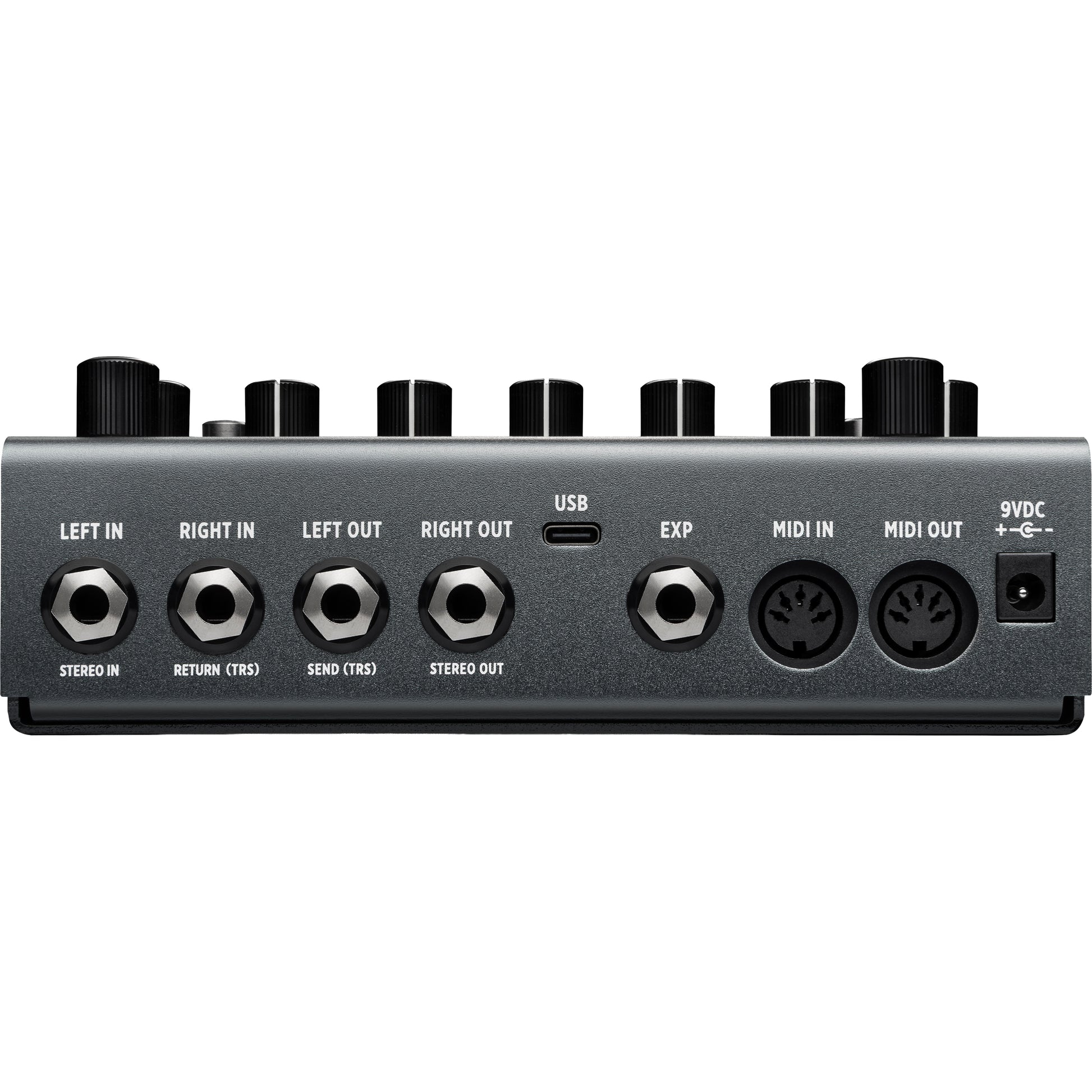

Stereo Input/Output Plus Stereo Send and Return
All jacks are TRS stereo providing selectable I/O configurations for any professional setup, including stereo or mono effects send/return, wet/dry, and wet/dry/wet.

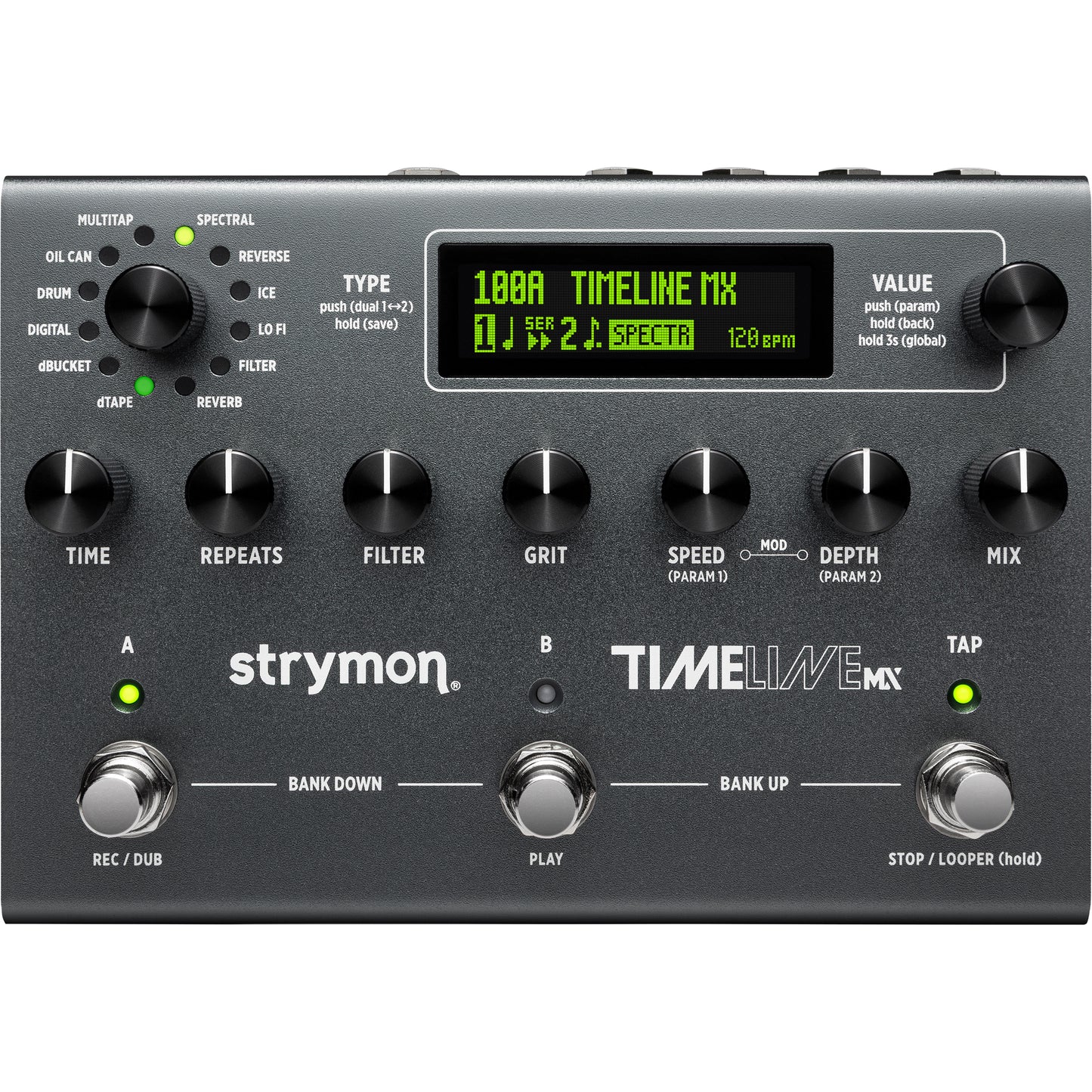

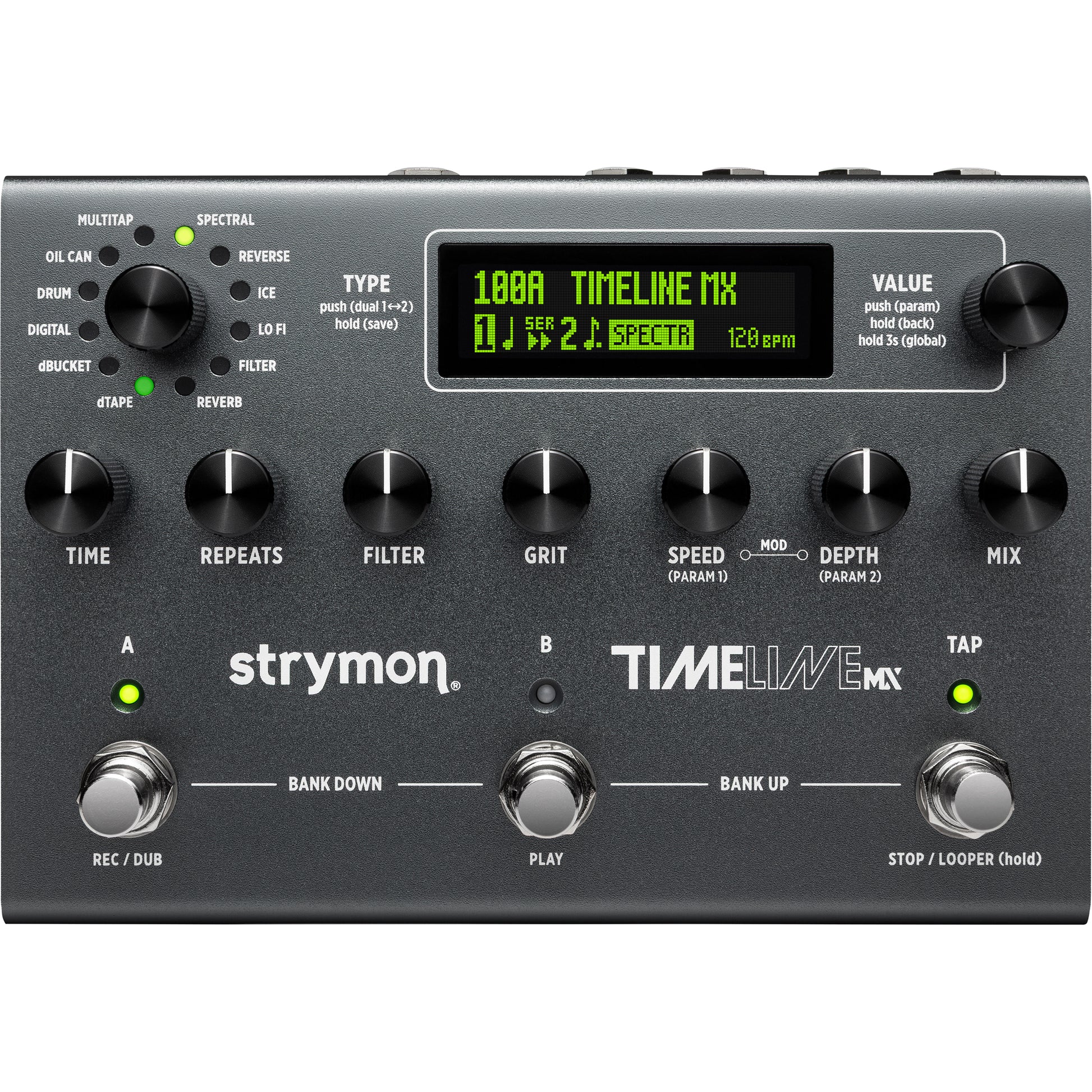

| Product Name | Strymon Timeline MX Next Generation Multi-Delay Workstation |
|---|---|
| Brand | Strymon |
| Condition | New |
| MPN | Z120-TLMX |
| UPC | 852571008615 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Strymon Timeline MX Next Generation Multi-delay Workstation
Inputs, Outputs & Switches |
|
|---|---|
| Audio I/O | Stereo input & output |
| I/O Configurations | Switchable I/O configurations for normal, mono or stereo effects loop, wet/dry, and wet/dry/wet |
| TAP Footswitch | Dedicated TAP footswitch for setting Delay Time and accessing one-button looper |
| Infinite Repeats | Infinite repeats for delay feedback effects and infinite reverb sustain (press and hold the lit A or B footswitch on the current preset) |
| Analog Circuitry | Premium analog circuits with discrete JFET input preamp and low impedance output section |
| Input Level | Selectable input level for instrument and line level signals |
| Analog Dry Path | Analog dry path for a zero-latency dry signal that is never converted to digital |
| Bypass | True Bypass (electromechanical relay switching) or selectable Buffered Bypass |
| EXP Input | EXP input allows the connection of an optional TRS expression pedal, MultiSwitch, MultiSwitch Plus, or TRS MIDI connection |
| USB-C | USB-C jack can be used for performing firmware updates, for MIDI I/O, and for connection to Strymon Nixie 2 editor software |
Audio Quality |
|
| Input Impedance | 1 Meg Ohm |
| Output Impedance | 100 Ohm |
| A/D & D/A | 24-bit, 96 kHz |
| Max Input Level | +10 dBu |
| Signal/Noise | 116 dB typical |
| Processor | High-performance 800MHz tri-core ARM processor |
| Processing | 32-bit floating point processing |
Power Requirements |
|
| Power Supply | Use an adapter with the following rating: 2.1mm (0.083"), center-negative, 9VDC, 500mA minimum (sold separately) |
Construction |
|
| Chassis | Strong and lightweight anodized aluminum chassis |
Dimensions |
|
| Dimensions | 5" x 7" x 1.87" (12.7 cm x 17.2 cm x 4.8 cm) |
Additional Information |
|
| Designed and Built | Designed and built in the USA |
Strymon Timeline MX Next Generation Multi-Delay Workstation
The Next Generation
The most powerful delay pedal ever.
TimeLine MX delivers stunning studio quality delays and a host of new professional features in an elegant and intuitive stage-ready design. Every sound is carefully tuned to react musically to your playing, and every control has been calibrated for an intuitive feel and response. From classic echoes dripping with vintage vibe to captivating and modern sounds that push the envelope, TimeLine MX is full of fresh inspiration.
12 World-Class Delay Machines
TimeLine MX features new Oil Can, Spectral, Drum, Reverb and MultiTap engines in addition to significant enhancements to the other classic TimeLine delay machines.
Two Effects At Once
Dual delays can be routed in Series, Parallel or Split modes, and individually panned per engine.
Five Minute Stereo Looper
TimeLine MX features an integrated Stereo Looper with selectable multi or 1 Button Looper modes. The looper can be placed before or after the delay effects, and in 1 Button Mode it can be used on the fly without switching to Looper mode.
Reverb Plus Delay
In addition to 11 delay engines, a stellar new reverb engine is included, allowing TimeLine MX to be your all-in-one delay plus reverb pedal.
Full MIDI Control And More
Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Access the looper controls (including reverse, redo and half speed) without entering Looper mode. Adjust controls via an expression pedal while you play. All this and more in an elegant and easy-to-use pedal.
Stereo Input/Output Plus Stereo Send and Return
All jacks are TRS stereo providing selectable I/O configurations for any professional setup, including stereo or mono effects send/return, wet/dry, and wet/dry/wet.
| Product Name | Strymon Timeline MX Next Generation Multi-Delay Workstation |
|---|---|
| Brand | Strymon |
| Condition | New |
| MPN | Z120-TLMX |
| UPC | 852571008615 |
What's in the Box?
Strymon Timeline MX Next Generation Multi-delay WorkstationInputs, Outputs & Switches |
|
|---|---|
| Audio I/O | Stereo input & output |
| I/O Configurations | Switchable I/O configurations for normal, mono or stereo effects loop, wet/dry, and wet/dry/wet |
| TAP Footswitch | Dedicated TAP footswitch for setting Delay Time and accessing one-button looper |
| Infinite Repeats | Infinite repeats for delay feedback effects and infinite reverb sustain (press and hold the lit A or B footswitch on the current preset) |
| Analog Circuitry | Premium analog circuits with discrete JFET input preamp and low impedance output section |
| Input Level | Selectable input level for instrument and line level signals |
| Analog Dry Path | Analog dry path for a zero-latency dry signal that is never converted to digital |
| Bypass | True Bypass (electromechanical relay switching) or selectable Buffered Bypass |
| EXP Input | EXP input allows the connection of an optional TRS expression pedal, MultiSwitch, MultiSwitch Plus, or TRS MIDI connection |
| USB-C | USB-C jack can be used for performing firmware updates, for MIDI I/O, and for connection to Strymon Nixie 2 editor software |
Audio Quality |
|
| Input Impedance | 1 Meg Ohm |
| Output Impedance | 100 Ohm |
| A/D & D/A | 24-bit, 96 kHz |
| Max Input Level | +10 dBu |
| Signal/Noise | 116 dB typical |
| Processor | High-performance 800MHz tri-core ARM processor |
| Processing | 32-bit floating point processing |
Power Requirements |
|
| Power Supply | Use an adapter with the following rating: 2.1mm (0.083"), center-negative, 9VDC, 500mA minimum (sold separately) |
Construction |
|
| Chassis | Strong and lightweight anodized aluminum chassis |
Dimensions |
|
| Dimensions | 5" x 7" x 1.87" (12.7 cm x 17.2 cm x 4.8 cm) |
Additional Information |
|
| Designed and Built | Designed and built in the USA |
