Telefunken M62 Small Diaphragm FET with TK62 Hypercardioid Capsule

Telefunken M62 Small Diaphragm FET with TK62 Hypercardioid Capsule

Limited quantities available!

View full details
  • Details
  • Tech Specs
  • Reviews

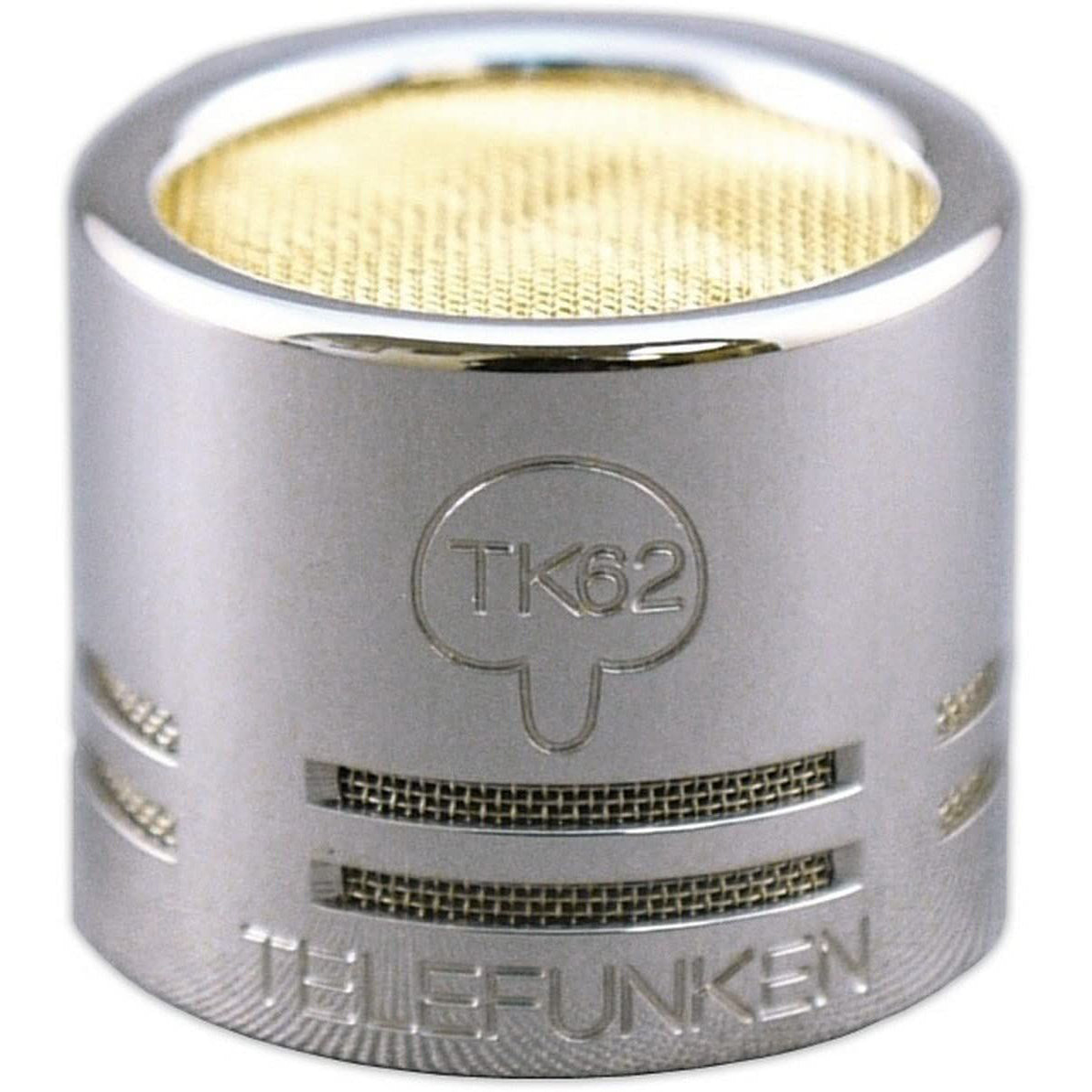

The M62 FET Hypercardioid package includes one M60 amplifier paired with a TK62 hypercardioid polar pattern capsule. The TK62 features a 6-micron gold-sputtered membrane measuring 15 mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The TK62 provides a hypercardioid pattern flat in response from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz. This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording.

The M60 FET’s incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.

Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone’s XLR connector shell complements the look with a matte black nickel plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel plated enclosure with a fine gold mesh pattern.

More Information
Product Name Telefunken M62 Small Diaphragm FET with TK62 Hypercardioid Capsule
Shipping Option Free Shipping to the Continental U.S.
Type FET Condenser
Polar Pattern Cardioid, Omnidirectional, Hypercardioid
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source +48V Phantom Power
Capsule TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
Transformer TELEFUNKEN Elektroakustik T61CT
Sensitivity 8.6 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier) < 0.01%
Output Impedance 120 Ω
Maximum SPL (for 1% THD) > 130 dB
S/N Ratio 89 dBA
Self Noise (Amplifier) 5 dBA
Dimensions 140 mm L x 20 mm Dia
Weight 110 g
Included Accessories Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case

Telefunken M62 Small Diaphragm FET with TK62 Hypercardioid Capsule

Details

The M62 FET Hypercardioid package includes one M60 amplifier paired with a TK62 hypercardioid polar pattern capsule. The TK62 features a 6-micron gold-sputtered membrane measuring 15 mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The TK62 provides a hypercardioid pattern flat in response from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz. This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording.

The M60 FET’s incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.

Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone’s XLR connector shell complements the look with a matte black nickel plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel plated enclosure with a fine gold mesh pattern.

More Information
Product Name Telefunken M62 Small Diaphragm FET with TK62 Hypercardioid Capsule
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
Type FET Condenser
Polar Pattern Cardioid, Omnidirectional, Hypercardioid
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source +48V Phantom Power
Capsule TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
Transformer TELEFUNKEN Elektroakustik T61CT
Sensitivity 8.6 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier) < 0.01%
Output Impedance 120 Ω
Maximum SPL (for 1% THD) > 130 dB
S/N Ratio 89 dBA
Self Noise (Amplifier) 5 dBA
Dimensions 140 mm L x 20 mm Dia
Weight 110 g
Included Accessories Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case
