Telefunken U47 Large Diaphragm Tube Condenser Microphone

Telefunken U47 Large Diaphragm Tube Condenser Microphone

Limited quantities available!

Since its original development in 1946, the TELEFUNKEN U 47 has been the microphone of choice for generations of recording professionals
View full details
  • Details
  • Features
  • Reviews



About this Mic:

Since its original development in 1946, the TELEFUNKEN U 47 has been the microphone of choice for generations of recording professionals. The first condenser microphone to offer selectable polar patterns (cardioid and omni), the original U47 also featured the famous M7 capsule which had been developed in 1928 by Georg Neumann. To this capsule was added an amplifier built from military surplus VF-14 tubes (they had been used in field and aircraft radios), and BV8 output transformer. The combination of these components created a sonic quality that was absolutely unheard of in the English speaking world of the mid-1940s when darker sounding, less detailed ribbon microphones were the standard. The introduction of the U47 brought a new level of fidelity to the audio world, and is still considered to be one of the finest microphones ever produced.

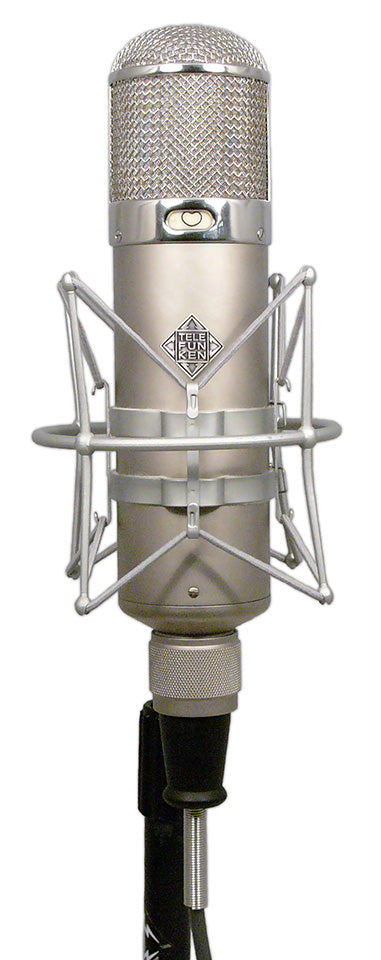

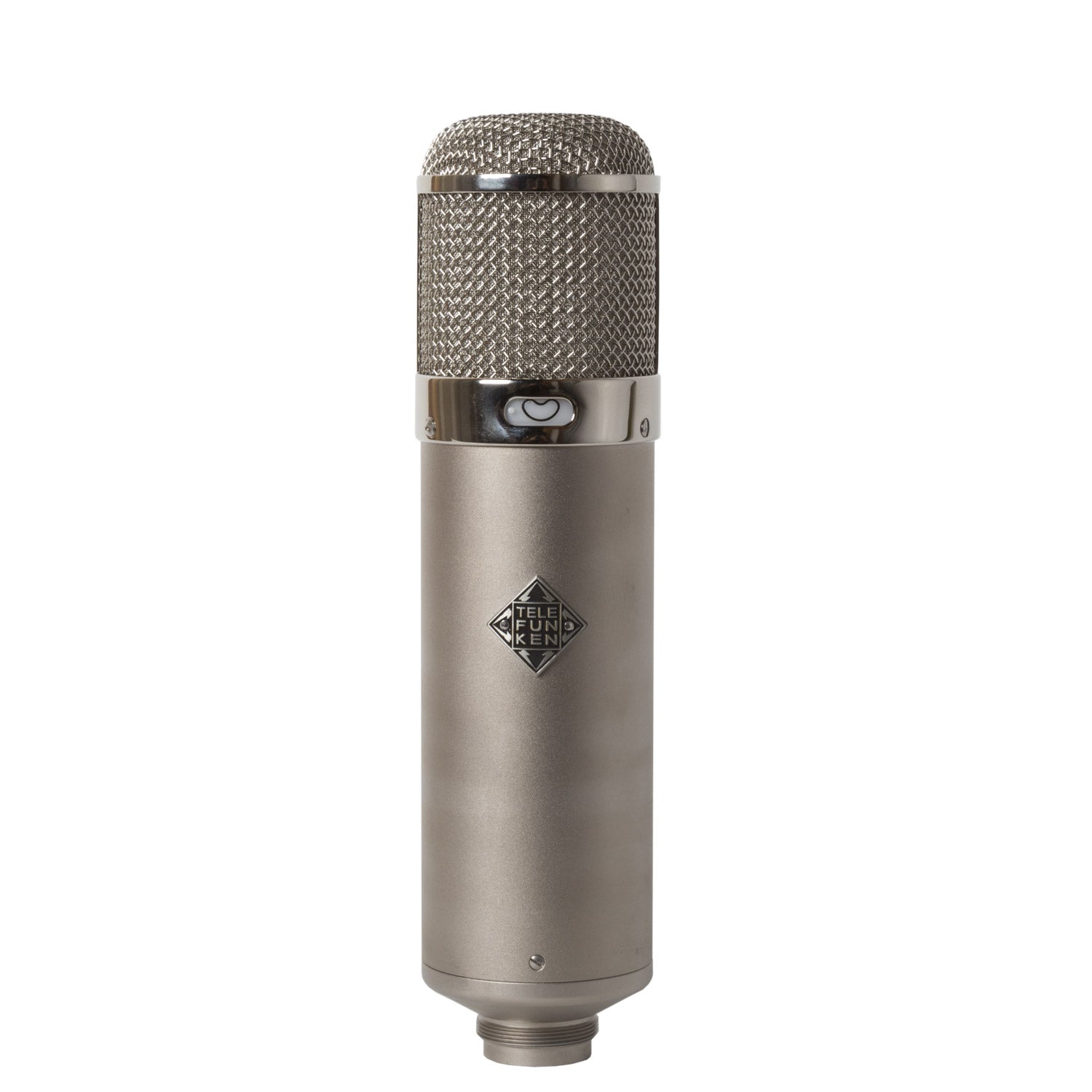

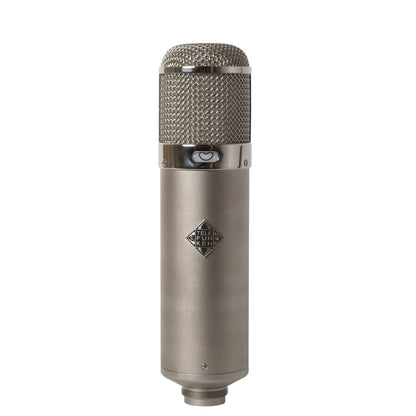

Upon first glance of the new U47 from TELEFUNKEN Elektroakustik, it's easy to see the "family resemblance." The large, chrome head grille houses our newly manufactured M7 capsule. Its matte nickel finished body houses a new BV8 output transformer and our new VF-14k vacuum tube; a "plug and play" replacement for the rare VF-14M tubes found in the original. The classic "TELEFUNKEN" diamond logo proudly adorns the front of the body tube. All of these accoutrements show that this microphone means business.

Whether you're recording a symphony, a "crooner," or any facet of modern music, you'll find a great tool in the U47. Its authoritative mid-range and extended low-end response dance from your ears . . . much as a vintage wine dances from the palate. Everything, from vocals to the loudest of guitar sounds, full on orchestral recording, beautiful backing vocal arrangements, or a chamber ensemble will benefit wildly from the rich and vibrant tone of this stunning microphone.

Specifications:

  • Type Condenser Pressure Gradient
  • Capsule M7 - dual sided gold sputtered center terminated
  • Frequency Range 20Hz / 20kHz
  • Polar Pattern Cardioid and Omni
  • Sensitivity approx 1.2 mvolts per dyne / cm sq
  • Impedance 200 ohms stock / 50 ohms switchable
  • SPL 138 dB
  • Non Linear Distortion less than or equal to 0.5% at 100 dyne / cm sq
  • Equivalent Noise 24 dB
  • Tube Type TELEFUNKEN Elektroakustik VF14K metal tube
  • Power Dedicated Power Supply
  • Weight 22oz (624g)
  • Size 9 3/4" (248mm) length x 2 1/4" (57mm) diameter

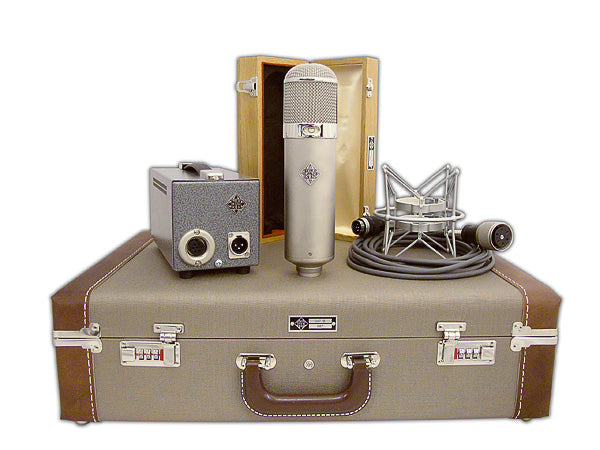

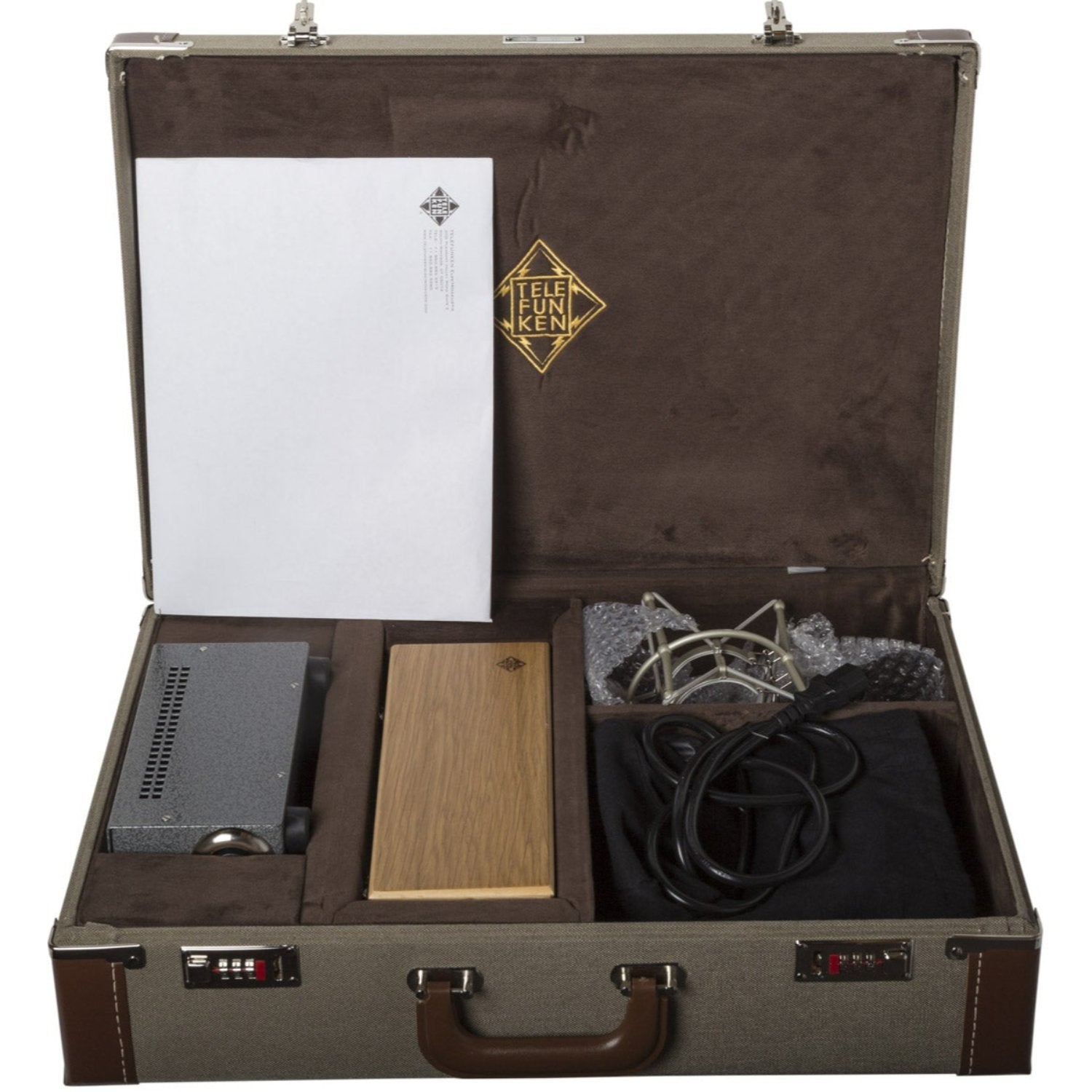

  • Extras Locking Case, NG Style Power Supply, Shock Mount, Wooden Box
More Information
Product Name Telefunken U47 Large Diaphragm Tube Condenser Microphone
Brand Telefunken
Condition New
MPN U47
UPC 755746258245
Shipping Option Free Shipping to the Continental U.S.
  • Condenser Pressure Gradient
  • Frequency Range: 20Hz / 20kHz
  • Polar Pattern: Cardioid and Omni
  • Maximum SPL: 127 dB
  • Capsule: M7

Telefunken U47 Large Diaphragm Tube Condenser Microphone

Details



About this Mic:

Since its original development in 1946, the TELEFUNKEN U 47 has been the microphone of choice for generations of recording professionals. The first condenser microphone to offer selectable polar patterns (cardioid and omni), the original U47 also featured the famous M7 capsule which had been developed in 1928 by Georg Neumann. To this capsule was added an amplifier built from military surplus VF-14 tubes (they had been used in field and aircraft radios), and BV8 output transformer. The combination of these components created a sonic quality that was absolutely unheard of in the English speaking world of the mid-1940s when darker sounding, less detailed ribbon microphones were the standard. The introduction of the U47 brought a new level of fidelity to the audio world, and is still considered to be one of the finest microphones ever produced.

Upon first glance of the new U47 from TELEFUNKEN Elektroakustik, it's easy to see the "family resemblance." The large, chrome head grille houses our newly manufactured M7 capsule. Its matte nickel finished body houses a new BV8 output transformer and our new VF-14k vacuum tube; a "plug and play" replacement for the rare VF-14M tubes found in the original. The classic "TELEFUNKEN" diamond logo proudly adorns the front of the body tube. All of these accoutrements show that this microphone means business.

Whether you're recording a symphony, a "crooner," or any facet of modern music, you'll find a great tool in the U47. Its authoritative mid-range and extended low-end response dance from your ears . . . much as a vintage wine dances from the palate. Everything, from vocals to the loudest of guitar sounds, full on orchestral recording, beautiful backing vocal arrangements, or a chamber ensemble will benefit wildly from the rich and vibrant tone of this stunning microphone.

Specifications:

  • Type Condenser Pressure Gradient
  • Capsule M7 - dual sided gold sputtered center terminated
  • Frequency Range 20Hz / 20kHz
  • Polar Pattern Cardioid and Omni
  • Sensitivity approx 1.2 mvolts per dyne / cm sq
  • Impedance 200 ohms stock / 50 ohms switchable
  • SPL 138 dB
  • Non Linear Distortion less than or equal to 0.5% at 100 dyne / cm sq
  • Equivalent Noise 24 dB
  • Tube Type TELEFUNKEN Elektroakustik VF14K metal tube
  • Power Dedicated Power Supply
  • Weight 22oz (624g)
  • Size 9 3/4" (248mm) length x 2 1/4" (57mm) diameter
  • Extras Locking Case, NG Style Power Supply, Shock Mount, Wooden Box
More Information
Product Name Telefunken U47 Large Diaphragm Tube Condenser Microphone
Brand Telefunken
Condition New
MPN U47
UPC 755746258245
Shipping Option Free Shipping to the Continental U.S.
Features
  • Condenser Pressure Gradient
  • Frequency Range: 20Hz / 20kHz
  • Polar Pattern: Cardioid and Omni
  • Maximum SPL: 127 dB
  • Capsule: M7
