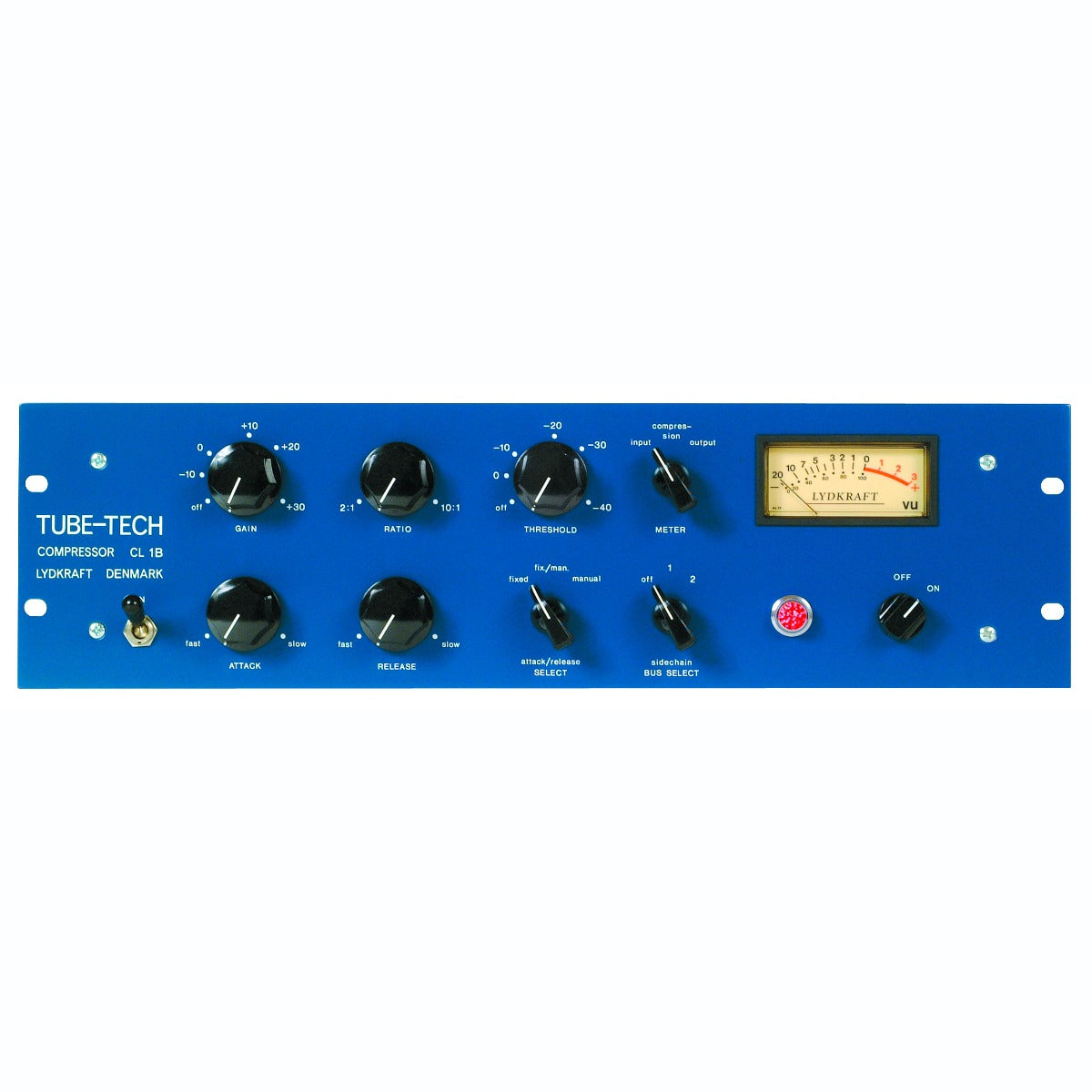

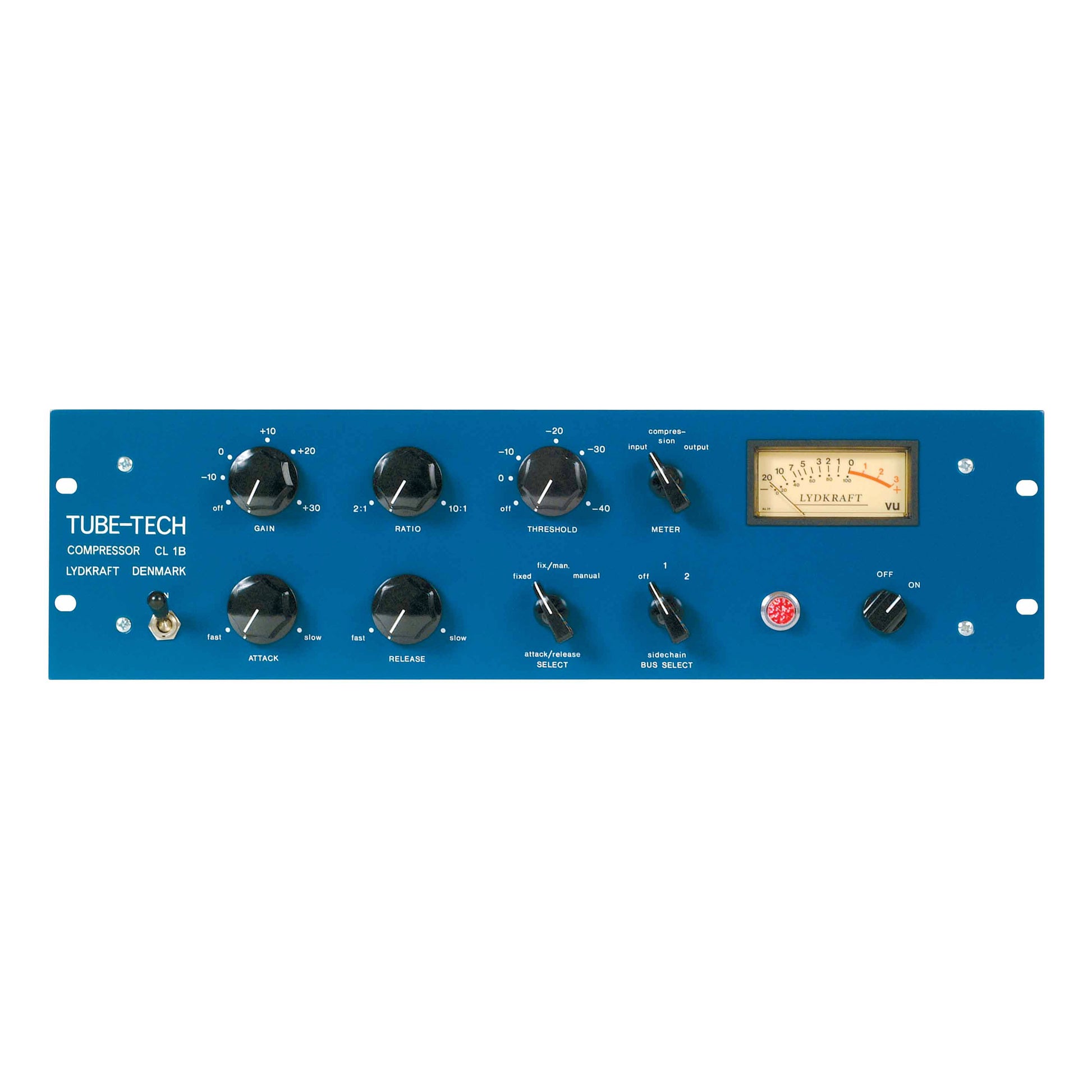

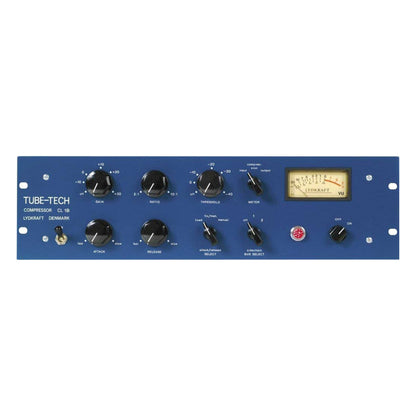

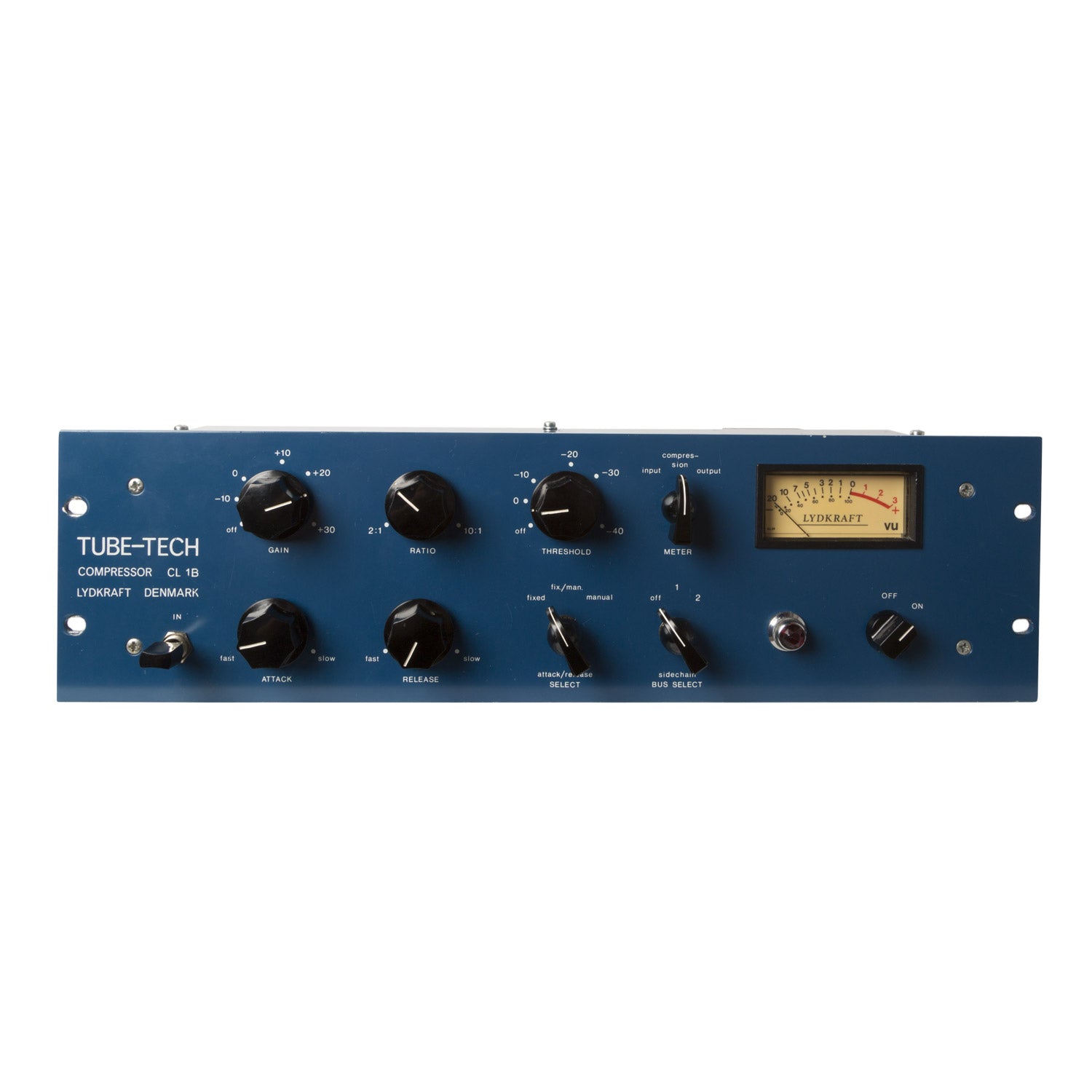

The TUBE-TECH CL 1B Compressor is an optical, all tube based compressor targeted at single-track studio recordings: It is equally suited for delicate vocal recordings as well as critical instrument recordings such as lead guitar, drum solos etc.
The Compressor features a gain-reduction element, positioned immediately after the input transformer. It is controlled by the sidechain amplifier, which also contain the two time control circuits – one for fixed and one for variable Attack/Release. The two time-controllers can either be used separately or combined. This circuit contains semiconductor OP-amps for the entire control.
 The gain-reduction element is followed by a tube-based push-pull amplifier with variable gain up to 30 dB. A dedicated Bus selector with three positions (Off, Bus 1, Bus 2) is used whenever you want to link several compressors together. Input and output transformers have a static-screen between the primary and secondary wirings. Both Input and Output are balanced as well as fully floating.
| Product Name | Tubetech CL1B Opto Compressor |
|---|---|
| Brand | Tubetech |
| Condition | New |
| MPN | CL1B |
| UPC | 889406081116 |
| Shipping Option | Free Shipping to the Continental U.S. |
Tubetech CL1B Opto Compressor
The TUBE-TECH CL 1B Compressor is an optical, all tube based compressor targeted at single-track studio recordings: It is equally suited for delicate vocal recordings as well as critical instrument recordings such as lead guitar, drum solos etc.
The Compressor features a gain-reduction element, positioned immediately after the input transformer. It is controlled by the sidechain amplifier, which also contain the two time control circuits – one for fixed and one for variable Attack/Release. The two time-controllers can either be used separately or combined. This circuit contains semiconductor OP-amps for the entire control.
 The gain-reduction element is followed by a tube-based push-pull amplifier with variable gain up to 30 dB. A dedicated Bus selector with three positions (Off, Bus 1, Bus 2) is used whenever you want to link several compressors together. Input and output transformers have a static-screen between the primary and secondary wirings. Both Input and Output are balanced as well as fully floating.
| Product Name | Tubetech CL1B Opto Compressor |
|---|---|
| Brand | Tubetech |
| Condition | New |
| MPN | CL1B |
| UPC | 889406081116 |
| Shipping Option | Free Shipping to the Continental U.S. |
