Large bottle type for the look and sound of 6L6 tubes used during the golden age of hi-fi in the 1940's and early 1950's. Uprated to 6L6GC specs for improved performance and reliability.
| Product Name | Tung-Sol T-6L6G-Tung Vacuum Tube |
|---|---|
| Brand | Tung Sol |
| Condition | New |
| MPN | 6L6GTUNGSOL |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Tung-Sol T-6L6G-Tung Vacuum Tube
Specifications |
|
|---|---|
| Filament/Heater | 6.3 V at 0.9 A |
| Max Plate Voltage (Vp) | Up to 500 V |
| Max Screen Grid Voltage (Vg2) | Up to 450 V |
| Max Plate Dissipation | 30 W |
| Base Type | 8-pin Octal |
| Envelope Style | Extra thick "big bulb" coke bottle |
| Maximum DC Plate Voltage | 500 V |
| Maximum Screen Grid Voltage | 450 V |
| Maximum Cathode-to-Heater Voltage | ± 200 V |
| Maximum Envelope Temperature | 250°C |

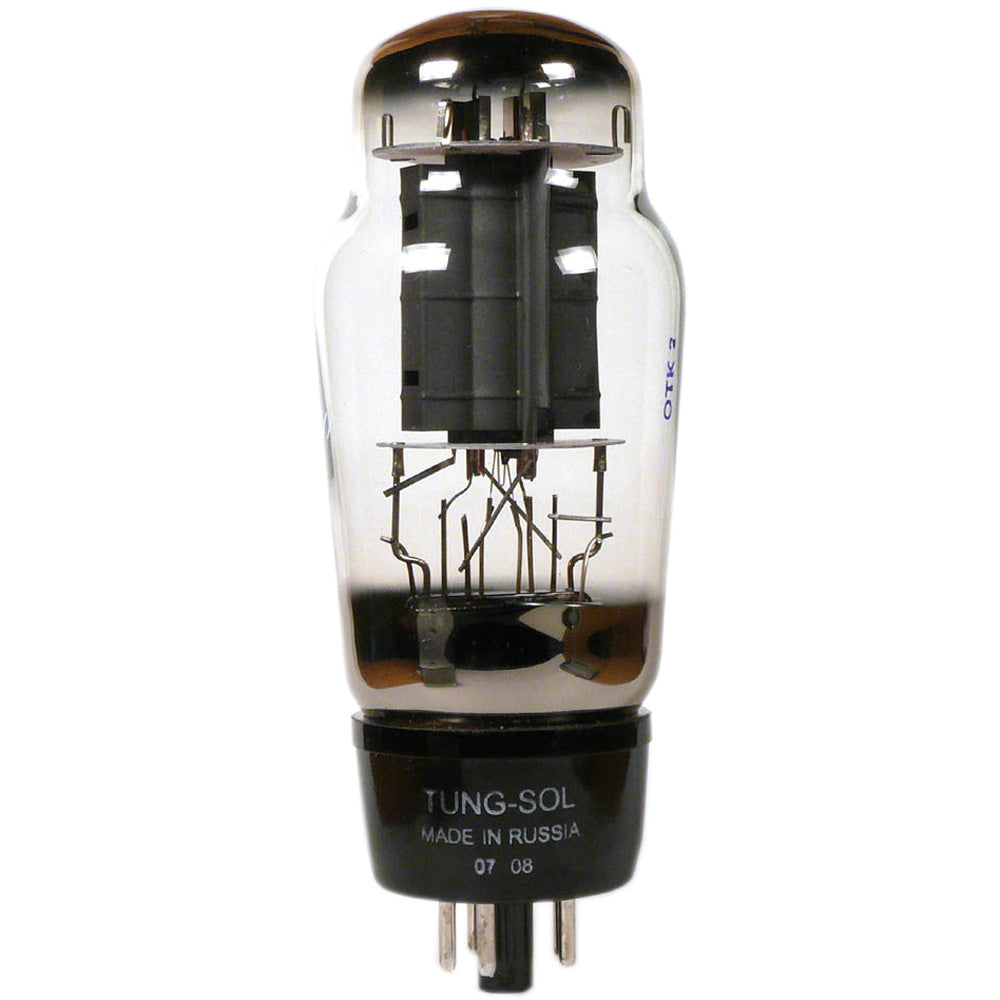

Tung-Sol T-6L6G-Tung Vacuum Tube
Details
Large bottle type for the look and sound of 6L6 tubes used during the golden age of hi-fi in the 1940's and early 1950's. Uprated to 6L6GC specs for improved performance and reliability.
| Product Name | Tung-Sol T-6L6G-Tung Vacuum Tube |
|---|---|
| Brand | Tung Sol |
| Condition | New |
| MPN | 6L6GTUNGSOL |
What's in the Box?
Tung-Sol T-6L6G-Tung Vacuum Tube
Tech Specs
Specifications |
|
|---|---|
| Filament/Heater | 6.3 V at 0.9 A |
| Max Plate Voltage (Vp) | Up to 500 V |
| Max Screen Grid Voltage (Vg2) | Up to 450 V |
| Max Plate Dissipation | 30 W |
| Base Type | 8-pin Octal |
| Envelope Style | Extra thick "big bulb" coke bottle |
| Maximum DC Plate Voltage | 500 V |
| Maximum Screen Grid Voltage | 450 V |
| Maximum Cathode-to-Heater Voltage | ± 200 V |
| Maximum Envelope Temperature | 250°C |
