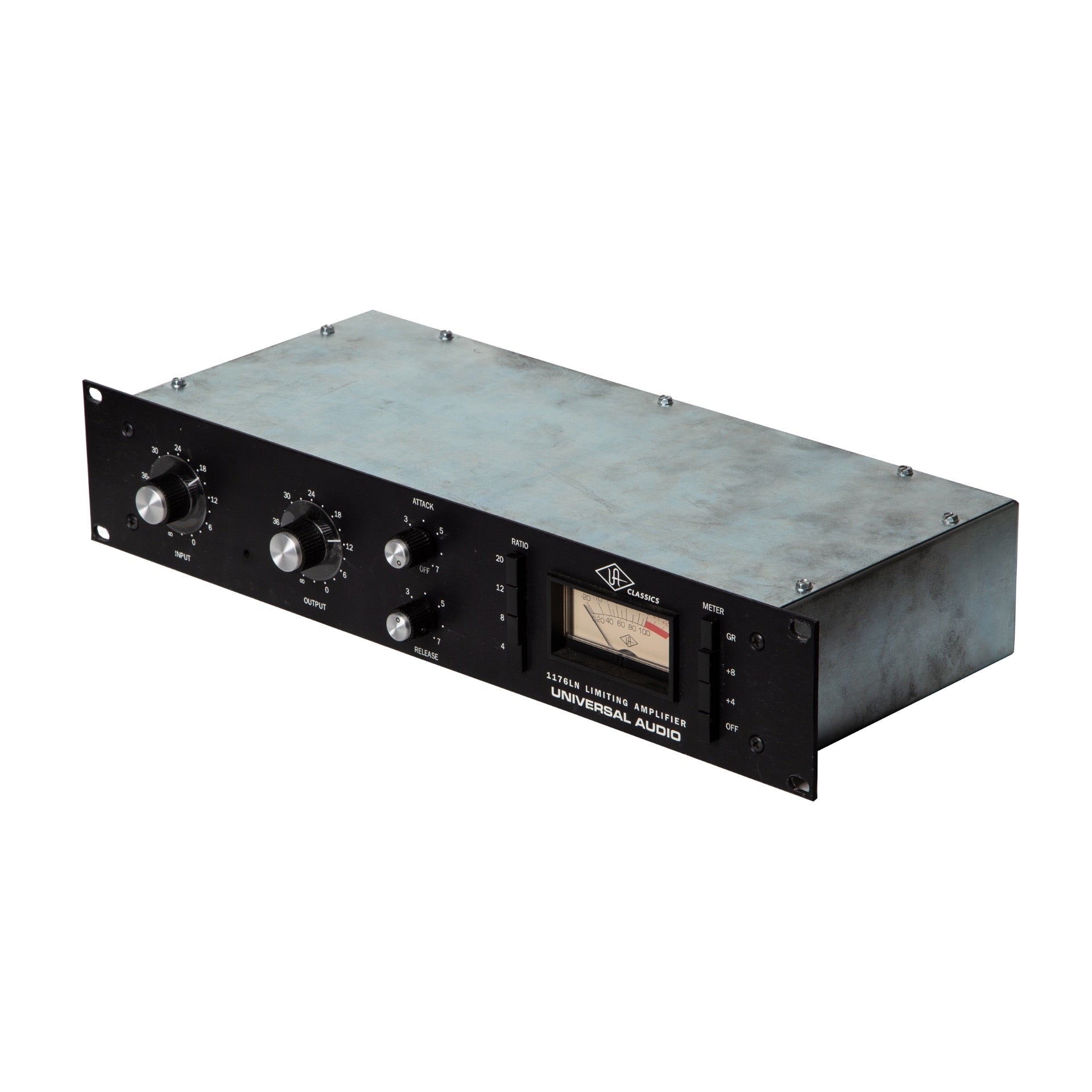

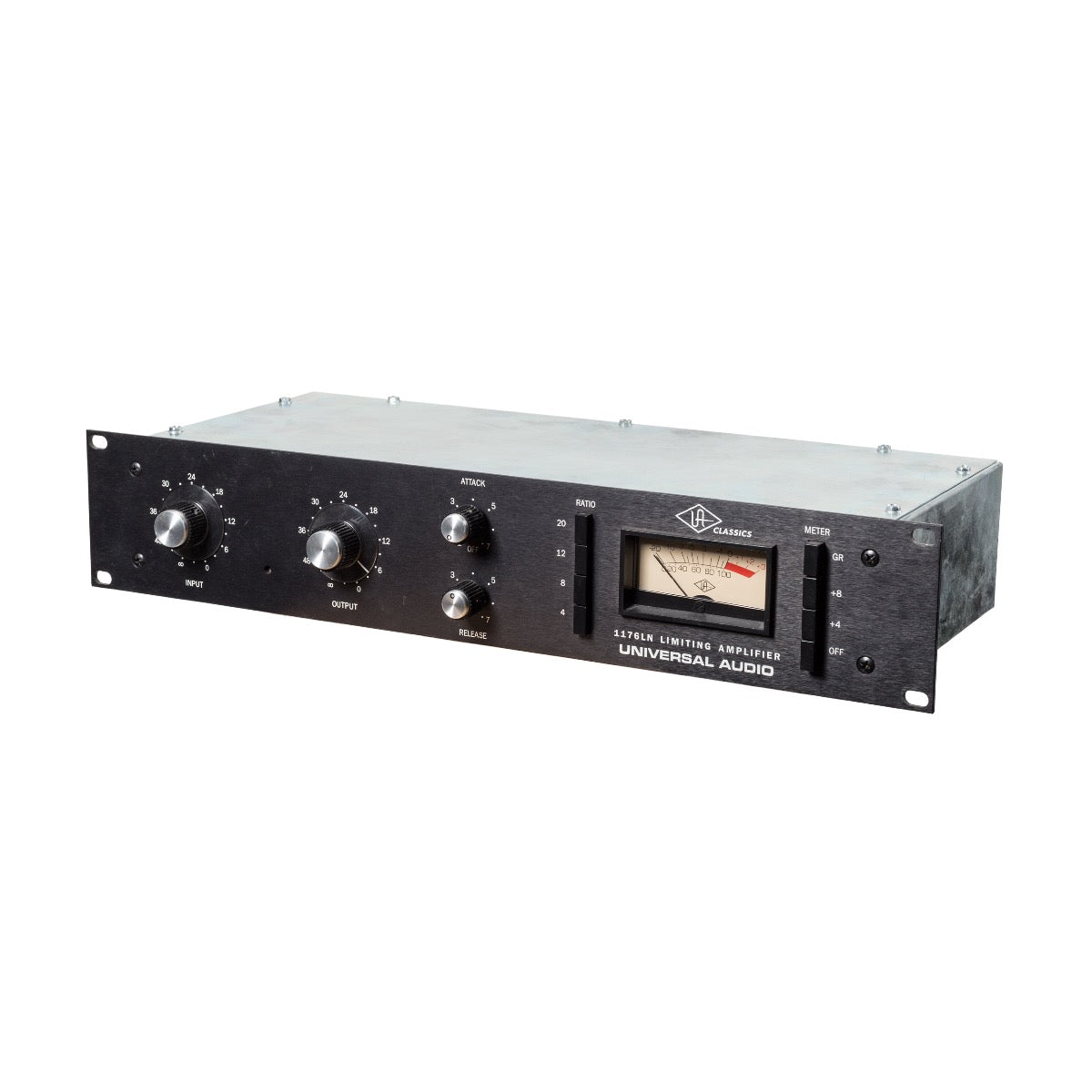

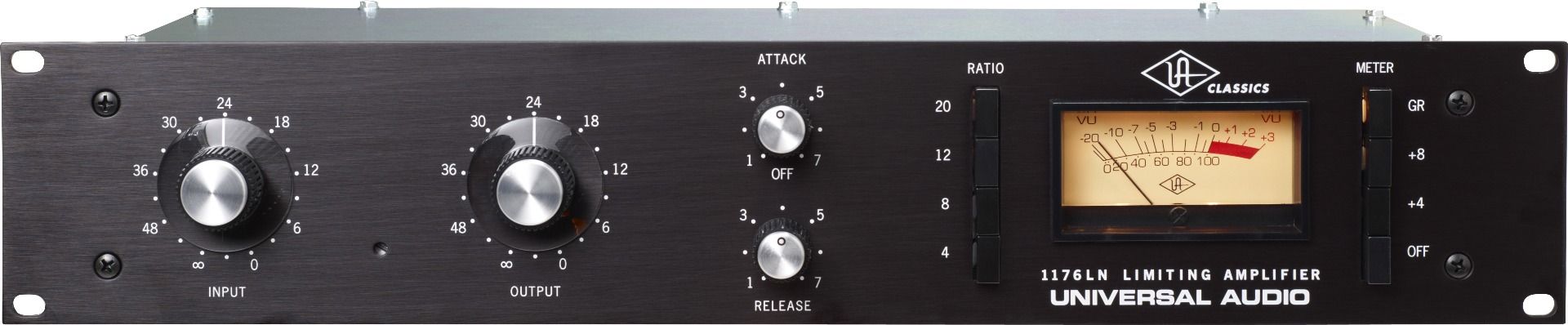

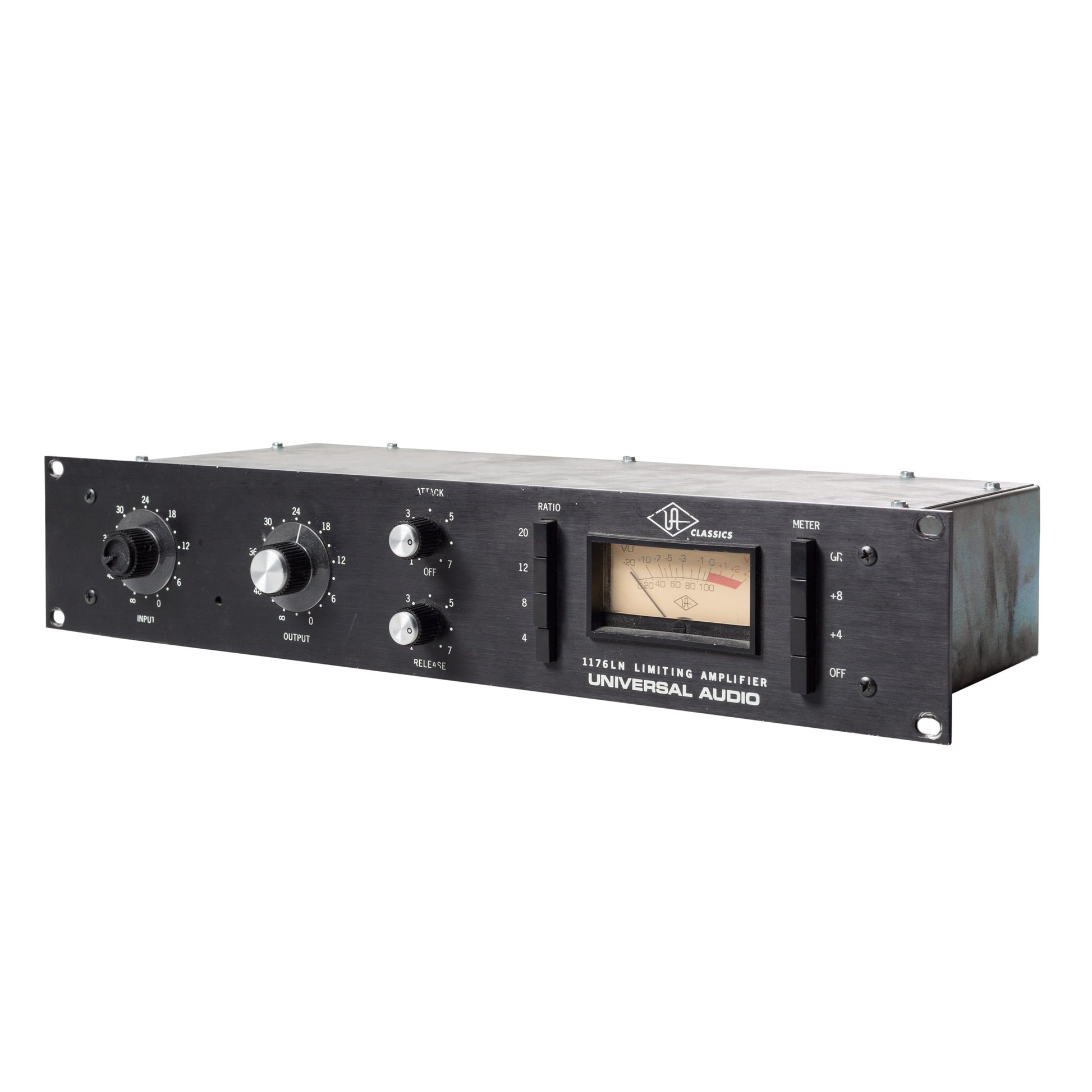

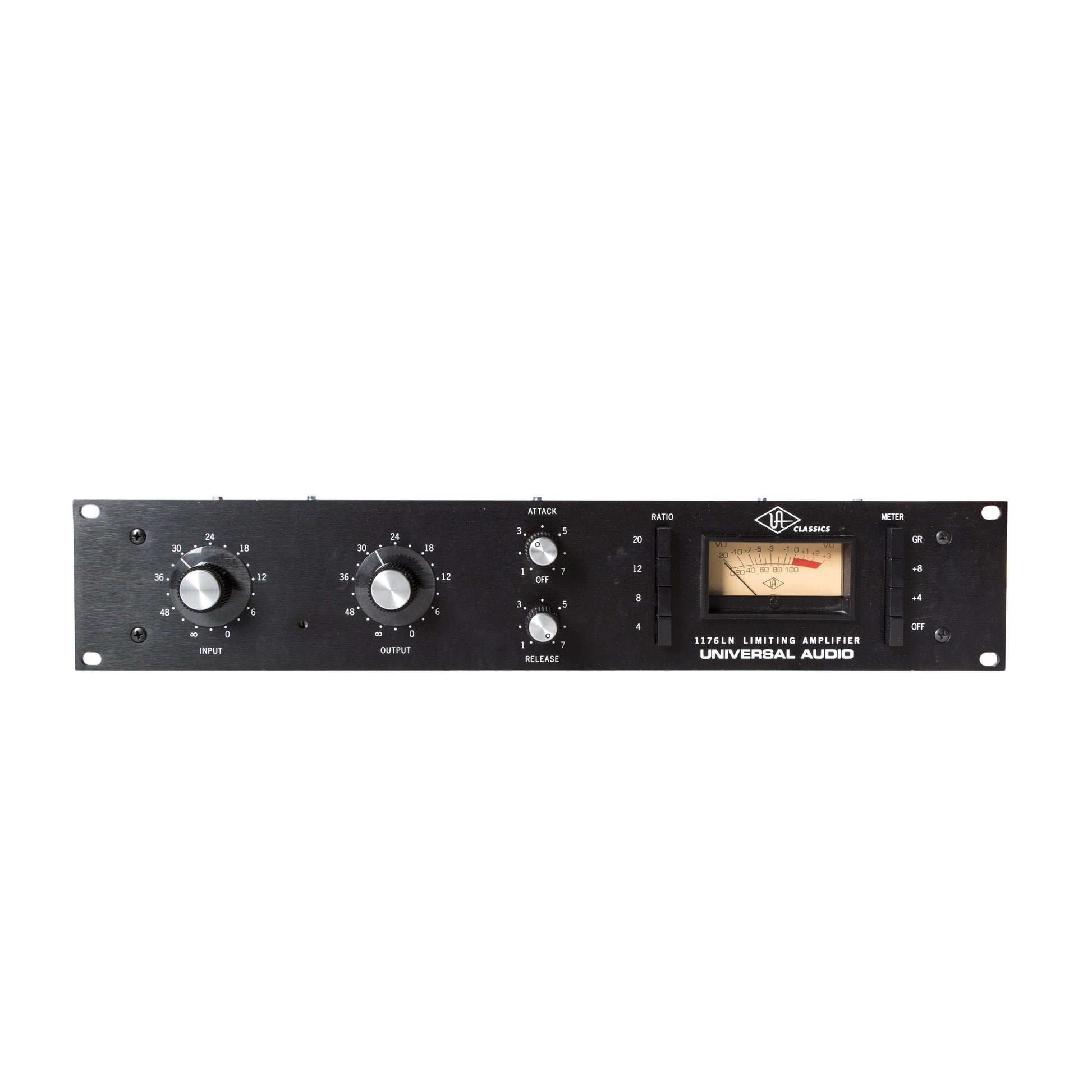

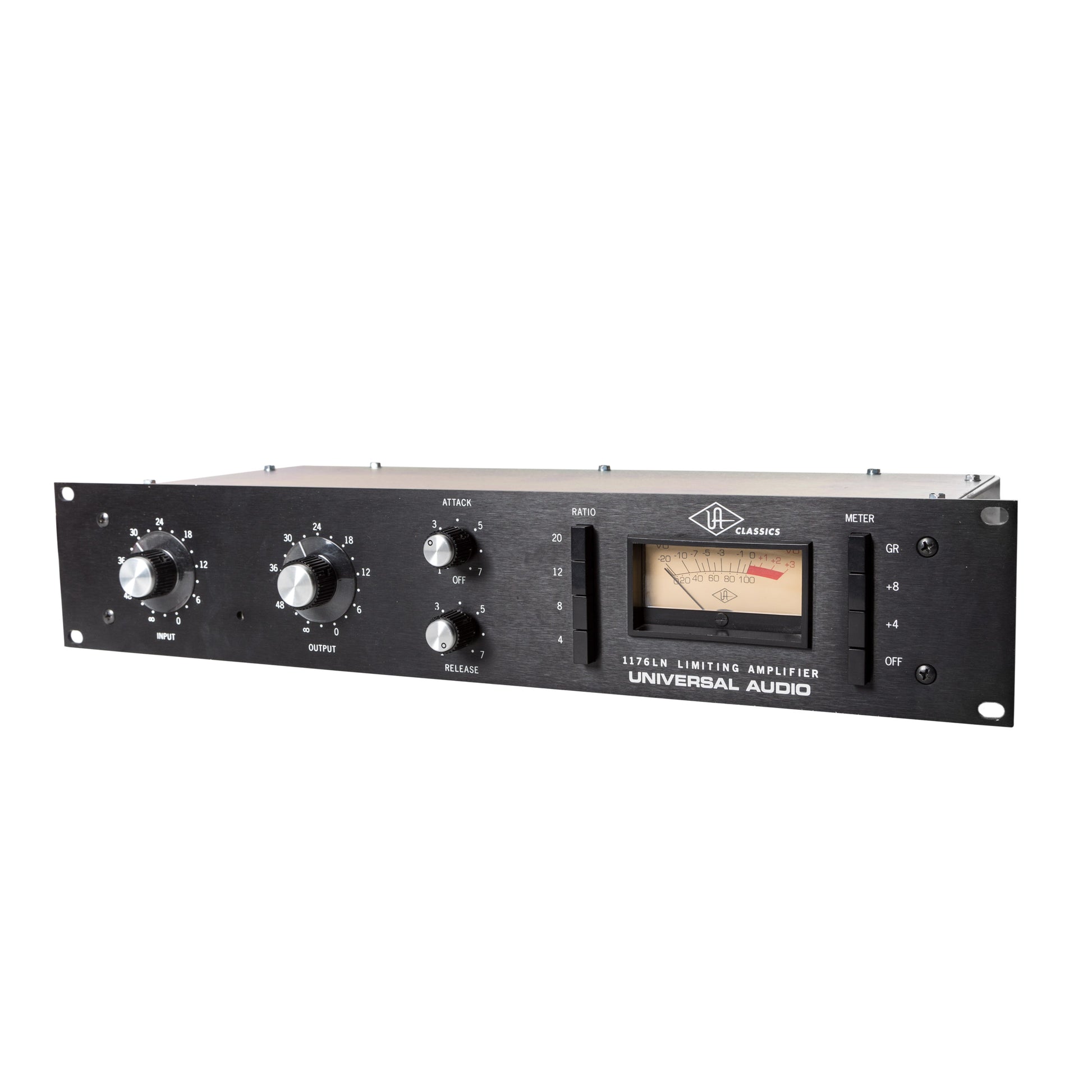

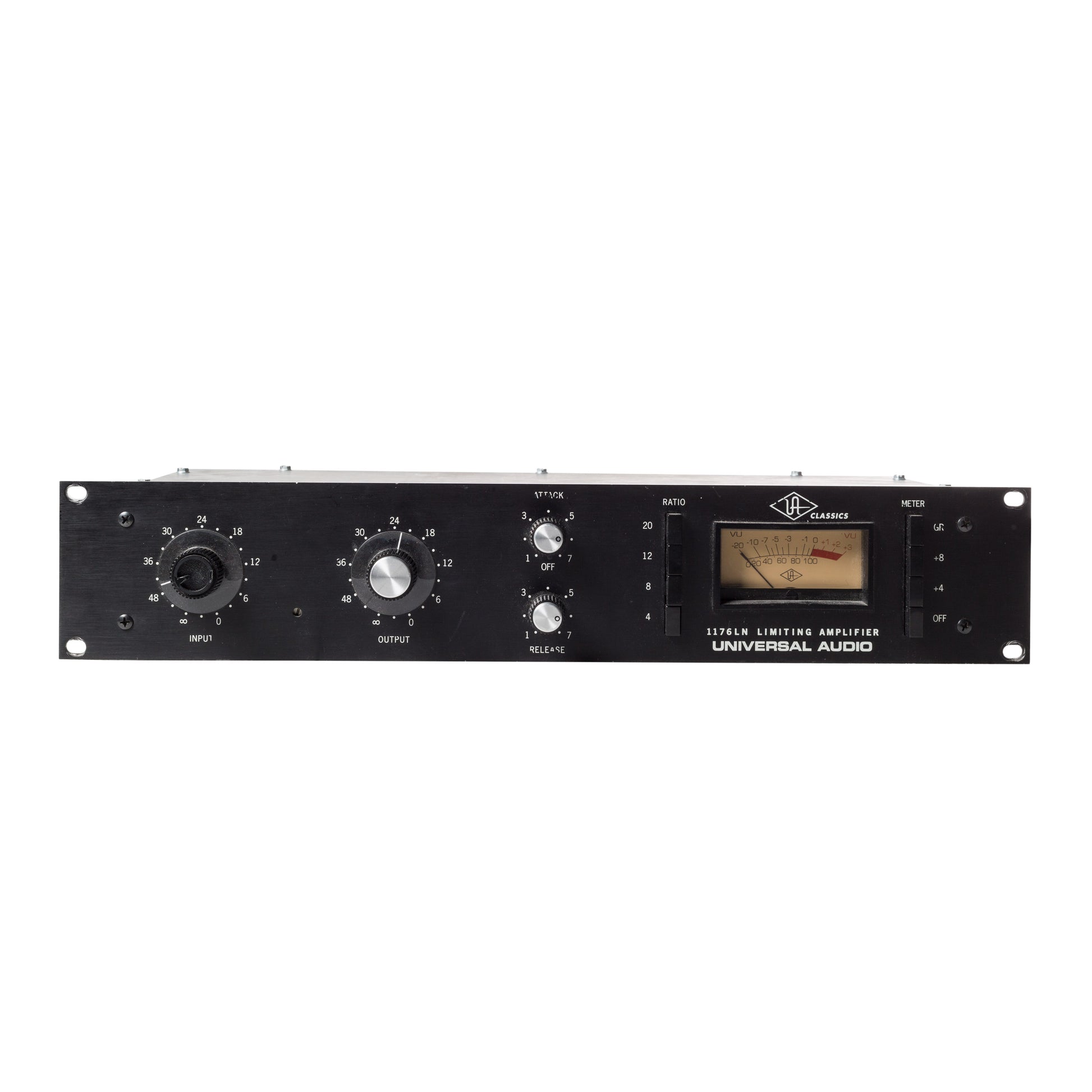

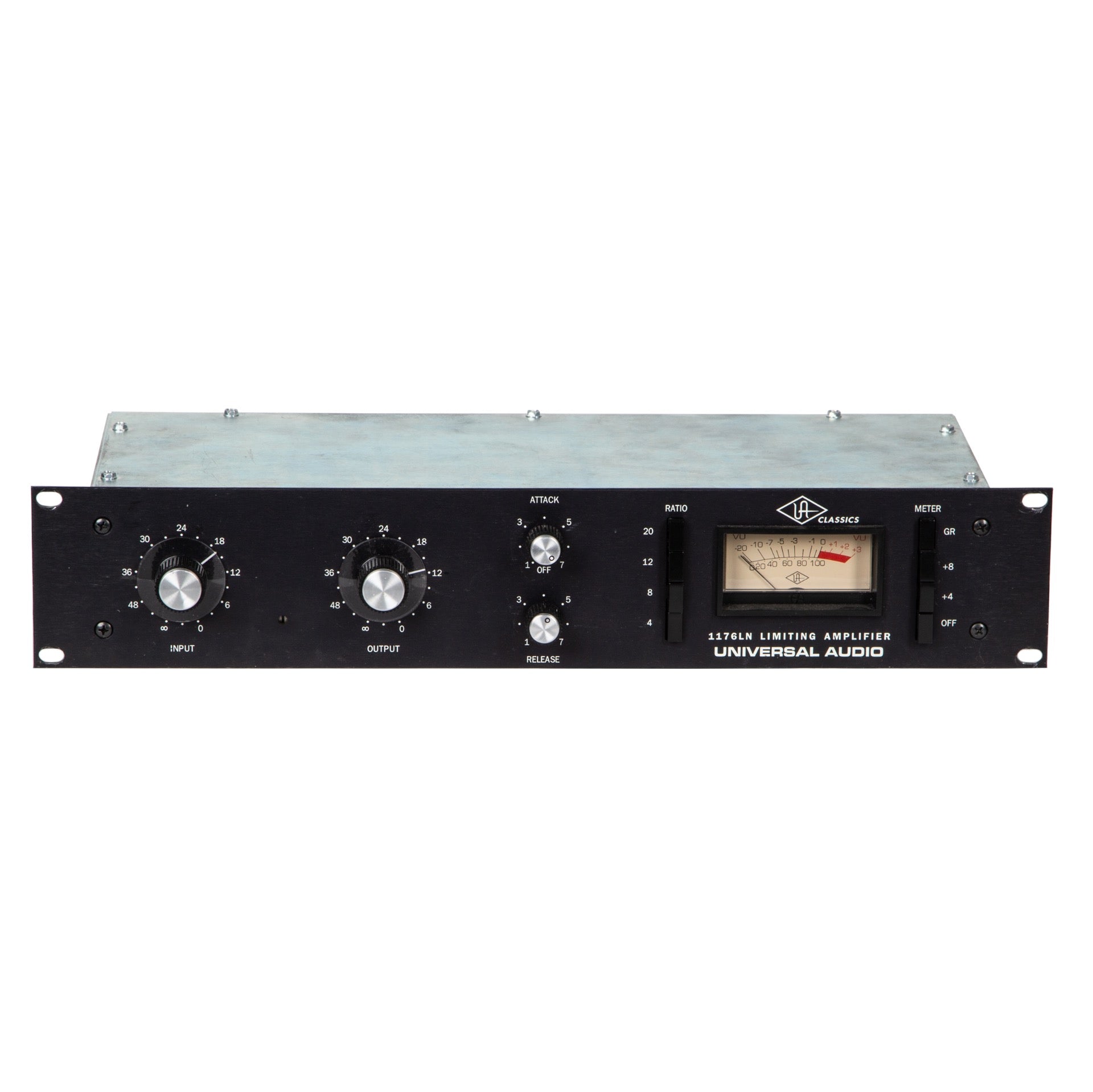

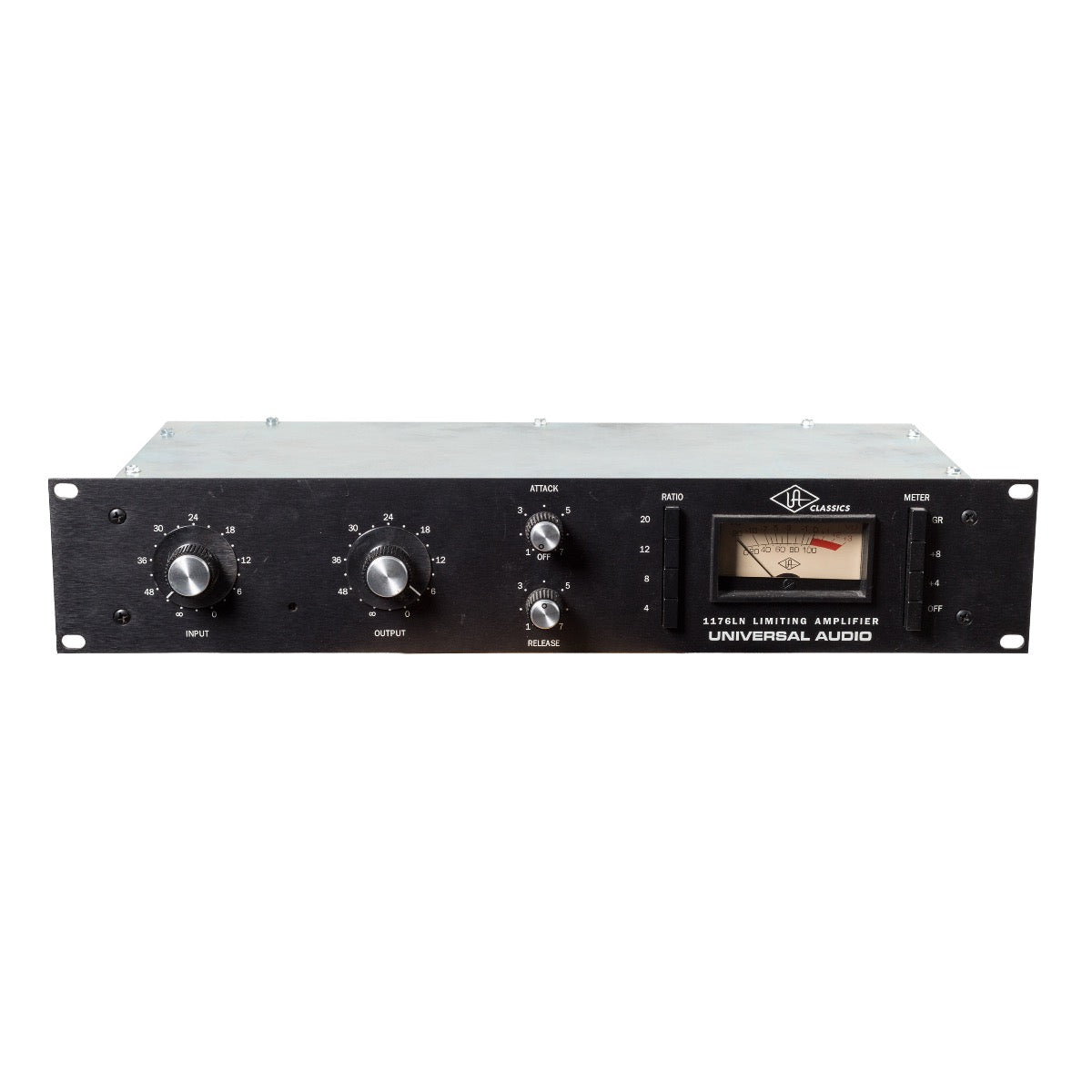

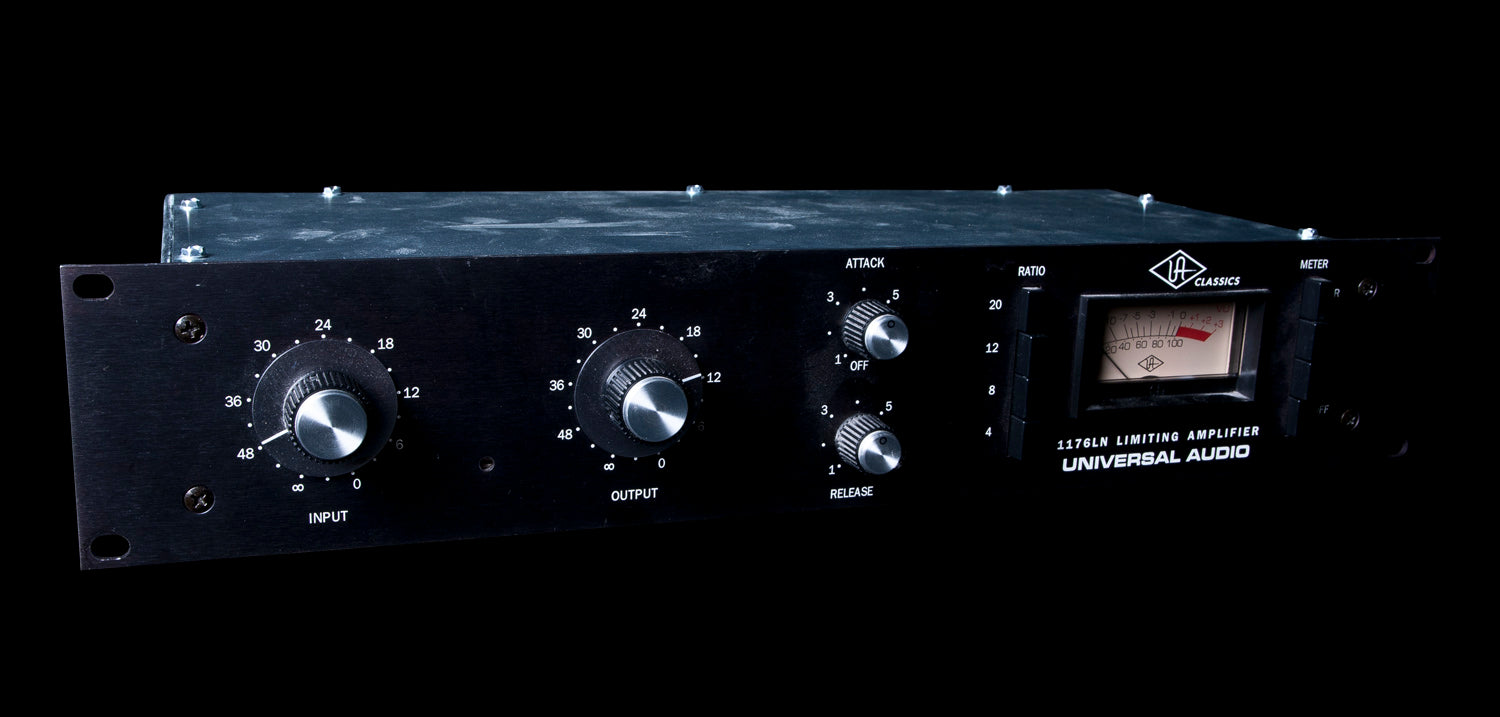

Universal Audio 1176LN Classic Limiting Amplifier

Universal Audio 1176LN Classic Limiting Amplifier

On order with the manufacturer!

Universal Audio 1176LN Classic Limiting Amplifier. FET-Style Compressor with Class A Output & Custom Transformers — True to the Original.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Universal Audio 1176LN Classic Limiting Amplifier

FET-Style Compressor with Class A Output & Custom Transformers — True to the Original

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.’s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology — the first true peak limiter with all transistor circuitry offering superior performance with a signature sound — and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN — Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that’s continued to grow, for nearly 50 years.

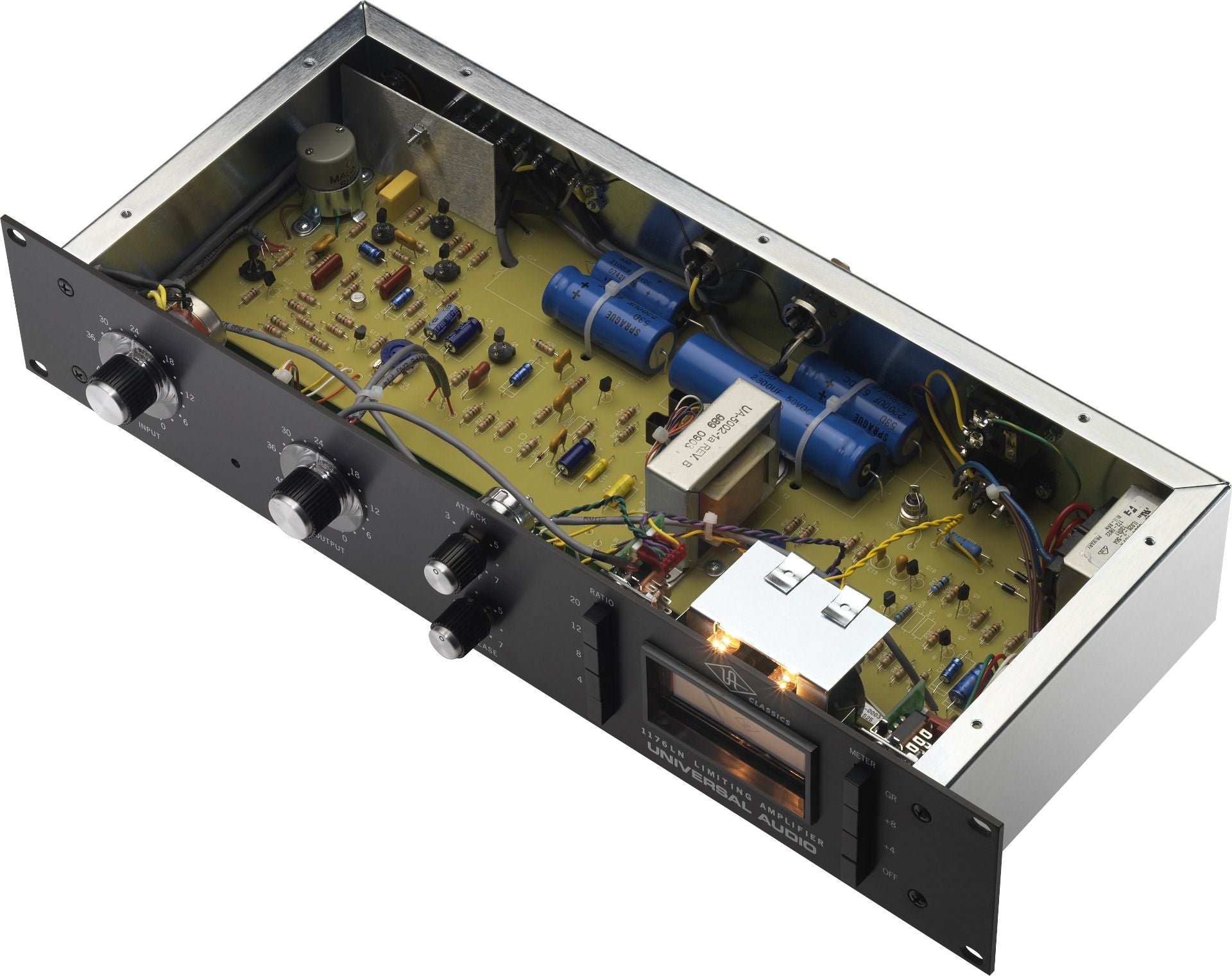

Carefully trained staff hand-wire and test each unit until it meets our uncompromising standards. This Universal Audio Classic version of the 1176LN captures all the nuance of the original through obsessive attention to detail and delivers that trademark sound. Demand the original. Accept no copies.

More Information
Product Name Universal Audio 1176LN Classic Limiting Amplifier
Brand Universal Audio
Condition New
MPN 1176LN
UPC 819937000010
Shipping Option Free Shipping to the Continental U.S.
  • True to the original in design, manufacturing and performance
  • Modeled after 1176LN, blackface, D and E revisions
  • Ultra fast attack time -20 microseconds to 800 microseconds
  • Class A line level output amplifier
  • Custom built Putnam-designed output transformer
  • Stereo interconnect operation
  • Hand-built in USA; backed by 1-year limited warranty

Input Impedance

600 ohms, bridges-T control (floating)

Output Load Impedance

600 ohms, floating, damping factor 20

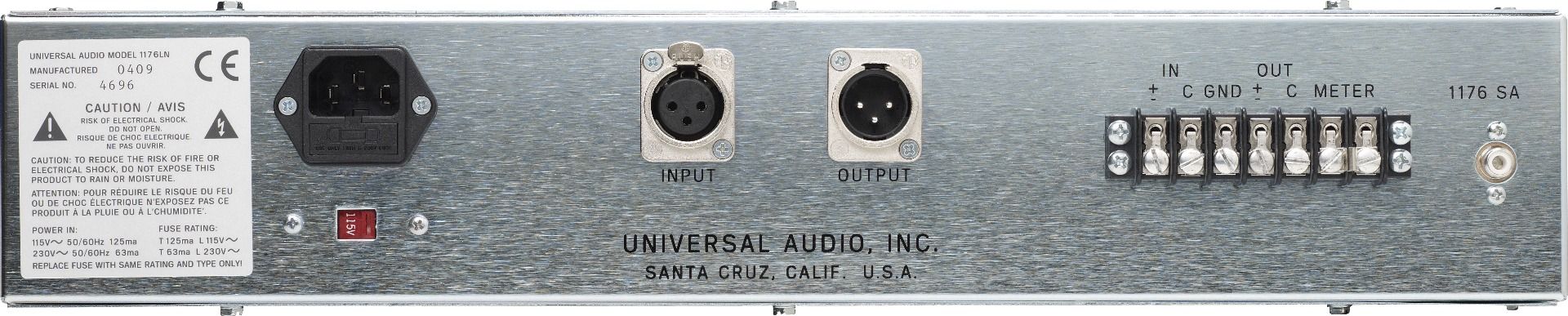

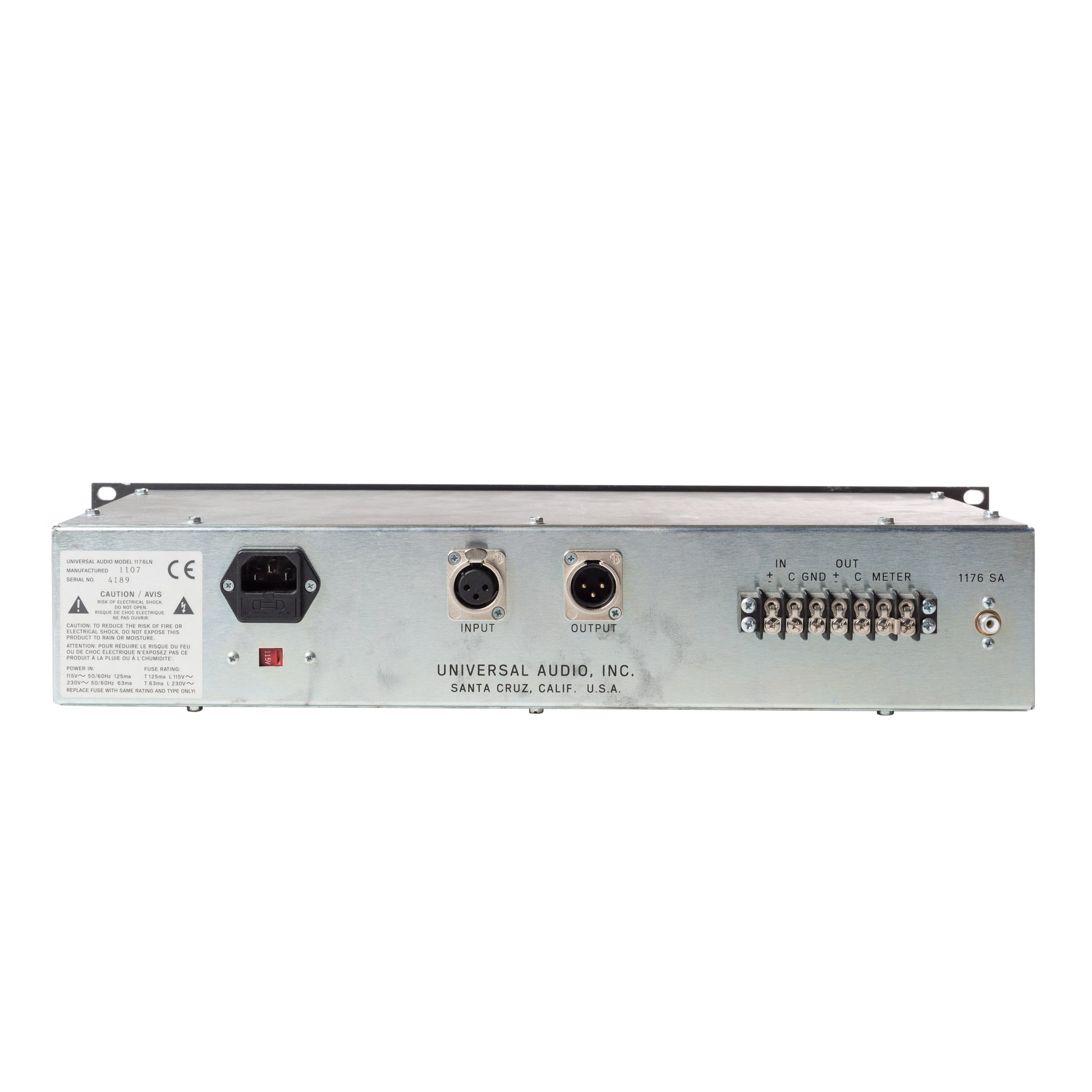

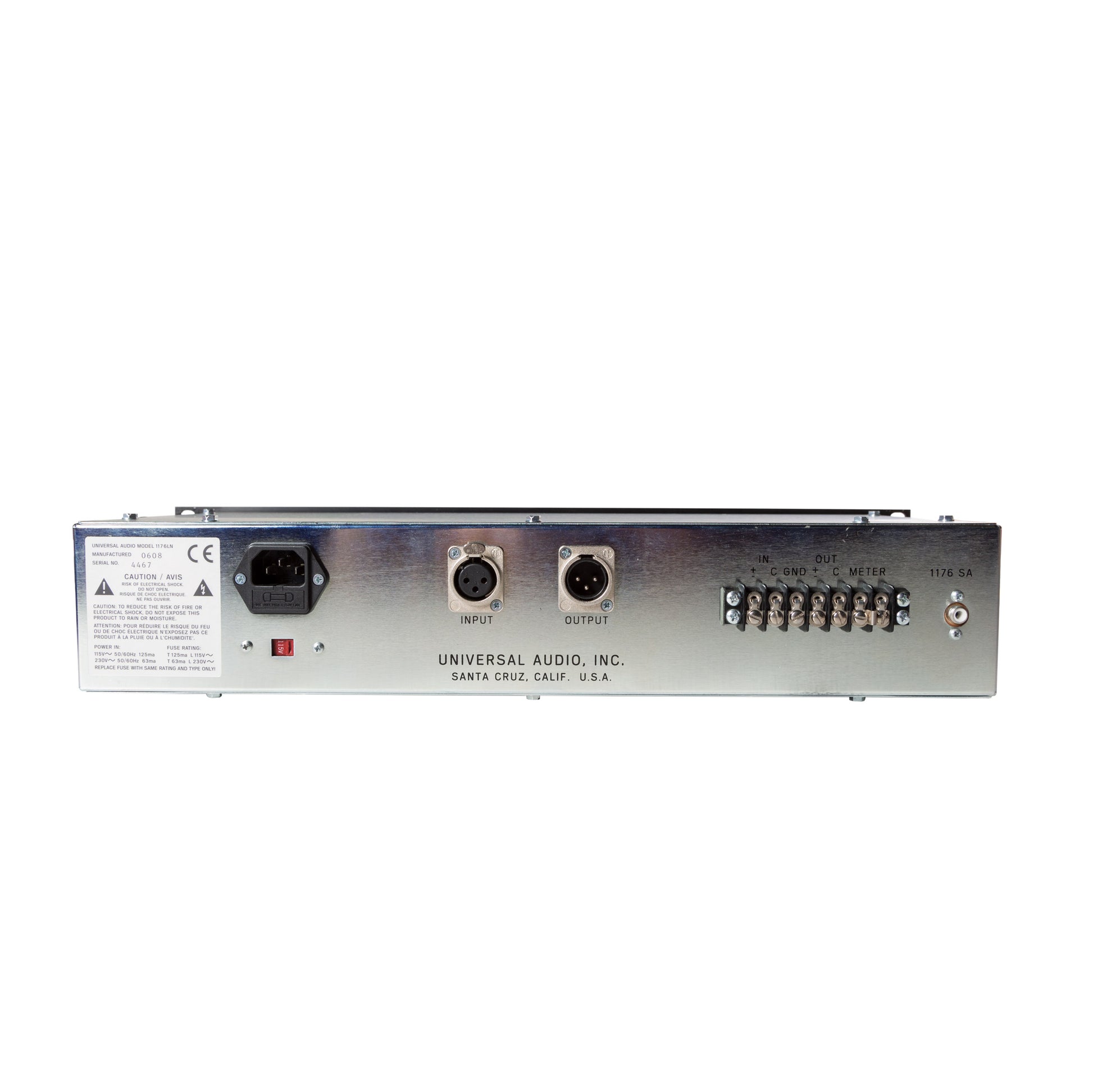

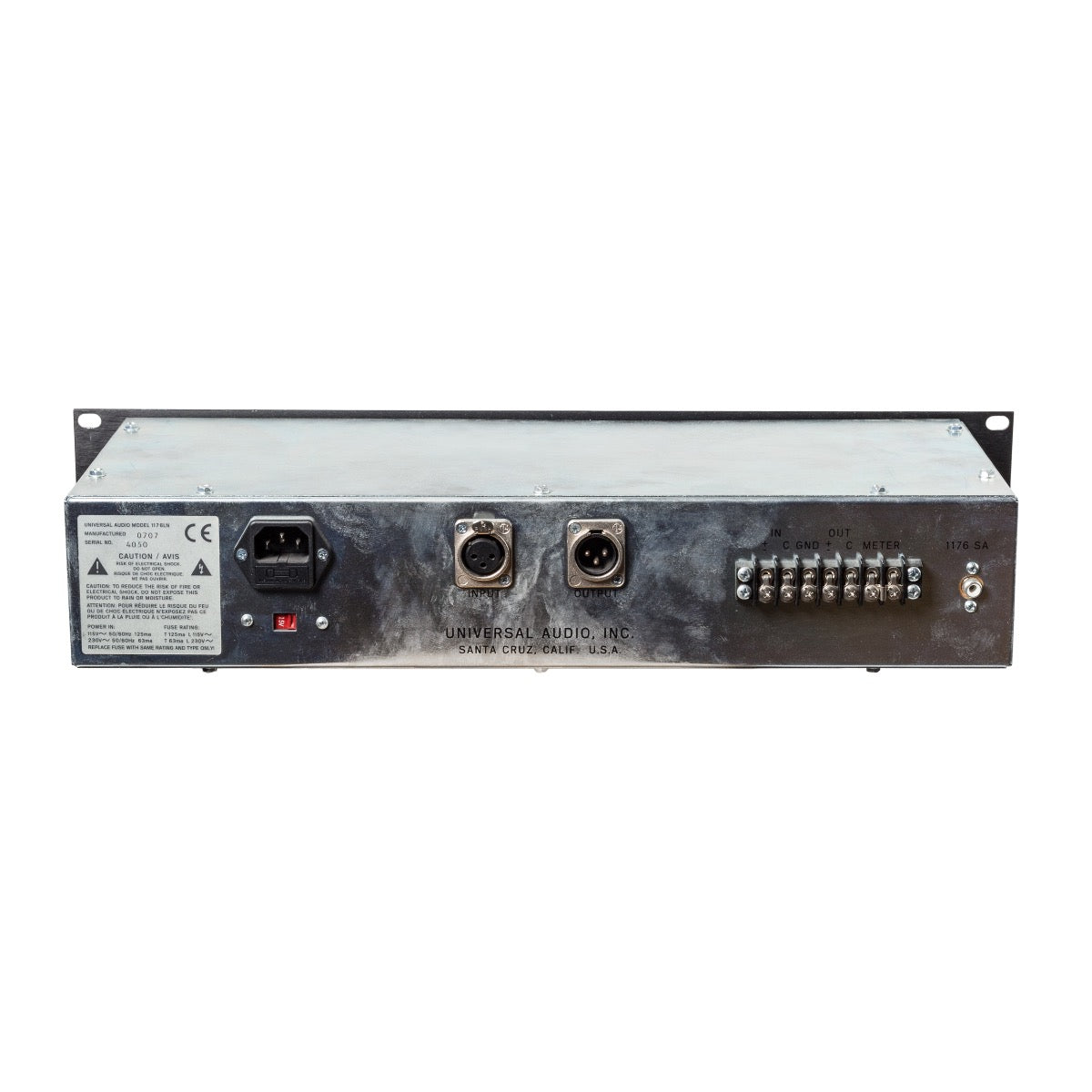

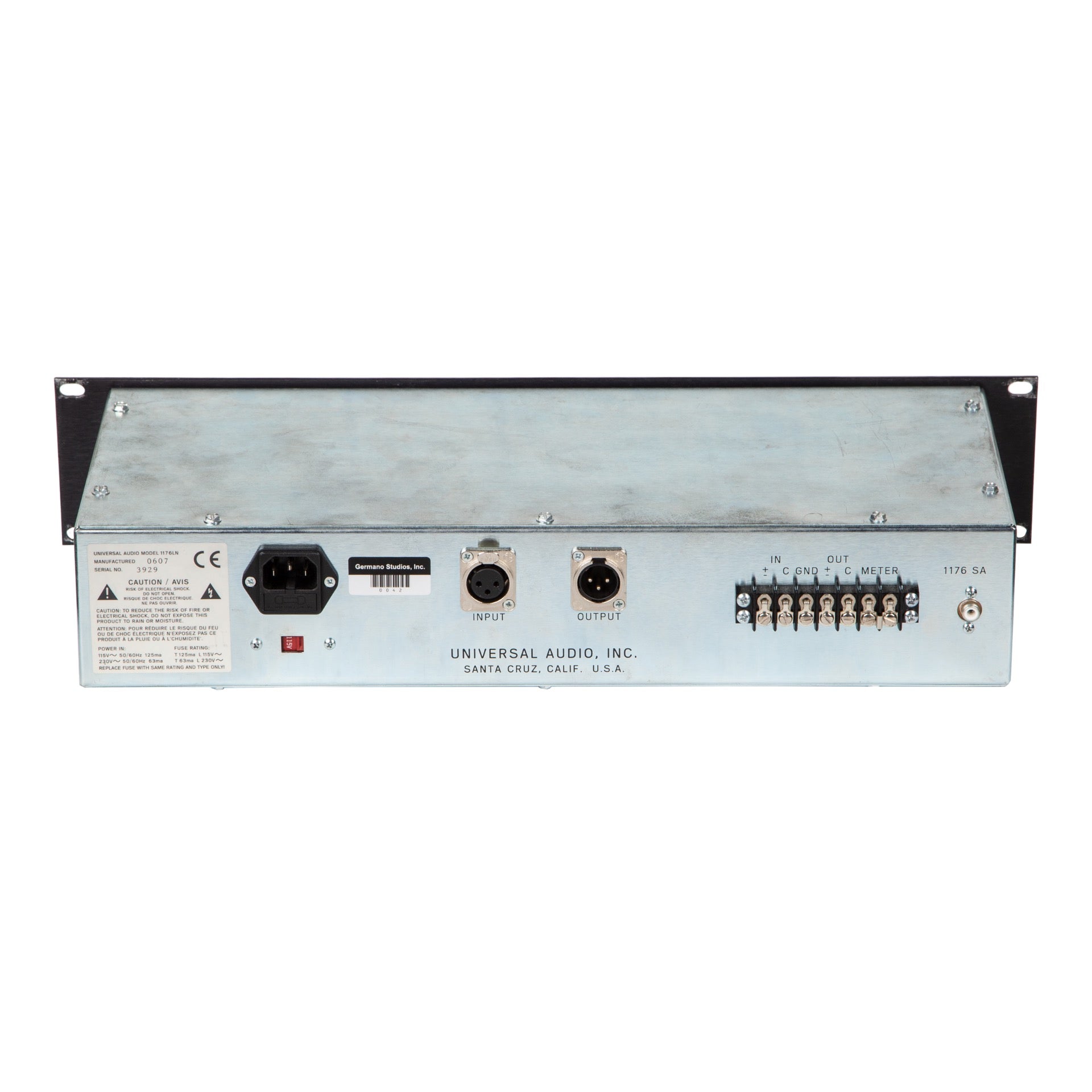

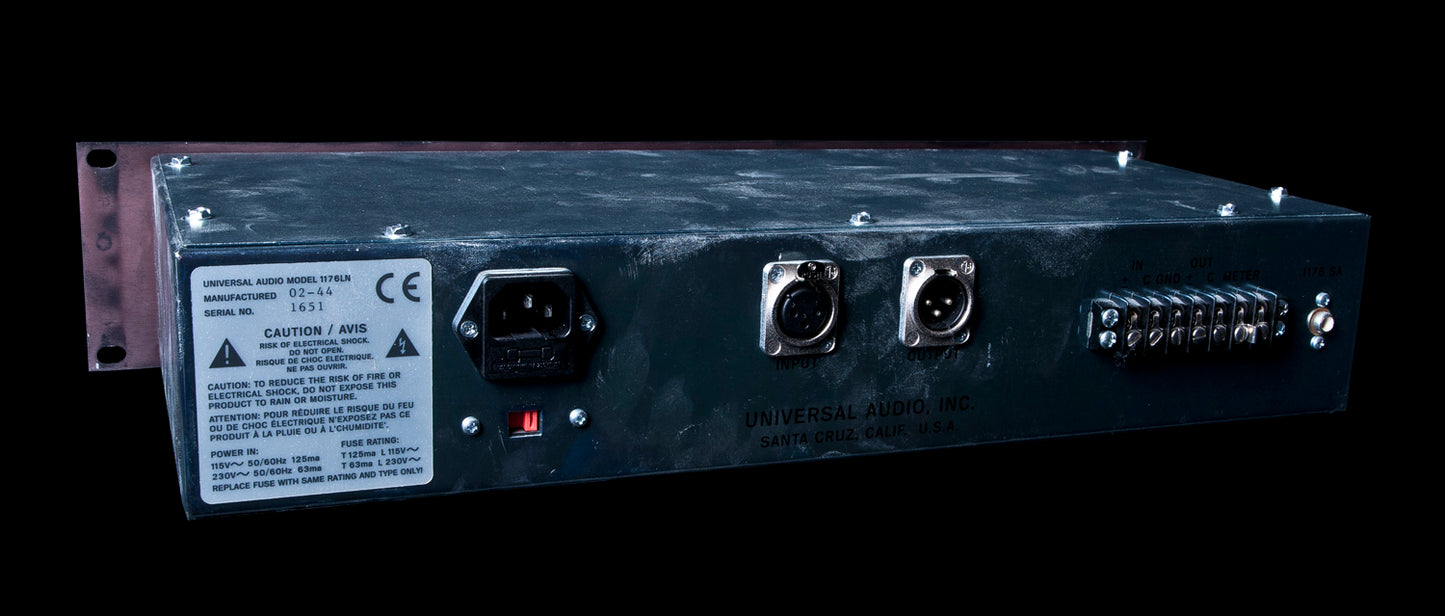

External Connections

Jones Barrier terminals and XLR connectors

Frequency Response

± 1 dB 20 Hz to 20kHz

Gain

50 dB

Distortion

Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting

Signal to Noise Ratio

Greater than 70 dB at +10 dBm

Attack Time

20 microseconds to 800 microseconds, plus "Slo" 10 ms mode

Release Time

50 milliseconds to 1.1 seconds

Stereo Interconnection

via 1176 SA Network accessory

Meter

dB gain reduction and dB output

Power Requirements

120/240 V

Environmental

Maximum operating temperature 160°F

Dimensions

19" Rackmount chassis, 2U

Weight (unboxed)

11 lbs.

Universal Audio 1176LN Classic Limiting Amplifier

Details

Universal Audio 1176LN Classic Limiting Amplifier

FET-Style Compressor with Class A Output & Custom Transformers — True to the Original

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.’s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology — the first true peak limiter with all transistor circuitry offering superior performance with a signature sound — and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN — Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that’s continued to grow, for nearly 50 years.

Carefully trained staff hand-wire and test each unit until it meets our uncompromising standards. This Universal Audio Classic version of the 1176LN captures all the nuance of the original through obsessive attention to detail and delivers that trademark sound. Demand the original. Accept no copies.

More Information
Product Name Universal Audio 1176LN Classic Limiting Amplifier
Brand Universal Audio
Condition New
MPN 1176LN
UPC 819937000010
Shipping Option Free Shipping to the Continental U.S.
Features
  • True to the original in design, manufacturing and performance
  • Modeled after 1176LN, blackface, D and E revisions
  • Ultra fast attack time -20 microseconds to 800 microseconds
  • Class A line level output amplifier
  • Custom built Putnam-designed output transformer
  • Stereo interconnect operation
  • Hand-built in USA; backed by 1-year limited warranty
Tech Specs

Input Impedance

600 ohms, bridges-T control (floating)

Output Load Impedance

600 ohms, floating, damping factor 20

External Connections

Jones Barrier terminals and XLR connectors

Frequency Response

± 1 dB 20 Hz to 20kHz

Gain

50 dB

Distortion

Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting

Signal to Noise Ratio

Greater than 70 dB at +10 dBm

Attack Time

20 microseconds to 800 microseconds, plus "Slo" 10 ms mode

Release Time

50 milliseconds to 1.1 seconds

Stereo Interconnection

via 1176 SA Network accessory

Meter

dB gain reduction and dB output

Power Requirements

120/240 V

Environmental

Maximum operating temperature 160°F

Dimensions

19" Rackmount chassis, 2U

Weight (unboxed)

11 lbs.
