The DX16B is a high-performance, 16-channel, 3-way passive audio splitter designed for uncompromising signal integrity. Retaining the versatile DNA of its predecessor, the 16B introduces upgraded locking XLR inputs on the front panel along with three (3) audio signal splits provided in XLR, Ethercon, and DB25 (Tascam format) multi-pin output connectors.
Optimized for microphone signals, the DX16B provides the essential flexibility required in demanding live sound and studio environments. It allows engineers to seamlessly distribute isolated audio feeds to Front of House (FOH), monitor consoles, and recording rigs simultaneously.
The unit offers comprehensive connectivity, featuring 16 XLR inputs and outputs on the front, supplemented by 48 additional outputs on the rear (16 via XLR, 16 via 3 x 4ch Ethercon, 16 via 2 x 8ch 25-pin D-Sub). Housed in a rugged 2RU metal chassis, the DX16B is entirely passive—requiring no external power—making it a reliable, “road-ready” solution for any professional audio kit.
| Product Name | Violet Audio DX16B 16 Channel 4 way Passive Audio Splitter |
|---|---|
| Brand | Violet Audio |
| Condition | New |
| MPN | VA-DX16B |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Violet Audio DX16B 16 Channel 4 way Passive Audio Splitter
- Entirely passive 'Pure Path' signal design — no power supply required
- Ethercon (locking RJ45) outputs for touring-grade stability
- 16 inputs and outputs on front panel / 48 total output channels on rear panel
- 25-pin D-Sub rear outputs in Tascam / Pro ToolsTM compatible format
- Daisy-chain signals via EtherconTM connectors for expanded multi-unit systems
- Heavy-duty 2RU metal rackmount chassis built for studio and stage
- Phantom power compatible (shielded cable required
General |
|
|---|---|
| Type | 16-Channel, 4-Way Passive Audio Signal Splitter |
| Signal Path | Entirely Passive 'Pure Path' — No power supply required |
| Channels | 16 Inputs / 16 × 4 Outputs (16 front + 48 rear) |
| Expandability | Ethercon supports input + output — daisy-chain multiple DX16B units |
| Power | None required (passive design) |
| Phantom Power | Compatible — shielded cable required |
| Applications | Live Sound (FOH / Monitor splits), Broadcast, Studio Recording |
| Optimized For | Microphone signals; balanced line level compatible |
Front Panel I/O |
|

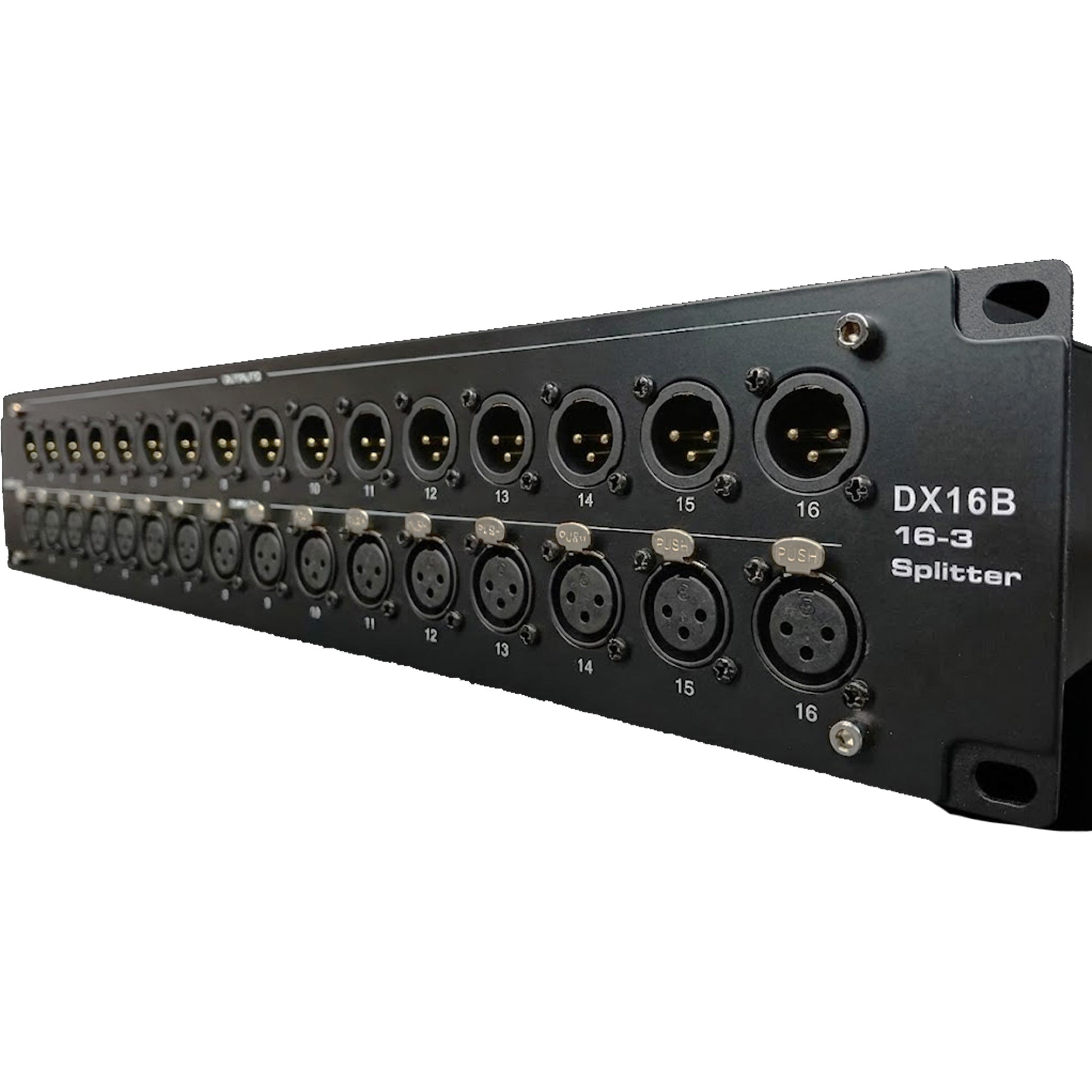

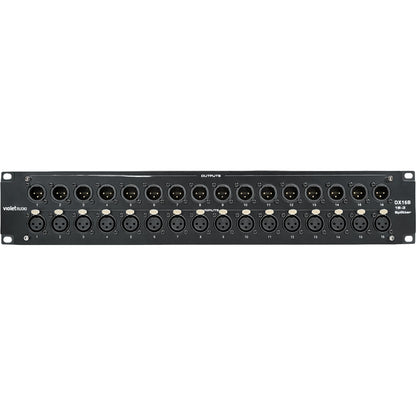

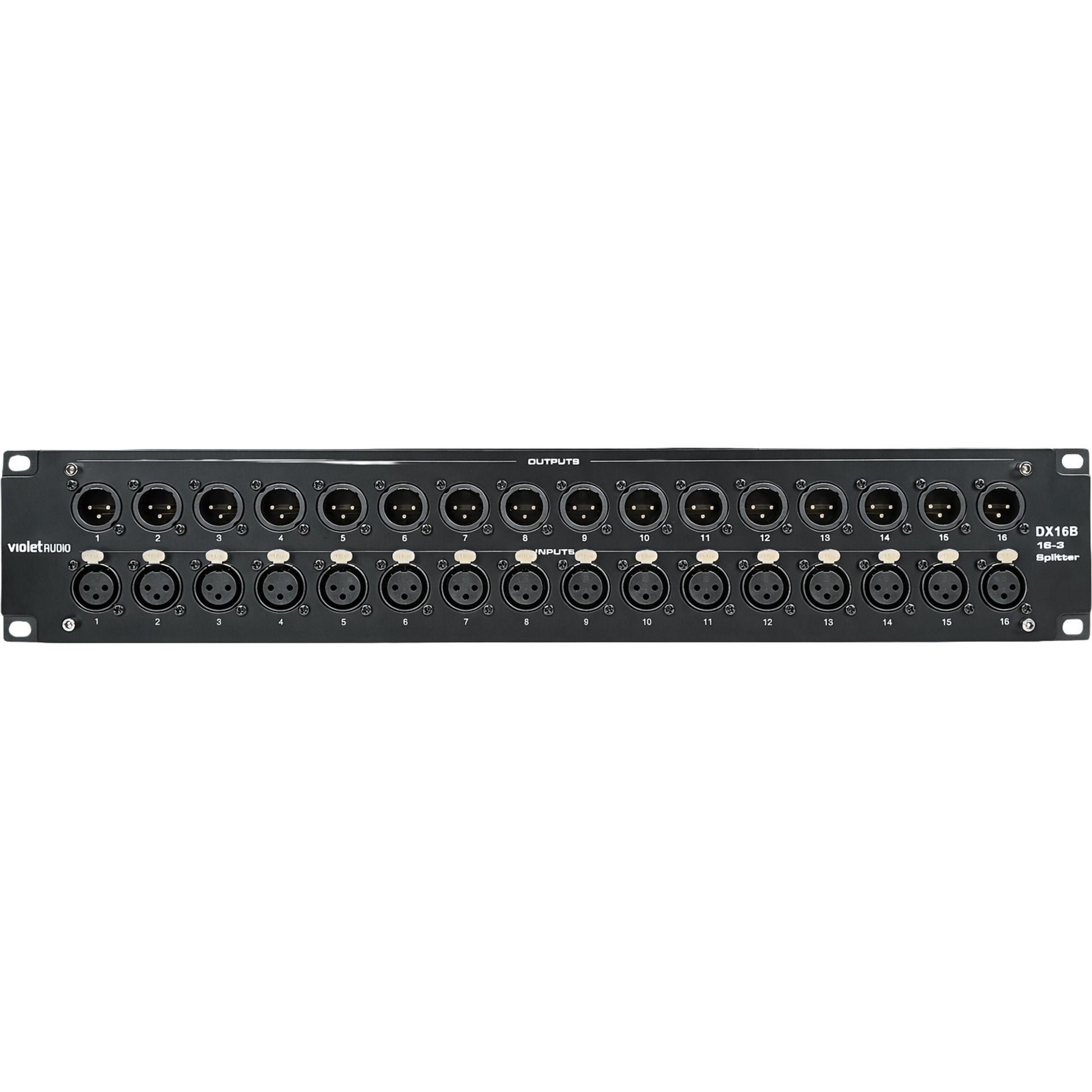

| Front Panel I/O | 16 × Locking XLR Inputs · 16 × XLR Outputs |
Rear Panel I/O |
|

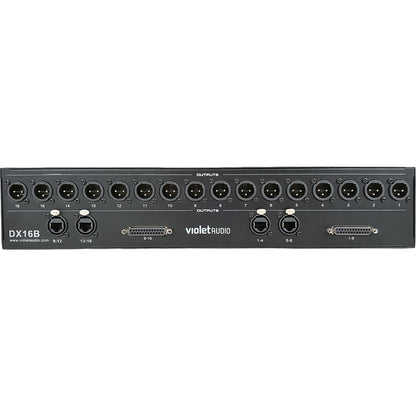

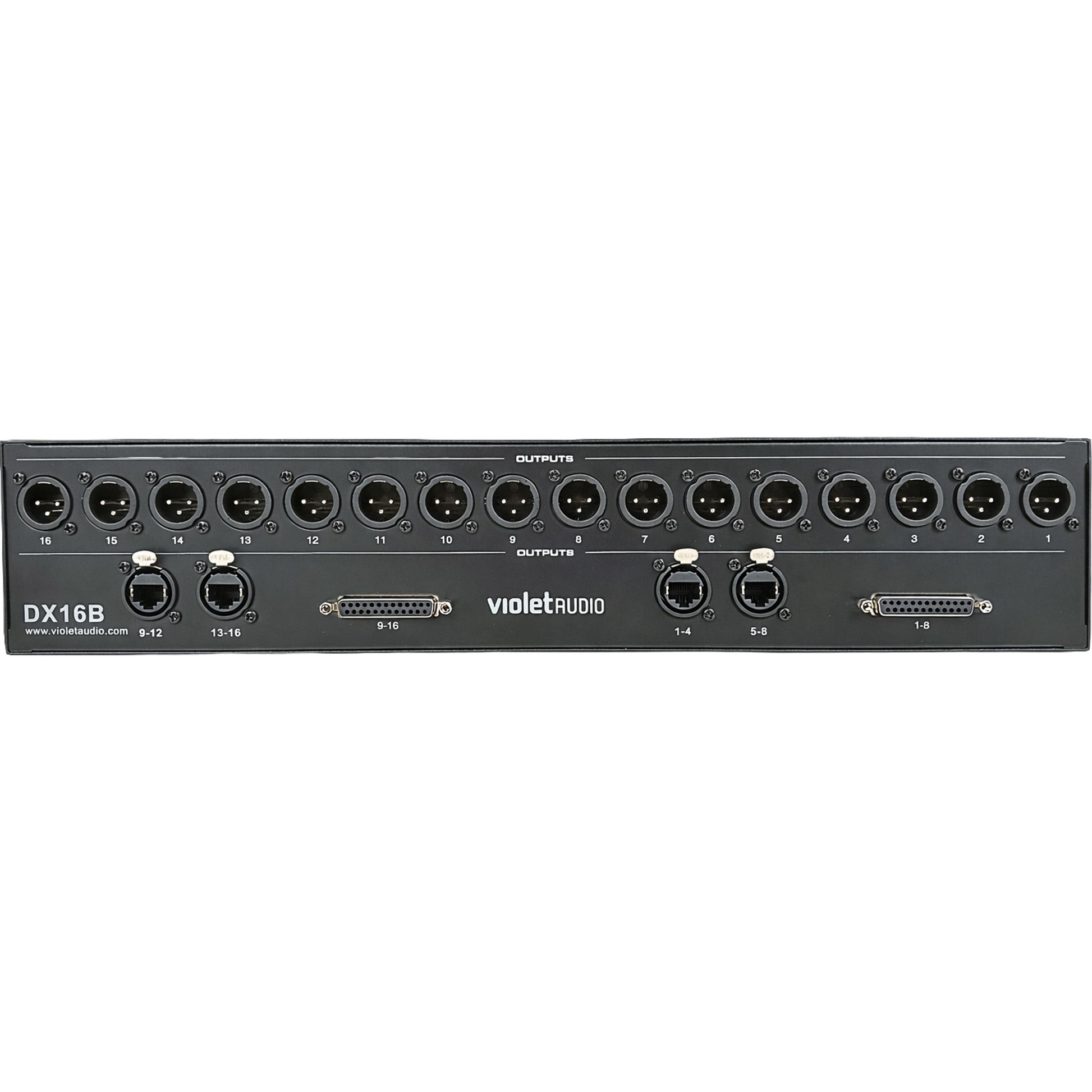

| Rear Panel I/O | 16 × XLR · 16 × Ethercon (3×4ch) · 16 × 25-pin D-Sub (2×8ch, Tascam) |
Connectors |
|
| Connector Types | Locking XLR, Ethercon (locking RJ45), 25-pin D-Sub |
Chassis |
|
| Chassis | Heavy-duty 2RU metal rackmount |
