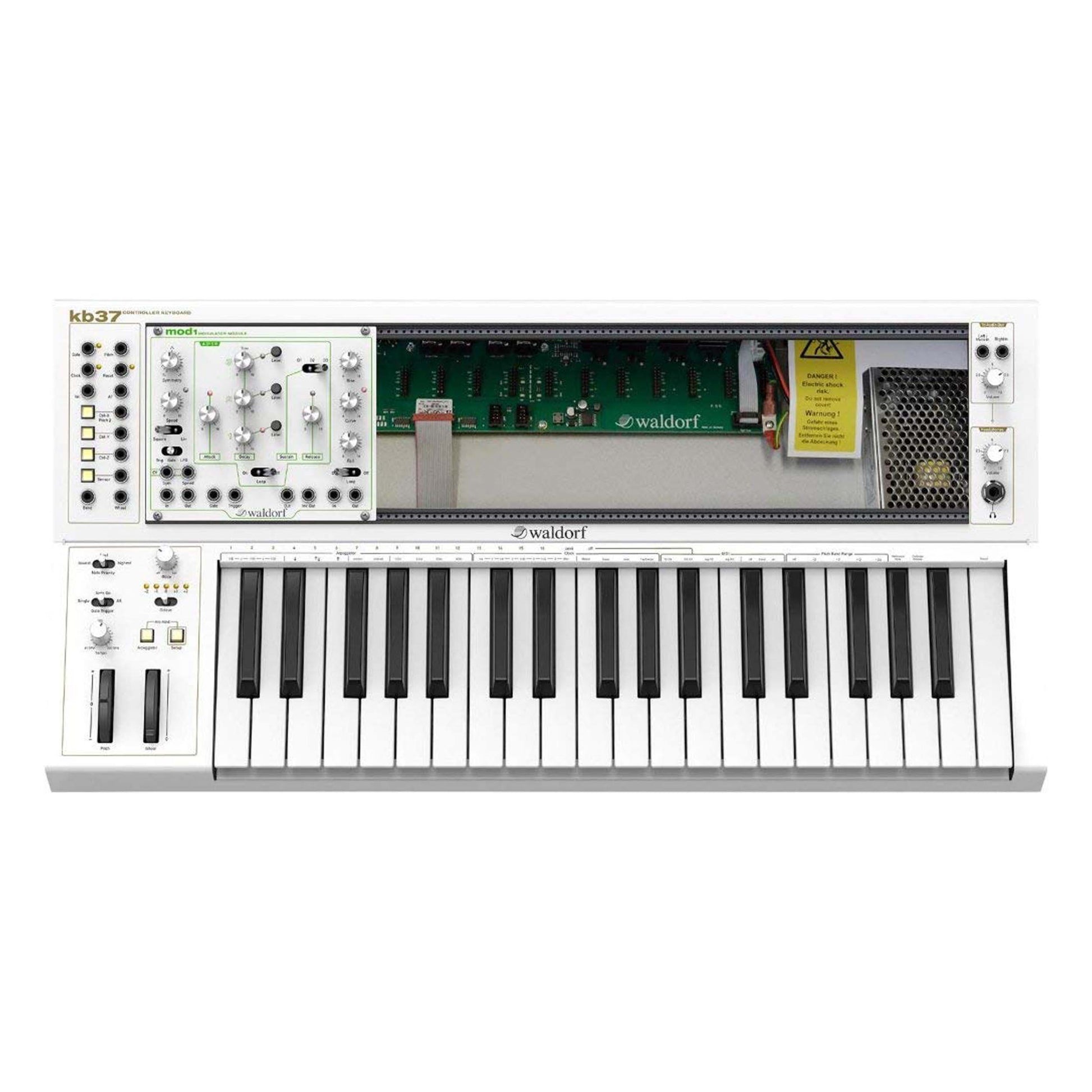

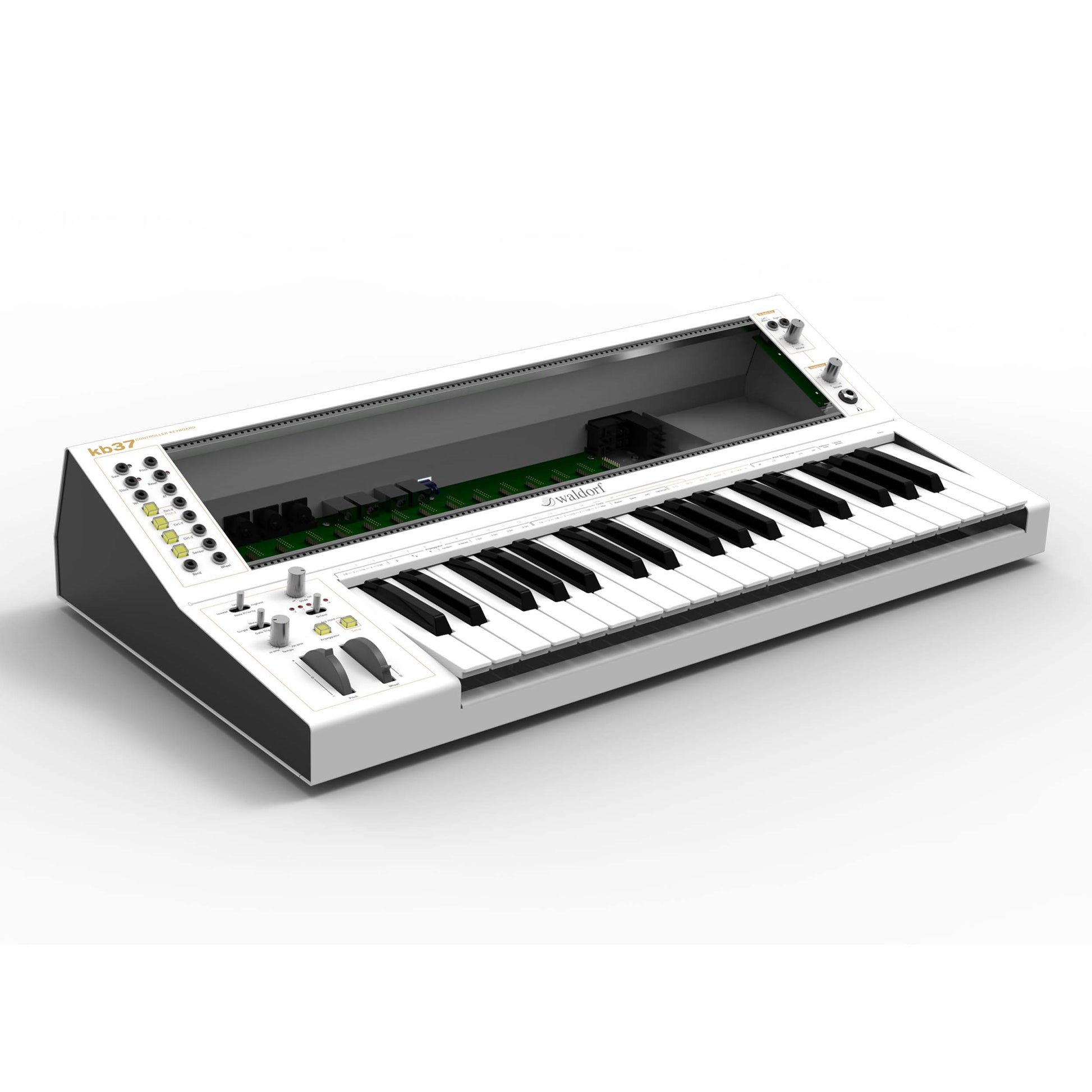

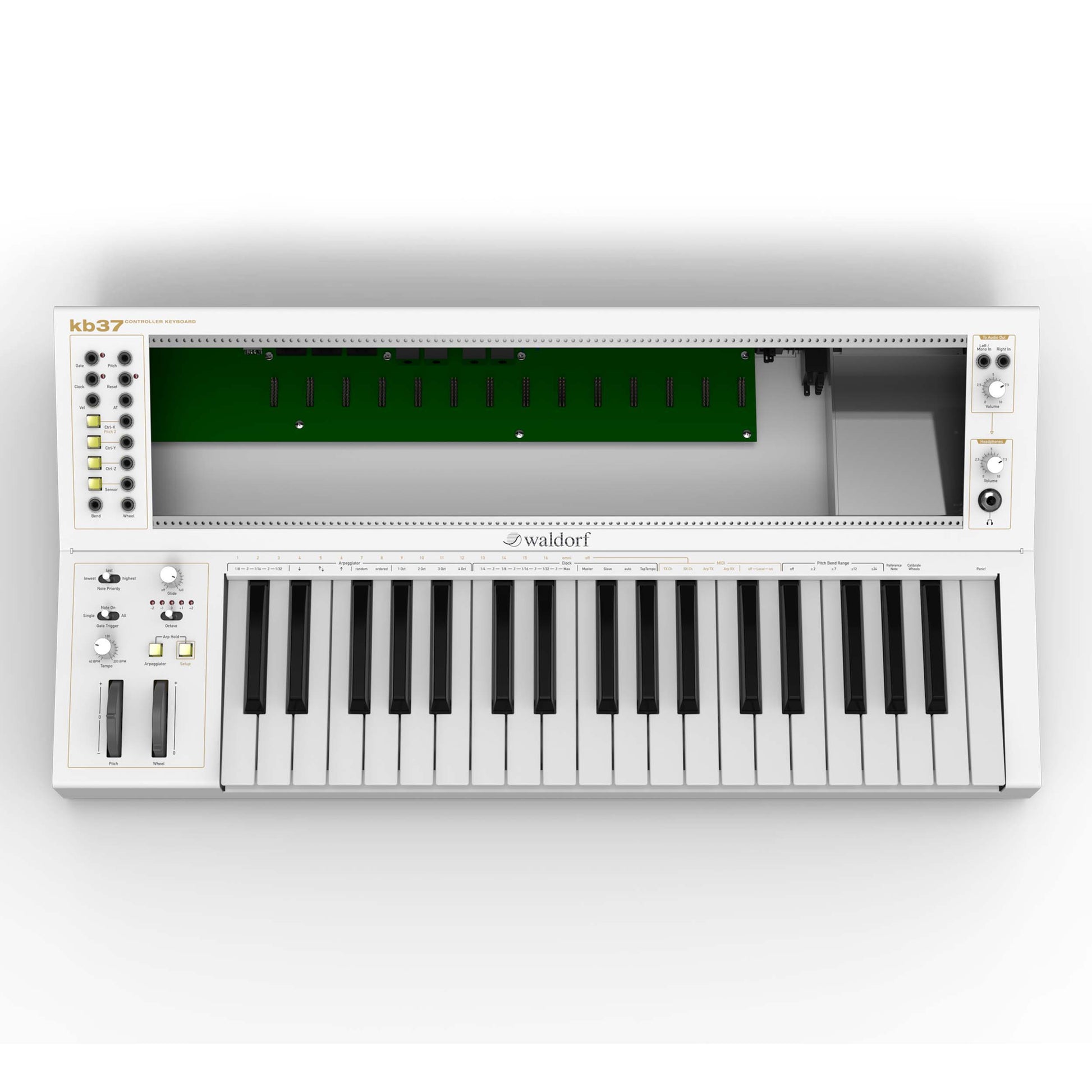

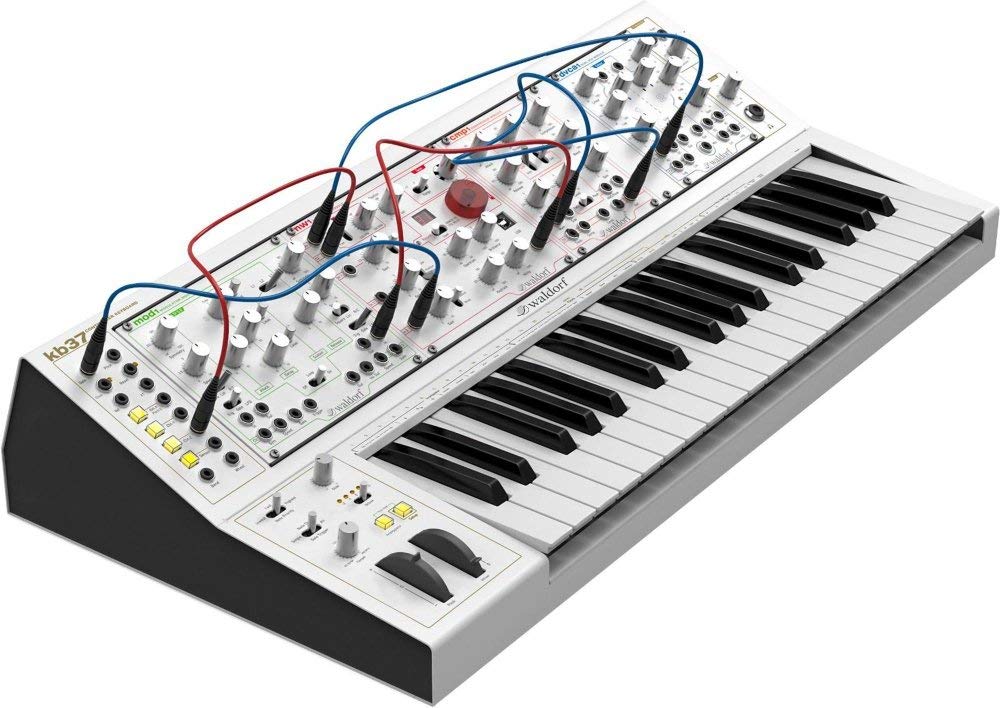

Waldorf kb37 Eurorack Controller Keyboard

Waldorf kb37 Eurorack Controller Keyboard

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

More and more synthesizer enthusiasts recognize the Eurorack as a huge playground for sound design. Collecting sound modules is like a “fun addiction” where the musician can precisely customize his setup as he goes along without spending a huge amount of money all at once. It’s a system that can grow over time into a massively versatile and totally flexible musical instrument.

Their developers came up with a keyboard that is both intuitive for the beginner and versatile for the professional. And it’s just as solid and elegant as all our instruments that we build here at Waldorf in Germany.

kb37 is a compact and rugged performance instrument. It can house up to 107 HP of modules in its conveniently angled panel that sits right on top of the super high-quality Fatar TP9 keyboard.

With its high-resolution and temperature stable 16-bit CV interface, it provides extremely flexible control for your modules. MIDI channels are programmable, making the kb37 the perfect partner for both studio and stage.

It provides perfect connectivity to all your modules to serve both the player and the sound designer’s desires with an array of real-time control elements such as pitch and mod wheels. The professional, full-sized 37-note keybed transmits velocity and aftertouch.

kb37 is compact and easy to transport just like any synthesizer keyboard to add style and reliability to your performing rig.



More Information
Product Name Waldorf kb37 Eurorack Controller Keyboard
Brand Waldorf
Condition New
MPN wkb37
UPC 4260126380813
Shipping Option Free Shipping to the Continental U.S.
  • Module space: 107 HP (543mm)
  • Max module depth: 65mm (92 HP), 25mm (rightmost 15 HP)
  • Built-in regulated power supply (+12V/1.5A, -12V/1.5A)
  • Headphone amplifier
  • Stereo line out amplifier
  • USB/MIDI control
  • Umpteen CV outputs
  • Arpeggiator
  • Duophonic mode
  • Clock Generator with Tap Tempo
  • Bus CV & Gate linkable to CV interface


Keyboard & Controls

  • Fatar TP9 37-keys keyboard with aftertouch
  • Pitchbend wheel
  • Modulation wheel
  • Glide control
  • Note priorities lowest, last, highest
  • Trigger modes Single, Note On, All
  • 5 Octaves selector


Front Panel Connections

  • Stereo audio inputs with volume control for line output
  • Headphones output with separate volume control
  • 9 Control Voltage outputs:
    - Pitch
    - Velocity
    - Aftertouch
    - Pitchbend wheel
    - Modwheel
    - Sensor CV output
    - 3 CV outputs for assignable MIDI controllers (one becomes secondary pitch in duophonic mode)
  • 3 Trigger outputs:
    - Gate
    - Clock
    - Reset

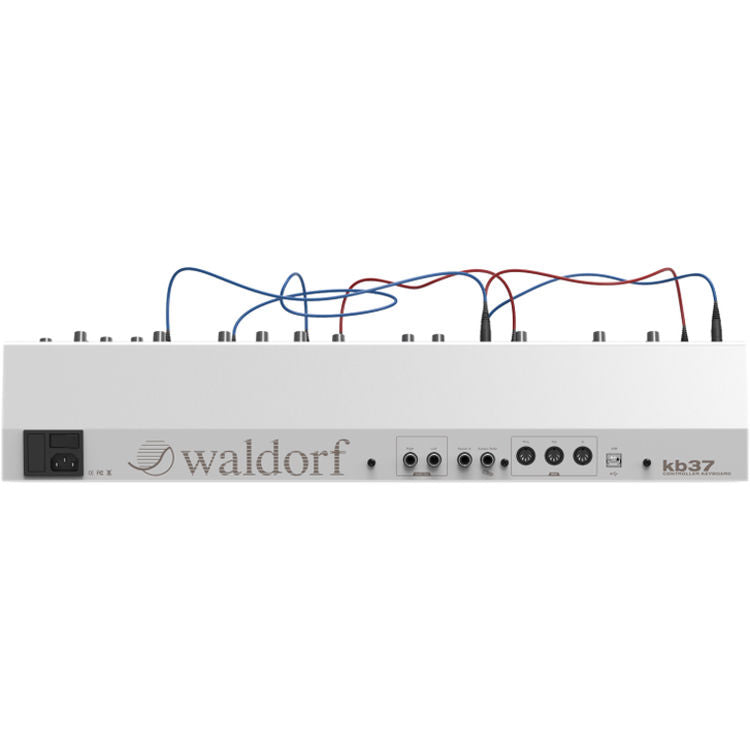

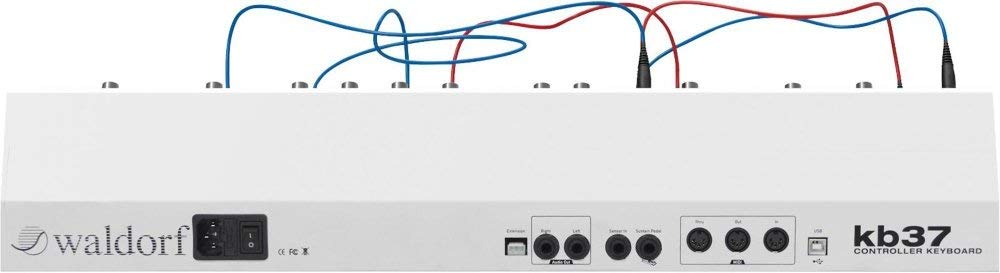

Rear Panel Connections

  • USB with optical insulation
  • MIDI In, Out, Thru
  • Sustain pedal input
  • Sensor/pedal input
  • Stereo line outputs
  • Expansion connector

Waldorf kb37 Eurorack Controller Keyboard

Details

More and more synthesizer enthusiasts recognize the Eurorack as a huge playground for sound design. Collecting sound modules is like a “fun addiction” where the musician can precisely customize his setup as he goes along without spending a huge amount of money all at once. It’s a system that can grow over time into a massively versatile and totally flexible musical instrument.

Their developers came up with a keyboard that is both intuitive for the beginner and versatile for the professional. And it’s just as solid and elegant as all our instruments that we build here at Waldorf in Germany.

kb37 is a compact and rugged performance instrument. It can house up to 107 HP of modules in its conveniently angled panel that sits right on top of the super high-quality Fatar TP9 keyboard.

With its high-resolution and temperature stable 16-bit CV interface, it provides extremely flexible control for your modules. MIDI channels are programmable, making the kb37 the perfect partner for both studio and stage.

It provides perfect connectivity to all your modules to serve both the player and the sound designer’s desires with an array of real-time control elements such as pitch and mod wheels. The professional, full-sized 37-note keybed transmits velocity and aftertouch.

kb37 is compact and easy to transport just like any synthesizer keyboard to add style and reliability to your performing rig.



More Information
Product Name Waldorf kb37 Eurorack Controller Keyboard
Brand Waldorf
Condition New
MPN wkb37
UPC 4260126380813
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
  • Module space: 107 HP (543mm)
  • Max module depth: 65mm (92 HP), 25mm (rightmost 15 HP)
  • Built-in regulated power supply (+12V/1.5A, -12V/1.5A)
  • Headphone amplifier
  • Stereo line out amplifier
  • USB/MIDI control
  • Umpteen CV outputs
  • Arpeggiator
  • Duophonic mode
  • Clock Generator with Tap Tempo
  • Bus CV & Gate linkable to CV interface


Keyboard & Controls

  • Fatar TP9 37-keys keyboard with aftertouch
  • Pitchbend wheel
  • Modulation wheel
  • Glide control
  • Note priorities lowest, last, highest
  • Trigger modes Single, Note On, All
  • 5 Octaves selector


Front Panel Connections

  • Stereo audio inputs with volume control for line output
  • Headphones output with separate volume control
  • 9 Control Voltage outputs:
    - Pitch
    - Velocity
    - Aftertouch
    - Pitchbend wheel
    - Modwheel
    - Sensor CV output
    - 3 CV outputs for assignable MIDI controllers (one becomes secondary pitch in duophonic mode)
  • 3 Trigger outputs:
    - Gate
    - Clock
    - Reset


Rear Panel Connections

  • USB with optical insulation
  • MIDI In, Out, Thru
  • Sustain pedal input
  • Sensor/pedal input
  • Stereo line outputs
  • Expansion connector
