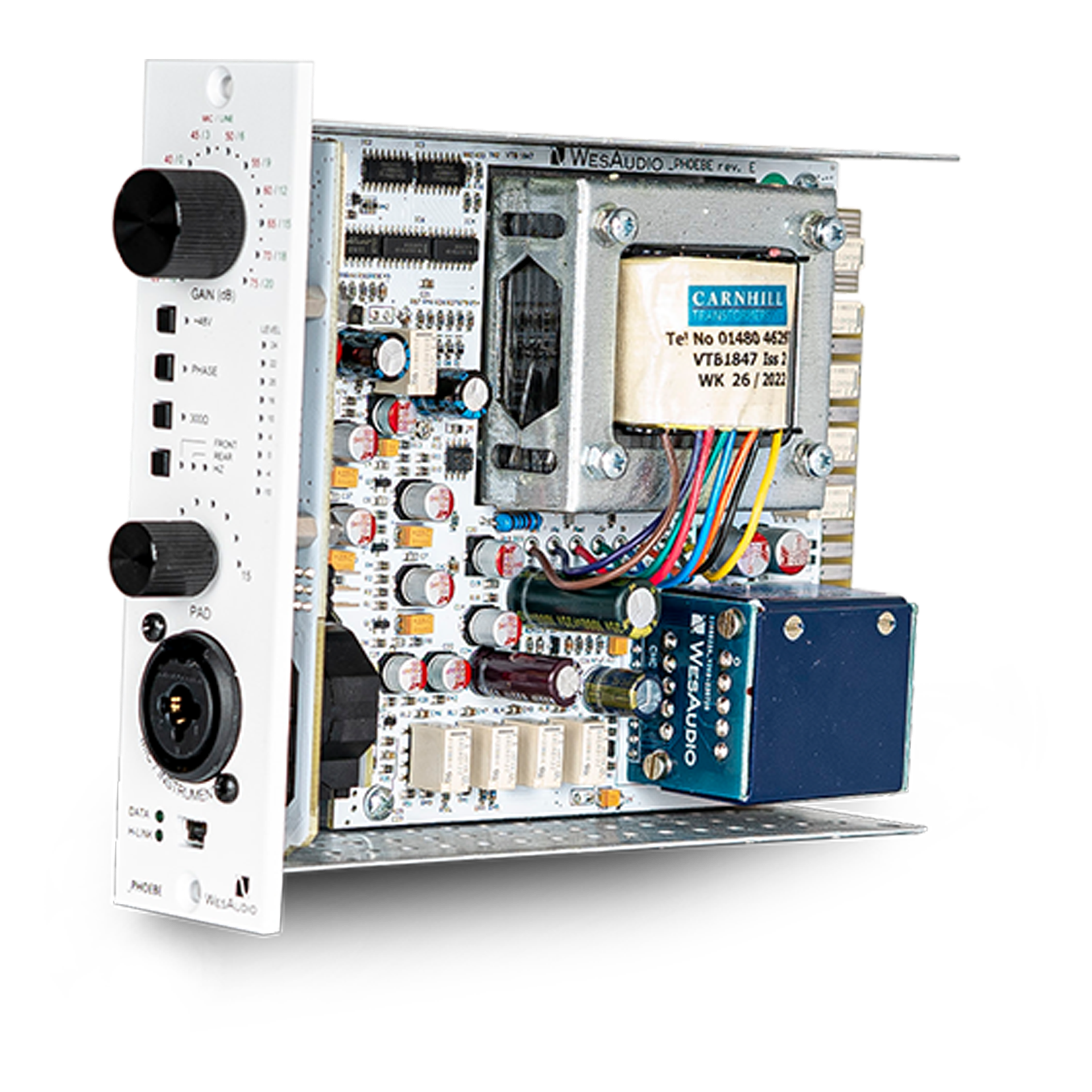

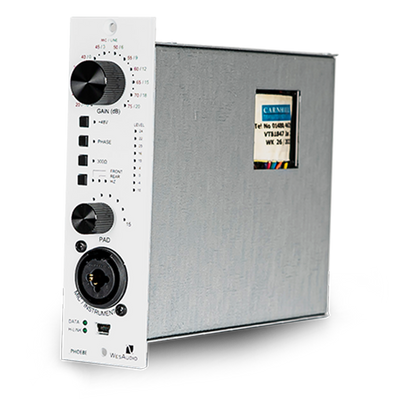

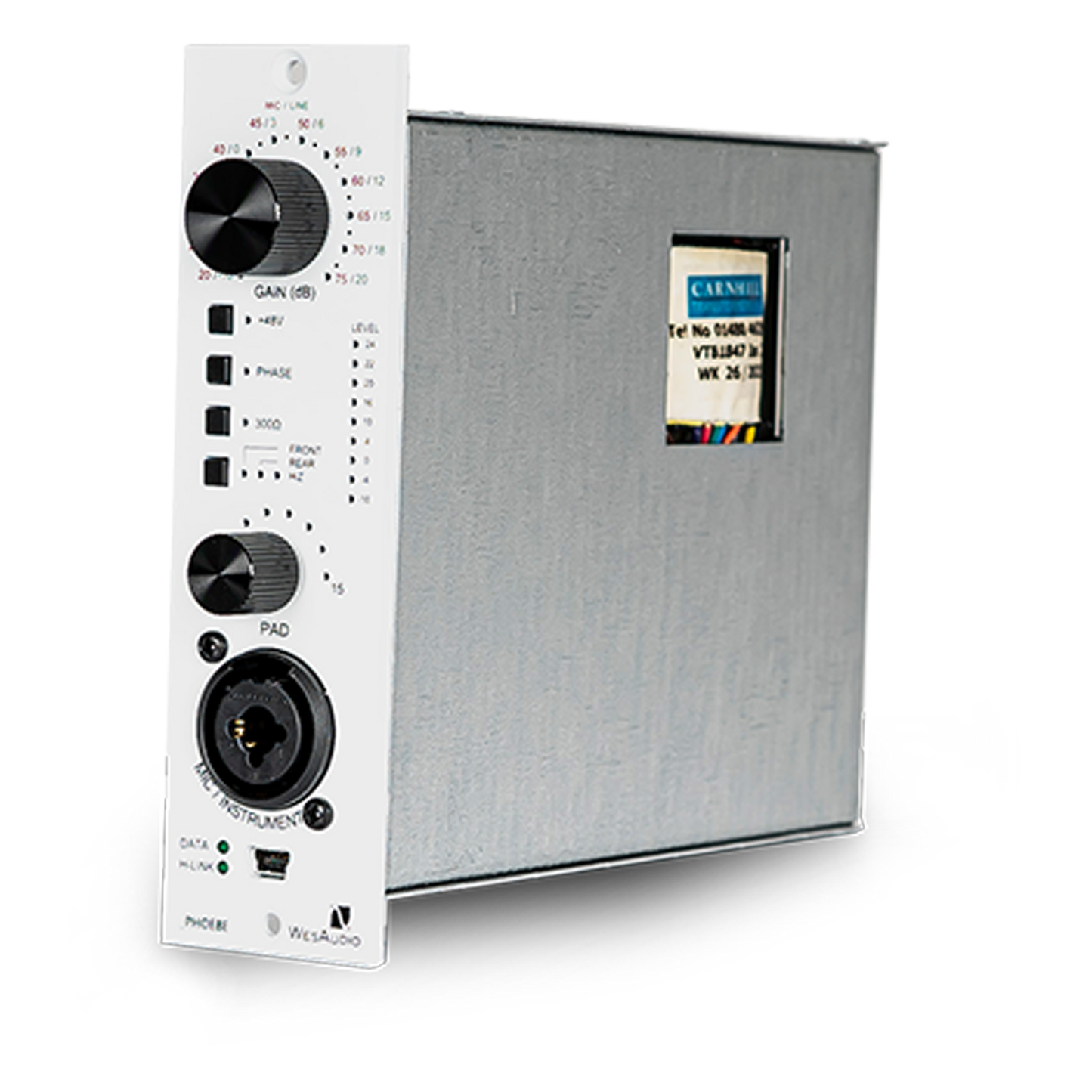

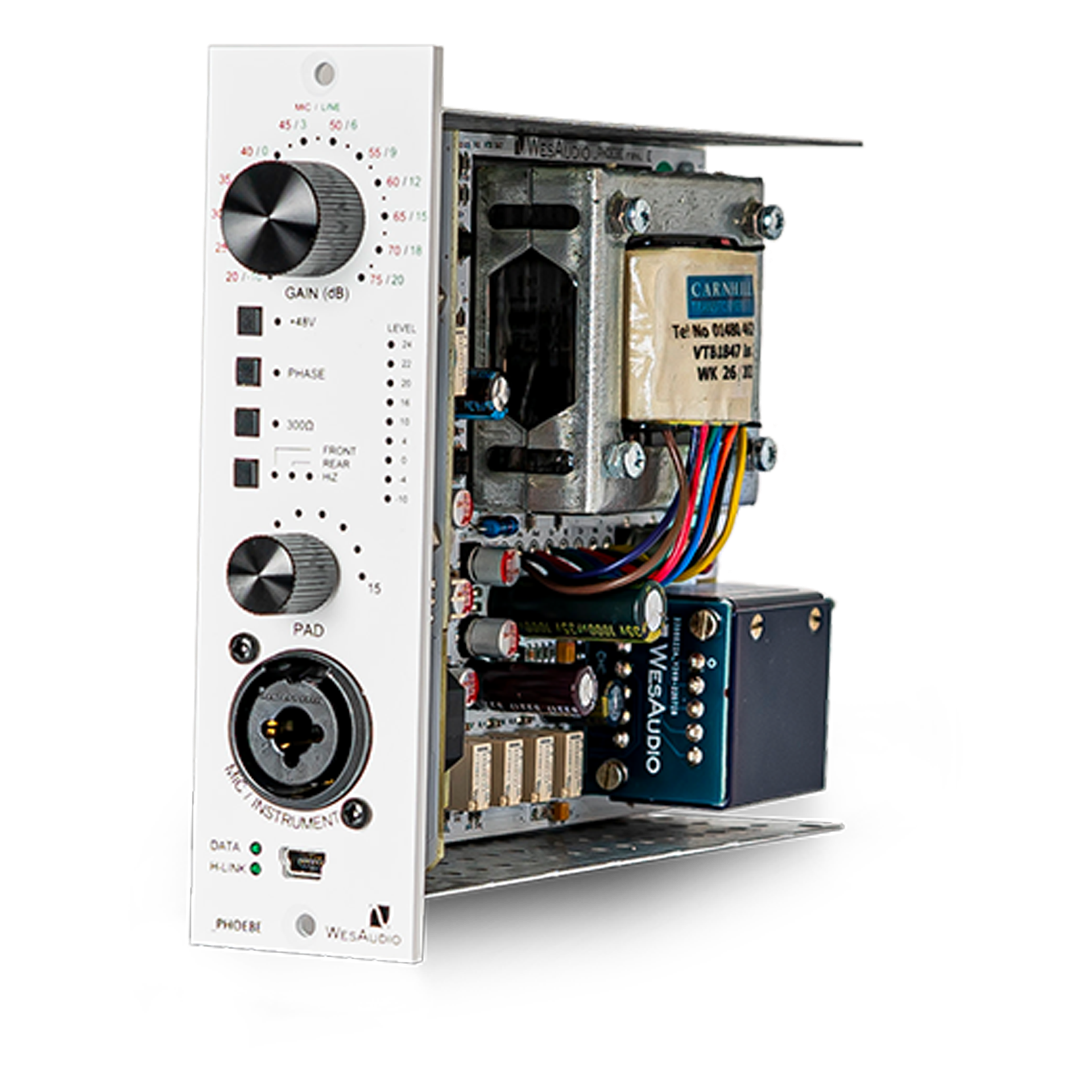

WesAudio Phoebe 500-Series Class A Microphone Preamp with Digital Recall

WesAudio Phoebe 500-Series Class A Microphone Preamp with Digital Recall

$999.00
$999.00
Sale Sold out

+ Free Shipping

Blink Image Blink Image

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

NG500 Class A preamplifier with digital recall

The most notable style of Microphone preamplifiers now integrated with a digital workflow. Dual amp vintage design with most demanded modern features! We are proud to present _PHOEBE – NG500 fully analog, Class A microphone/line/instrument preamplifier with digital recall.

Audio signal is processed only via analog components!

More Information
Product Name WesAudio Phoebe 500-Series Class A Microphone Preamp with Digital Recall
Shipping Option Free Shipping to the Continental U.S.
  • 100% analog microphone/line preamp with +28dBu of headroom.
  • Class A fully analog – inspired by famous British design based on dual amp topology.
  • Microphone gain up to 75dB.

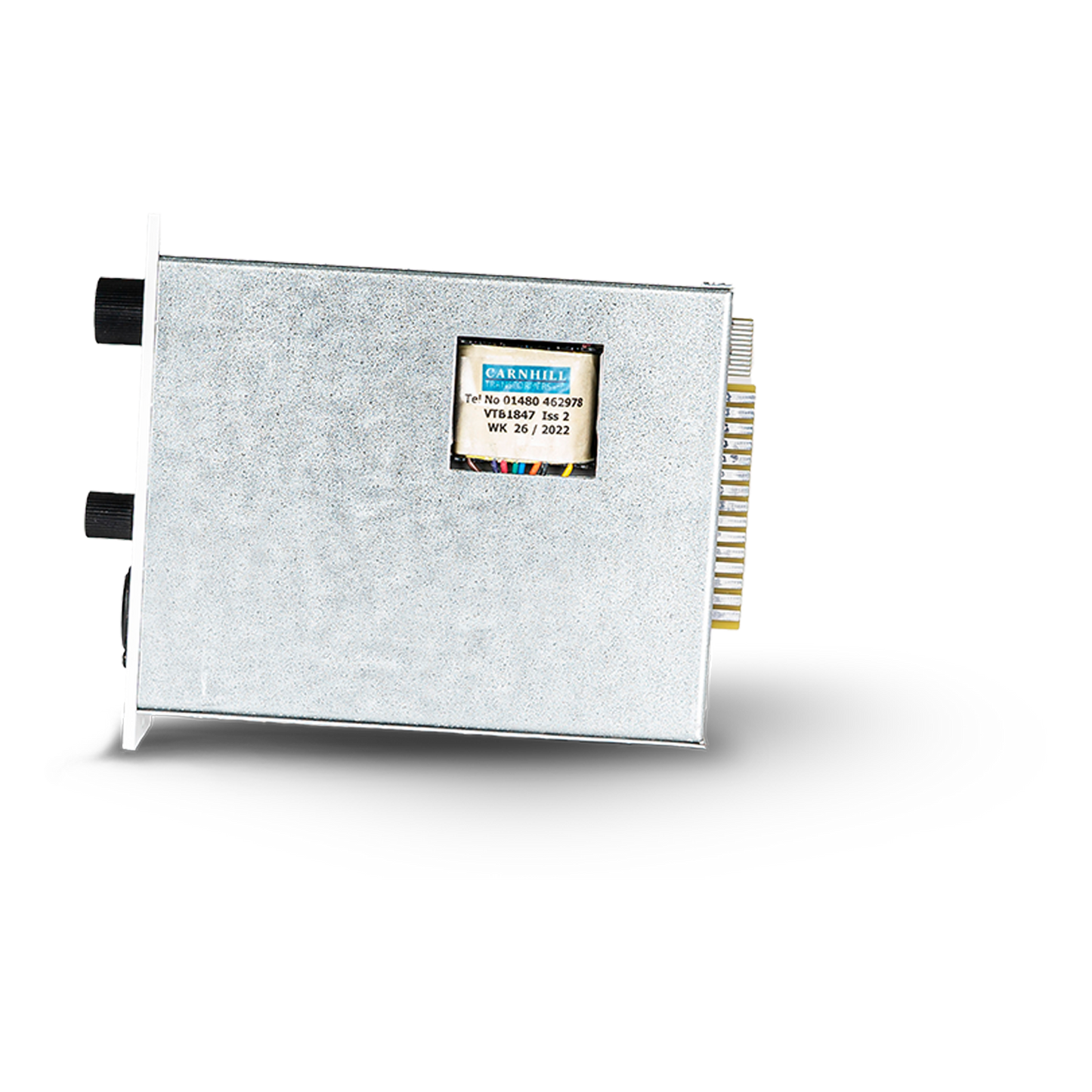

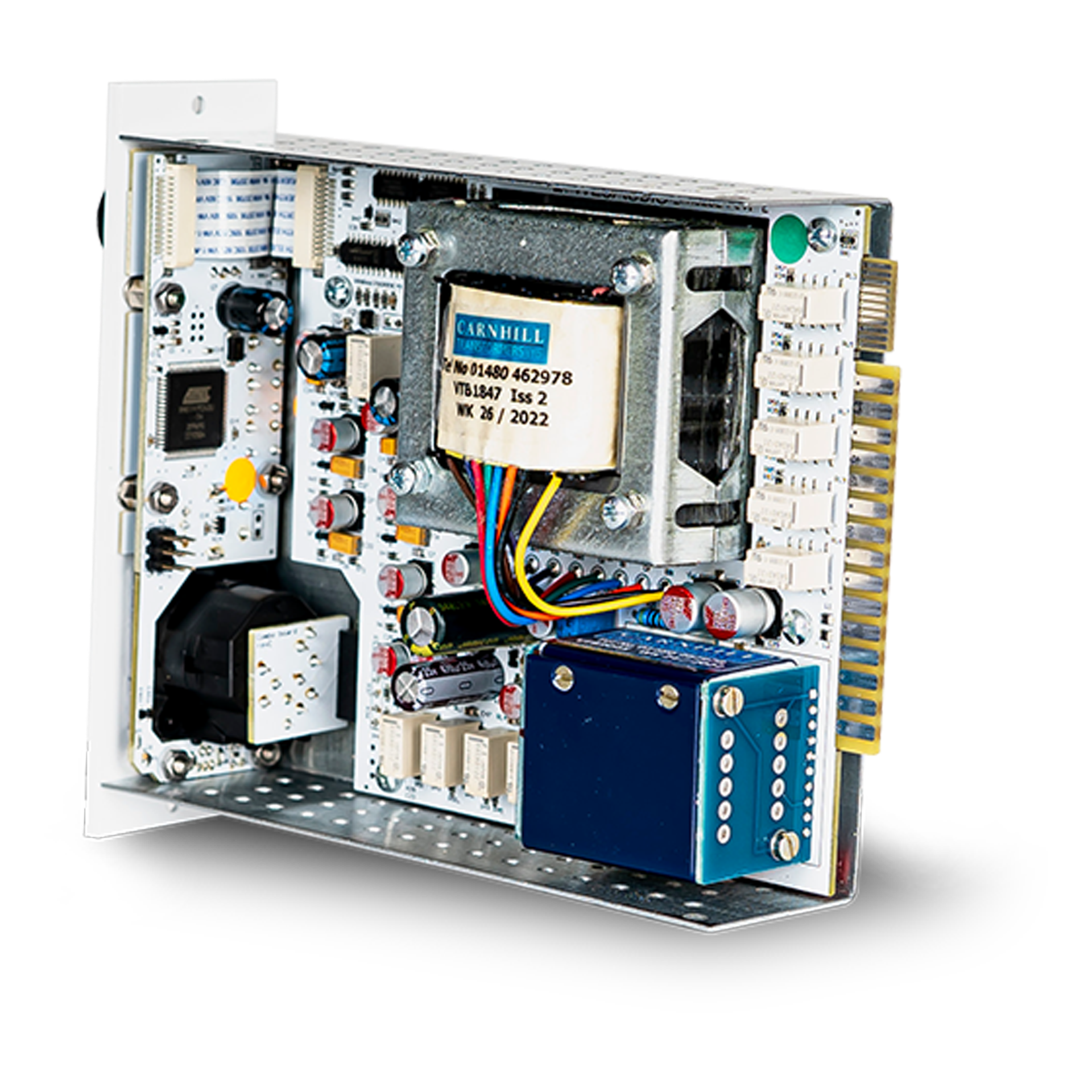

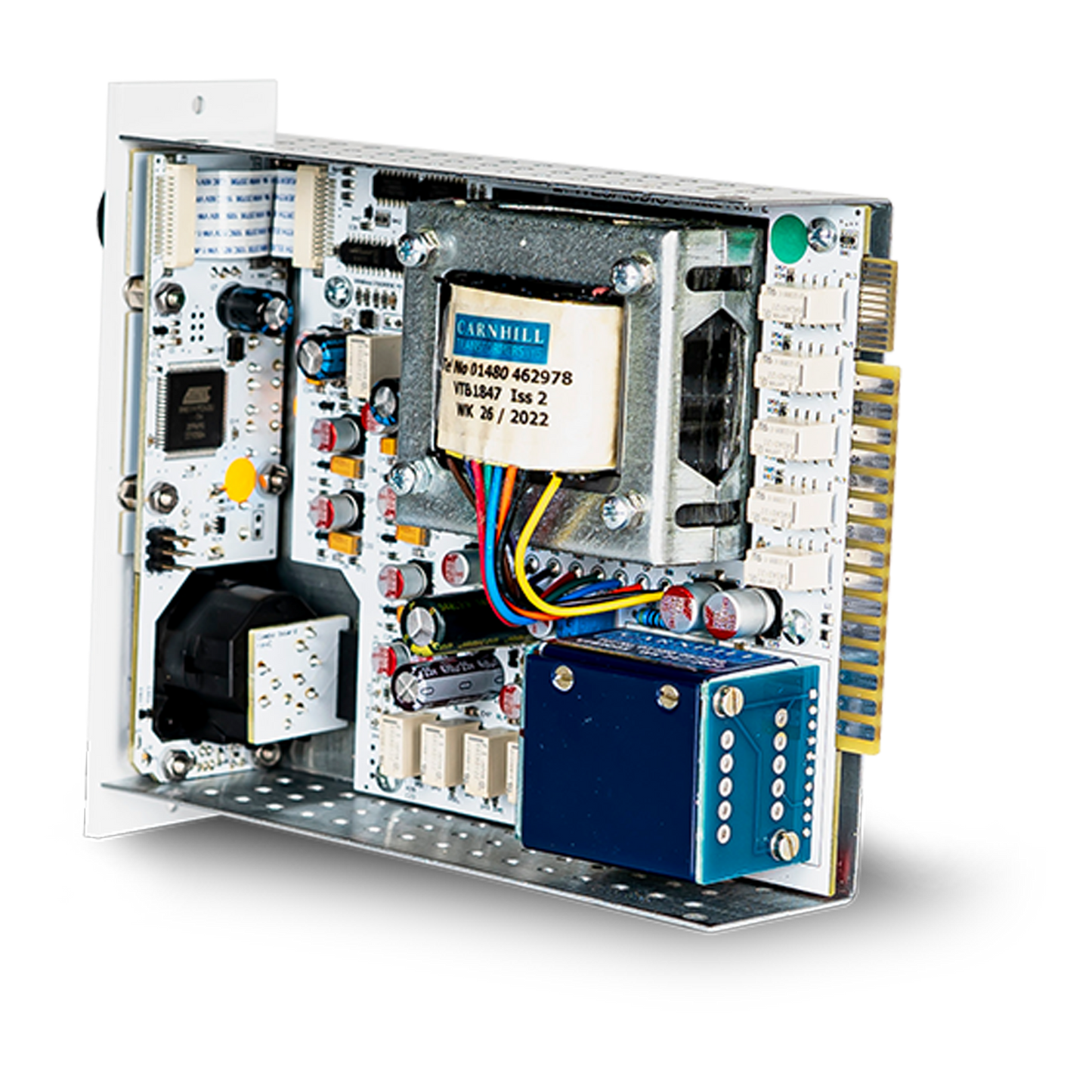

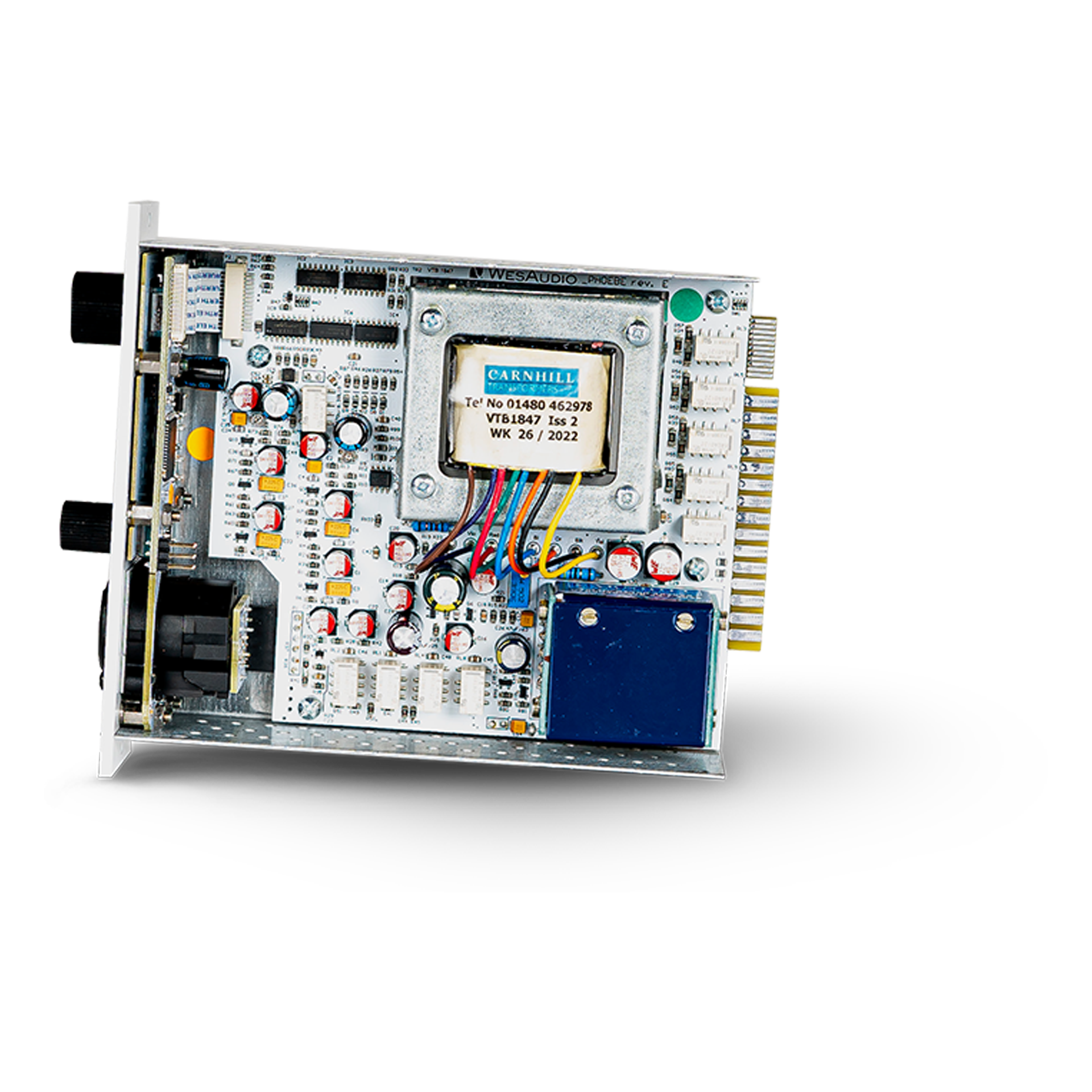

  • Carnhill Transformers (input and output).
  • Output signal metering on the front panel with clip detection.
  • Phantom power and phase invert control.
  • Switchable impedance input (1200/300Ohm).
  • All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.
  • 15dB OUTPUT PAD – passive output attenuation circuit with 1 dB step. (after the output transformer).

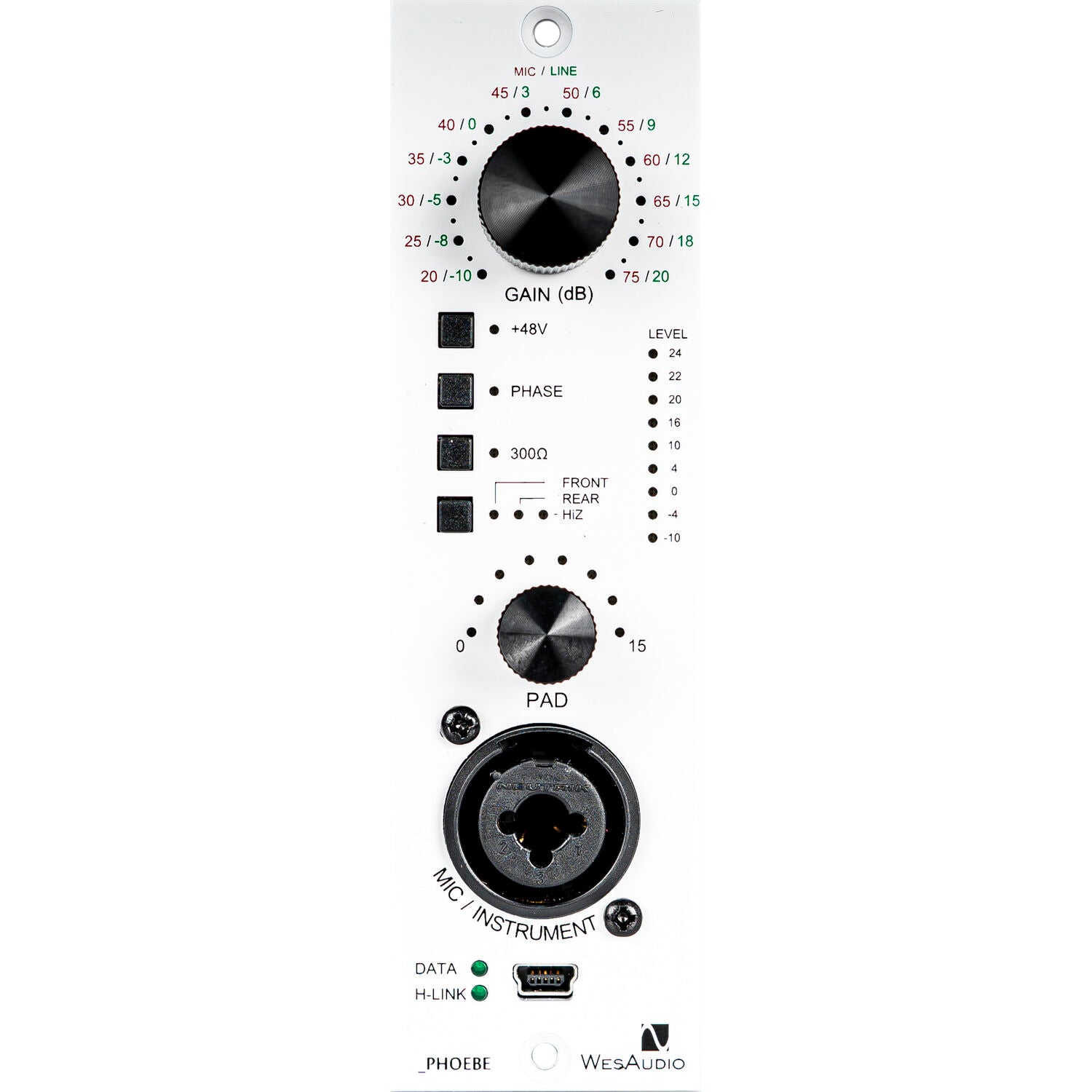

  • Front panel XLR/TS socket which supports – HiZ instrument input (TS), line input (XLR), microphone input (XLR).
  • Recallable signal source to be either back XLR Socket, or front panel XLR/TS socket.
  • 500 series and ng500 (e.g. _TITAN) series compatible.
  • Total Recall and plugin control compatible with most DAWs.
  • Analog automation in DAW.
  • Fully digitally controlled and isolated analog circuit;
  • Digital recall can be achieved by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis;
  • Accurate analogue Output signal metering with clip detection and its precise simulation implemented in the plug-in itself;
  • Free software and firmware upgrades.
Frequency response +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz
Distortion 0.005% at 1kHz at +20dBu output
Line input impedance 5.5k ohm bridging
Microphone input impedance 300/1200 ohm
Noise unity gain (better than -100dbU) Max gain +75dB (better than -70dbU)
EIN better than -120dB
Max power consumption 170mA(+16V); 100mA(-16V)
Dimensions 38x133x145mm

WesAudio Phoebe 500-Series Class A Microphone Preamp with Digital Recall
Details

NG500 Class A preamplifier with digital recall

The most notable style of Microphone preamplifiers now integrated with a digital workflow. Dual amp vintage design with most demanded modern features! We are proud to present _PHOEBE – NG500 fully analog, Class A microphone/line/instrument preamplifier with digital recall.

Audio signal is processed only via analog components!

More Information
Product Name WesAudio Phoebe 500-Series Class A Microphone Preamp with Digital Recall
Shipping Option Free Shipping to the Continental U.S.
Features
  • 100% analog microphone/line preamp with +28dBu of headroom.
  • Class A fully analog – inspired by famous British design based on dual amp topology.
  • Microphone gain up to 75dB.
  • Carnhill Transformers (input and output).
  • Output signal metering on the front panel with clip detection.
  • Phantom power and phase invert control.
  • Switchable impedance input (1200/300Ohm).
  • All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.
  • 15dB OUTPUT PAD – passive output attenuation circuit with 1 dB step. (after the output transformer).
  • Front panel XLR/TS socket which supports – HiZ instrument input (TS), line input (XLR), microphone input (XLR).
  • Recallable signal source to be either back XLR Socket, or front panel XLR/TS socket.
  • 500 series and ng500 (e.g. _TITAN) series compatible.
  • Total Recall and plugin control compatible with most DAWs.
  • Analog automation in DAW.
  • Fully digitally controlled and isolated analog circuit;
  • Digital recall can be achieved by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis;
  • Accurate analogue Output signal metering with clip detection and its precise simulation implemented in the plug-in itself;
  • Free software and firmware upgrades.
Tech Specs
Frequency response +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz
Distortion 0.005% at 1kHz at +20dBu output
Line input impedance 5.5k ohm bridging
Microphone input impedance 300/1200 ohm
Noise unity gain (better than -100dbU) Max gain +75dB (better than -70dbU)
EIN better than -120dB
Max power consumption 170mA(+16V); 100mA(-16V)
Dimensions 38x133x145mm
