*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

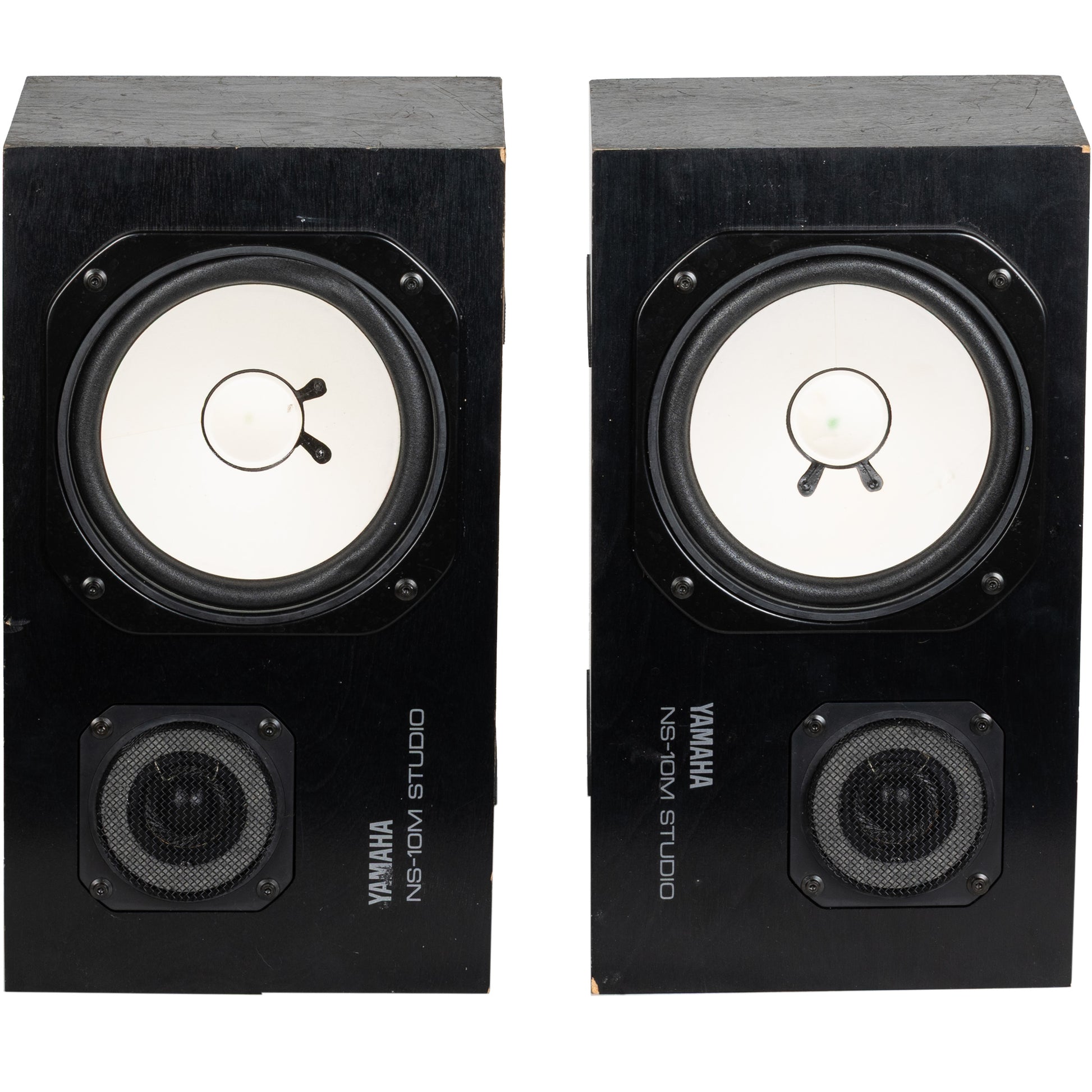

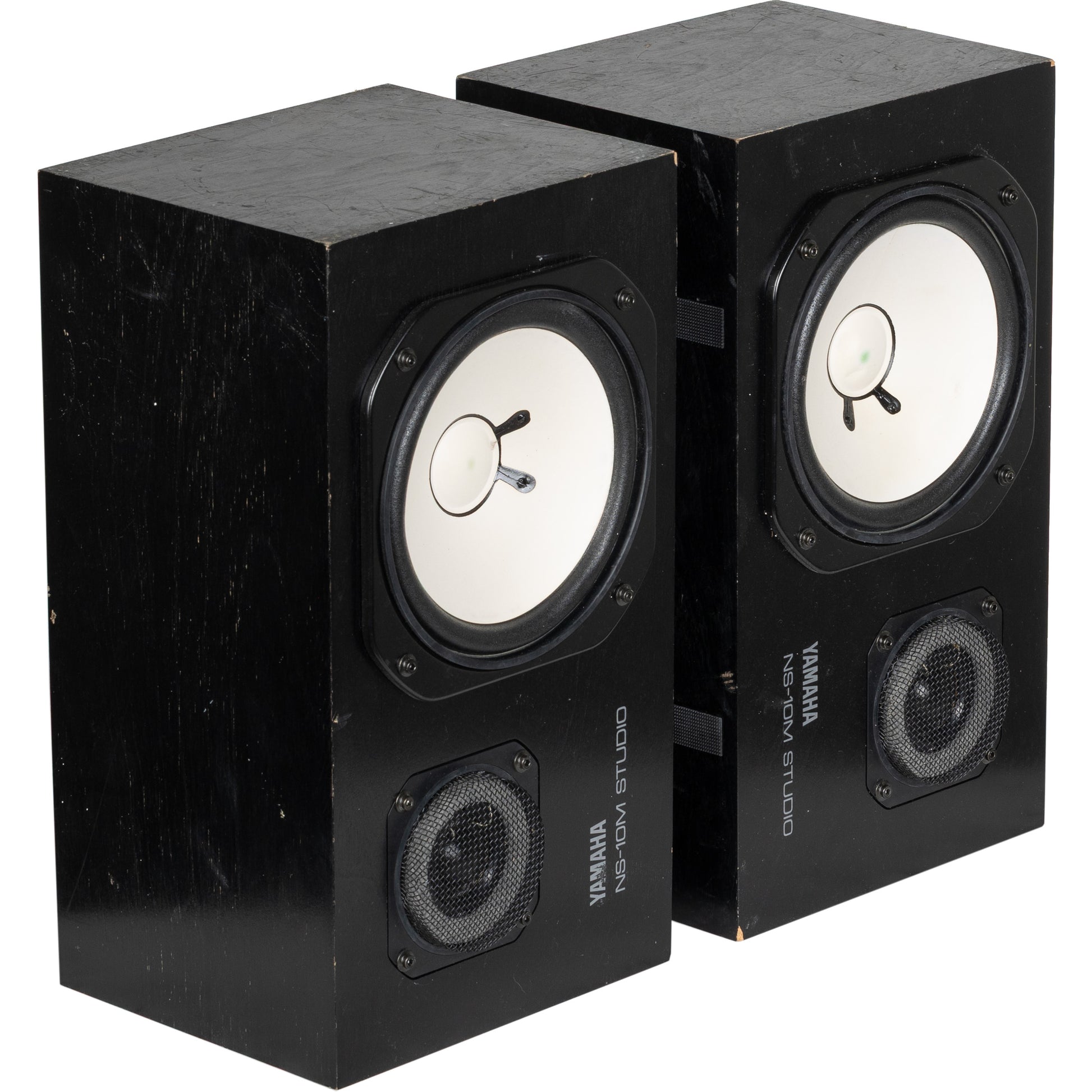

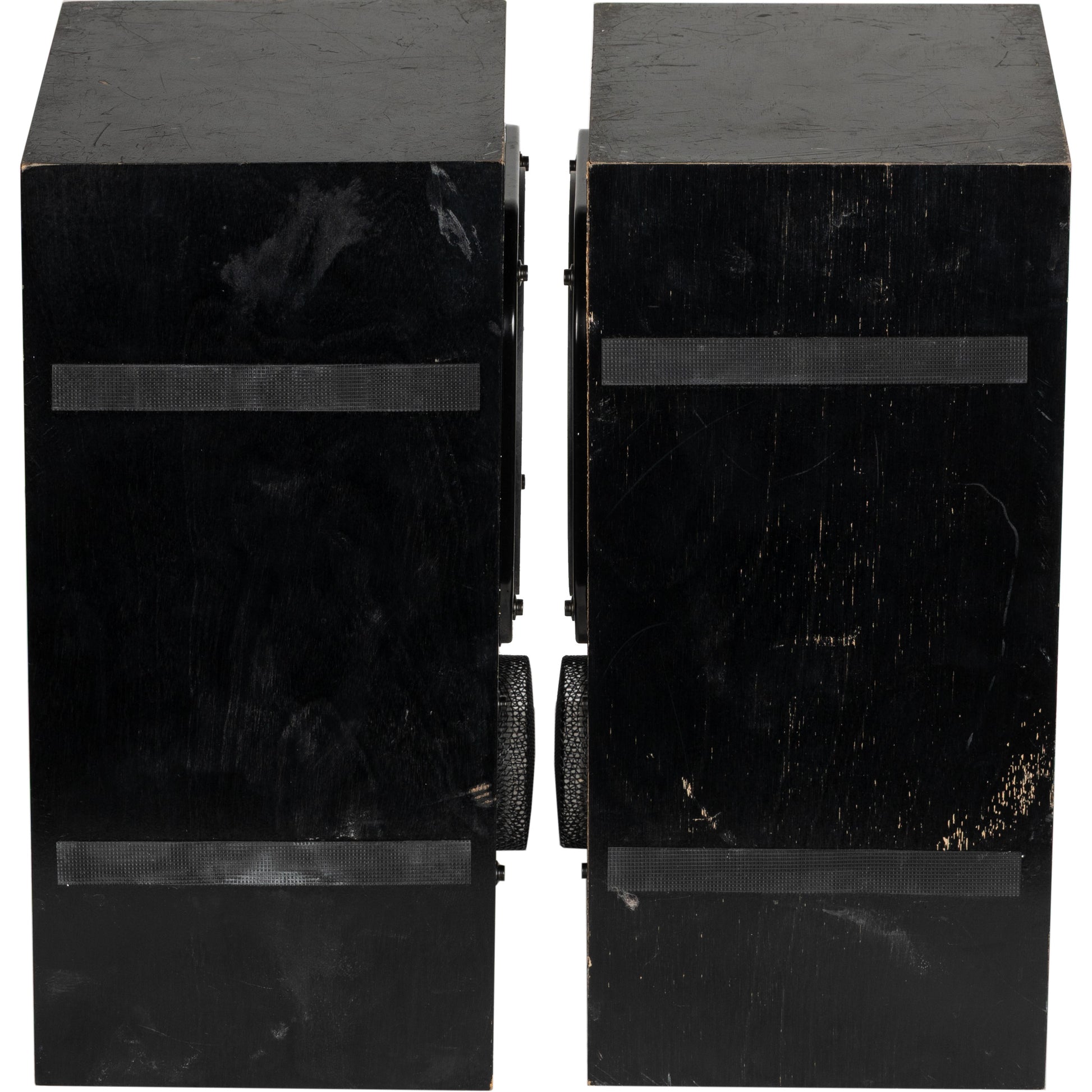

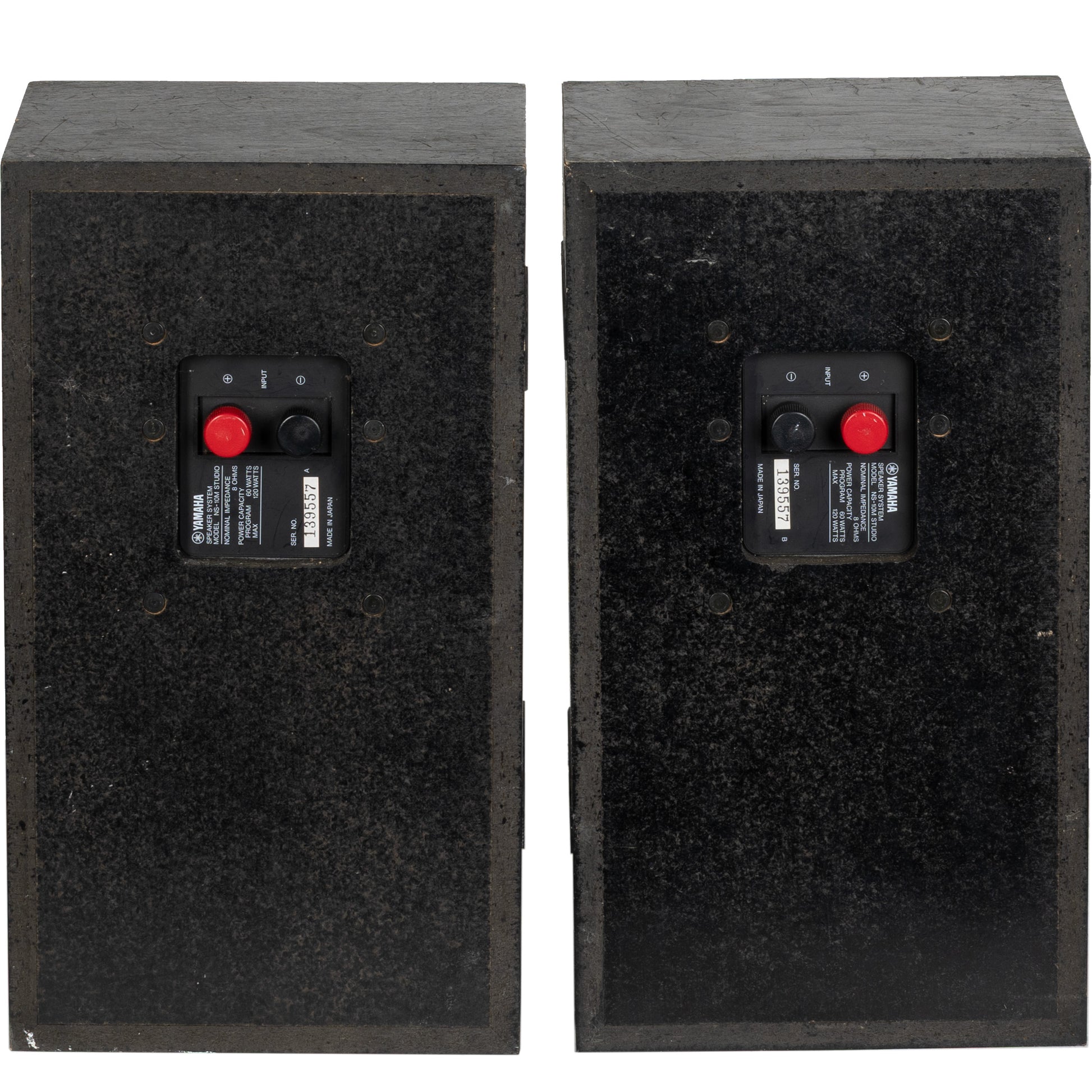

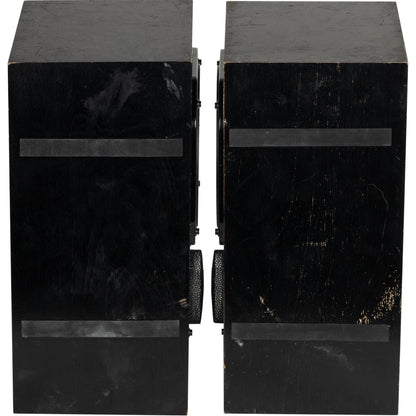

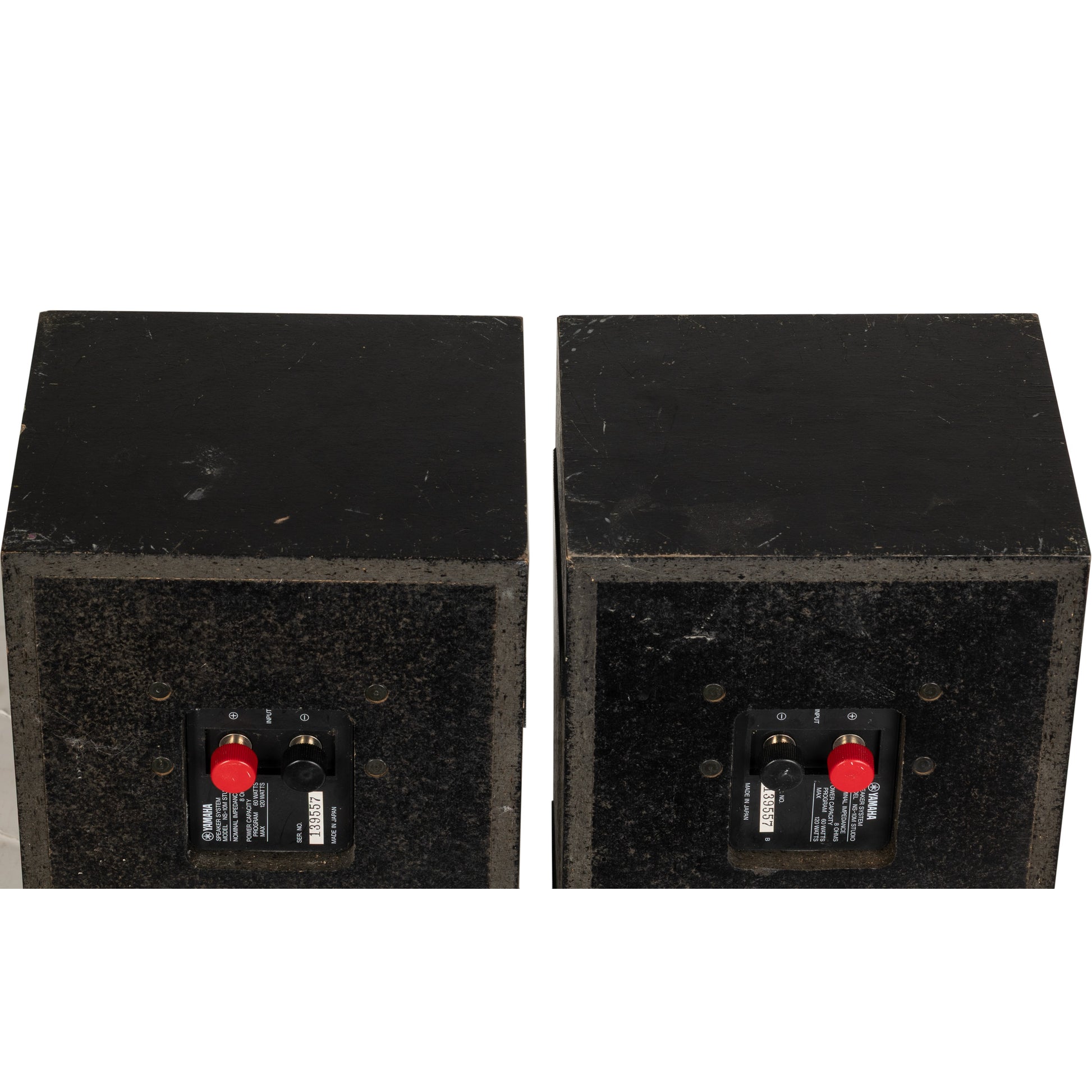

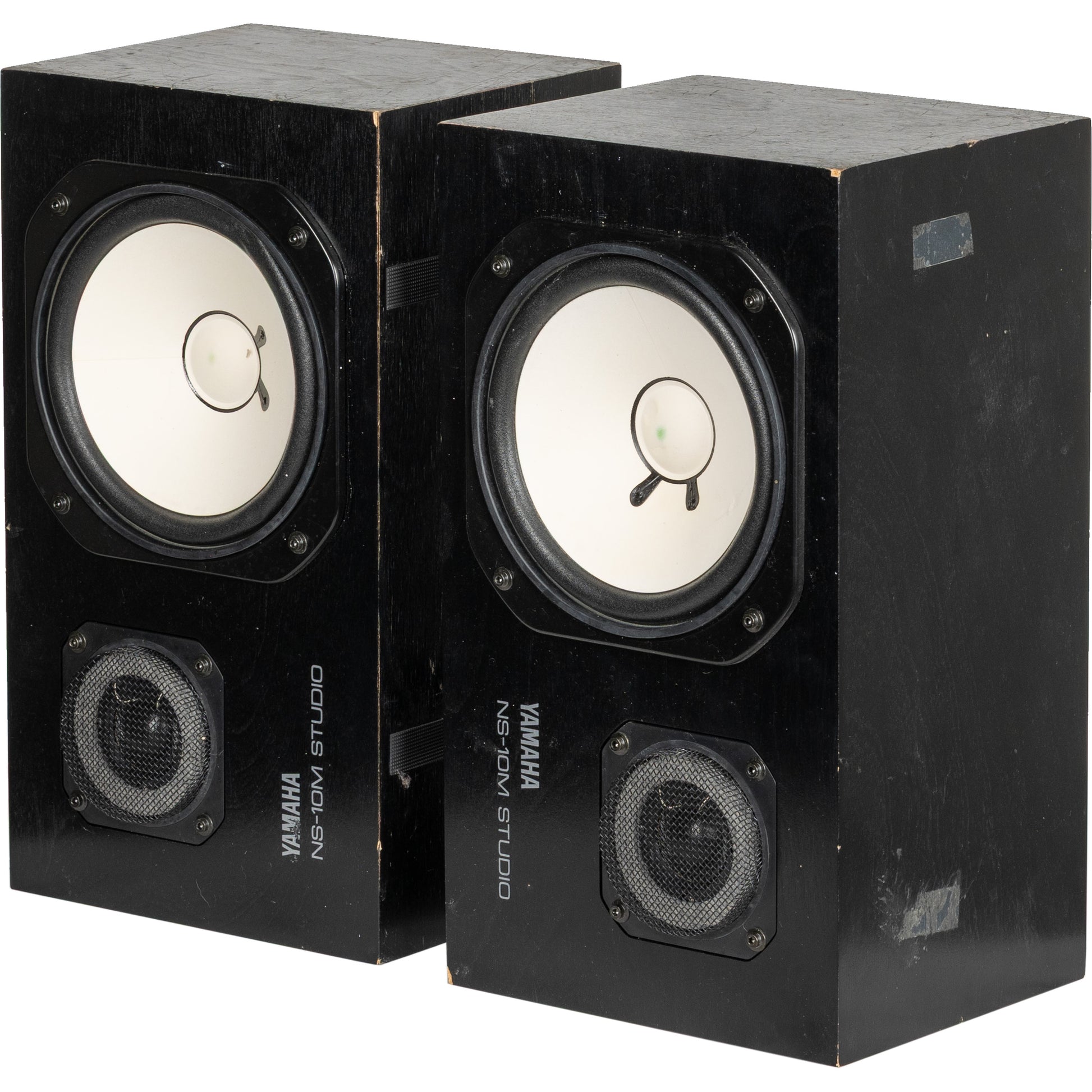

The Yamaha NS-10M Studio is an iconic, passive 2-way nearfield monitor. Revered as an industry standard since 1978, it is celebrated for its brutally honest midrange and fast transient response. This unforgiving sonic profile ensures that mixes created on them translate reliably across all playback systems.
| Product Name | Yamaha NS-10M Studio Passive Monitors - Pair |
|---|---|
| Brand | Yamaha |
| Condition | Pre-Owned |
| MPN | NS10M |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Yamaha NS-10M Studio Passive Monitors - Pair
- Bass driver: 18 cm woofer (JA-1801)
- High driver: 3.5 cm soft dome tweeter (JA0518)
- Crossover frequency: 2 Khz (12dB/octave)
- Frequency response: 85 Hz - 20 kHz
- Nominal impedance: 8 Ohm
- Nominal power input: 25W
- Maximum power input: 50W
- SPL (sensitivity): 90 dB/m-W
- Dimensions: 38 x 21.5 x 20 cm
- Sealed cabinet
- Vertical orientation
- Rounded metal tweeter grille
- Mounting holes for grille cloth/cover
- Spring-loaded wire terminals
- Weight (each) 13lbs 4oz
Specifications |
|
|---|---|
| System Type | 2-way acoustic suspension (sealed enclosure) |
| Frequency Range | 60 Hz to 20 kHz |
| Nominal Impedance | 8 ohms |
| Sensitivity / SPL | 90 dB (1W, 1m on axis) |
| Power Capacity | 60W (Nominal/Program), 120W (Maximum) |
| Crossover Frequency | 2 kHz (12dB/octave) |
| Low-Frequency Driver (Woofer) | 18 cm (7-inch) paper cone (JA1801) |
| High-Frequency Driver (Tweeter) | 3.5 cm (1.37-inch) soft dome (JA0518A) |
Yamaha NS-10M Studio Passive Monitors - Pair
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The Yamaha NS-10M Studio is an iconic, passive 2-way nearfield monitor. Revered as an industry standard since 1978, it is celebrated for its brutally honest midrange and fast transient response. This unforgiving sonic profile ensures that mixes created on them translate reliably across all playback systems.
| Product Name | Yamaha NS-10M Studio Passive Monitors - Pair |
|---|---|
| Brand | Yamaha |
| Condition | Pre-Owned |
| MPN | NS10M |
What's in the Box?
Yamaha NS-10M Studio Passive Monitors - Pair- Bass driver: 18 cm woofer (JA-1801)
- High driver: 3.5 cm soft dome tweeter (JA0518)
- Crossover frequency: 2 Khz (12dB/octave)
- Frequency response: 85 Hz - 20 kHz
- Nominal impedance: 8 Ohm
- Nominal power input: 25W
- Maximum power input: 50W
- SPL (sensitivity): 90 dB/m-W
- Dimensions: 38 x 21.5 x 20 cm
- Sealed cabinet
- Vertical orientation
- Rounded metal tweeter grille
- Mounting holes for grille cloth/cover
- Spring-loaded wire terminals
- Weight (each) 13lbs 4oz
Specifications |
|
|---|---|
| System Type | 2-way acoustic suspension (sealed enclosure) |
| Frequency Range | 60 Hz to 20 kHz |
| Nominal Impedance | 8 ohms |
| Sensitivity / SPL | 90 dB (1W, 1m on axis) |
| Power Capacity | 60W (Nominal/Program), 120W (Maximum) |
| Crossover Frequency | 2 kHz (12dB/octave) |
| Low-Frequency Driver (Woofer) | 18 cm (7-inch) paper cone (JA1801) |
| High-Frequency Driver (Tweeter) | 3.5 cm (1.37-inch) soft dome (JA0518A) |
