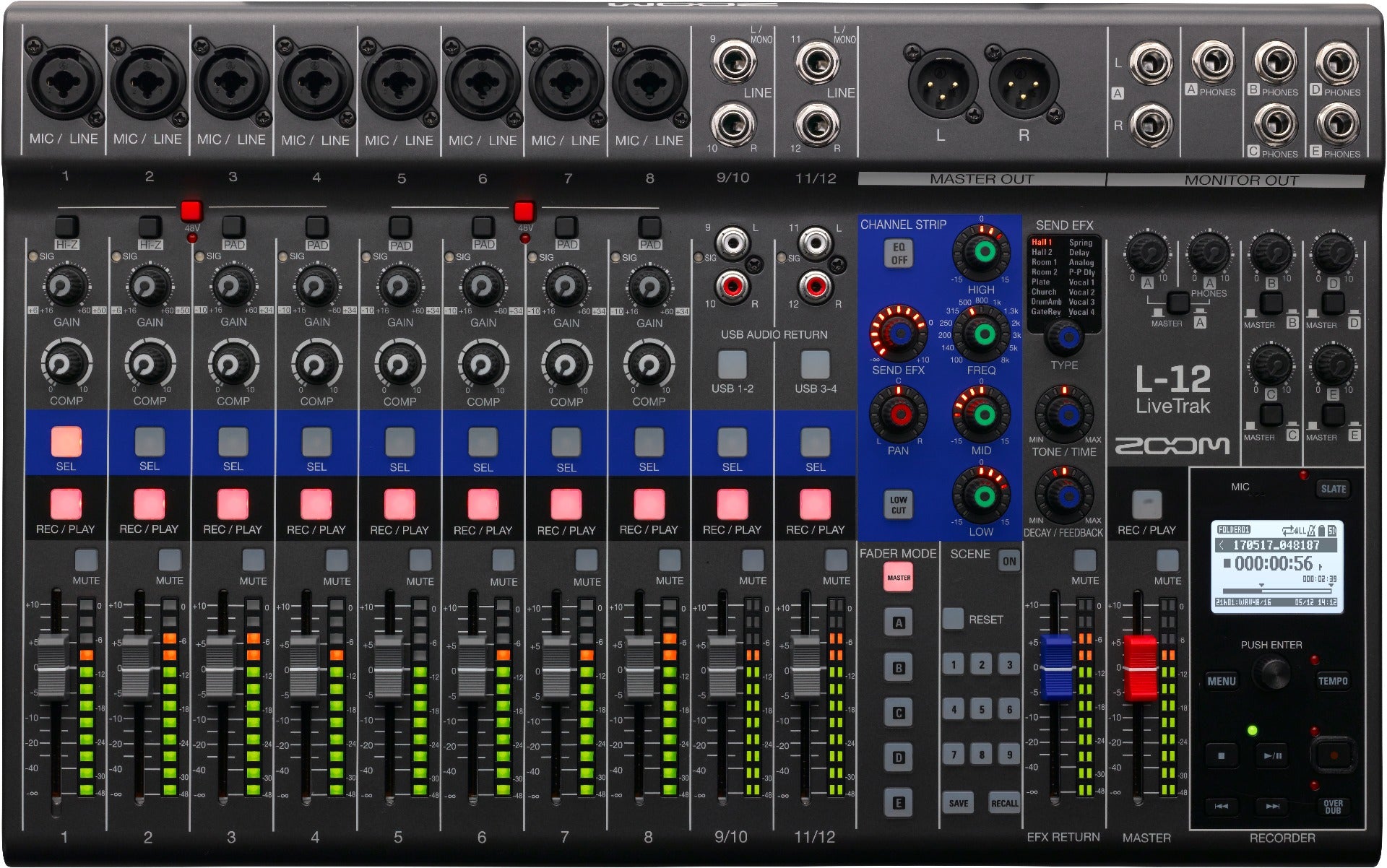

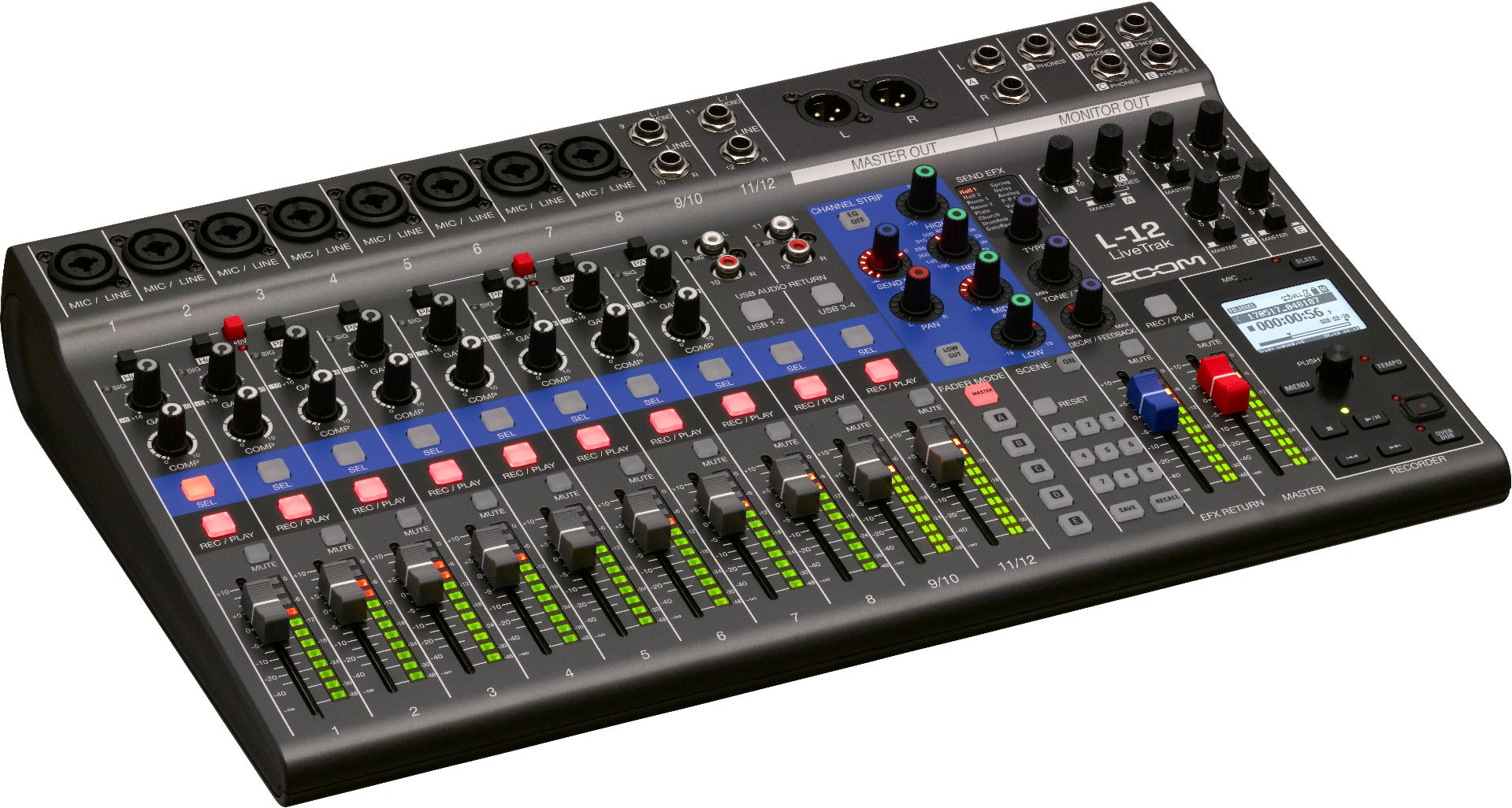

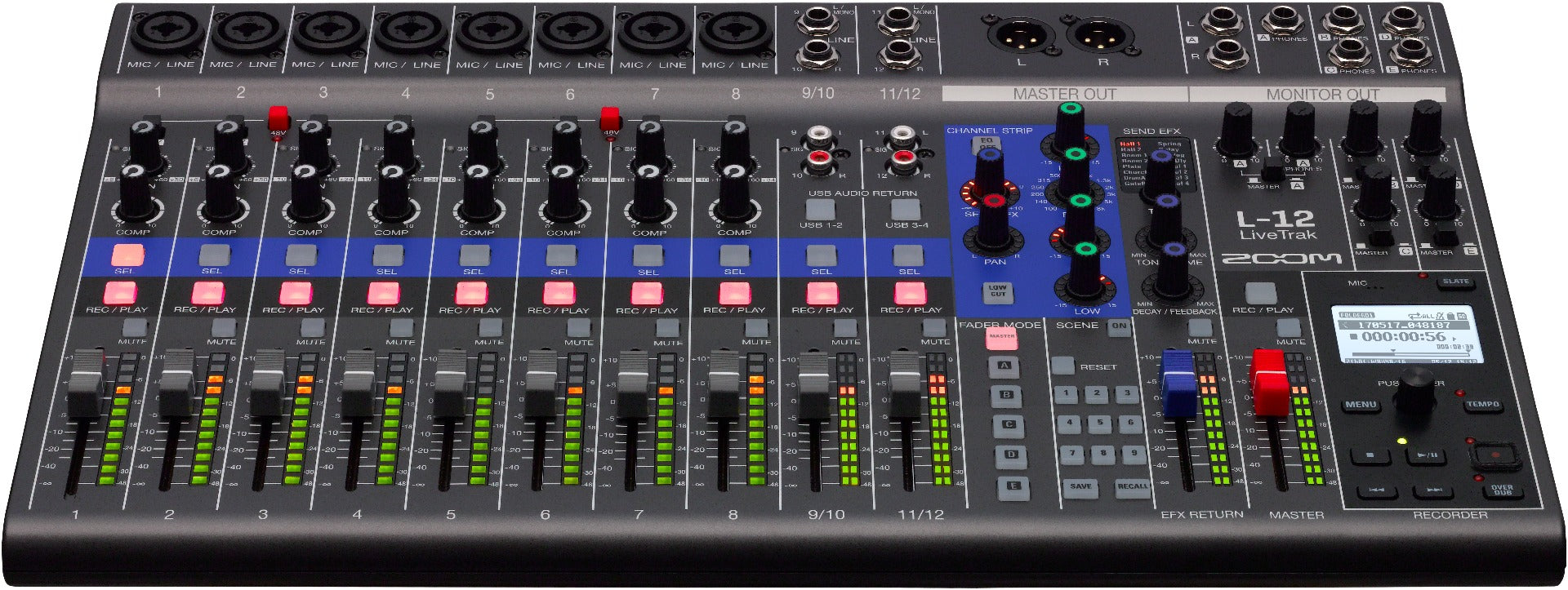

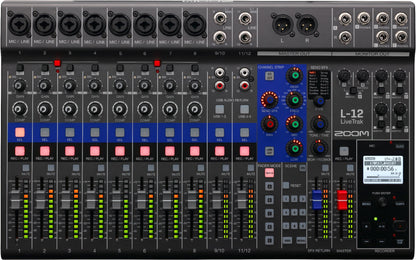

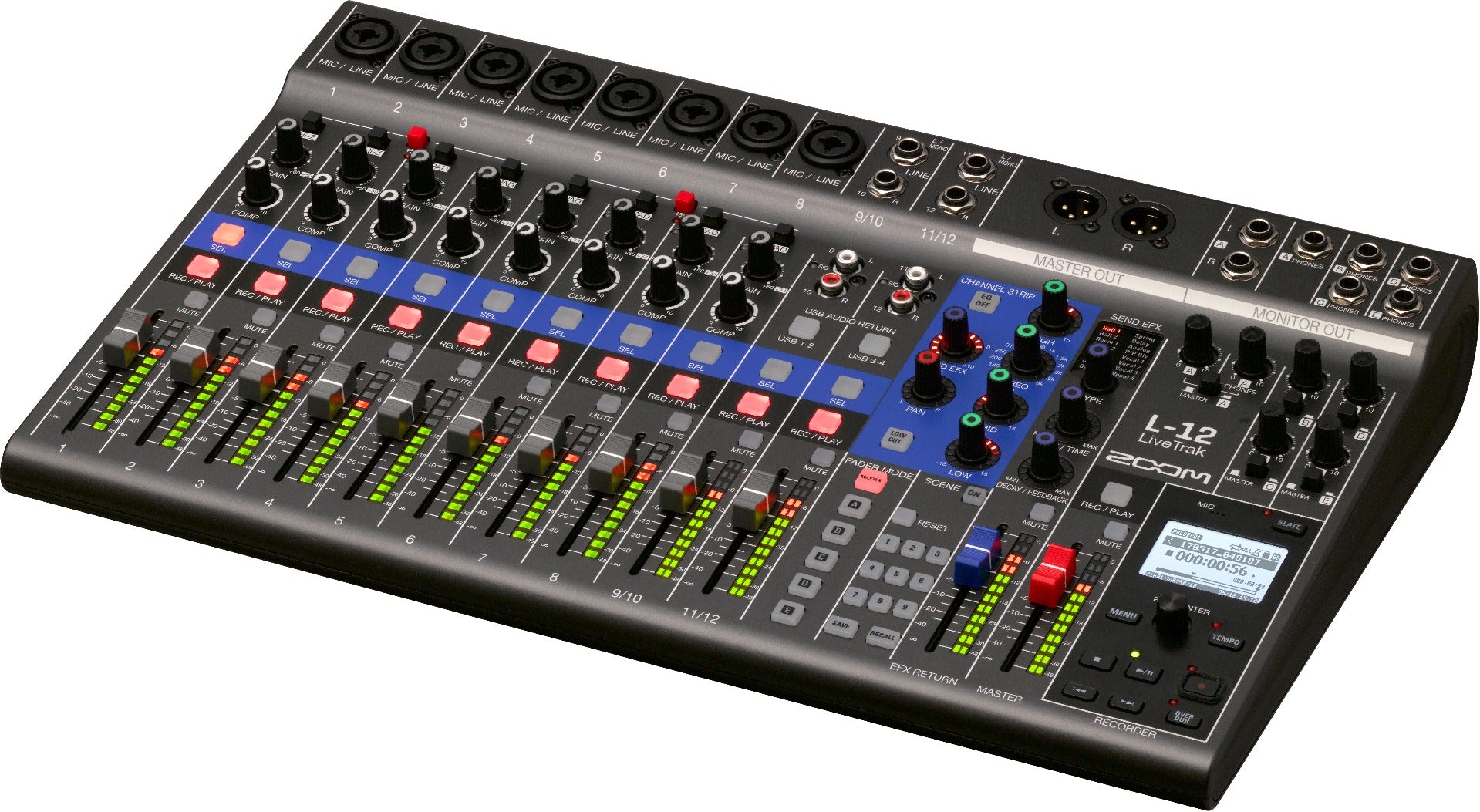

Zoom LiveTrak L-12 Digital Mixer

Zoom LiveTrak L-12 Digital Mixer

$478.88
$478.88
Sale Sold out

Blink Image Blink Image

Ready to ship immediately!

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Effortless Live Mixing

LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

Five Custom Monitoring Mixes

Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

Their Best Mic Preamps Yet

At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.

High-Definition Sample Rates

The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.

Convenient Auto Recording

Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.

Versatile Operation Modes

The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.

With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.

More Information
Product Name Zoom LiveTrak L-12 Digital Mixer
Brand Zoom
Condition New
MPN L12
UPC 884354018054
Shipping Option Free Shipping on orders over $94.72
  • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
  • 14-track simultaneous recording, 12-track playback
  • 14-in/4-out USB audio interface connectivity
  • 5 powered headphone outputs, each with a customizable and saveable mix
  • Add backing/click tracks from your computer to your live mix and recording
  • RCA and TRS line inputs
  • 48V phantom power (channels 1-4 and 5-8)
  • Hi-Z connectivity (channels 1 and 2)
  • 26 dB pad (channels 3-8)
  • Built-in compression control (Channels 1-8)
  • Digital level meters -48 dB to -0 dB
  • Master mute button
  • Low-cut control
  • Stereo panning
  • Master and Monitor Outputs A-E
  • Scene saving function, up to 9 scenes saved at a time
  • 16 built-in delay and reverb effects with adjustable parameters
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • SD card input
  • Built-in metronome
  • Automatic recording starting/stopping capability
  • Project protection
  • Import/export projects with USB 2.0 host port
  • Latency adjustment for A-to-D conversion
  • Compatible functions for ZOOM FS01 footswitch

NUMBER OF INPUT AND OUTPUT CHANNELS
Inputs:

Mono (MIC/LINE): 8
Stereo (LINE): 2
Outputs:

MASTER OUT: 1
MONITOR OUT: 5
INPUTS
Mono (MIC/LINE):

Type: XLR/TRS combo jacks
         (XLR: 2 HOT, TRS: TIP HOT)

Input gain
PAD OFF: +16 - +60 dB
PAD ON: −10 – +34 dB
Hi-Z ON: +6 - +50 dB

Input impedance
XLR: 3 kΩ
TRS: 10kΩ/1 MΩ (when Hi-Z ON)

Maximum input level
PAD OFF: 0 dBu (at 0 dBFS)
PAD ON: +26 dBu (at dBFS)

Phantom Power
+48 V
Stereo (LINE):

Type: TRS phone/RCA pin (unbalanced) jacks
         Maximum input level  +10 dBu
OUTPUTS
MASTER OUT :

Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω
MONITOR OUT A (TRS):

Type: TRS phone jacks (balanced)
Maximum output Level: +14.5 dBu
Output impedance: 100 Ω
MONITOR OUT A-E (PHONES):

Type: Standard Stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω
BUSES
MASTER:

1
MONITOR:

5
SEND EFX:

1
CHANNEL STRIP
COMP:
LOW CUT:

75 Hz, 12 dB/OCT
EQ:

HIGH: 10 kHz, ± 15 dB, shelving
MID: 100 Hz-8 kHz, ±15 dB, peaking
LOW: 100 Hz, ± 15 dB, shelving
LEVEL METERS
Level segments:

12
SEND EFFECTS
Effects:

16 types:
Hall 1 & 2 (reverb)
Room 1 & 2(reverb)
Plate (reverb)
Church (reverb)
DrumAmb (reverb)
GateRev (reverb)
Spring (reverb)
Delay (delay)
Analog (delay)
P-P Dly (delay)
Vocal 1-4 (delay + reverb)
RECORDER
Maximum simultaneous recording tracks:

14 at 44.1/48 kHz (12 channel + stereo mix)
12 at 96 kHz
Maximum simultaneous playback tracks:

12
Recording format:

WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media:

16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
AUDIO INTERFACE
44.1/48 kHz:

Recording: 14 channels
Playback: 4 channels
Bit depth:

24-bit
Interface:

USB 2.0
CARD READER
Class:

Mass storage
USB 2.0 High Speed
USB HOST
Class:

USB 2.0 High Speed
SAMPLING RATE
Sampling rate:

44.1/48/96 kHz
FREQUENCY CHARACTERISTICS
44.1 kHz:

-1.0 dB: 20 Hz - 20 kHz
96 kHz:

-3.0 dB: 20 Hz - 40 kHz
EQUIVALENT INPUT NOISE
Actual measurements:

-128 dB EIN (IHF-A) with +60 dB/150 Ω input

Display:

LCD with backlight (128x64 resolution)
Power supply:

ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption:

17W maximum
External dimensions:

445 mm (W) x 282 mm (D) x 70.5 mm (H)
17.5” (W) x 11.1” (D) x 2.78” (H)
Weight (main unit only):

2.53 kg / 5.58 lbs
