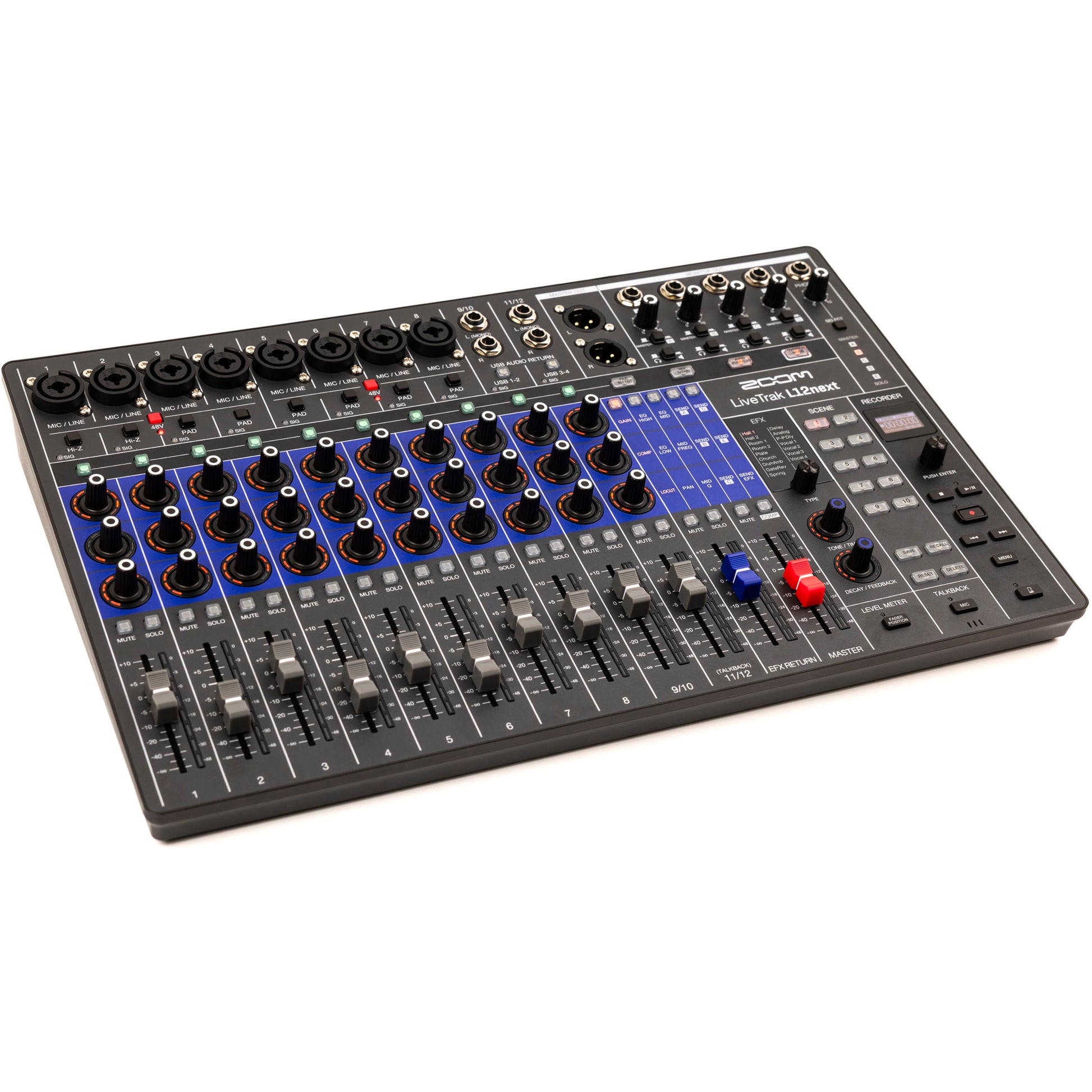

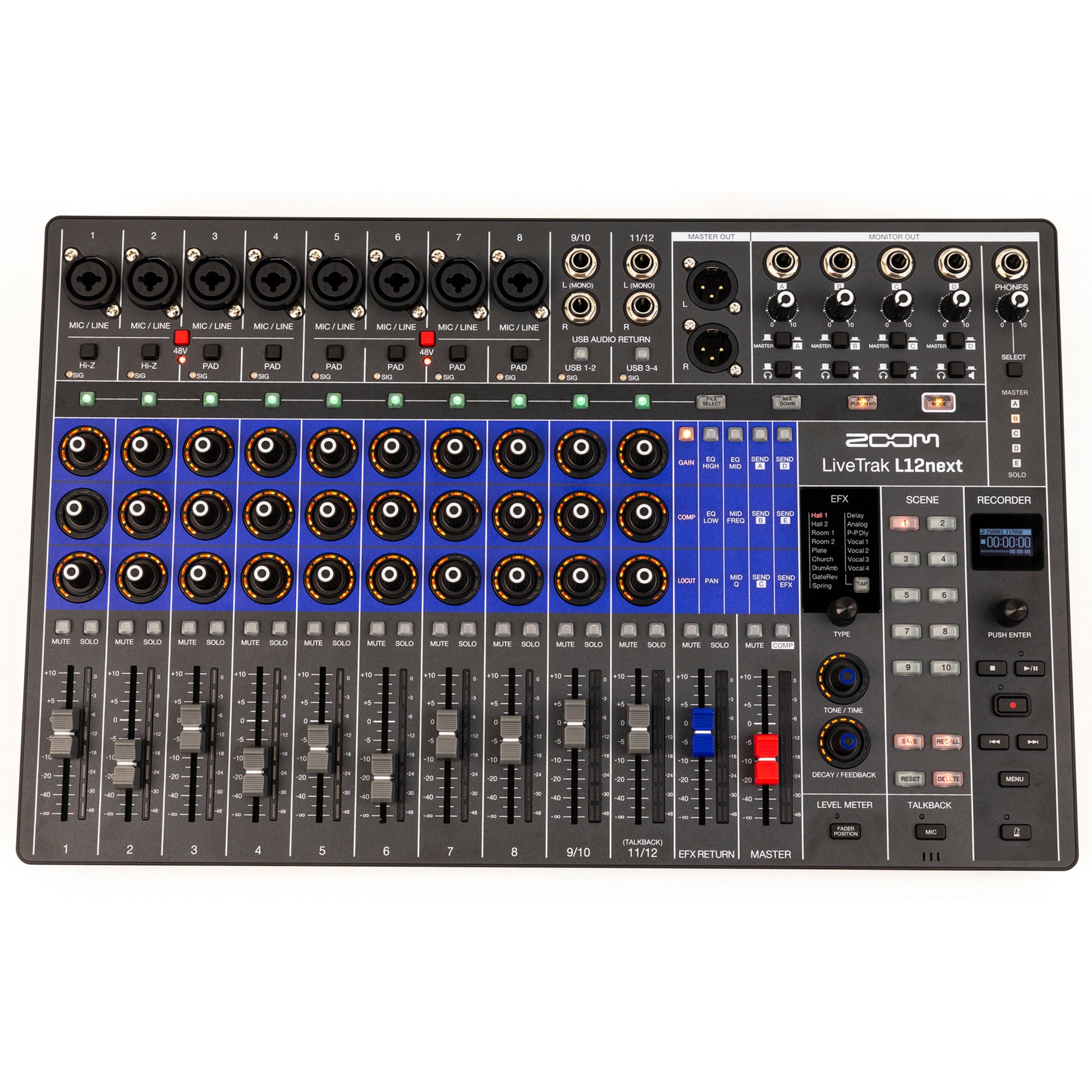

Digital Mixing Reimagined for Creators
The L12next combines the power of a digital mixer with analog-style operation. Three knobs per channel deliver High/Mid/Low EQ, and with a simple switch, you can adjust gain, pan, and sends, offering hands-on mixing like a classic analog console.
Made for Live Performance
The L12next puts you in total control, letting you mix with speed and confidence, whether you’re on stage or in the rehearsal room.
Everything You Need, On Every Channel

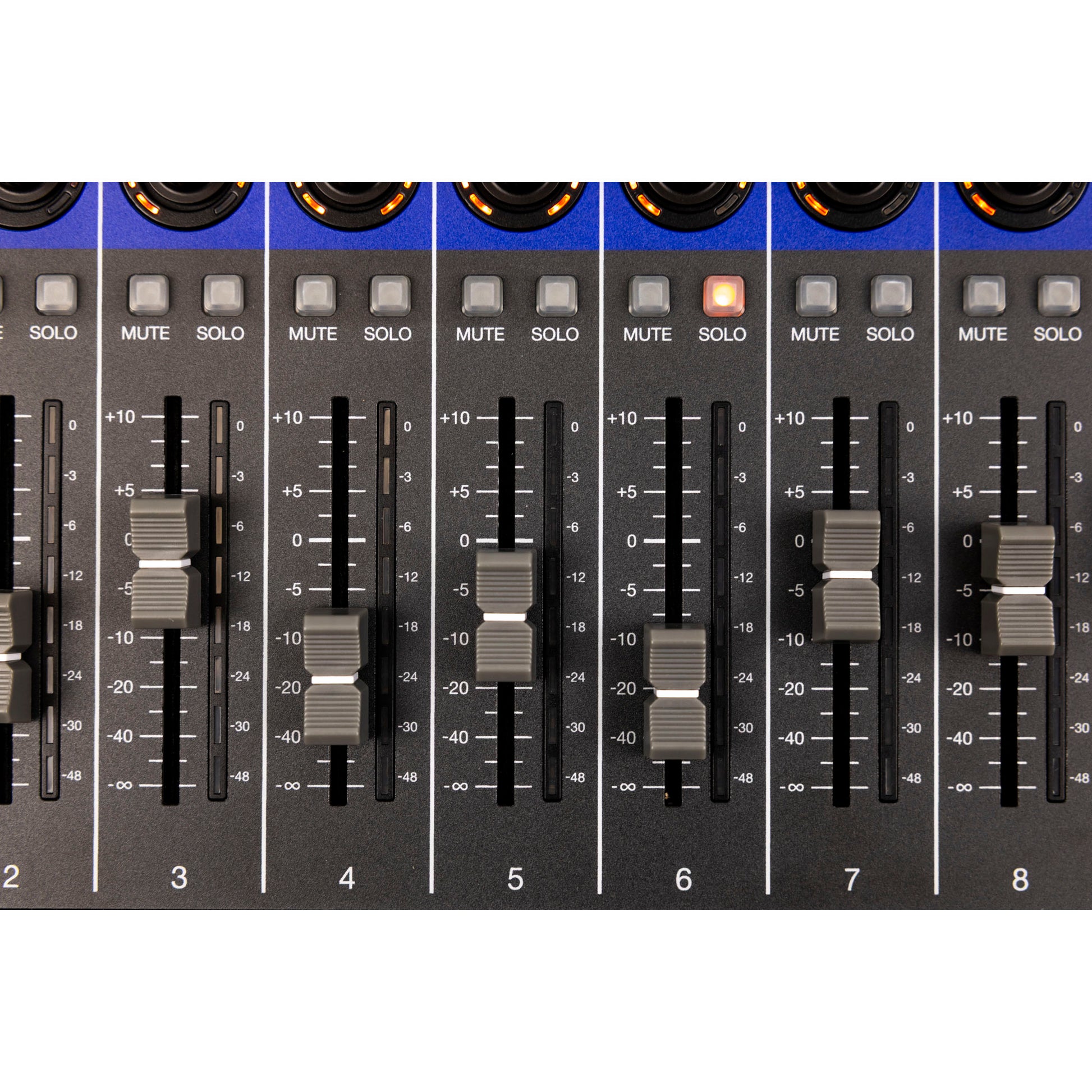

In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends. No more scrolling through menus.
Significantly Upgraded Preamps
The L12next’s upgraded preamps deliver clean gain (+70dB), low noise (–128 dBu EIN), and full input flexibility with Hi-Z, PAD, and +48 V phantom power.
A Recorder for Every Session

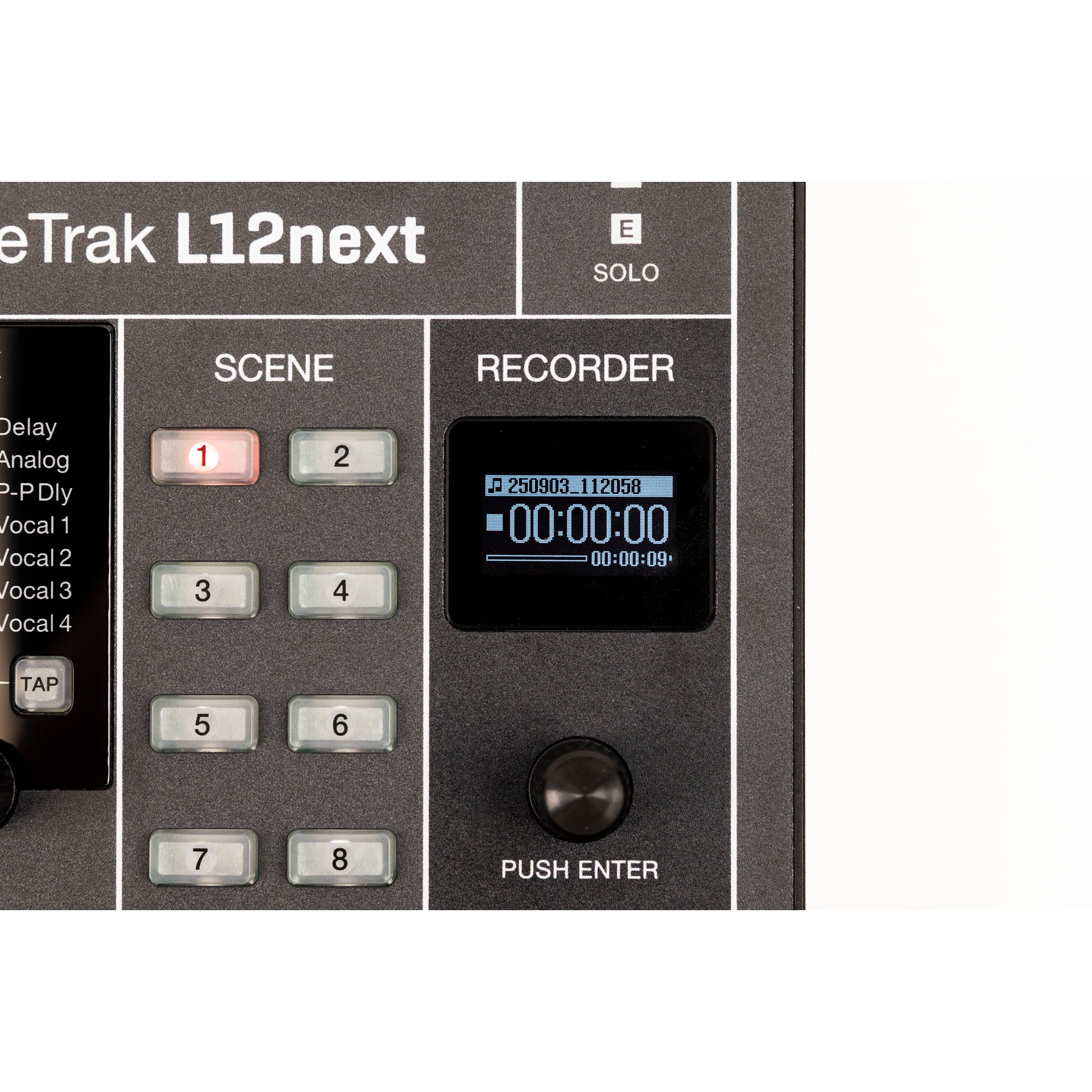

The L12next has advanced recording features and captures up to 14 tracks at 24-bit/96 kHz plus a stereo mix. Its new OLED screen streamlines recording controls and setup.
For Perfect Takes

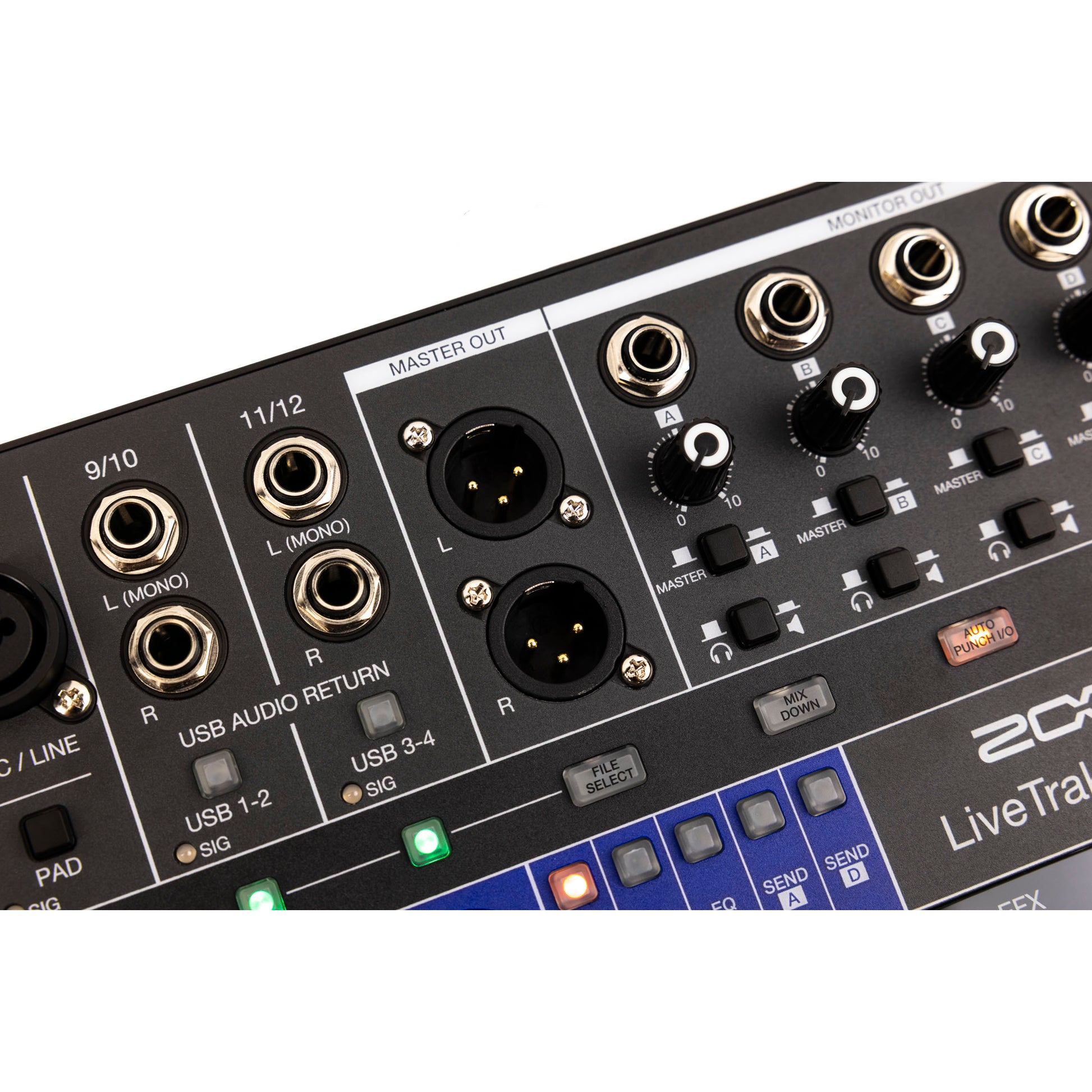

Newly added features such as Overdub Mode and Auto Punch In/Out allow precise layering and easy re-recording. The new File Select button allows you to easily load additional tracks to expand your mix.
Your Final Mix Is Ready
The L12next’s master channel captures your mix in 32-bit float for pristine, clip-free sound, while the master Compressor adds warm, natural compression that enhances the overall mix.
| Product Name | Zoom LiveTrak L12next Digital Mixer / Recorder |
|---|---|
| Brand | Zoom |
| Condition | New |
| MPN | ZL12NEXT |
| UPC | 4515260030415 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Zoom LiveTrak L12next Digital Mixer / Recorder
Input and Output Channels |
|
|---|---|
| Inputs | 8 |
| Outputs | 5 |
| Mono (MIC/LINE) | 2 |
| Mono (MIC/LINE) / Stereo (LINE) | 1 stereo |
| MASTER OUT | 1 |
| MONITOR OUT | 1 |
Input Specifications |
|
| Type | XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
| Input Gain |
PAD off: +16 – +60 dB PAD on: −10 – +34 dB Hi-Z on: 0 – +44 dB (when gain boost off) |
| Input Impedance |
XLR: 4.6 kΩ or more TRS: 4.6 kΩ / 1 MΩ (when Hi-Z on) |
| Maximum Input Level |
PAD off: −2 dBu (at 0 dBFS) PAD on: +24 dBu (at 0 dBFS) |
| Phantom Power | +48 V |
Output Specifications |
|
| Type |
TS phone jacks (unbalanced) XLR jacks (balanced) |
| Maximum Output Level |
TS: +14 dBu XLR: +14.5 dBu |
| Output Impedance |
XLR: 200 Ω MONITOR OUT: 55 Ω |
| MONITOR OUT Power | 42 mW + 42 mW at 60 Ω |
Channel Strip |
|
| COMP | Yes |
| LOCUT | 40–600 Hz, 12 dB/OCT |
| EQ |
HIGH: 10 kHz, ±15 dB, shelving MID: 100 Hz – 8 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving |
| PHASE | Yes |
Send Effects |
|
| Level Meter | 8 segments |
| Send Effects Types | 16 types |
Recorder |
|
| Max Simultaneous Recording Tracks | 14 |
| Max Simultaneous Playback Tracks | 12 |
| Recording Formats |
Individual tracks: 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV Master tracks: 44.1/48/96 kHz, 16/24-bit or 32-bit float, mono/stereo WAV |
| Recording Media |
4–32 GB SDHC (Class 10+) 64 GB–1 TB SDXC (Class 10+) |
Audio Interface |
|
| Input/Output Channels | Recording: 14 channels / Playback: 4 channels |
| Sampling Frequencies | 44.1/48/96 kHz |
| Bit Depths | 24-bit, 32-bit float |
| Interface | USB 2.0 |
| Class | Mass storage class, USB 2.0 High Speed |
| Frequency Response |
44.1 kHz: −1.0 dB, 20 Hz – 20 kHz 96 kHz: −3.0 dB, 20 Hz – 40 kHz |
| Equivalent Input Noise | −128 dB EIN (IHF-A) at +60 dB / 150 Ω input |
Display |
|
| Display | 128 × 64 OLED |
Power |
|
| Power Source | AC adapter (ZOOM AD-19): DC 5V/1A |
| Power Consumption | 16 W maximum |
Dimensions |
|
| Dimensions (W × D × H) |
445 mm × 285 mm × 73 mm (17.52 in × 11.22 in × 2.87 in) |
Weight |
|
| Weight (main unit only) | 2.40 kg (5.29 lbs) |
Additional Notes |
|
| Reference | 0 dBu = 0.775 Vrms |
