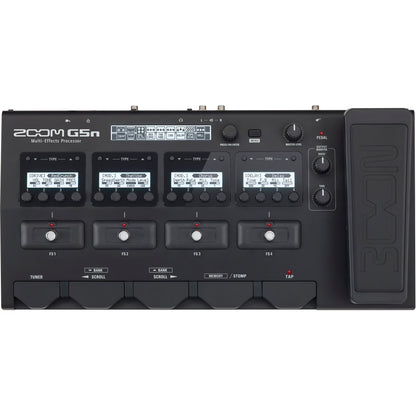

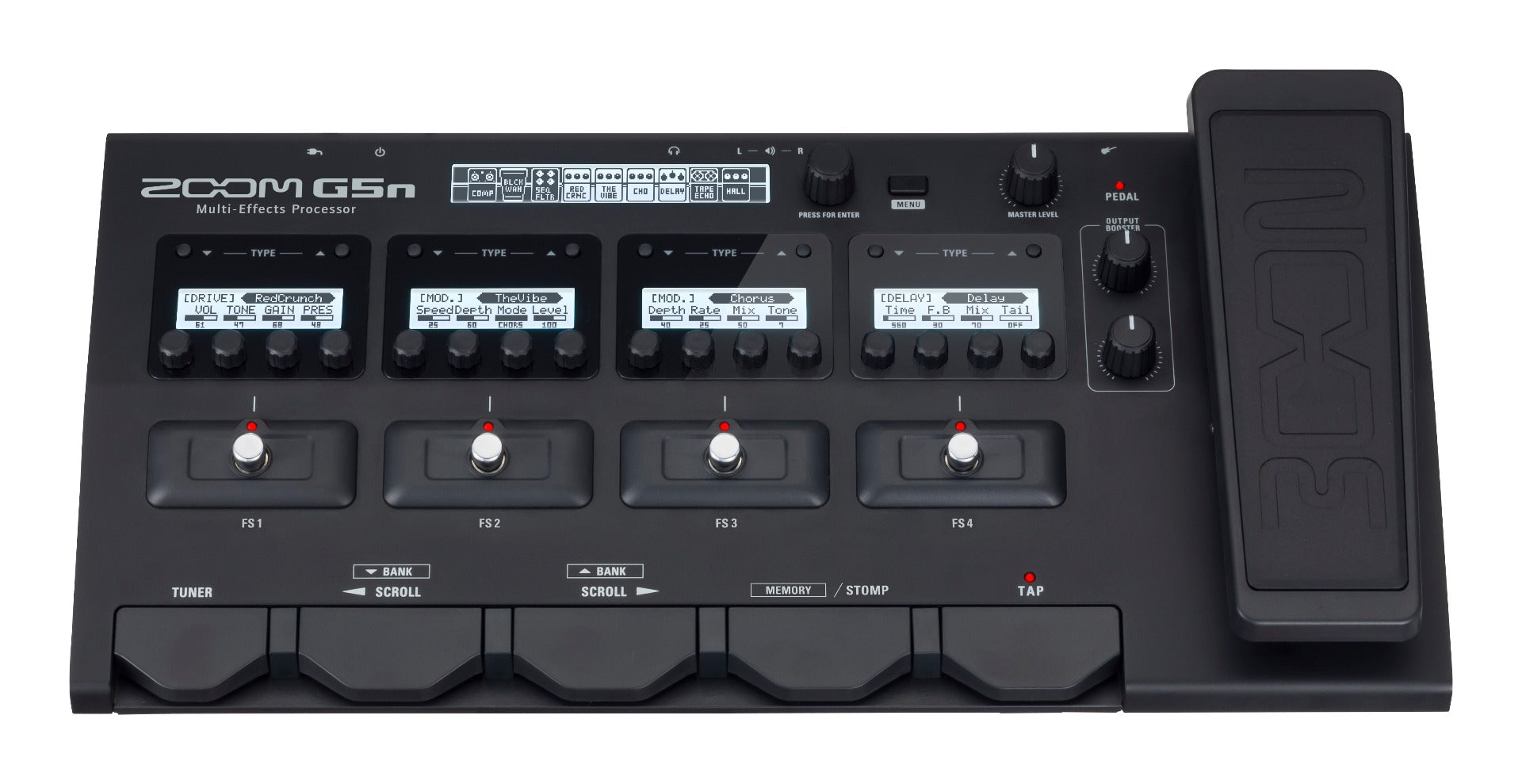

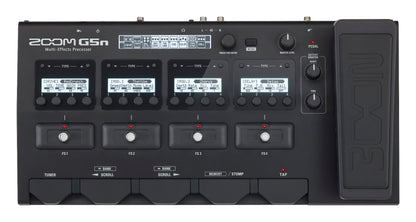

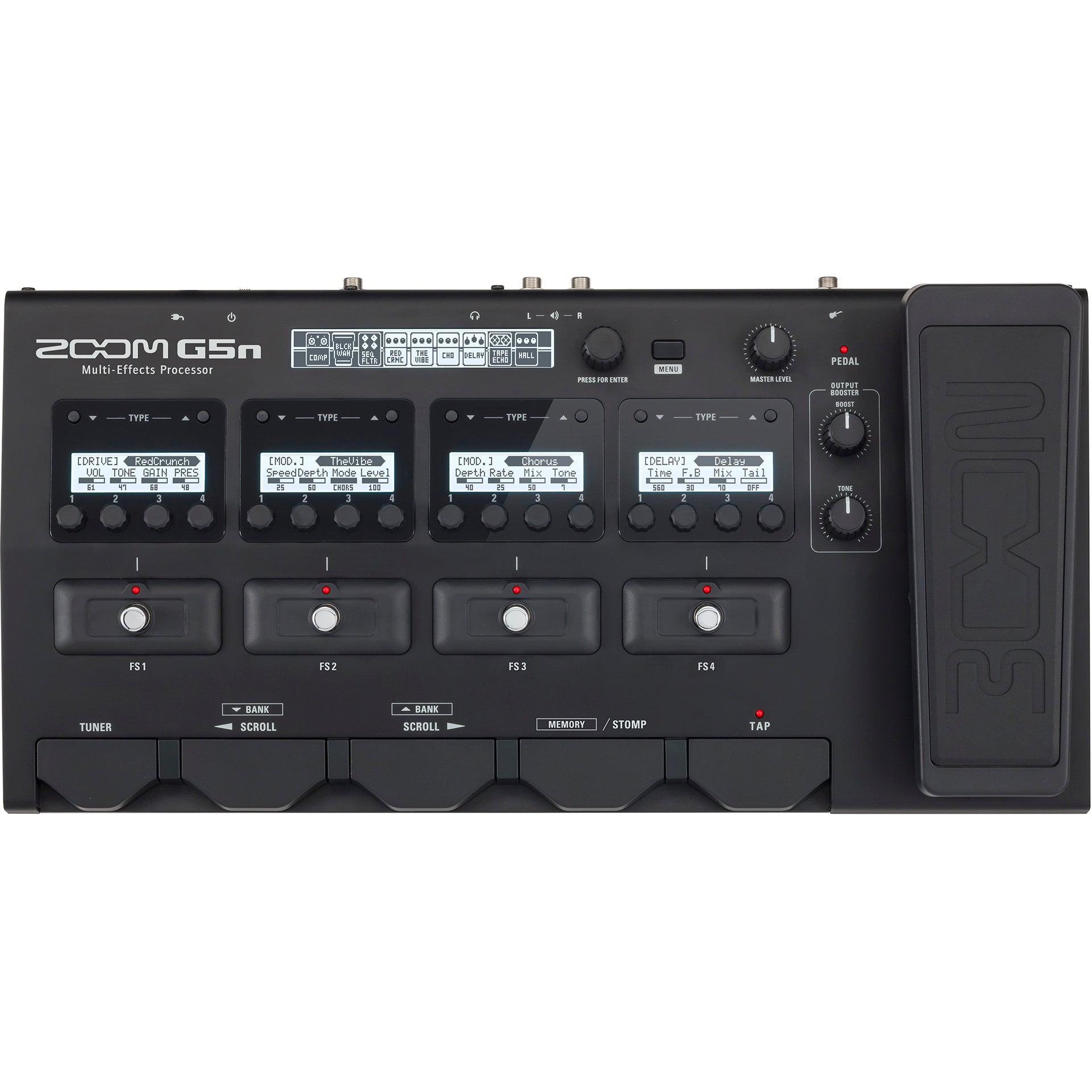

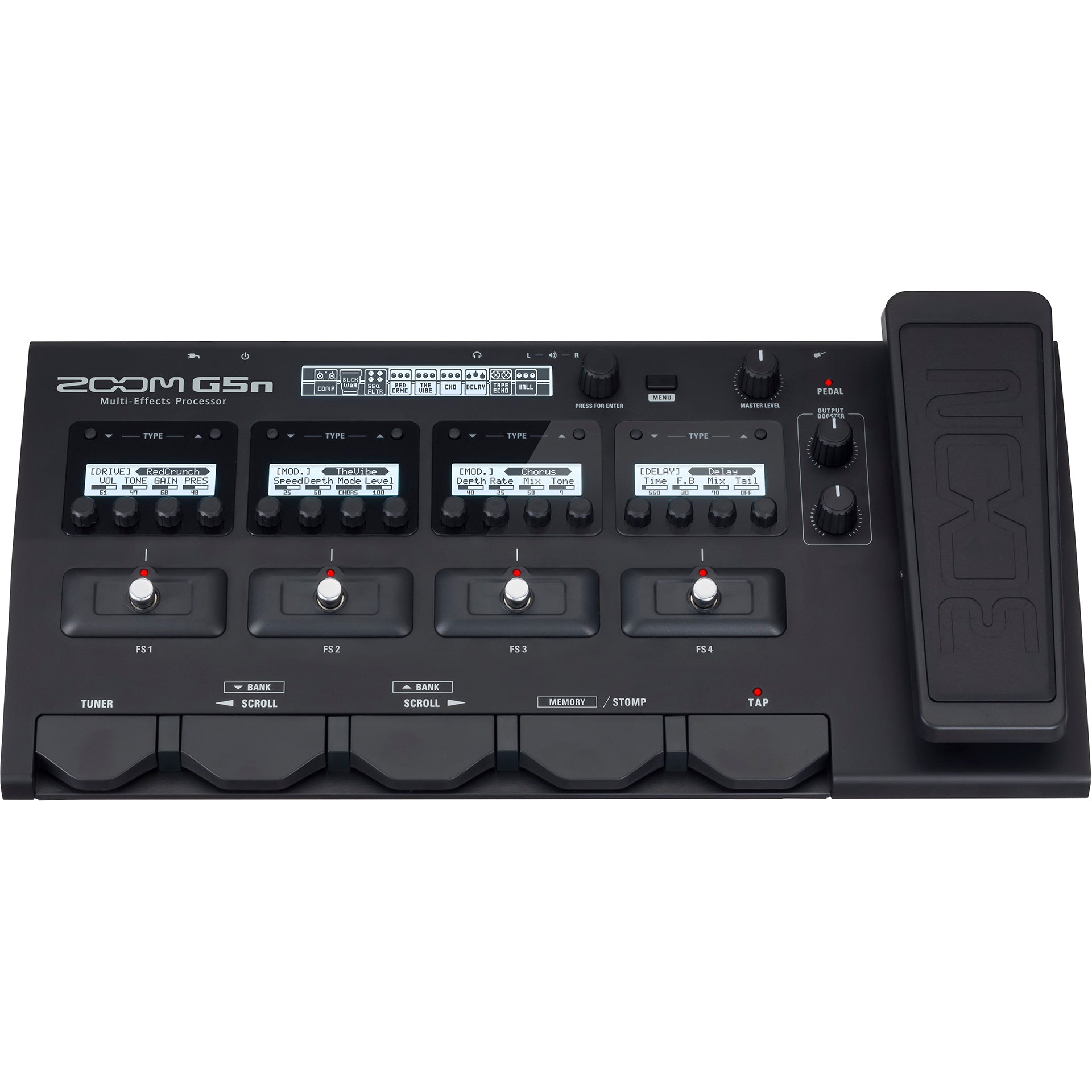

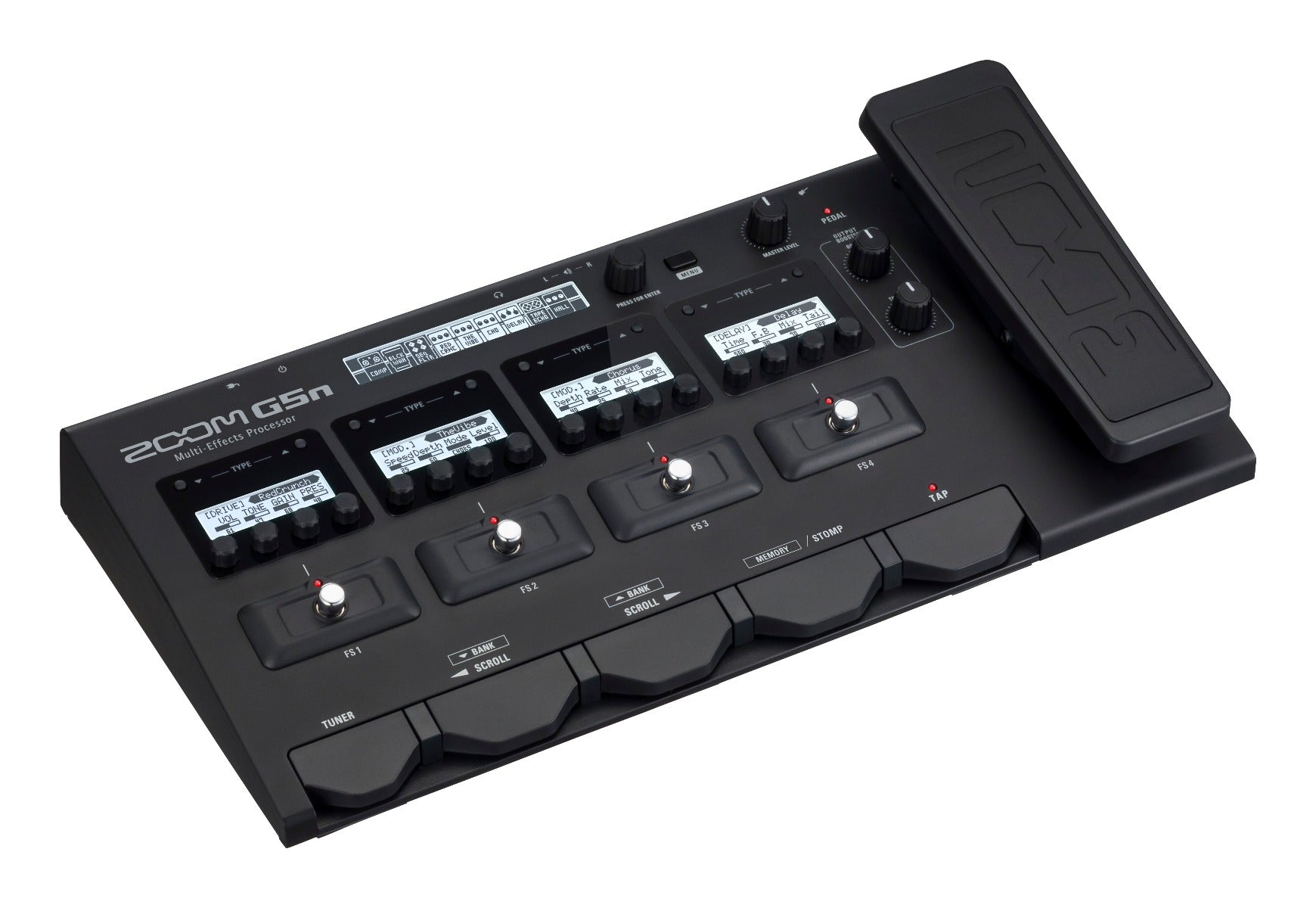

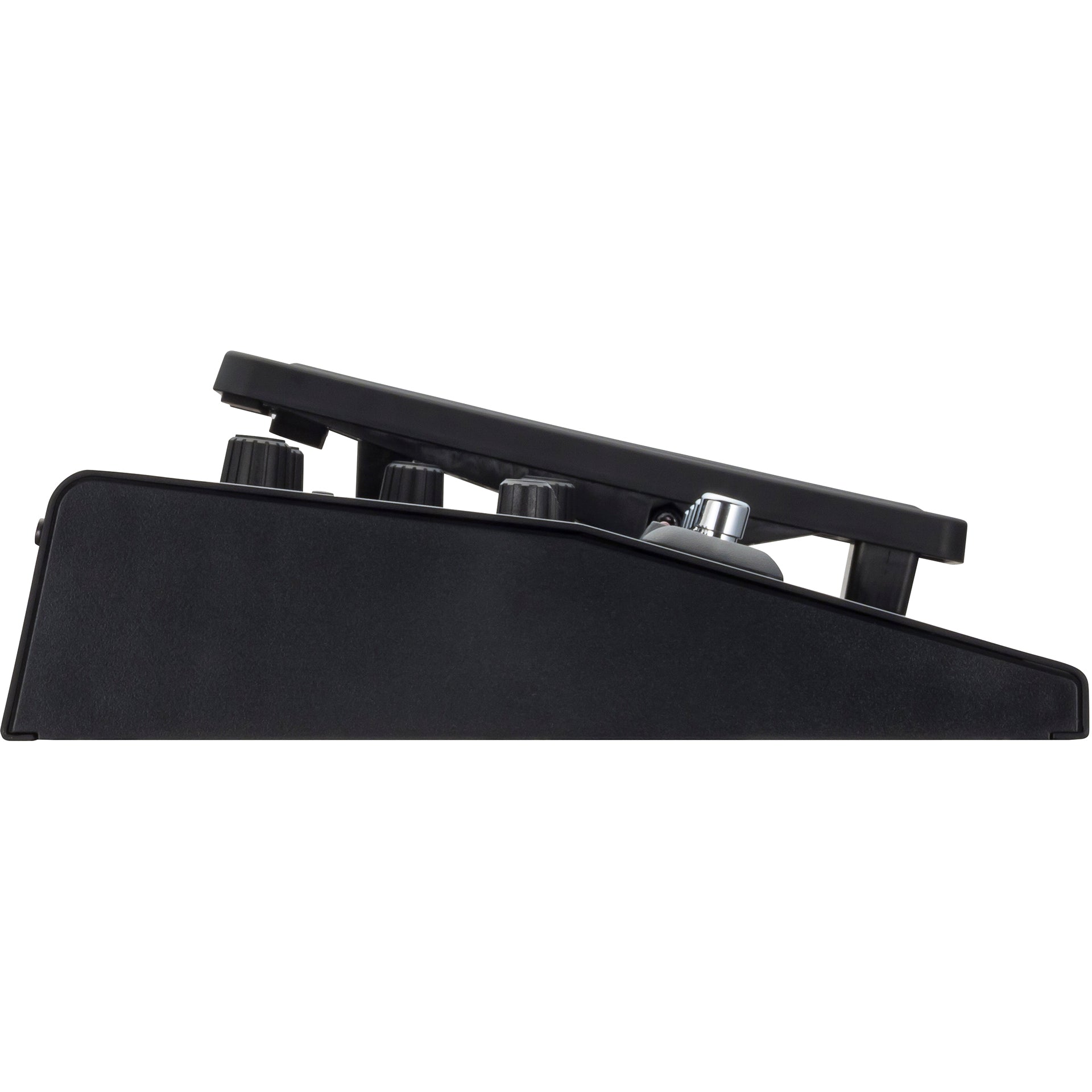

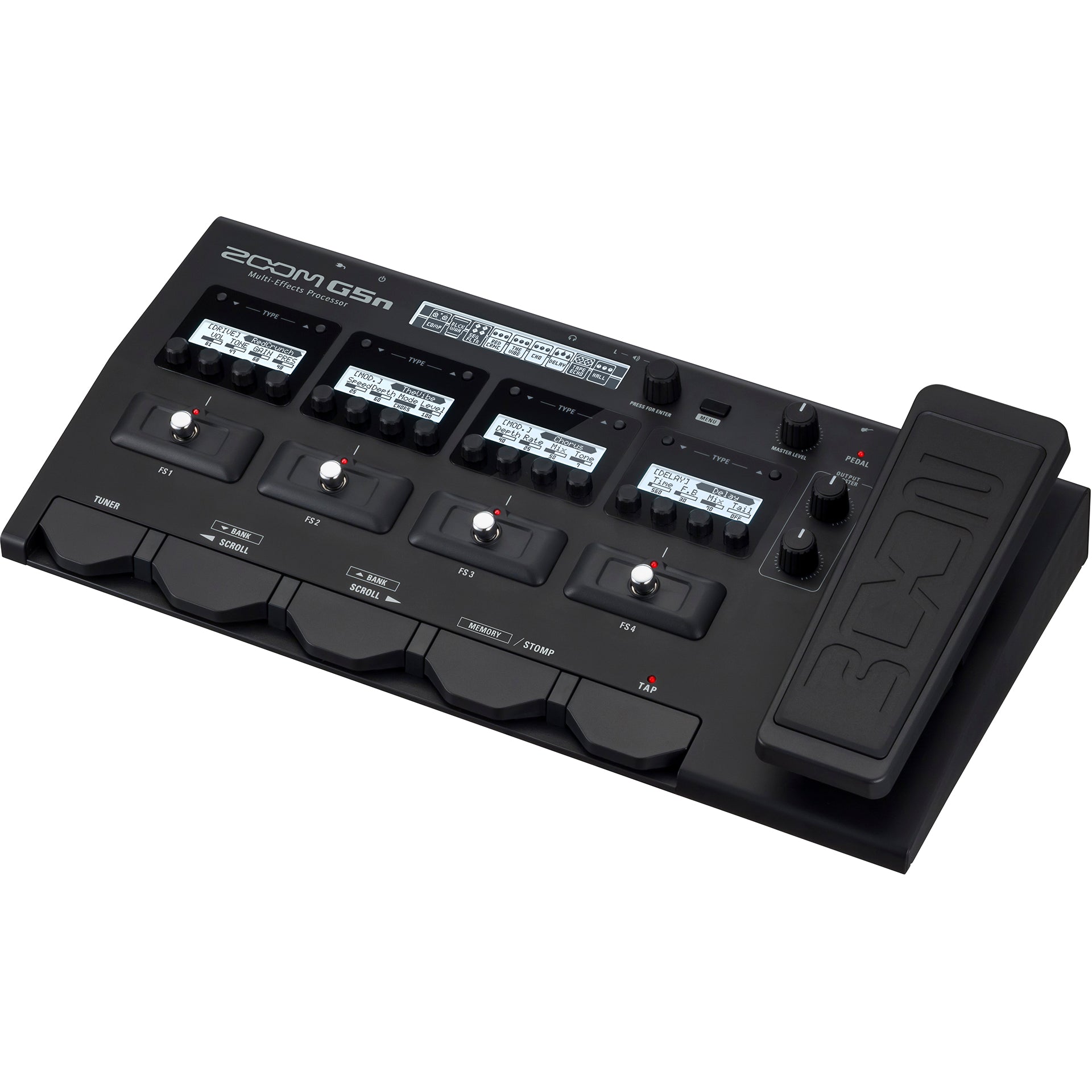

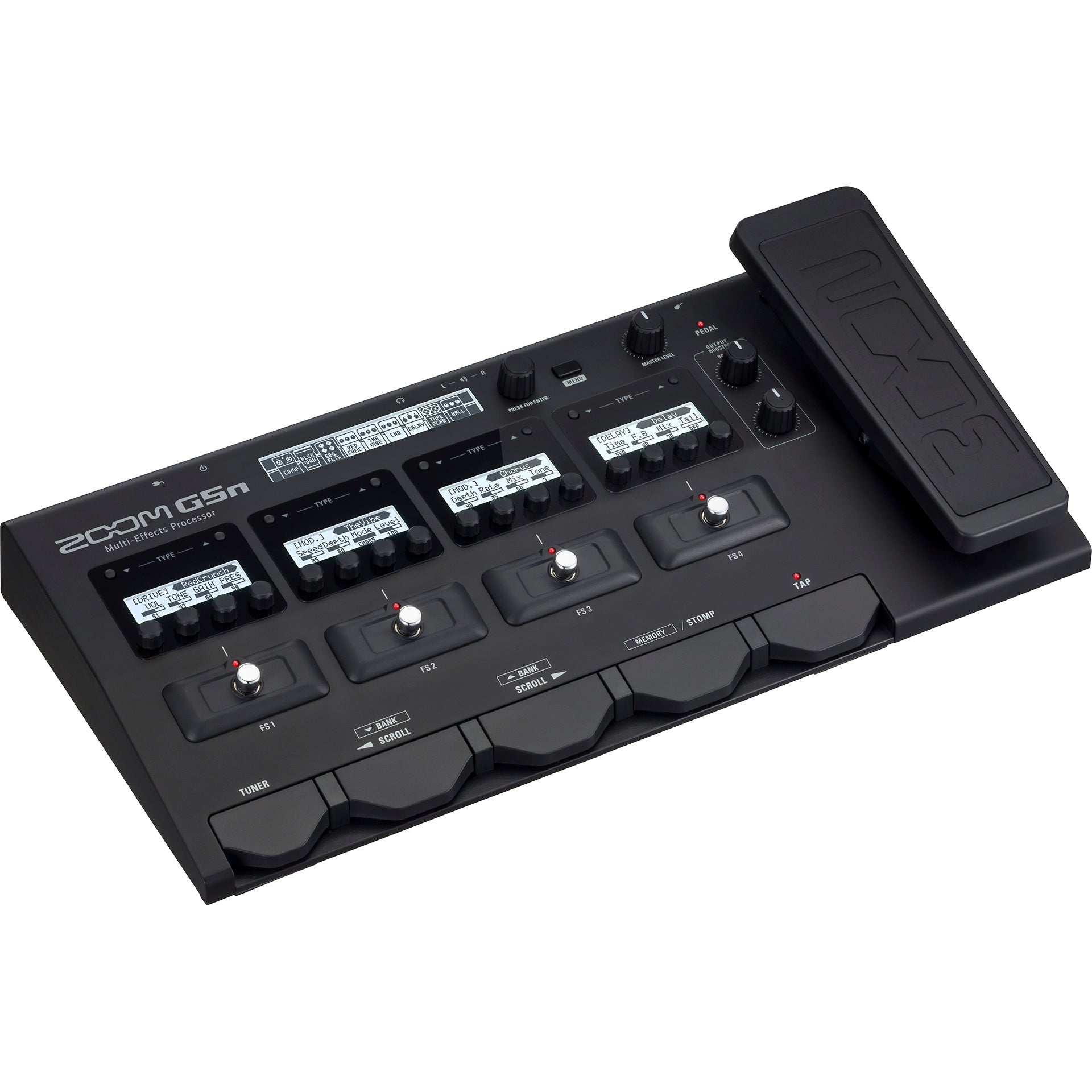

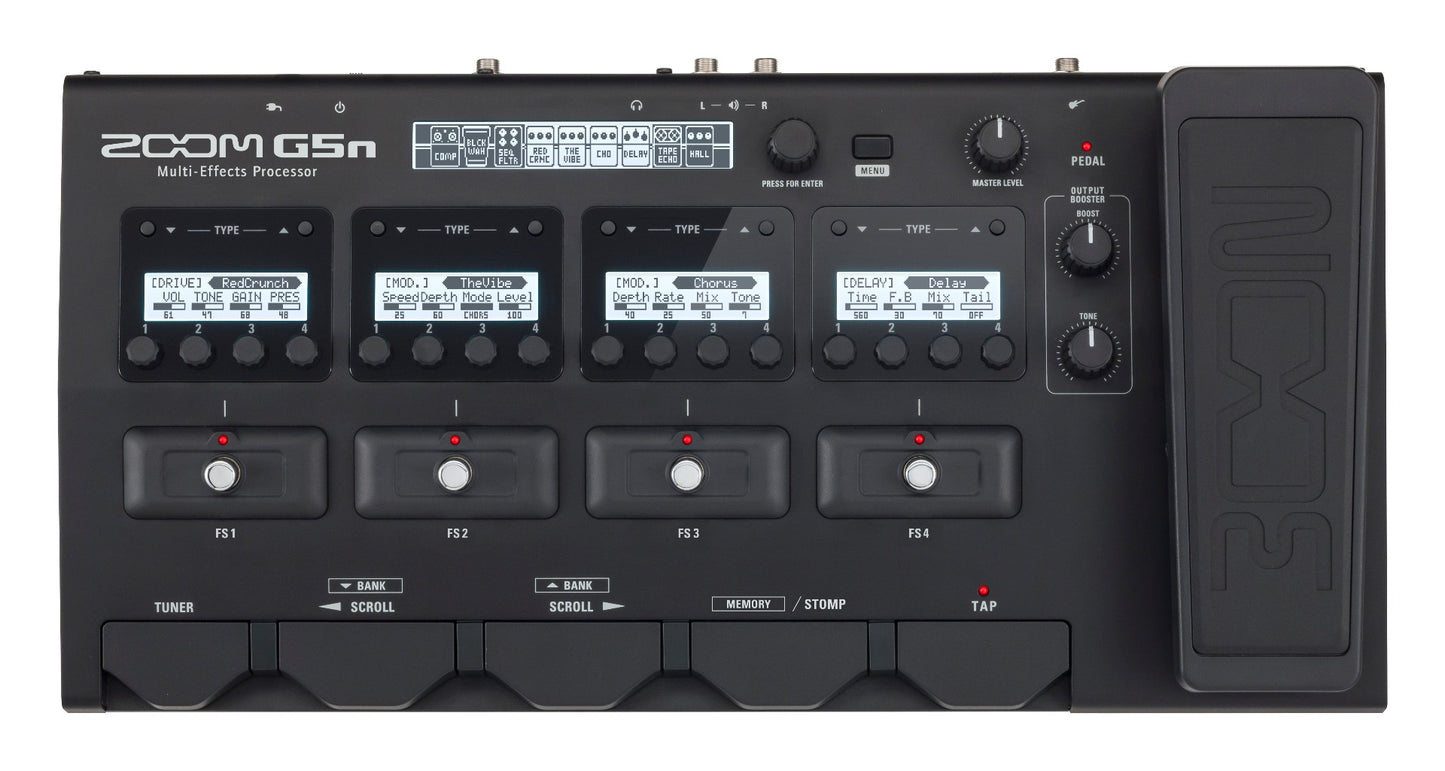

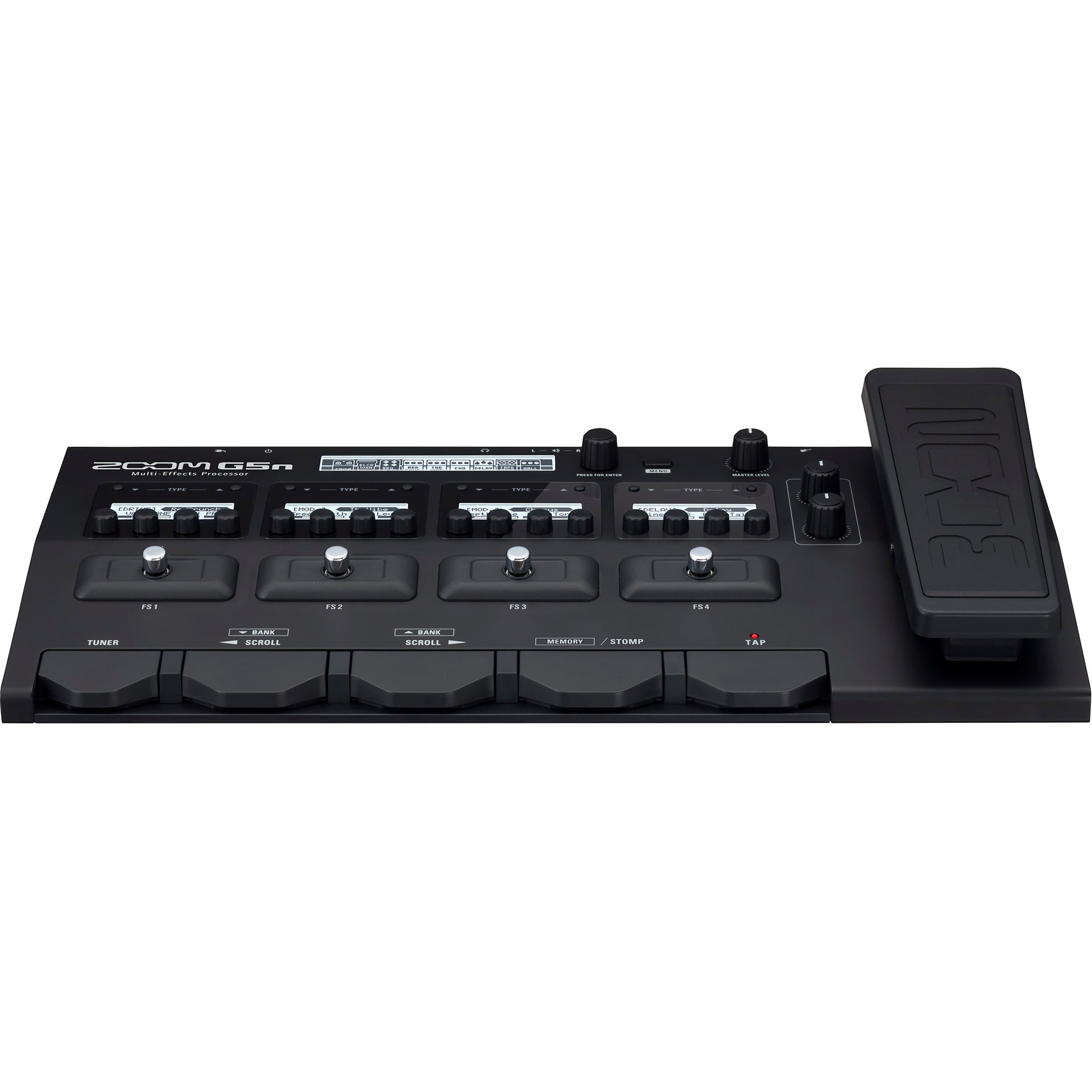

Zoom G5N Multi-Effects Processor Pedal for Guitar

Zoom G5N Multi-Effects Processor Pedal for Guitar

Ready to ship immediately!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Zoom ZG5N Multi-Effects Processor for Guitar:

The Zoom ZG5N Multi-Effects processor is the ultimate workhorse at the tip of your toes. The ZG5N features 68 on-board high quality effects, 5 new amp and cabinet emulators, 100 custom-designed factory patches, free ZOOM guitar Lab software, 200 memory locations, and many more useable features you’ll enjoy.

Features:

  • 68 onboard high-quality digital effects, including distortion, overdrive,
  • EQ, compression, delay, reverb, flanging, phasing, and chorusing
  • 5 new amp emulators plus 5 cabinet emulators
  • 100 custom-designed factory patches
  • Free ZOOM Guitar Lab Mac/Windows software allows downloading
  • of additional effects and patches
  • Use up to 9 effects simultaneously, chained together in any order
  • 4 stompbox switches allow effects to instantly be brought in and out

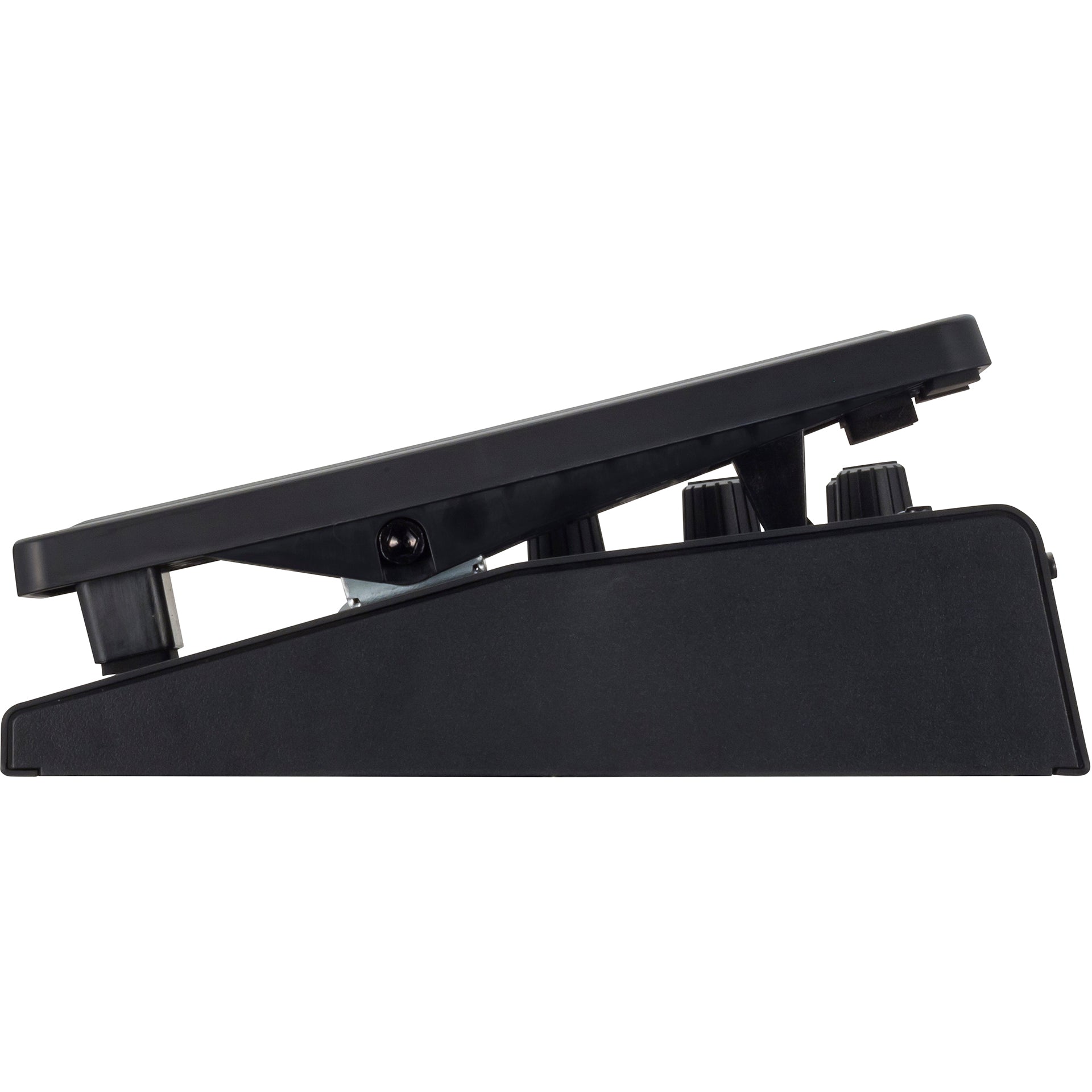

  • Built-in expression pedal for real-time control over volume, tone, or
  • selected effect parameters
  • High output booster circuit for added volume and overdrive
  • Intuitive user interface
  • 200 memory locations for storage of factory and/or user-created patches
  • 4 independent editing displays, plus large overview display
  • Auto Save function for automatic saving of all patch parameters
  • Onboard chromatic tuner with dedicated footswitch supports all standard
  • guitar tunings, including open and drop tunings
  • Tuner range of 435 - 445 Hz
  • Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
  • 68 built-in rhythm patterns that can be used in conjunction with the Looper
  • Tap Tempo with dedicated footswitch
  • Input jack accepts standard guitar cable
  • Auxiliary stereo input jack for connection of smartphones and music players
  • Dual output jacks for connection to guitar amps and mono or stereo PA systems
  • Dedicated stereo headphone output

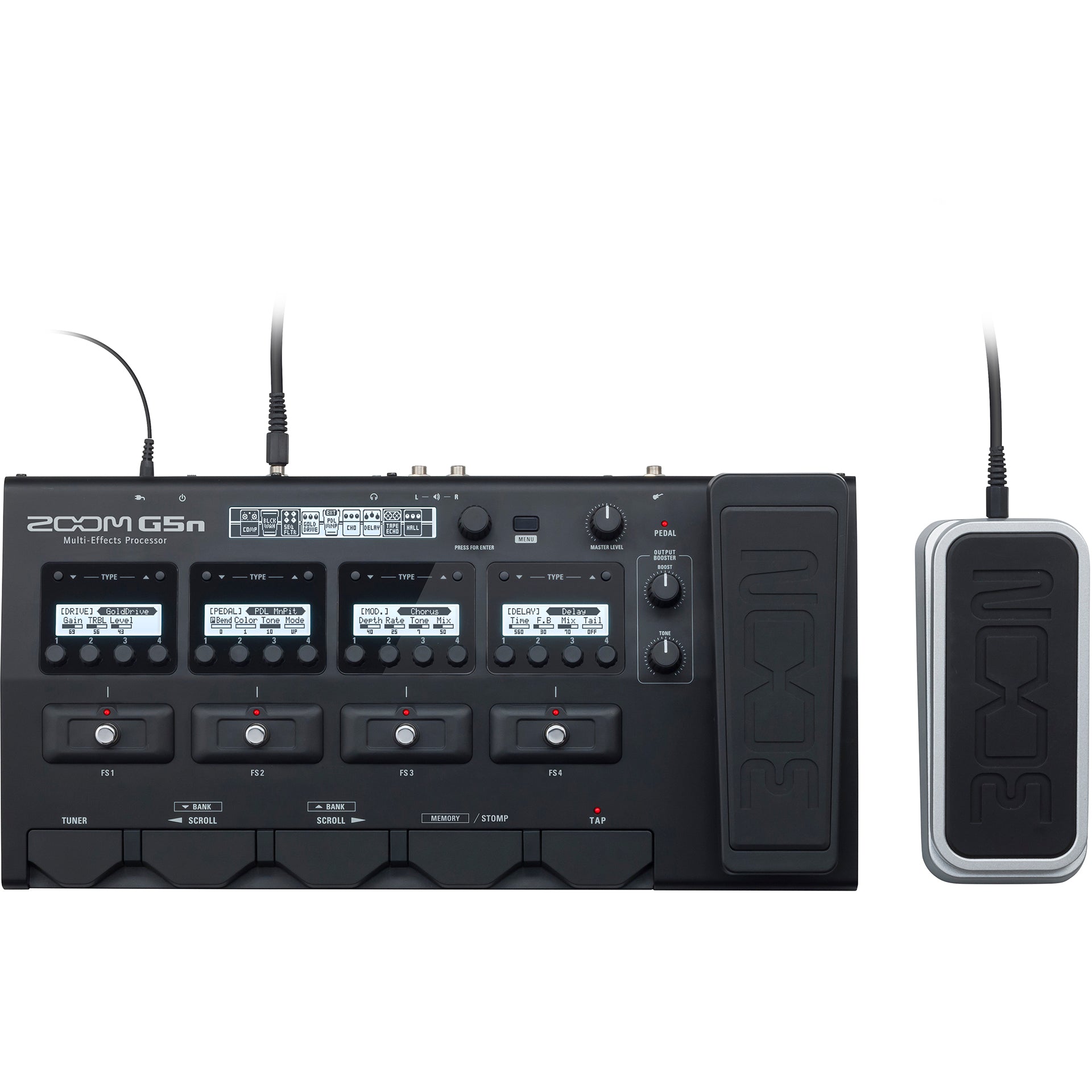

  • Control input for external footpedal
  • USB port for firmware updating and patch/effects downloading
  • Use as a USB audio interface for Mac/Windows computers, with direct
  • zero-latency monitoring of input signal
  • Included AC adapter
More Information
Product Name Zoom G5N Multi-Effects Processor Pedal for Guitar
Brand Zoom
Condition New
MPN ZG5N
UPC 884354015718
Shipping Option Free Shipping to the Continental U.S.
  • 68 onboard high-quality digital effects, including distortion, overdrive,
  • EQ, compression, delay, reverb, flanging, phasing, and chorusing
  • 5 new amp emulators plus 5 cabinet emulators
  • 100 custom-designed factory patches
  • Free ZOOM Guitar Lab Mac/Windows software allows downloading
  • of additional effects and patches
  • Use up to 9 effects simultaneously, chained together in any order
  • 4 stompbox switches allow effects to instantly be brought in and out
  • Built-in expression pedal for real-time control over volume, tone, or
  • selected effect parameters
  • High output booster circuit for added volume and overdrive
  • Intuitive user interface
  • 200 memory locations for storage of factory and/or user-created patches
  • 4 independent editing displays, plus large overview display
  • Auto Save function for automatic saving of all patch parameters
  • Onboard chromatic tuner with dedicated footswitch supports all standard
  • guitar tunings, including open and drop tunings
  • Tuner range of 435 - 445 Hz
  • Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
  • 68 built-in rhythm patterns that can be used in conjunction with the Looper
  • Tap Tempo with dedicated footswitch
  • Input jack accepts standard guitar cable
  • Auxiliary stereo input jack for connection of smartphones and music players
  • Dual output jacks for connection to guitar amps and mono or stereo PA systems
  • Dedicated stereo headphone output
  • Control input for external footpedal
  • USB port for firmware updating and patch/effects downloading
  • Use as a USB audio interface for Mac/Windows computers, with direct
  • zero-latency monitoring of input signal
  • Included AC adapter
  • Effect types: 78 (68 DSP effects, 5 amp emulators, 5 cabinet simulators)
  • Number of simultaneous effects: 9
  • Number of user banks/patches: 200
  • Sampling frequency: 44.1 kHz
  • A/D conversion: 24-bit with 128x oversampling
  • D/A conversion: 24-bit with 128x oversampling
  • Signal processing: 32-bit
  • Frequency characteristics: 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
  • Display: 128 x 32 dot-matrix LCD (x4), 256 x 32 dot-matrix LCD

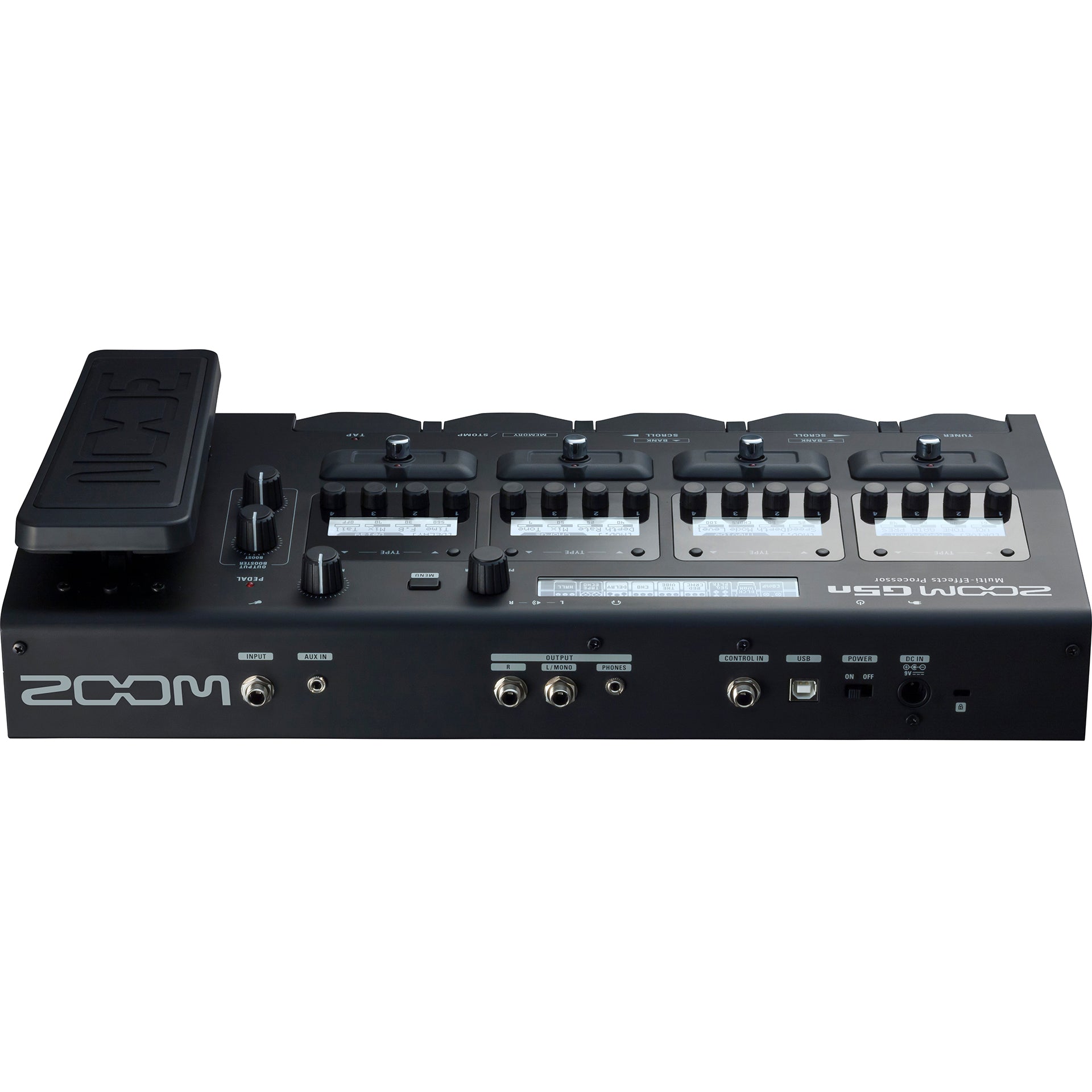

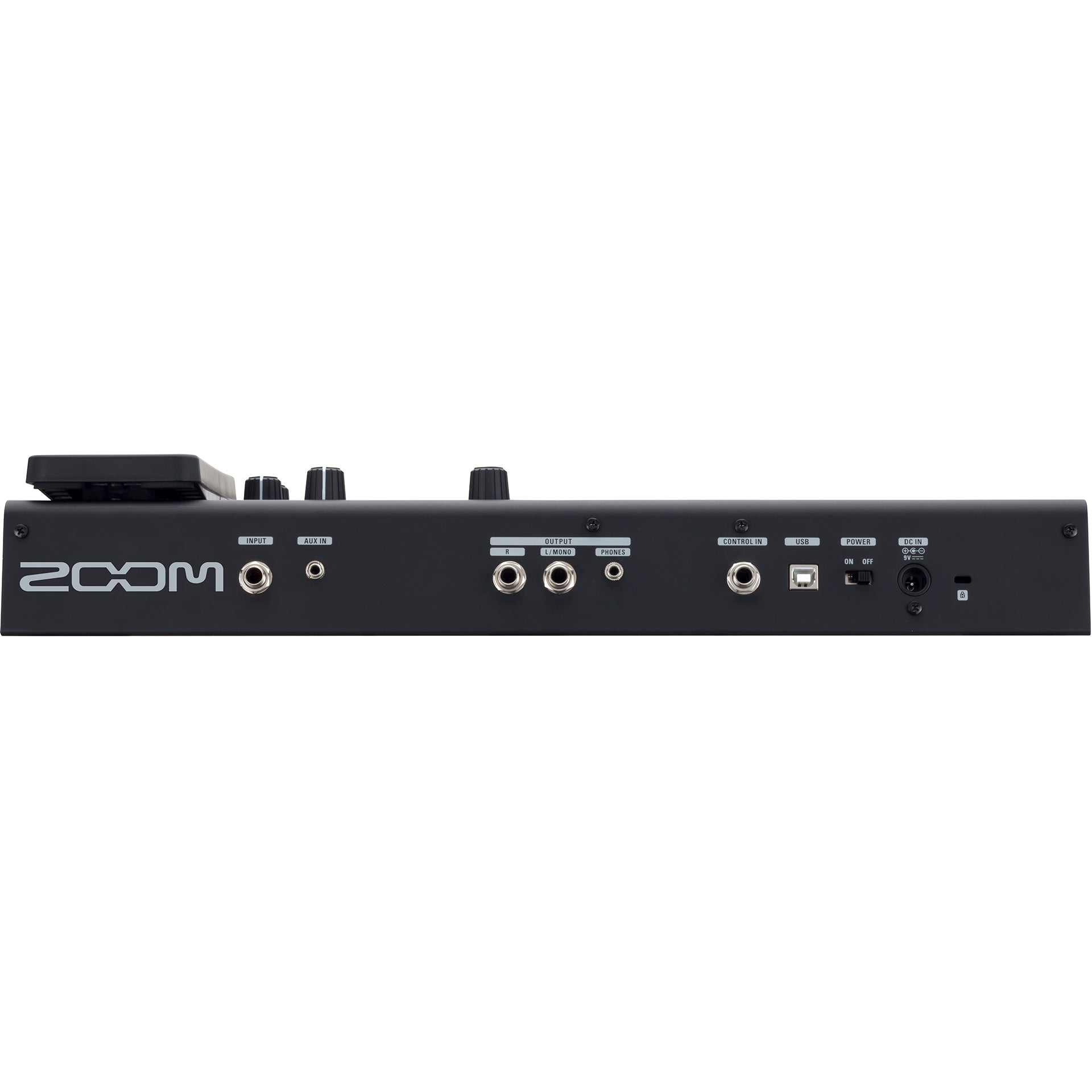

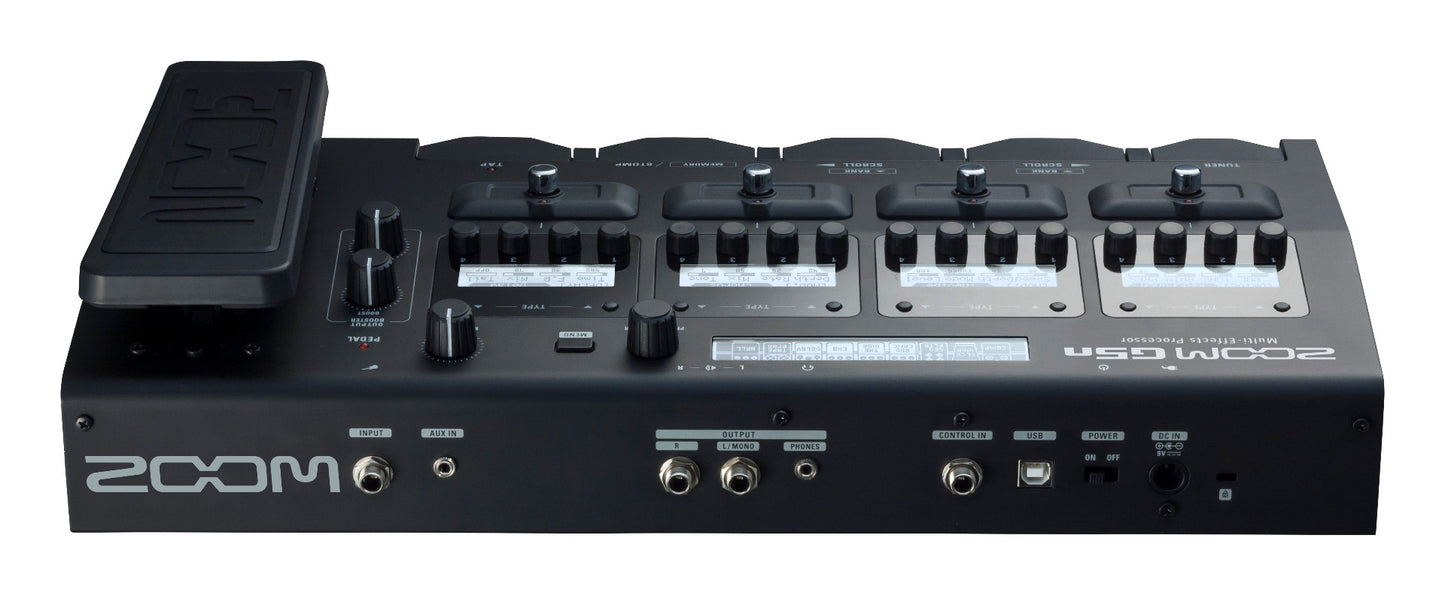

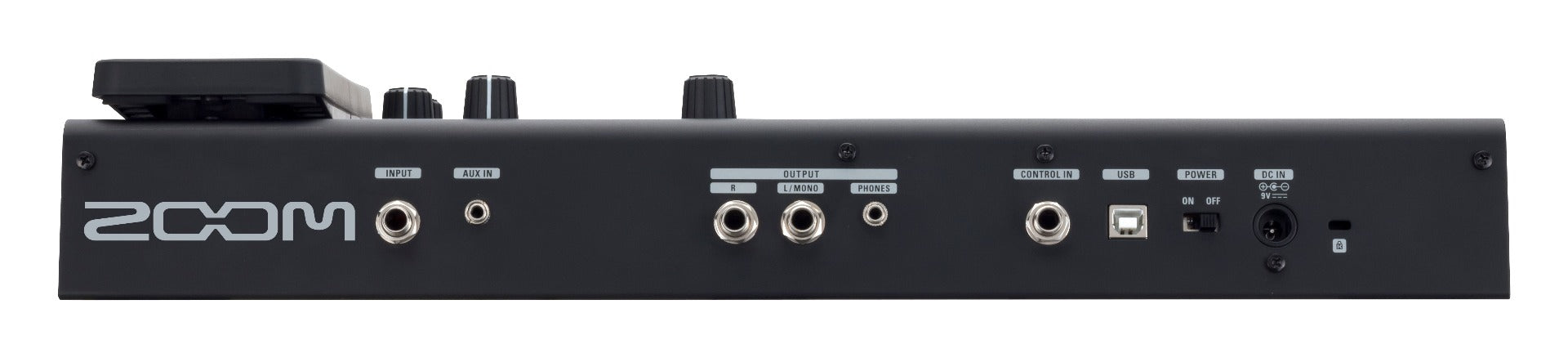

  • Inputs
  • INPUT: Standard monaural phone jack, Rated input level: -20 dBu*, Input impedance(line): 470 kΩ
  • AUX IN: Stereo mini jack, Rated input level: -10 dBu*, Input impedance(line) : 10 kΩ
  • Outputs
  • L/R: Standard monaural phone jack x 2
  • Maximum output level: Line +5 dBu* (with output load impedance of 10 kΩ or more)
  • Phone: Stereo mini jack
  • Maximum output level: 20 mW + 20 mW (into 32 Ω load)
  • Equivalent input noise: -119 dBu*
  • Noise floor (residual noise): -101 dBm
  • Control input: Zoom FP01/FP02
  • Power: AC adapter DC9V (center minus plug), 500 mA
  • USB: USB Audio
  • Dimensions:  225 mm (D) X 454 mm (W) X 75 mm (H)
  • Weight: 3.4 kg
  • * 0dBu=0.775 Vrms

Zoom G5N Multi-Effects Processor Pedal for Guitar

Details

Zoom ZG5N Multi-Effects Processor for Guitar:

The Zoom ZG5N Multi-Effects processor is the ultimate workhorse at the tip of your toes. The ZG5N features 68 on-board high quality effects, 5 new amp and cabinet emulators, 100 custom-designed factory patches, free ZOOM guitar Lab software, 200 memory locations, and many more useable features you’ll enjoy.

Features:

  • 68 onboard high-quality digital effects, including distortion, overdrive,
  • EQ, compression, delay, reverb, flanging, phasing, and chorusing
  • 5 new amp emulators plus 5 cabinet emulators
  • 100 custom-designed factory patches
  • Free ZOOM Guitar Lab Mac/Windows software allows downloading
  • of additional effects and patches
  • Use up to 9 effects simultaneously, chained together in any order
  • 4 stompbox switches allow effects to instantly be brought in and out
  • Built-in expression pedal for real-time control over volume, tone, or
  • selected effect parameters
  • High output booster circuit for added volume and overdrive
  • Intuitive user interface
  • 200 memory locations for storage of factory and/or user-created patches
  • 4 independent editing displays, plus large overview display
  • Auto Save function for automatic saving of all patch parameters
  • Onboard chromatic tuner with dedicated footswitch supports all standard
  • guitar tunings, including open and drop tunings
  • Tuner range of 435 - 445 Hz
  • Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
  • 68 built-in rhythm patterns that can be used in conjunction with the Looper
  • Tap Tempo with dedicated footswitch
  • Input jack accepts standard guitar cable
  • Auxiliary stereo input jack for connection of smartphones and music players
  • Dual output jacks for connection to guitar amps and mono or stereo PA systems
  • Dedicated stereo headphone output
  • Control input for external footpedal
  • USB port for firmware updating and patch/effects downloading
  • Use as a USB audio interface for Mac/Windows computers, with direct
  • zero-latency monitoring of input signal
  • Included AC adapter
More Information
Product Name Zoom G5N Multi-Effects Processor Pedal for Guitar
Brand Zoom
Condition New
MPN ZG5N
UPC 884354015718
Shipping Option Free Shipping to the Continental U.S.
Features
  • 68 onboard high-quality digital effects, including distortion, overdrive,
  • EQ, compression, delay, reverb, flanging, phasing, and chorusing
  • 5 new amp emulators plus 5 cabinet emulators
  • 100 custom-designed factory patches
  • Free ZOOM Guitar Lab Mac/Windows software allows downloading
  • of additional effects and patches
  • Use up to 9 effects simultaneously, chained together in any order
  • 4 stompbox switches allow effects to instantly be brought in and out
  • Built-in expression pedal for real-time control over volume, tone, or
  • selected effect parameters
  • High output booster circuit for added volume and overdrive
  • Intuitive user interface
  • 200 memory locations for storage of factory and/or user-created patches
  • 4 independent editing displays, plus large overview display
  • Auto Save function for automatic saving of all patch parameters
  • Onboard chromatic tuner with dedicated footswitch supports all standard
  • guitar tunings, including open and drop tunings
  • Tuner range of 435 - 445 Hz
  • Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
  • 68 built-in rhythm patterns that can be used in conjunction with the Looper
  • Tap Tempo with dedicated footswitch
  • Input jack accepts standard guitar cable
  • Auxiliary stereo input jack for connection of smartphones and music players
  • Dual output jacks for connection to guitar amps and mono or stereo PA systems
  • Dedicated stereo headphone output
  • Control input for external footpedal
  • USB port for firmware updating and patch/effects downloading
  • Use as a USB audio interface for Mac/Windows computers, with direct
  • zero-latency monitoring of input signal
  • Included AC adapter
Tech Specs
  • Effect types: 78 (68 DSP effects, 5 amp emulators, 5 cabinet simulators)
  • Number of simultaneous effects: 9
  • Number of user banks/patches: 200
  • Sampling frequency: 44.1 kHz
  • A/D conversion: 24-bit with 128x oversampling
  • D/A conversion: 24-bit with 128x oversampling
  • Signal processing: 32-bit
  • Frequency characteristics: 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
  • Display: 128 x 32 dot-matrix LCD (x4), 256 x 32 dot-matrix LCD
  • Inputs
  • INPUT: Standard monaural phone jack, Rated input level: -20 dBu*, Input impedance(line): 470 kΩ
  • AUX IN: Stereo mini jack, Rated input level: -10 dBu*, Input impedance(line) : 10 kΩ
  • Outputs
  • L/R: Standard monaural phone jack x 2
  • Maximum output level: Line +5 dBu* (with output load impedance of 10 kΩ or more)
  • Phone: Stereo mini jack
  • Maximum output level: 20 mW + 20 mW (into 32 Ω load)
  • Equivalent input noise: -119 dBu*
  • Noise floor (residual noise): -101 dBm
  • Control input: Zoom FP01/FP02
  • Power: AC adapter DC9V (center minus plug), 500 mA
  • USB: USB Audio
  • Dimensions:  225 mm (D) X 454 mm (W) X 75 mm (H)
  • Weight: 3.4 kg
  • * 0dBu=0.775 Vrms
